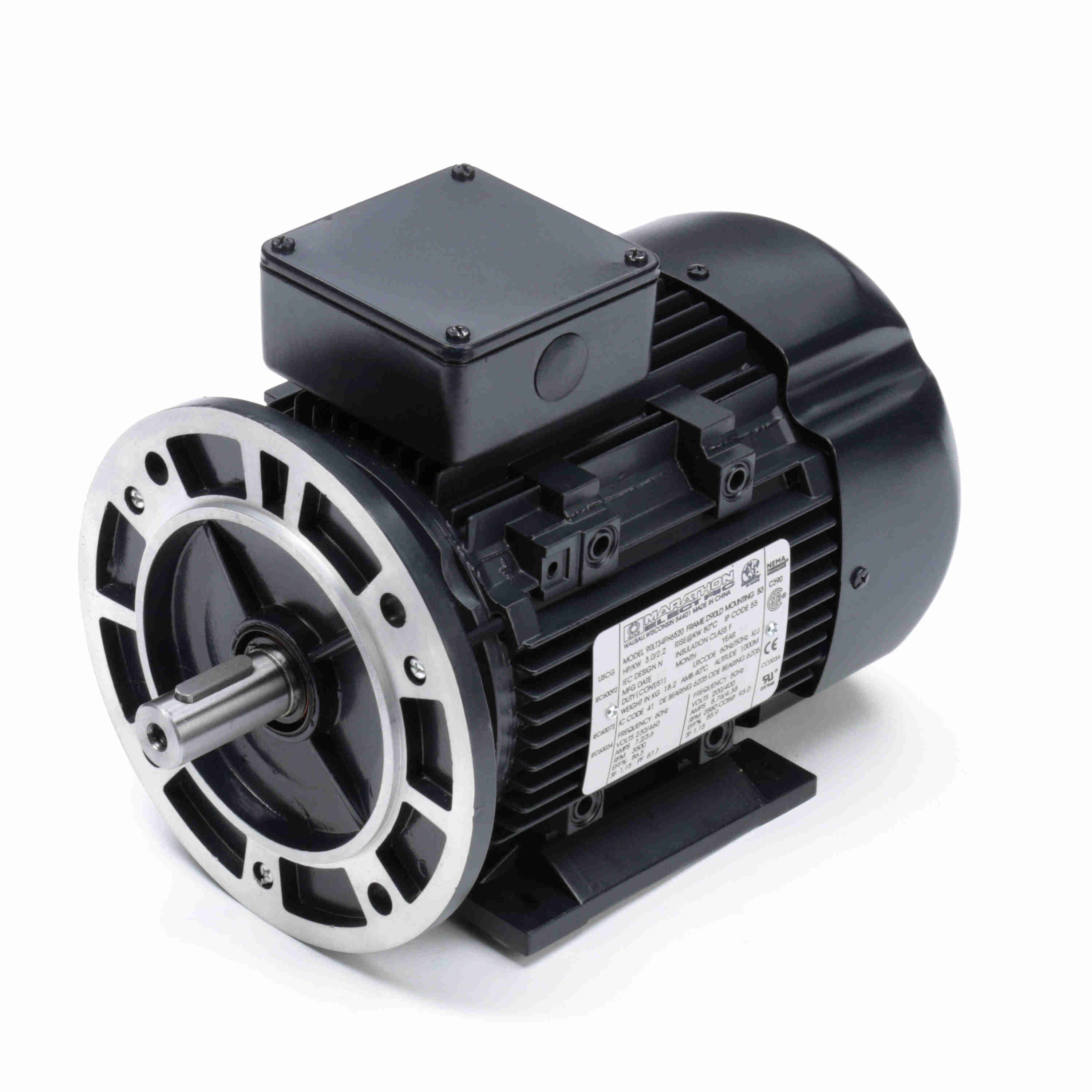

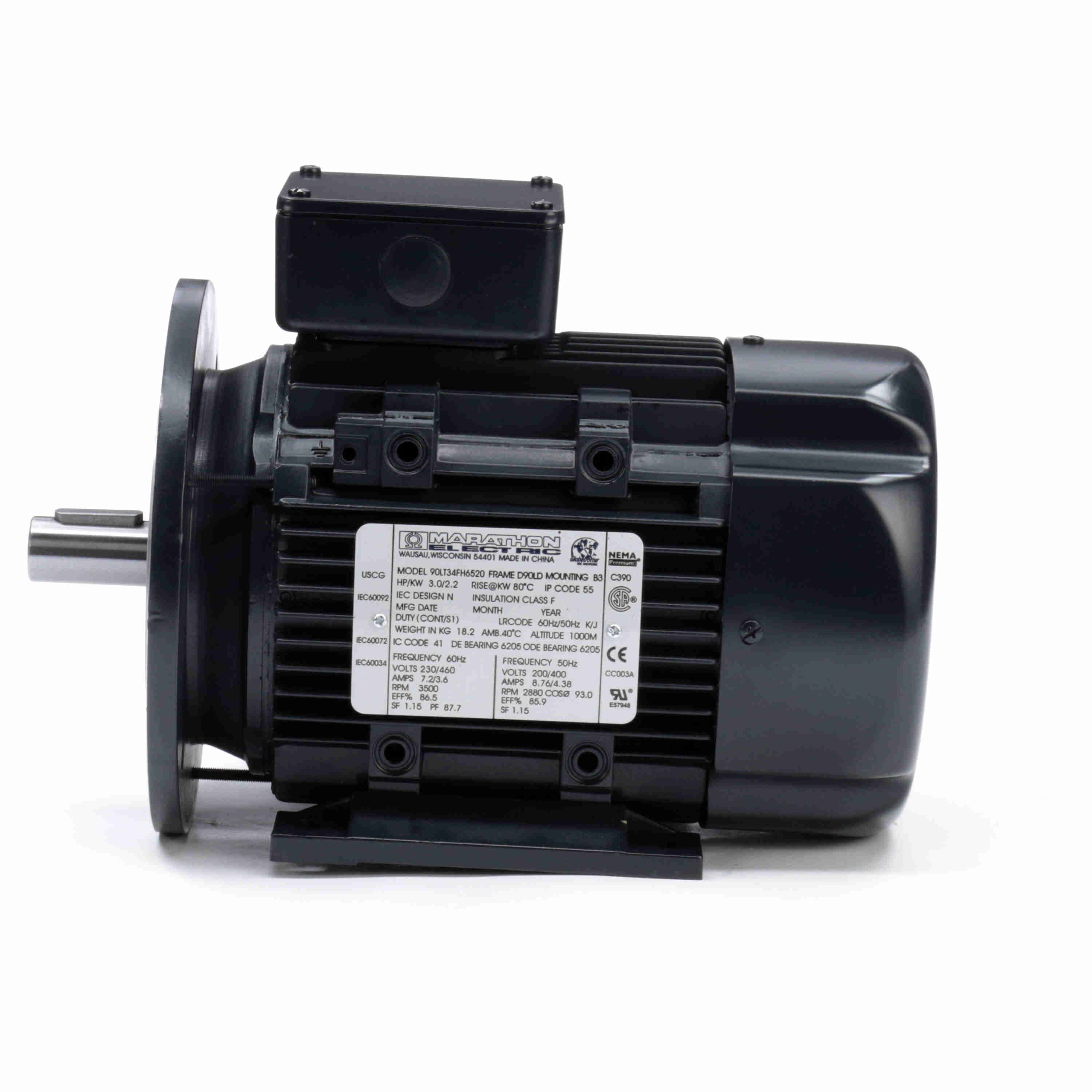

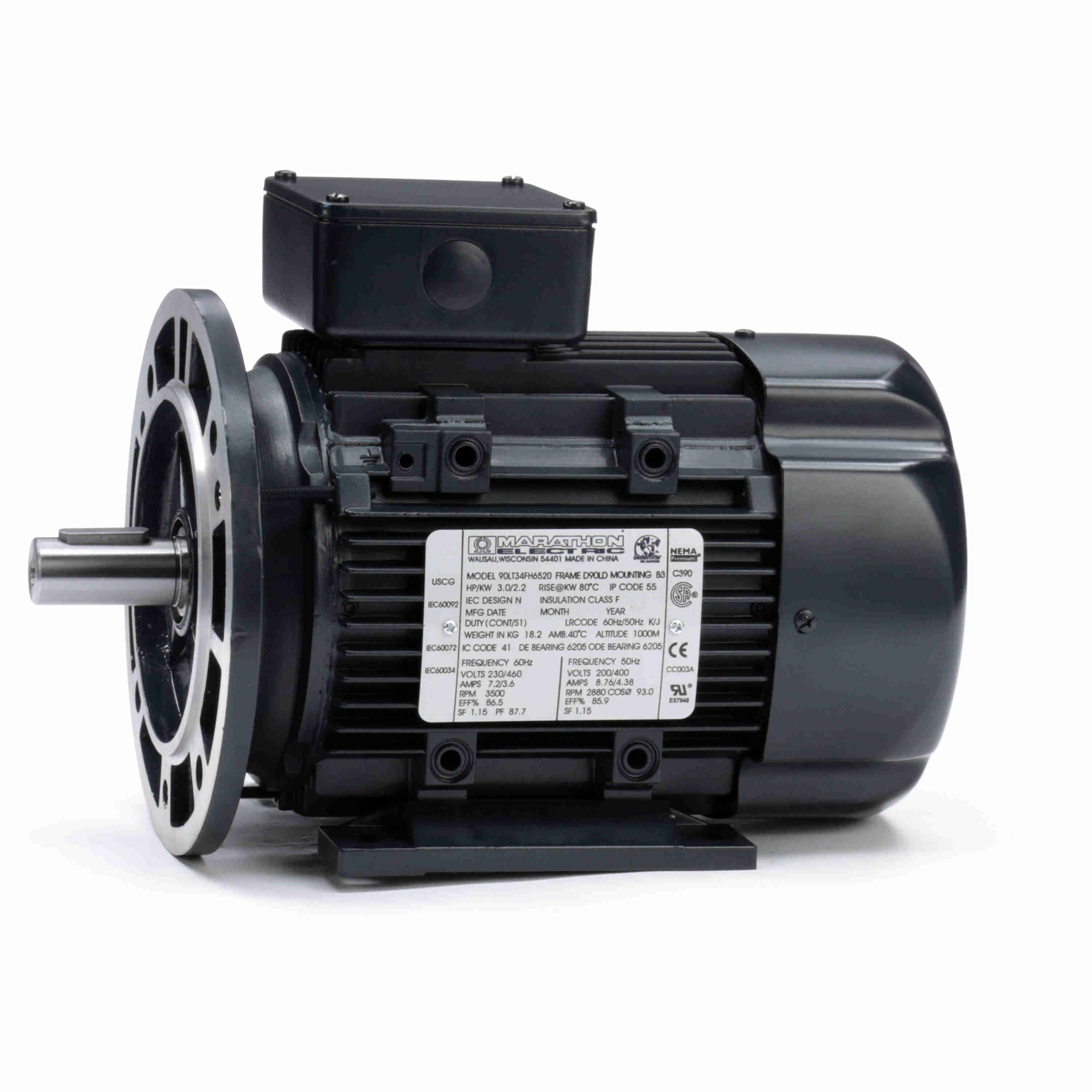

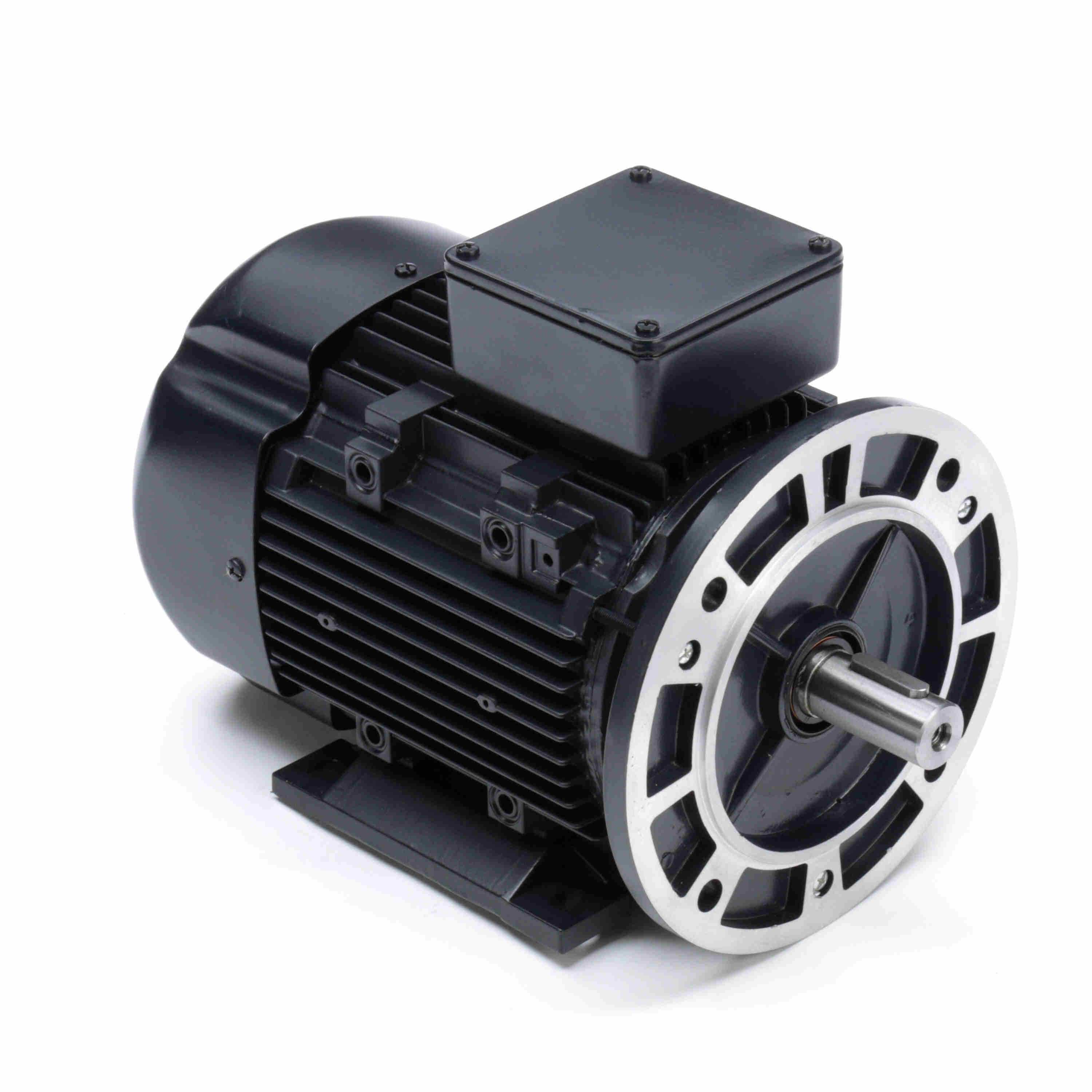

R399A Marathon 3HP/2.2kW IEC Metric Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 090LT34FH6520

Selected accessories will also be added to cart
$1,140.97 / Each
Quantity:
TEFC, IP55, 90L Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 090LT34FH6520, Rigid Base, "F" D-Flange, Aluminum Frame, 1" Shaft

Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Wye Start-Delta Run on 160 Frame and larger
  • 10:1 Variable Torque, Constant Torque speed range as noted
  • Top Mounted/Oversized gasketed terminal box

General Specifications

UPC: 722856027412 Weight: 42.00 LB
Packaged Length: 14.76 IN Packaged Width: 9.65 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 7.2/3.6 A Speed: 3500 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 87.5 % Power Factor: 87.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 90L Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 45

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 12.83 in
Frame Length: 7.08 in Shaft Diameter: 1.000 in
Shaft Extension: 1.96 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 32.40 900.0 13.24 294.0 3 16.90 65.5 3.00
Pull-Up 31.50 875.0 11.72 260.0 557 16.80 66.9 3.00
Break-Down 20.40 567.0 16.45 366.0 2,671 13.20 81.5 3.00
Full Load 3.60 100.0 4.50 100.0 3,503 2.55 88.8 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.40 1.60 2.20 2.90 3.60 4.50 5.50
Rated Output (KW) 0.11 0.69 1.28 1.90 2.55 3.23 3.95
Efficiency (%) 0.0 81.4 87.6 88.4 87.9 86.6 84.9
Power Factor (%) 10.1 53.8 73.0 82.2 88.8 90.1 90.1
Speed (RPM) 3,597 3,576 3,554 3,528 3,503 3,473 3,439
Temp. Rise @ FL 0.0 0.0 0.0 0.0 36.0 0.0 0.0
Torque (ft-lbs) 0.00 1.10 2.22 3.35 4.50 5.67 6.86
