/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base, "F" (D-Flange)/R398A Marathon 2HP/1.5kW IEC Metric Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: 090LT17FH6519

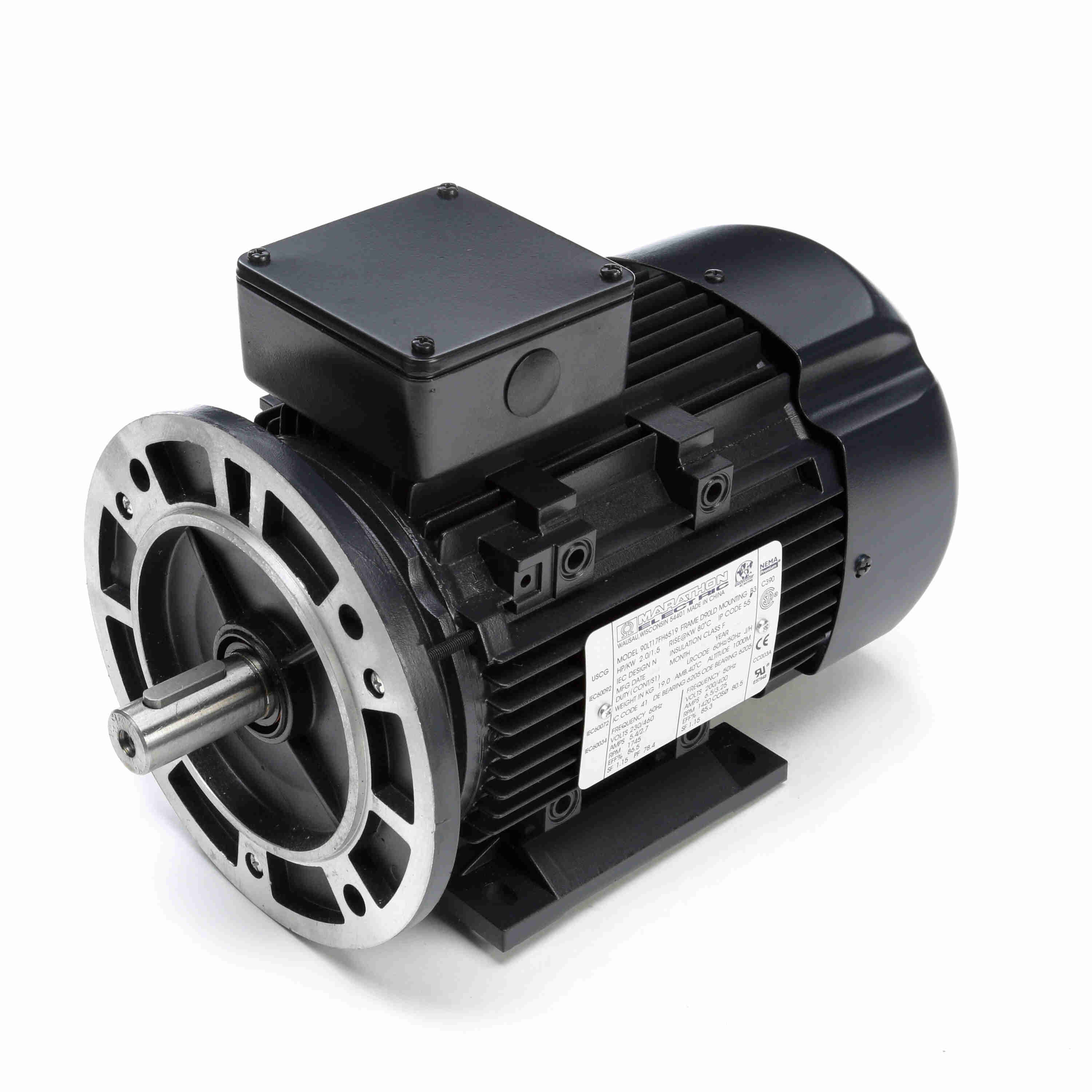

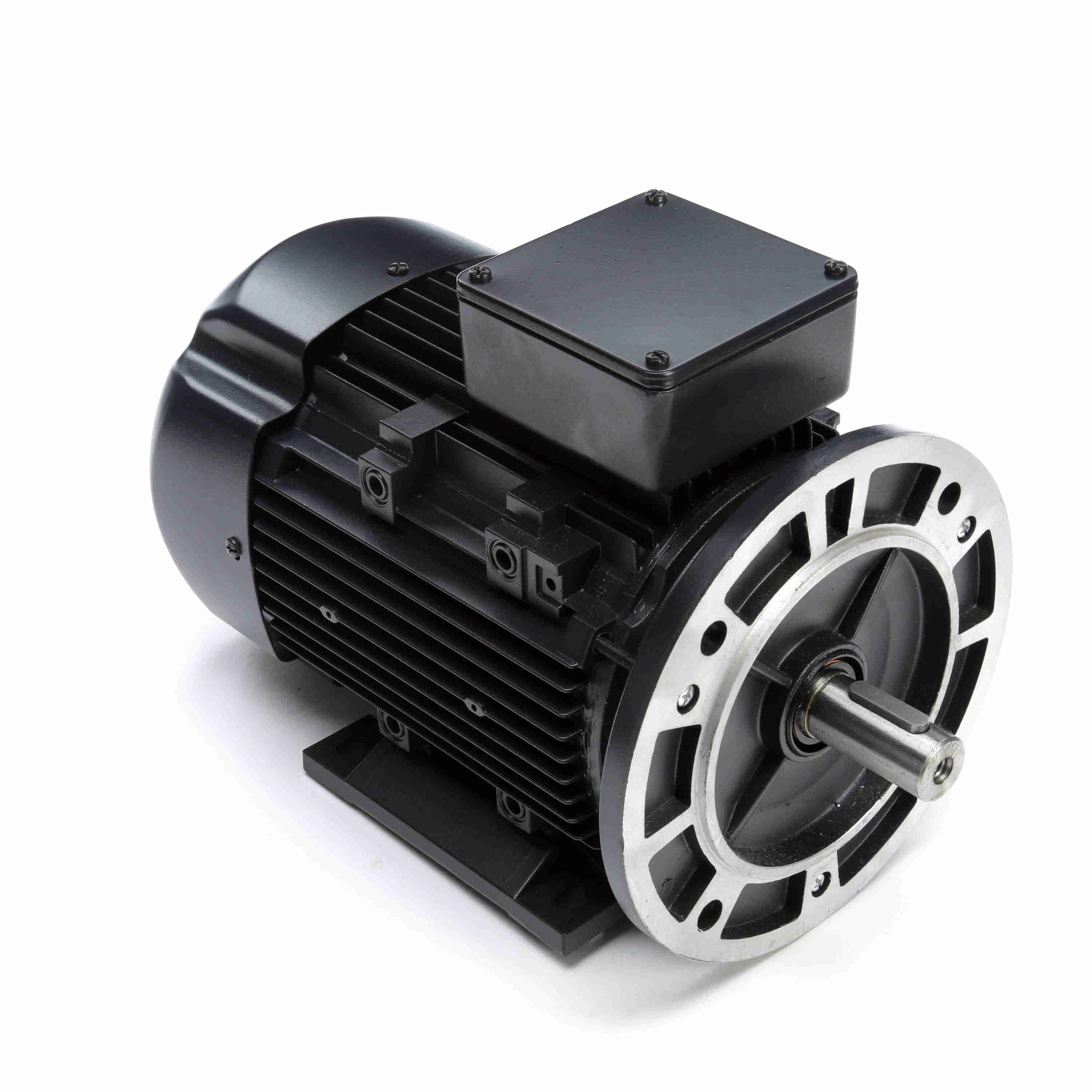

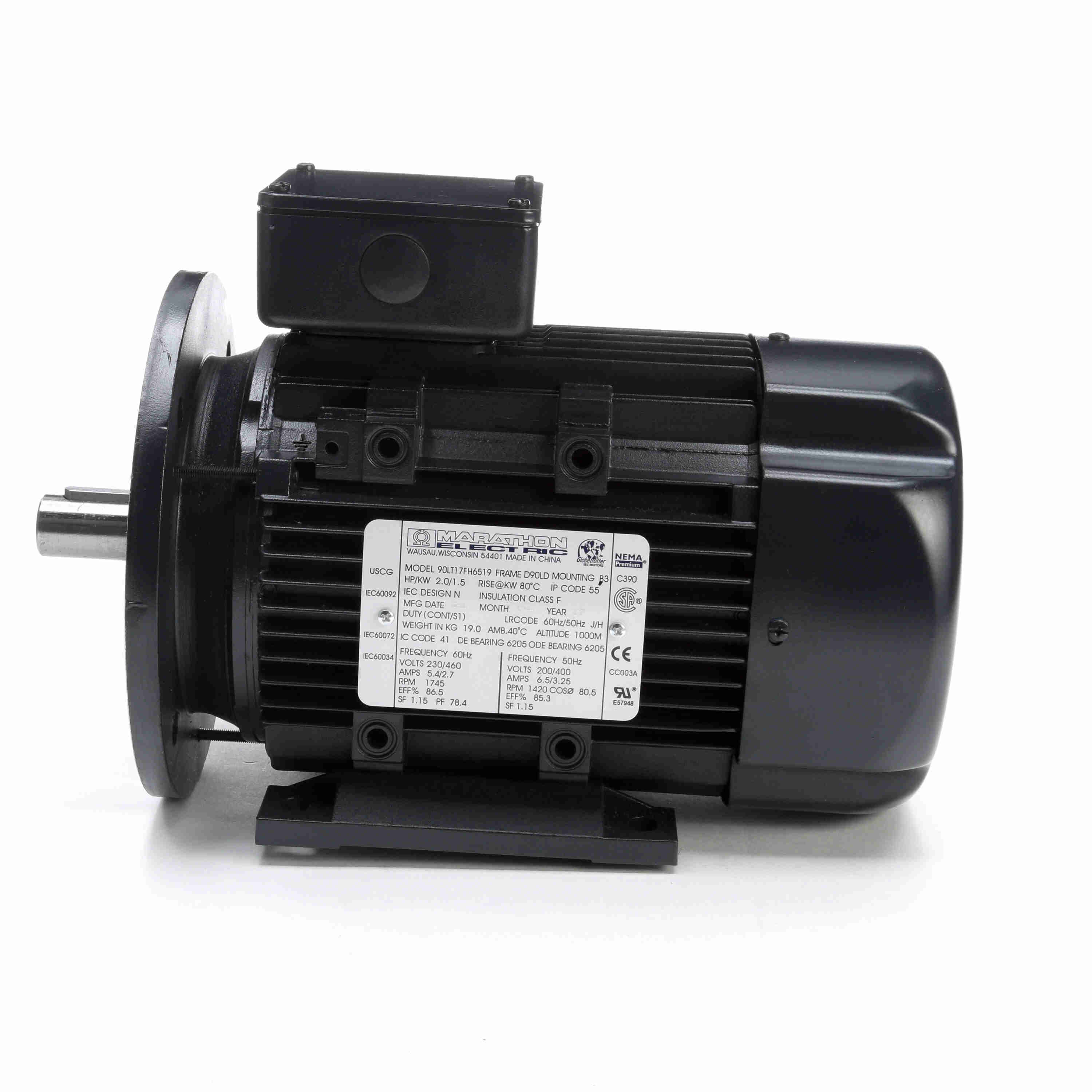

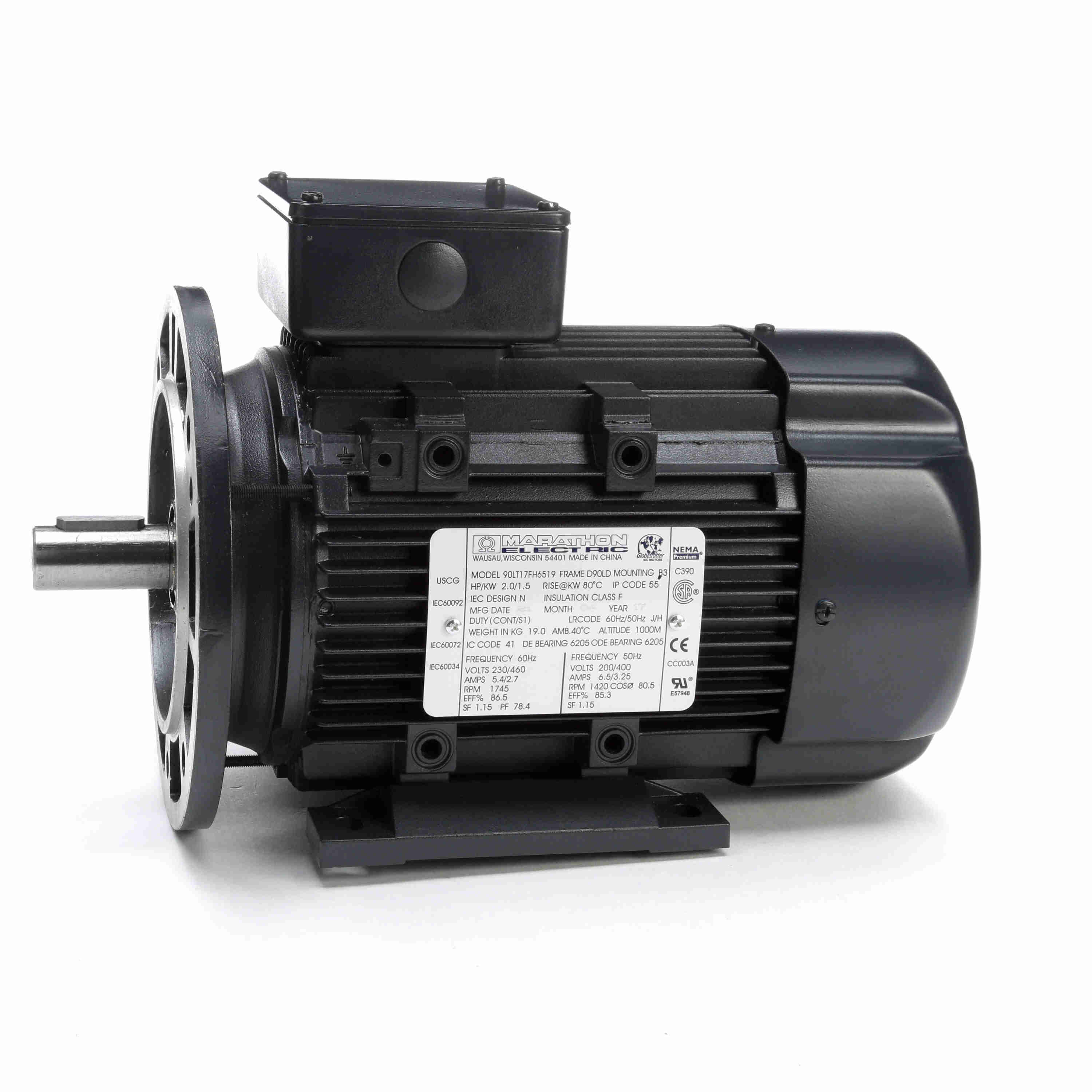

R398A Marathon 2HP/1.5kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 090LT17FH6519

Selected accessories will also be added to cart
$670.97 / Each
Quantity:
TEFC, IP55, 90L Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 090LT17FH6519, Rigid Base, "F" D-Flange, Aluminum Frame, 24mm Keyed Shaft

Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Wye Start-Delta Run on 160 Frame and larger
  • 10:1 Variable Torque, Constant Torque speed range as noted
  • Top Mounted/Oversized gasketed terminal box

General Specifications

UPC: 722856027405 Weight: 45.00 LB
Packaged Length: 14.76 IN Packaged Width: 9.65 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 5.4/2.7 A Speed: 1745 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 87.5 % Power Factor: 78.4
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 90L Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 12.83 in
Frame Length: 7.08 in Shaft Diameter: 1.000 in
Shaft Extension: 1.96 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 18.40 681.0 11.28 187.0 321 7.10 48.7 2.00
Full Load 2.70 100.0 6.02 100.0 1,745 1.70 78.4 2.00
Break-Down 10.70 396.0 18.11 301.0 1,421 6.40 75.4 2.00
Locked-Rotor 18.70 693.0 14.39 239.0 5 6.90 46.6 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.30 1.40 1.70 2.20 2.70 3.30 4.10
Rated Output (KW) 0.08 0.46 0.86 1.27 1.70 2.16 2.64
Efficiency (%) 0.0 80.4 86.8 88.1 87.6 86.5 84.7
Power Factor (%) 8.0 41.6 63.4 72.5 79.1 82.0 80.9
Speed (RPM) 1,799 1,788 1,775 1,762 1,745 1,728 1,707
Temp. Rise @ FL 0.0 0.0 0.0 0.0 26.6 0.0 0.0
Torque (ft-lbs) 0.00 1.47 2.96 4.47 6.02 7.60 9.23
