Product ID: 090LT34FH6420

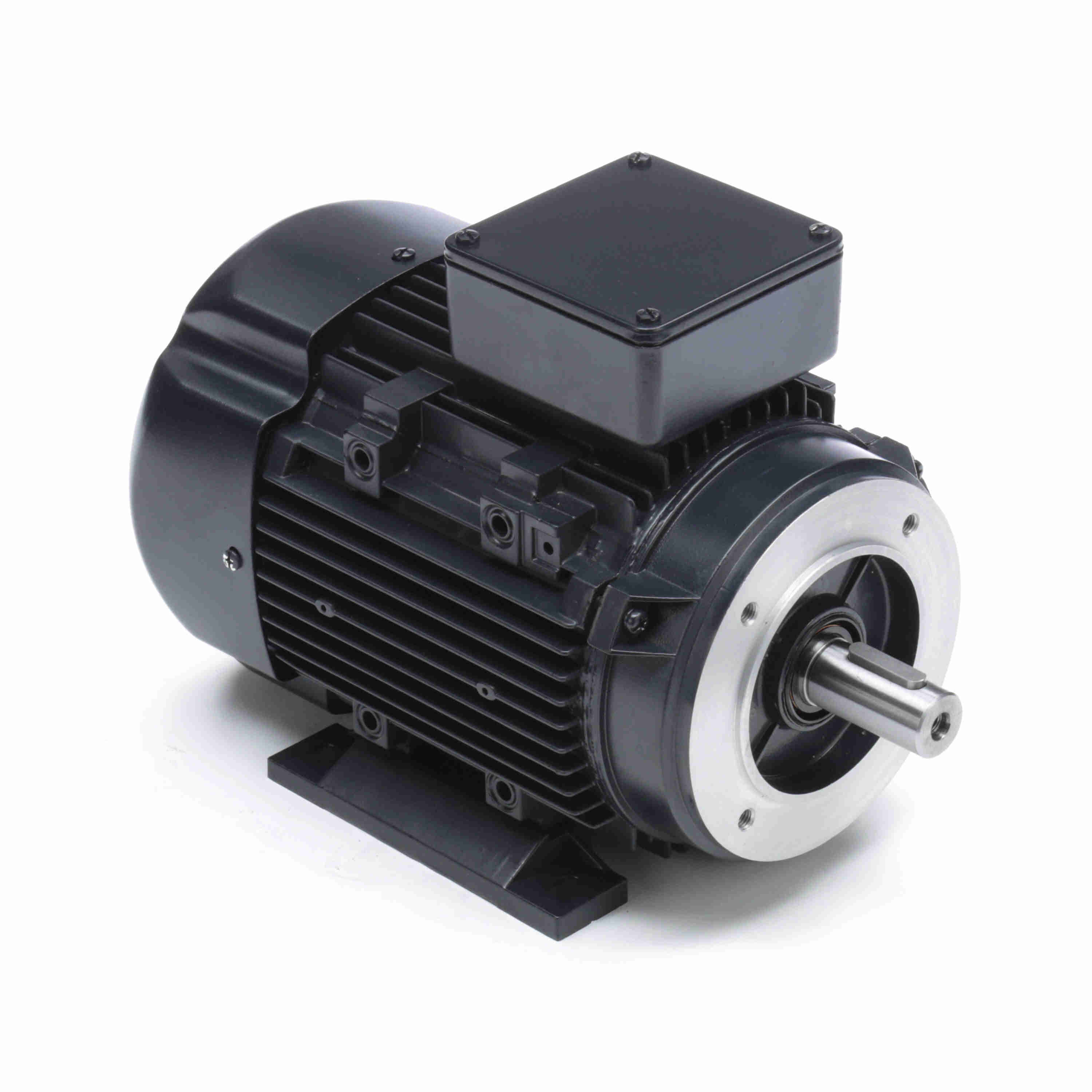

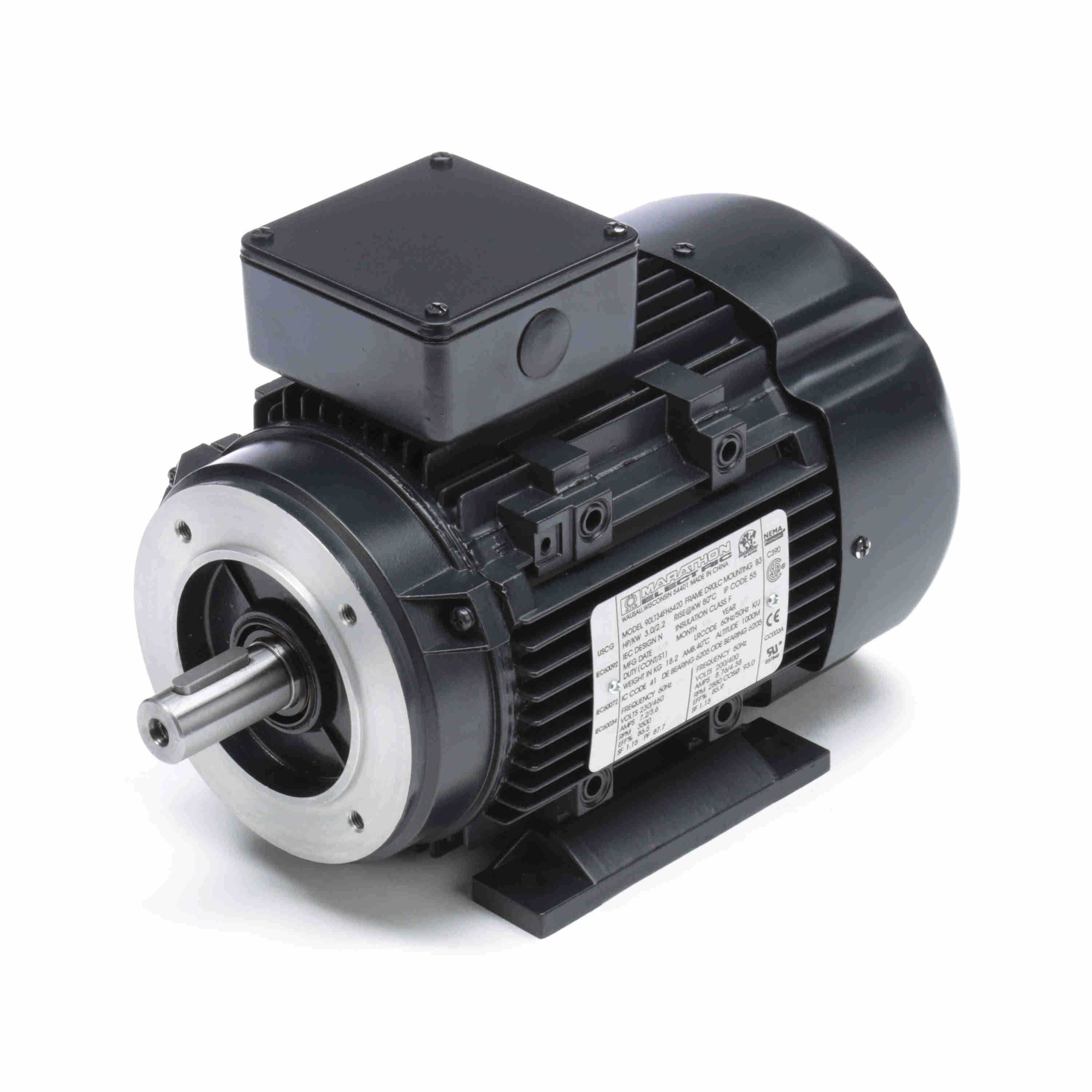

R379A Marathon 3HP/2.2kW IEC Metric Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 090LT34FH6420

Selected accessories will also be added to cart

$1,140.97 / Each

Quantity:

TEFC, IP55, 90S Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 090LT34FH6420, Rigid Base, "FT" C-Face, Aluminum Frame, 24mm Keyed Shaft

Details
Purchase Components

Features

Meets IE3 European and NEMA Premium® efficiencies
MAX GUARD® Class F Insulation, Class B rise @ rated KW
Wye Start-Delta Run on 160 Frame and larger
10:1 Variable Torque, Constant Torque speed range as noted
Top Mounted/Oversized gasketed terminal box

General Specifications

UPC:	722856027214	Weight:	41.00 LB
Packaged Length:	14.76 IN	Packaged Width:	9.65 IN
Packaged Height:	10.63 IN

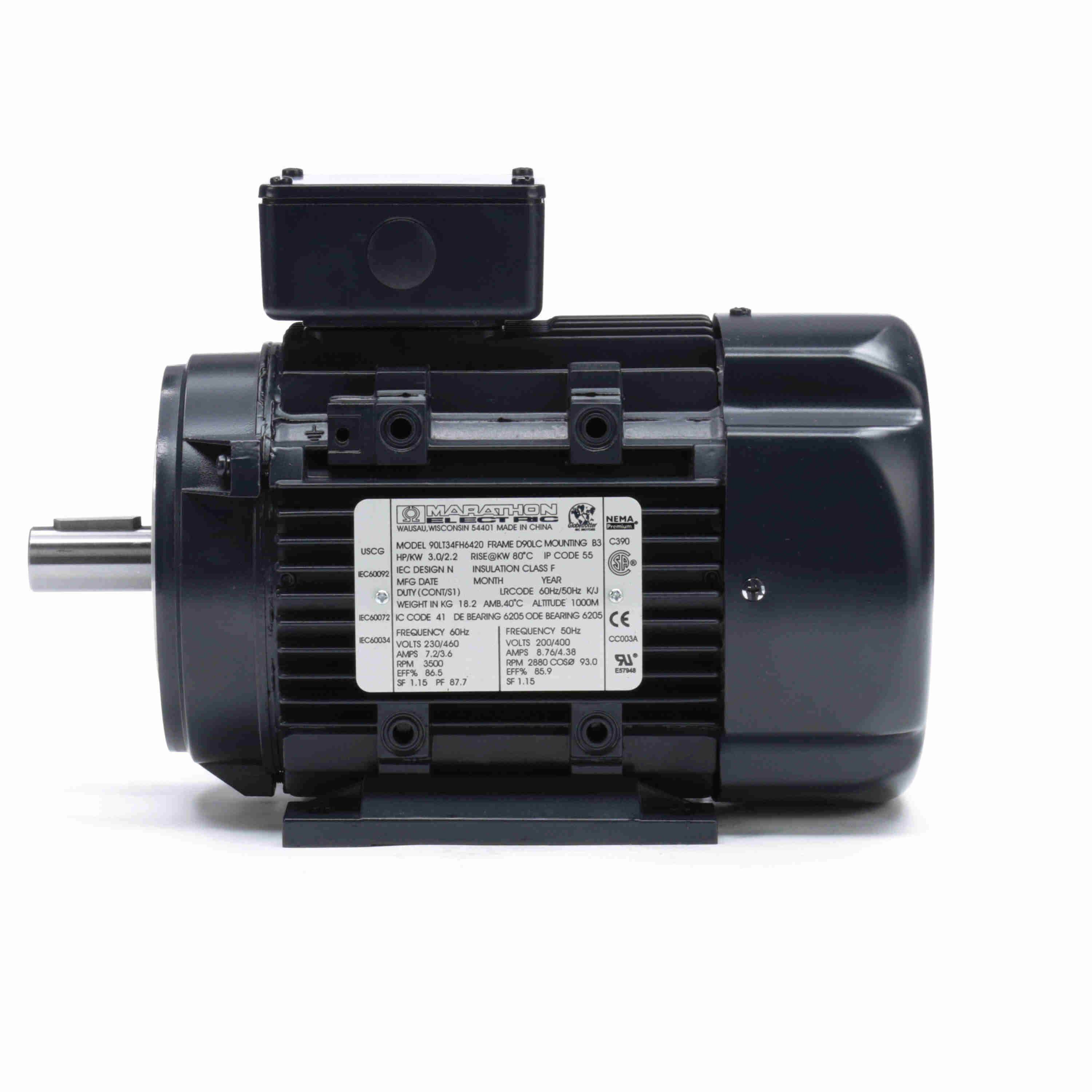

Nameplate Specifications

Output HP:	3 Hp	Output KW:	2.2 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	7.2/3.6 A	Speed:	3500 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	87.5 %	Power Factor:	87.5
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	K
Frame:	90L	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	55

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Rated	Starting Method:	Line Or Inverter
Poles:	2	Rotation:	Reversible
Resistance Main:	0 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Aluminum
Shaft Type:	IEC	Overall Length:	12.83 in
Frame Length:	7.08 in	Shaft Diameter:	1.000 in
Shaft Extension:	1.96 in	Assembly/Box Mounting:	F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	3.60	100.0	4.50	100.0	3,503	2.55	88.8	3.00
Pull-Up	31.50	875.0	11.72	260.0	557	16.80	66.9	3.00
Locked-Rotor	32.40	900.0	13.24	294.0	3	16.90	65.5	3.00
Break-Down	20.40	567.0	16.45	366.0	2,671	13.20	81.5	3.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	1.40	1.60	2.20	2.90	3.60	4.50	5.50
Rated Output (KW)	0.11	0.69	1.28	1.90	2.55	3.23	3.95
Efficiency (%)	0.0	81.4	87.6	88.4	87.9	86.6	84.9
Power Factor (%)	10.1	53.8	73.0	82.2	88.8	90.1	90.1
Speed (RPM)	3,597	3,576	3,554	3,528	3,503	3,473	3,439
Temp. Rise @ FL	0.0	0.0	0.0	0.0	36.0	0.0	0.0
Torque (ft-lbs)	0.00	1.10	2.22	3.35	4.50	5.67	6.86
