Product ID: 090LT17FH6419

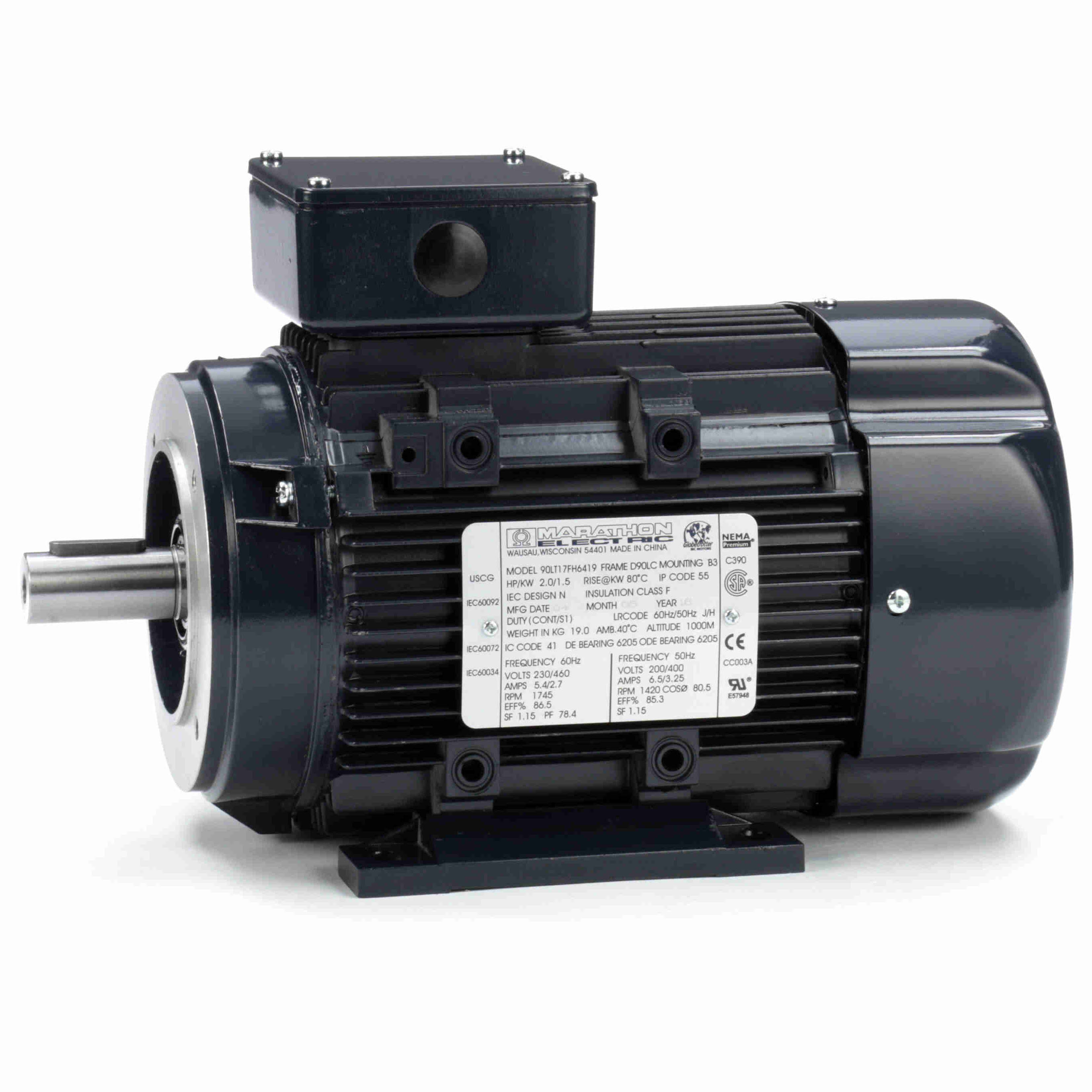

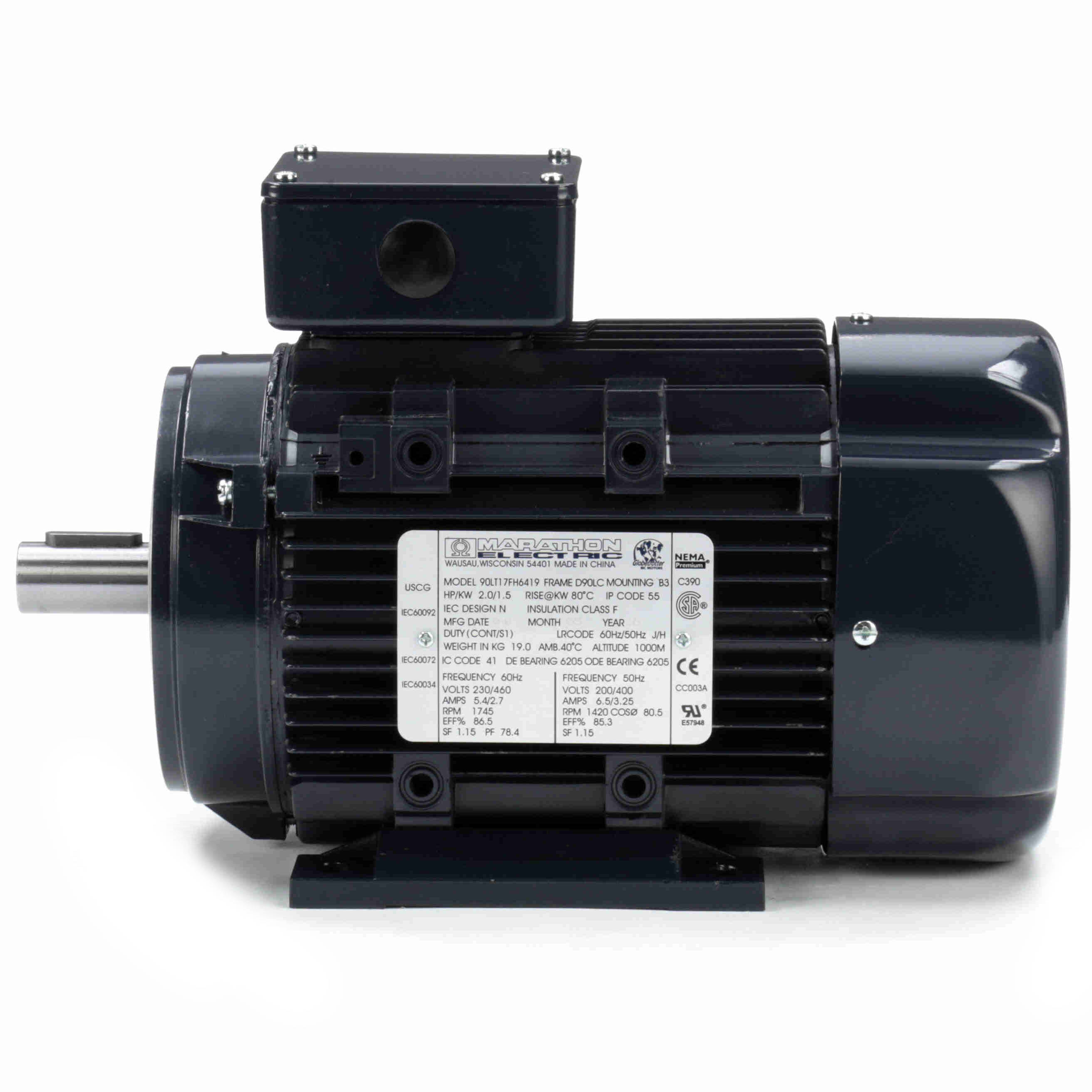

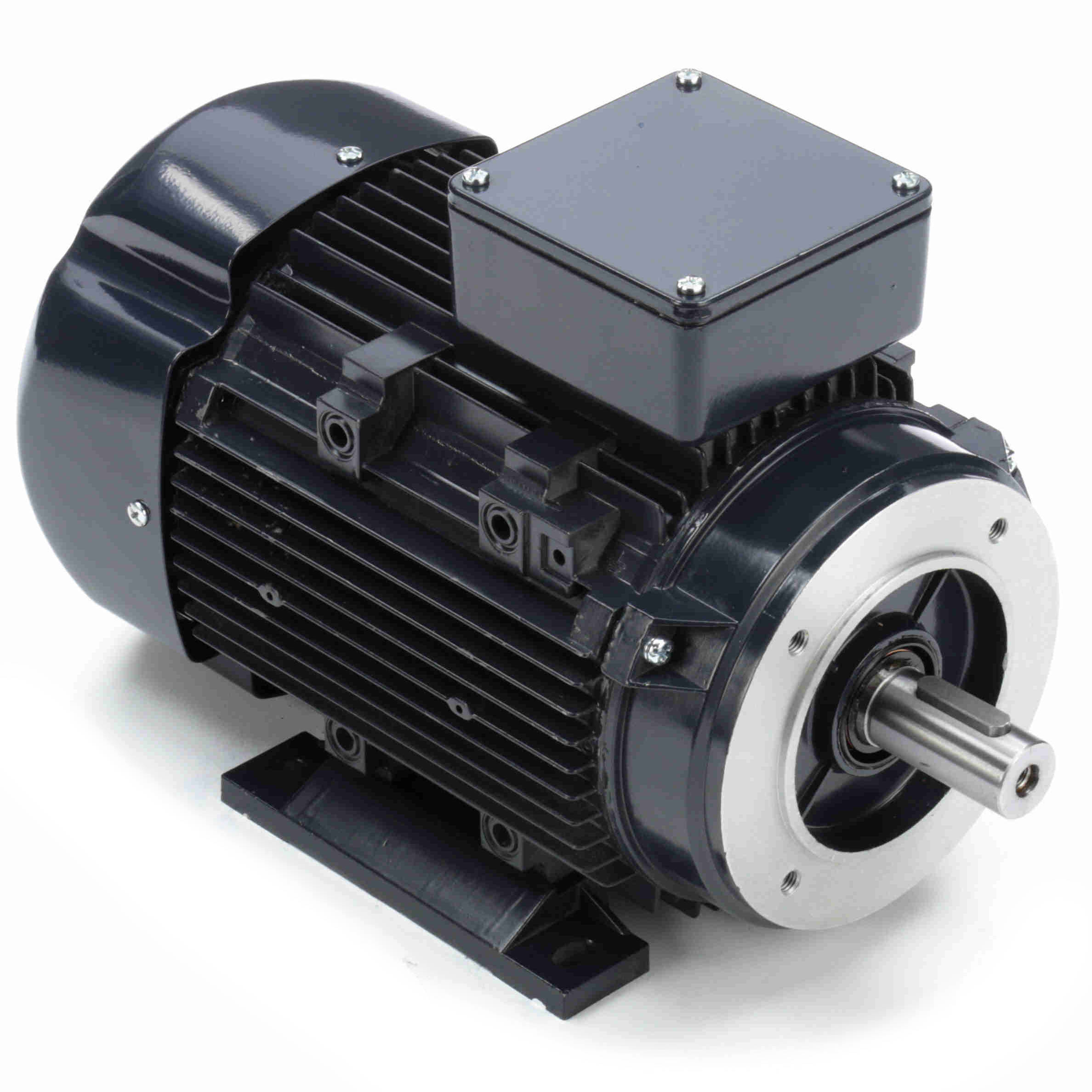

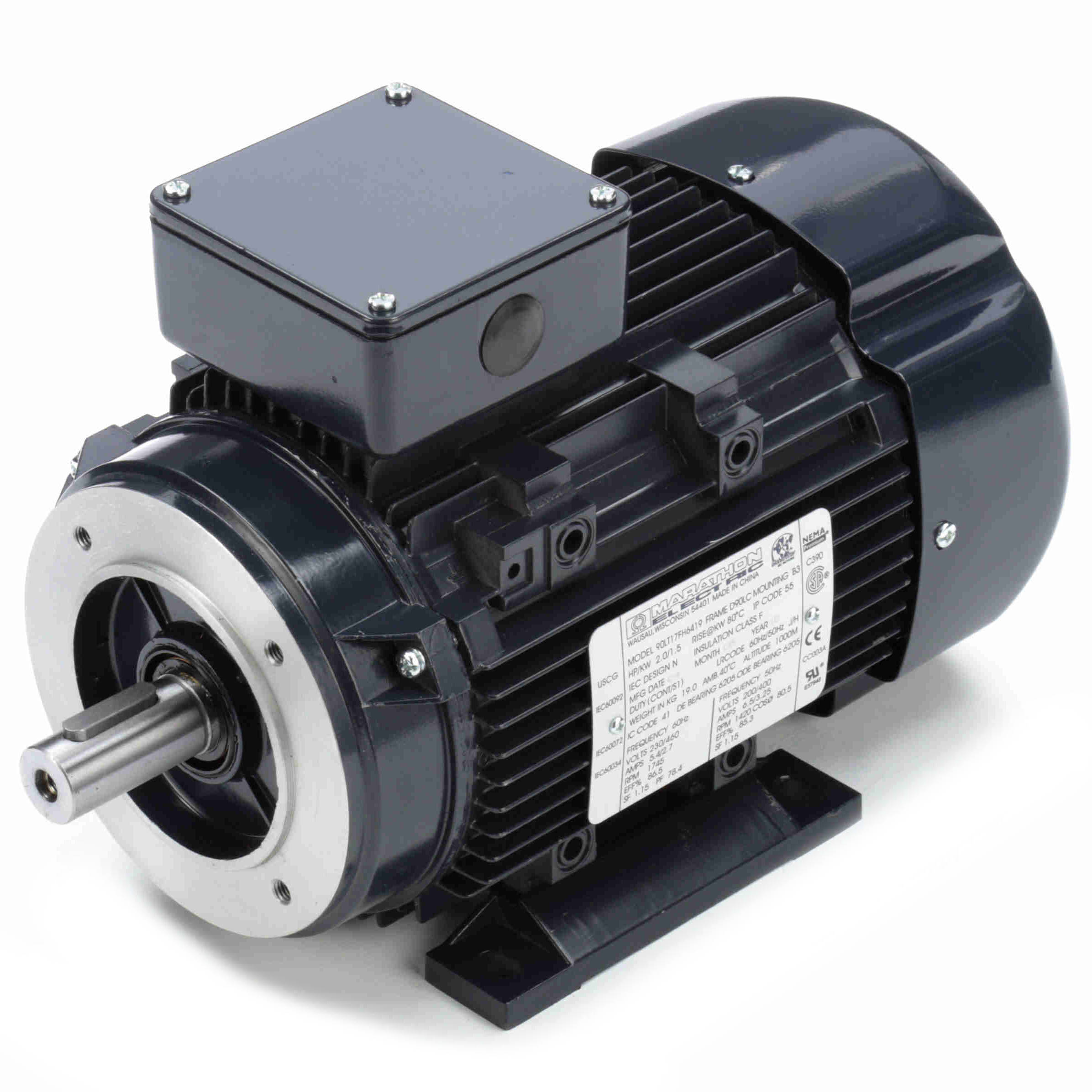

R378A Marathon 2HP/1.5kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 090LT17FH6419

Selected accessories will also be added to cart

$1,001.97 / Each

Quantity:

TEFC, IP55, 90L Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 090LT17FH6419, Rigid Base, "FT" C-Face, Aluminum Frame, 24mm Keyed Shaft

Details
Purchase Components

Features

Meets IE3 European and NEMA Premium® efficiencies
MAX GUARD® Class F Insulation, Class B rise @ rated KW
Wye Start-Delta Run on 160 Frame and larger
10:1 Variable Torque, Constant Torque speed range as noted
Top Mounted/Oversized gasketed terminal box

General Specifications

UPC:	722856027207	Weight:	44.00 LB
Packaged Length:	15.55 IN	Packaged Width:	9.65 IN
Packaged Height:	10.63 IN

Nameplate Specifications

Output HP:	2 Hp	Output KW:	1.5 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	5.4/2.7 A	Speed:	1745 rpm
Service Factor:	1.15	Phase:	3
Efficiency:	86.5 %	Power Factor:	78.5
Duty:	Continuous	Insulation Class:	F
Design Code:	B	KVA Code:	J
Frame:	90L	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6205
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	55

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Rated	Starting Method:	Line Or Inverter
Poles:	4	Rotation:	Reversible
Resistance Main:	0 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Aluminum
Shaft Type:	IEC	Overall Length:	12.83 in
Frame Length:	7.08 in	Shaft Diameter:	1.000 in
Shaft Extension:	1.96 in	Assembly/Box Mounting:	F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	2.70	100.0	6.02	100.0	1,745	1.70	78.4	2.00
Break-Down	10.70	396.0	18.11	301.0	1,421	6.40	75.4	2.00
Locked-Rotor	18.70	693.0	14.39	239.0	5	6.90	46.6	2.00
Pull-Up	18.40	681.0	11.28	187.0	321	7.10	48.7	2.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	150 %
Current (Amps)	1.30	1.40	1.70	2.20	2.70	3.30	4.10
Rated Output (KW)	0.08	0.46	0.86	1.27	1.70	2.16	2.64
Efficiency (%)	0.0	80.4	86.8	88.1	87.6	86.5	84.7
Power Factor (%)	8.0	41.6	63.4	72.5	79.1	82.0	80.9
Speed (RPM)	1,799	1,788	1,775	1,762	1,745	1,728	1,707
Temp. Rise @ FL	0.0	0.0	0.0	0.0	26.6	0.0	0.0
Torque (ft-lbs)	0.00	1.47	2.96	4.47	6.02	7.60	9.23
