/Products/Electric Motors/3 Phase Metric/Marathon/Rigid Base/R301 Marathon 0.25HP/0.18kW IEC Metric Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: 063T17FH5326

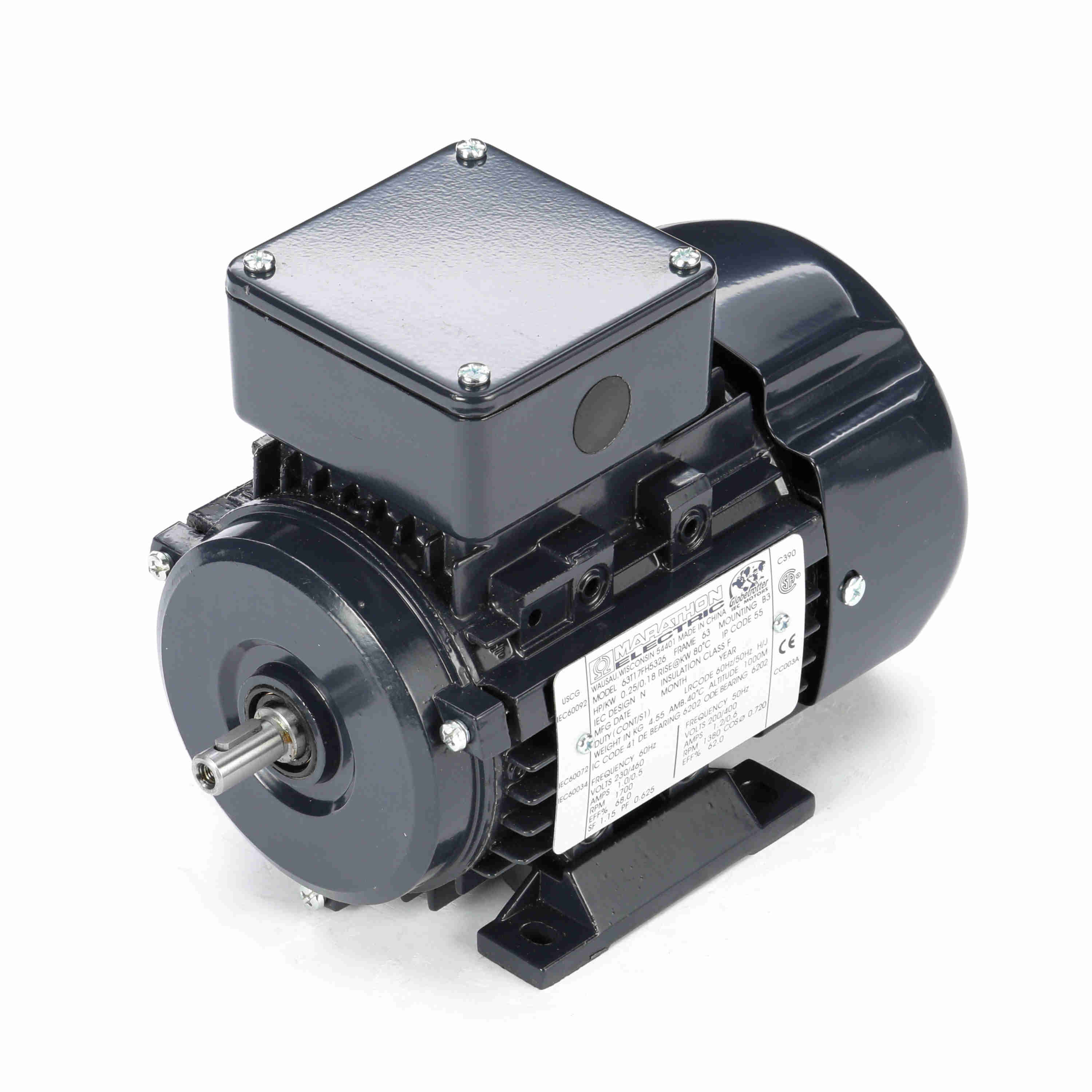

R301 Marathon 0.25HP/0.18kW IEC Metric Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 063T17FH5326

Selected accessories will also be added to cart
$364.97 / Each
Quantity:
TEFC, IP55, 63 Frame, 230/460/200/400VAC 3-Phase 50/60Hz, 063T17FH5326, Rigid Base, Aluminum Frame, 11mm Keyed Shaft

Features

  • Meets IE3 European and NEMA Premium® efficiencies
  • MAX GUARD® Class F Insulation, Class B rise @ rated KW
  • Wye Start-Delta Run on 160 Frame and larger
  • Top Mounted/Oversized gasketed terminal box

General Specifications

UPC: 722856026156 Weight: 12.00 LB
Packaged Length: 10.24 IN Packaged Width: 6.89 IN
Packaged Height: 7.48 IN

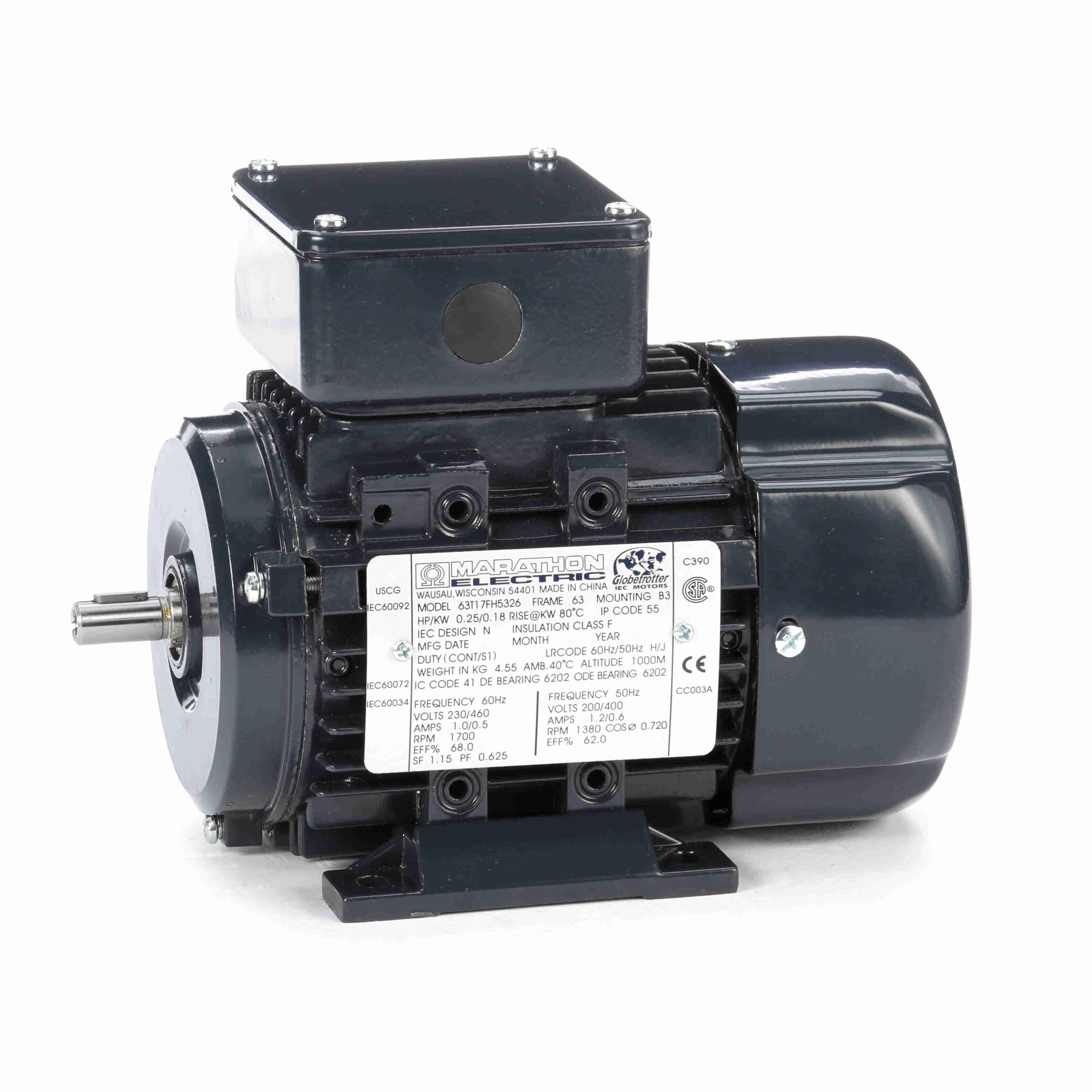

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.18 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 1.0/0.50 A Speed: 1700 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 68 % Power Factor: 62.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: H
Frame: 63 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6202 Opp Drive End Bearing Size: 6202
UL: Recognized CSA: Y
CE: Y IP Code: 55

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 26.59 Ohms Mounting: B3
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Aluminum
Shaft Type: IEC Overall Length: 8.54 in
Frame Length: 4.44 in Shaft Diameter: 0.428 in
Shaft Extension: 23 in Assembly/Box Mounting: F3

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 0.50 100.0 12.00 100.0 1,695 0.00 0.0 0.25
Locked-Rotor 2.20 440.0 29.50 246.0 0 0.00 0.0 0.25
Pull-Up 0.00 0.0 27.60 230.0 0 0.00 0.0 0.25
Break-Down 0.00 0.0 33.00 275.0 0 0.00 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.44 0.46 0.48 0.52 0.55 0.64 0.70
Rated Output (KW) 0.06 0.12 0.17 0.23 0.27 0.35 0.42
Efficiency (%) 0.0 42.3 54.7 61.5 68.1 63.5 62.4
Power Factor (%) 17.7 31.4 44.5 54.6 60.5 68.6 74.4
Speed (RPM) 1,792 1,769 1,745 1,721 1,695 1,657 1,620
Temp. Rise @ FL 0.0 0.0 0.0 0.0 40.0 0.0 0.0
Torque (ft-lbs) 0.00 3.10 6.00 9.10 12.00 15.10 18.00
