Product ID: NPV0154C

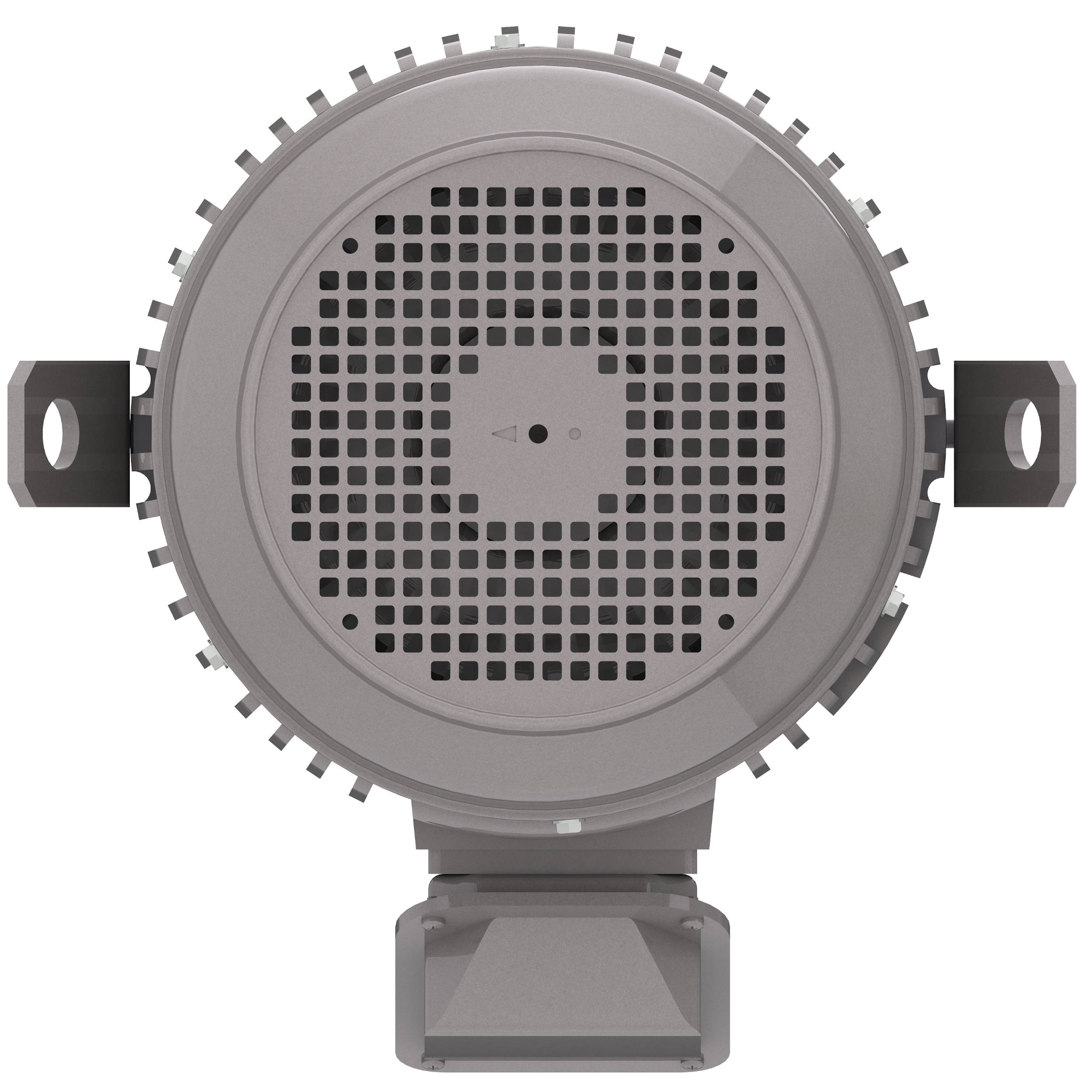

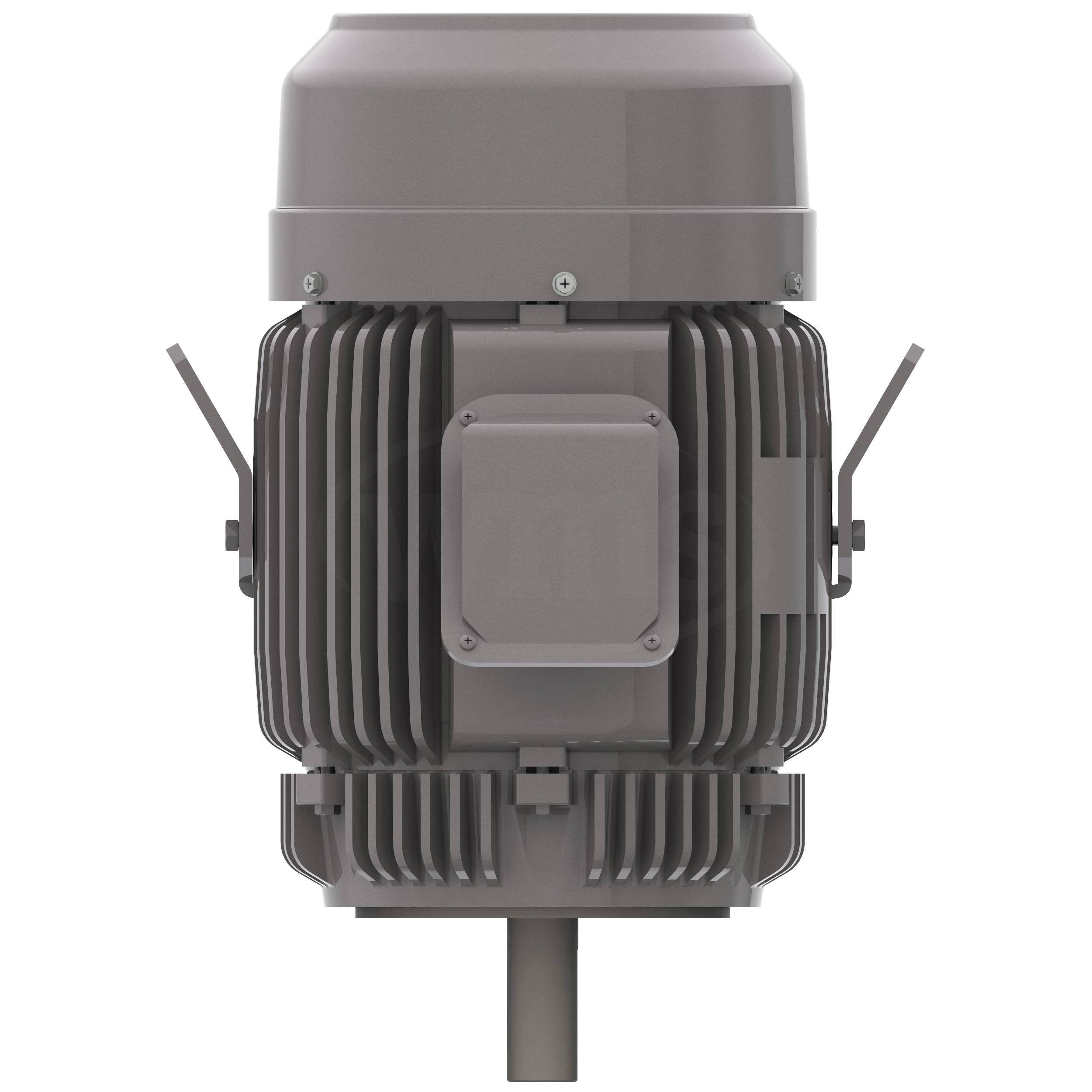

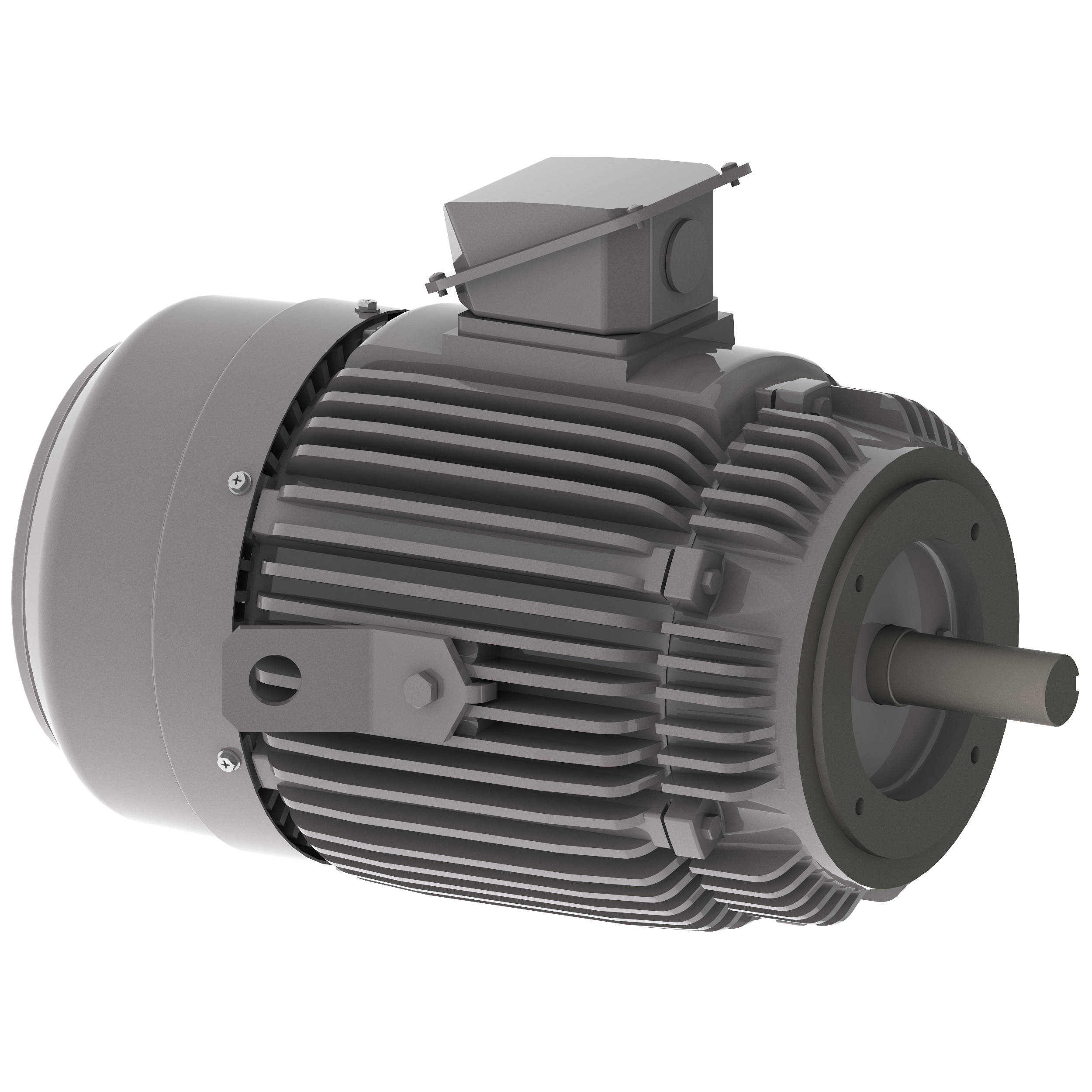

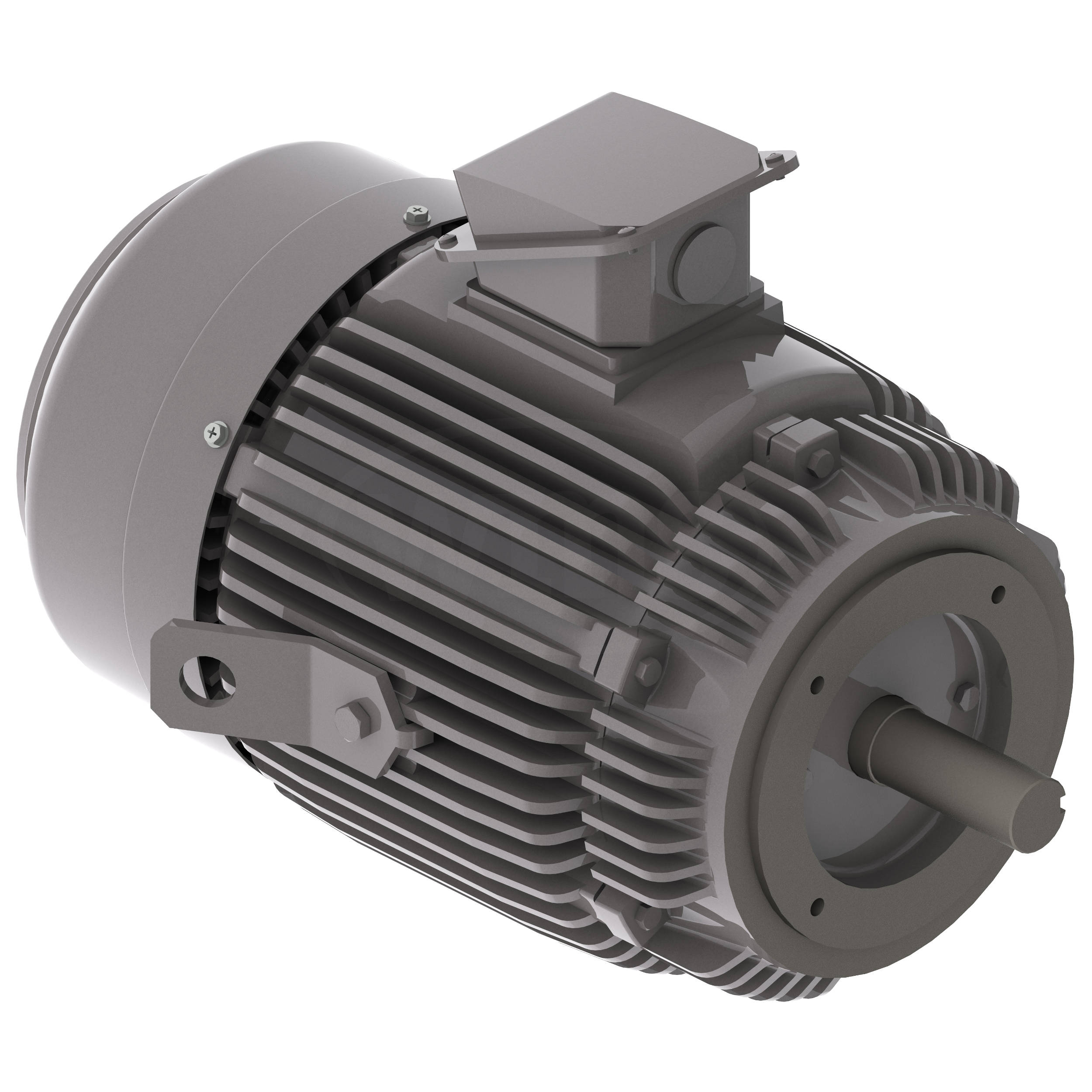

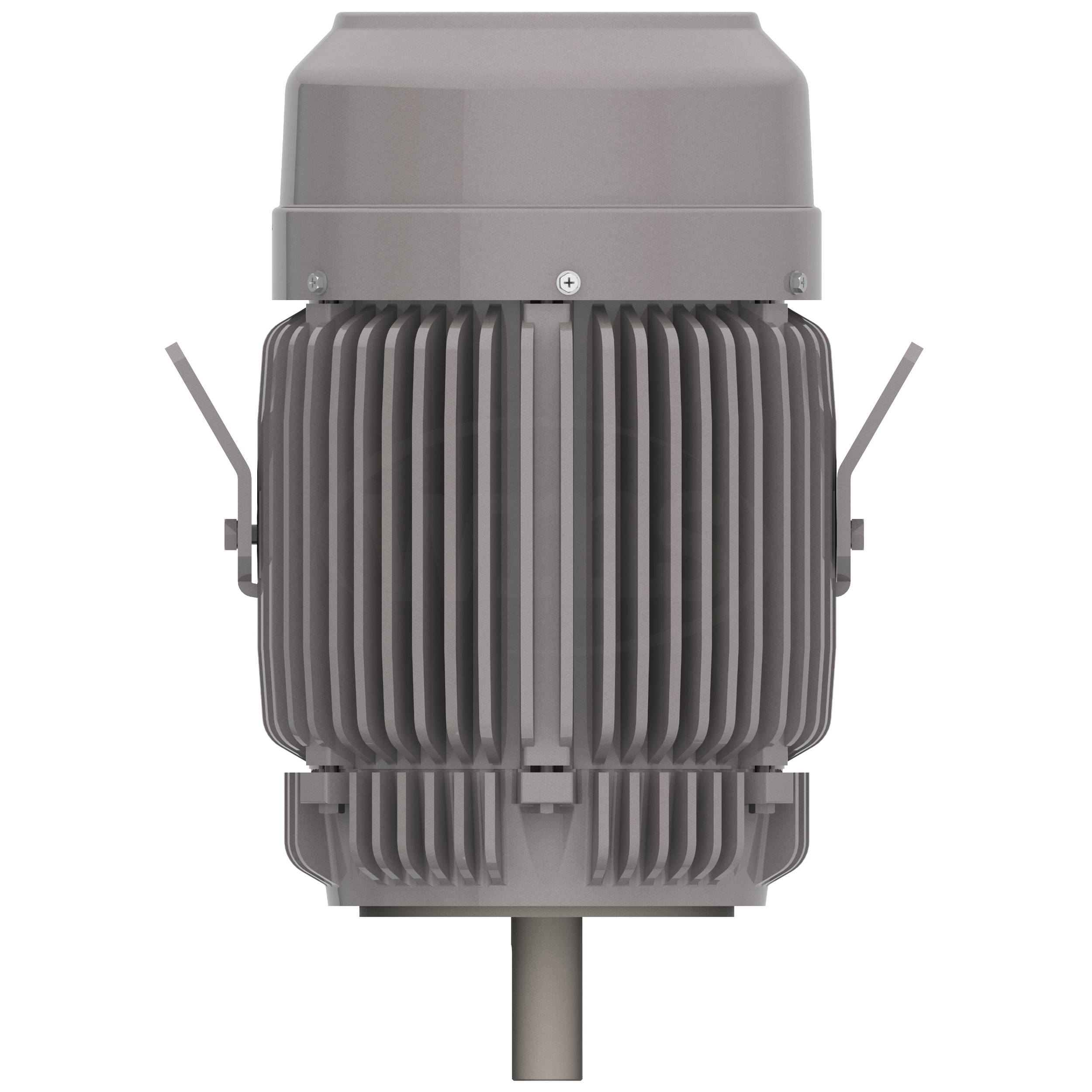

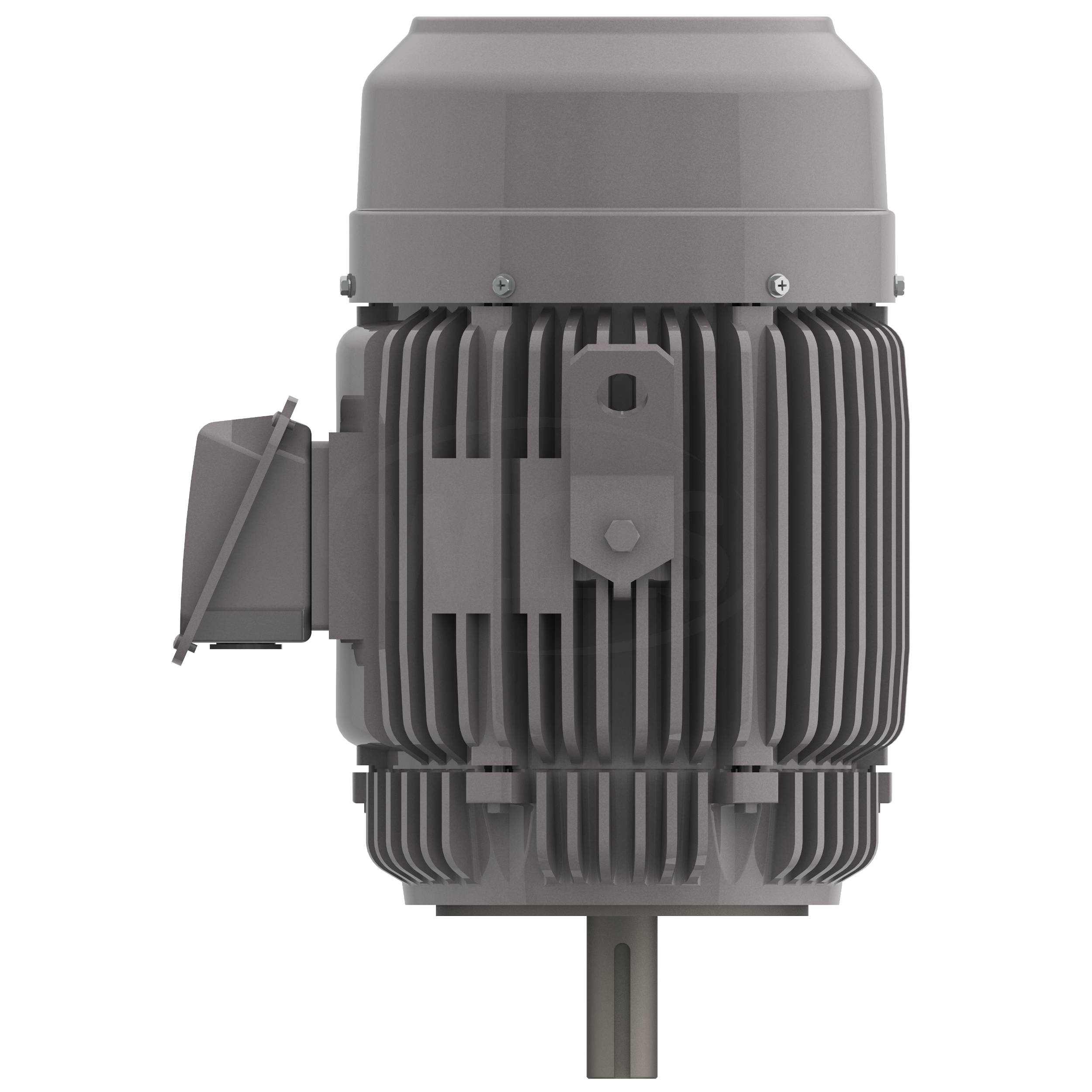

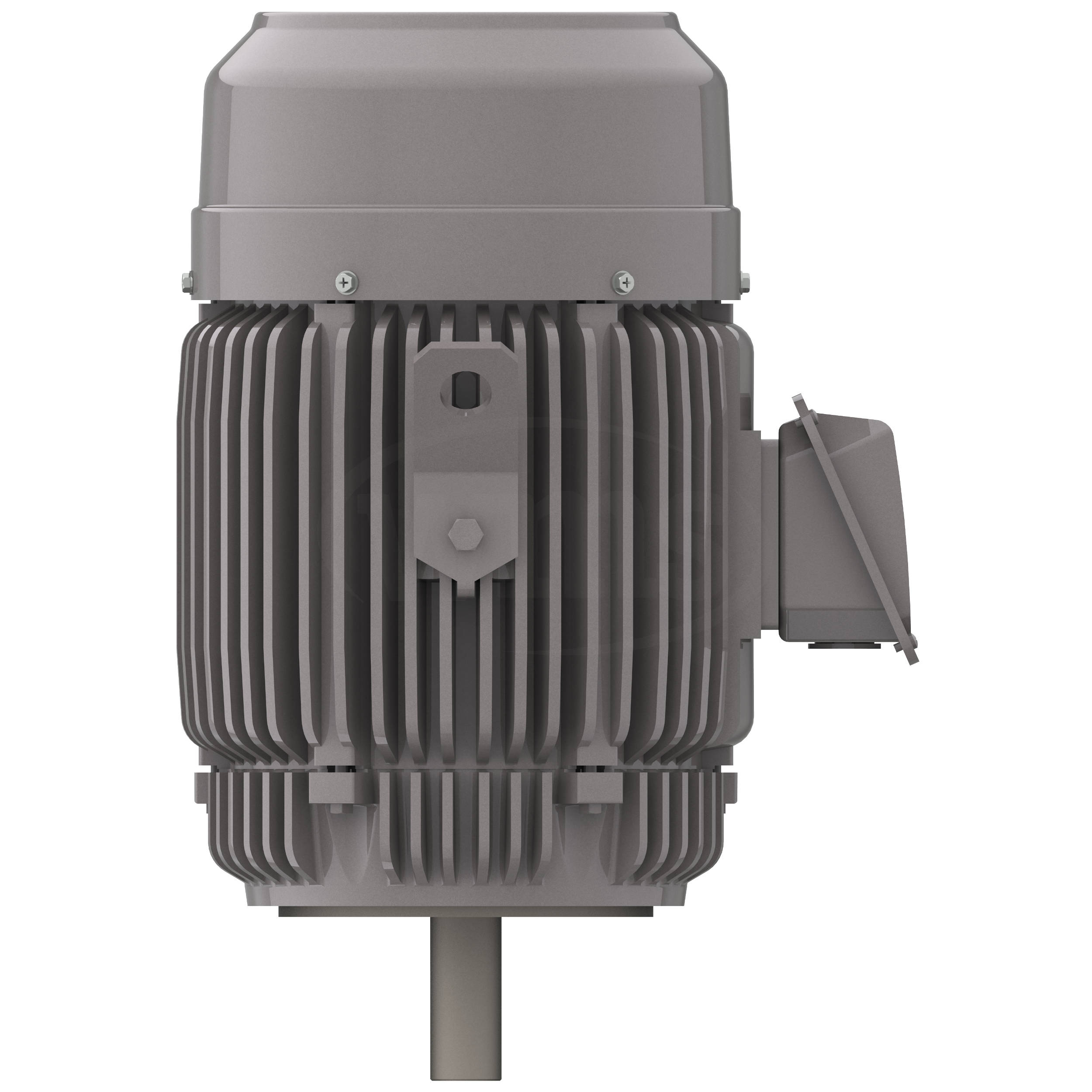

NPV0154C Teco-Westinghouse 15HP MAX-PE Cast Iron Electric Motor, 1800RPM

MFG: TECO-Westinghouse
MFG Part Number: NPV0154C

Selected accessories will also be added to cart

$1,099.97 / Each

Quantity:

TEFC, 254TC Frame, 230/460VAC 60Hz 3-Phase, C-Face, Round Body

Details
Purchase Components

Features

Specifications

Manufacturer	Teco-Westinghouse
Catalog Number	NPV0154C
Type	AEUH8PCF
Output Power	15 HP 11.2 kW
RPM	1800 RPM
Poles	4
Voltage	230/460VAC 60Hz 3-Phase
Enclosure	TEFC Cast Iron
Frame	254TC
C-Face	Yes
Weight	318 lbs
Rated Ambient	40°C
Insulation Class	F
NEMA Design	B
Service Factor	1.15
UPC
Country of Origin
