/Products/Electric Motors/3 Phase/Teco-Westinghouse/MAX-PE, NEMA Premium/Round Body, C-Face (NPV_C)/NPV0014C Teco-Westinghouse 1HP MAX-PE Cast Iron Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: NPV0014C

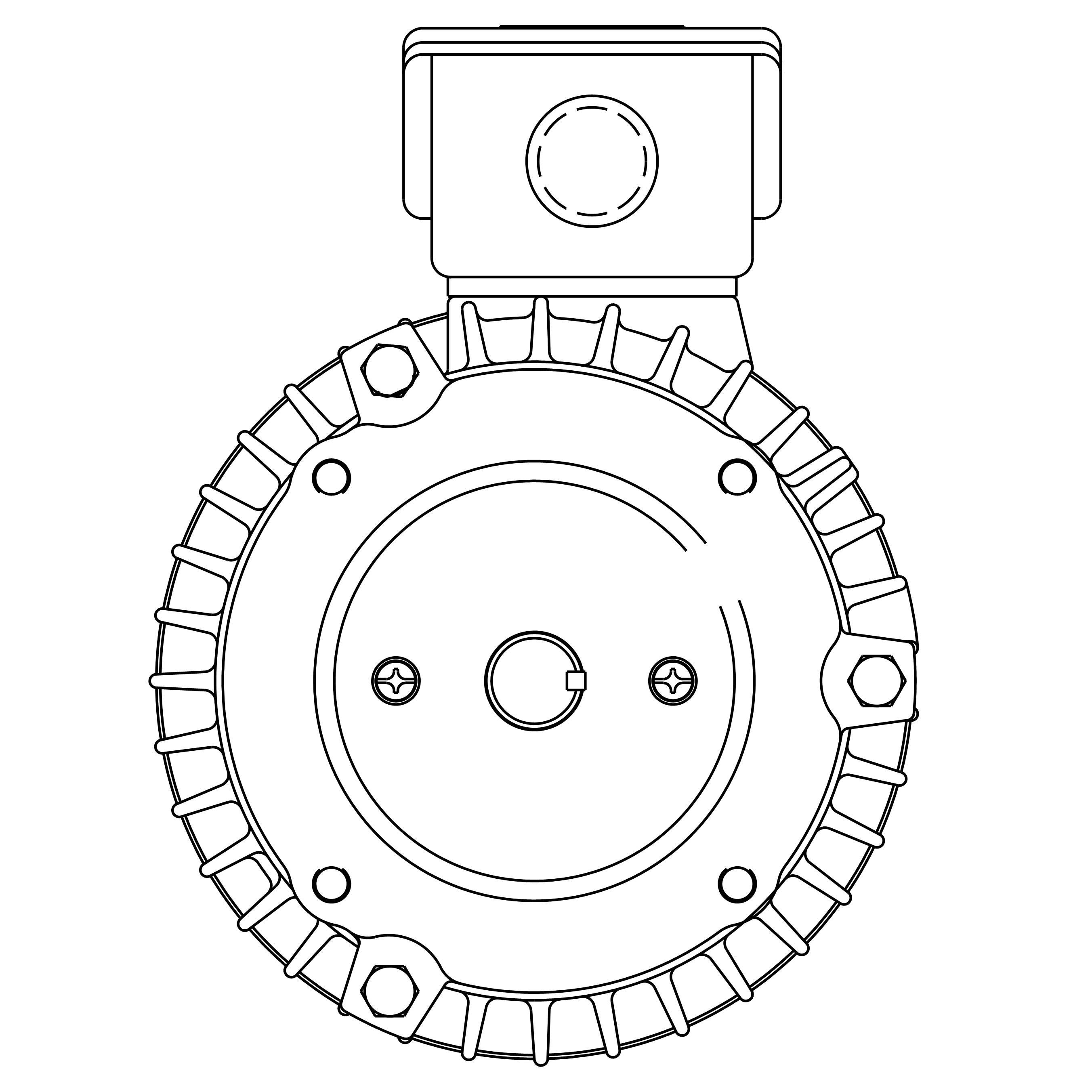

NPV0014C Teco-Westinghouse 1HP MAX-PE Cast Iron Electric Motor, 1800RPM

MFG: TECO-Westinghouse
MFG Part Number: NPV0014C

Selected accessories will also be added to cart

$339.97 / Each

Quantity:

TEFC, 143TC Frame, 230/460VAC 60Hz 3 Phase, C-Face, Round Body, Vertical Mount, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Features

Totally Enclosed Fan Cooled (IP54 Rating)
Meets or Exceeds NEMA Premium Efficiency Levels
Department of Energy Efficiency Certificate #CC002A
36 Month Warranty from Date of Manufacture
1.15 Service Factor – Continuous
Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
Class B Temperature Rise
Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed; F1 Mounted.
Designed for 40°C Ambient Temperature
Designed for 3300 ft. Elevation
Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below
Bidirectional Rotation
Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
Dual Drilled Feet - Longer Frames
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
VFD Rated per NEMA MG1, Part 31.4.4.2
9 Leads - 5 hp and Below
12 Leads 7.5 hp - 125 hp
6 Leads - 150 hp and Larger
CE Mark on Nameplate, U.L. Recognized and CSA Approved

Specifications

Manufacturer	Teco-Westinghouse
Catalog Number	NPV0014C
Type	AEUH8PDC
Output Power	1 HP 0.7 kW
RPM	1800 RPM
Poles	4
Voltage	230/460VAC 60Hz 3-Phase
Enclosure	TEFC Cast Iron
Frame	143TC
C-Face	Yes
Weight	50 lbs
Rated Ambient	40°C
Insulation Class	F
NEMA Design	B
Service Factor	1.15
