/Products/Electric Motors/3 Phase/Teco-Westinghouse/MAX-PE, NEMA Premium/Foot Mount (NP)/NP0014 Teco-Westinghouse 1HP Cast Iron Electric Motor, 1800 RPM

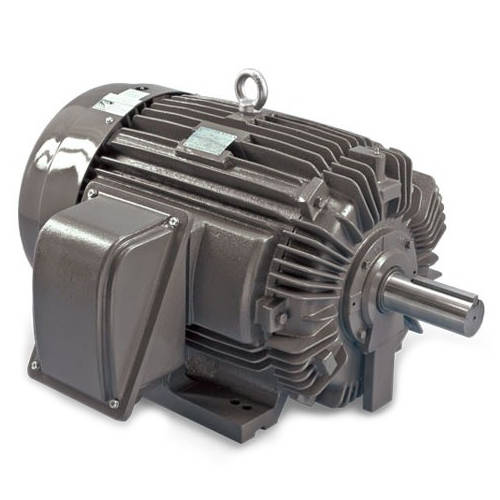

NP0014 Teco-Westinghouse 1HP Cast Iron Electric Motor, 1800 RPM
Enlarge Photo

Product ID: NP0014

NP0014 Teco-Westinghouse 1HP Cast Iron Electric Motor, 1800 RPM

MFG: TECO-Westinghouse
MFG Part Number: NP0014

Selected accessories will also be added to cart
$269.97 / Each
Quantity:
TEFC, 143T Frame, 208-230/460VAC 60Hz, 190/380VAC 50Hz 3-Phase

Specifications

Manufacturer Teco-Westinghouse
Catalog Number NP0014
Type AEHH8P
Power 1 HP
0.75 kW
Voltage 190/380 VAC @ 50Hz
230/460 VAC @ 60Hz
Phase 3 Phase
RPM 1435 RPM @ 50Hz
1745 RPM @ 60Hz
Full Load Amps Amps
Full Load Efficiency %
Full Load Power Factor %
Service Factor 1.15 @ 60Hz
1.00 @ 50Hz
Frame 143T
Cast Iron
Rating Continuous
Mounting Foot Mount
Enclosure TEFC
Insulation Class F
Ambient 40°C
Design B
Approximate Weight 44 lbs
Country of Origin Taiwan
Warranty 36 Months

Features

  • Totally Enclosed Fan Cooled (IP54 Rating)
  • Meets or Exceeds NEMA Premium Efficiency Levels
  • Department of Energy Efficiency Certificate #CC002A
  • 36 Month Warranty from Date of Manufacture
  • 60 Hz – 230/ 460V (Usable on 208V). 150 hp and Larger is 460V Only
  • 1.15 Service Factor – Continuous
  • 50 Hz Data on Nameplate - 190/ 380V at 1.0 S.F. 150 hp and Larger is 380V Only at 1.0 S.F.
  • Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
  • Class B Temperature Rise
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed F1 Mounted. F2 Available - See EXTRAS/OPTIONS Below
  • Designed for 40°C Ambient Temperature - Note (1)
  • Designed for 3300 ft. Elevation - Note (2)
  • Factory Self Certified for Class 1, Div. 2, Groups B, C, D; Temp Code T3C, 400T and Below - Note (3)
  • Bidirectional Rotation
  • Cast Iron Frame, End Brackets, Pressed Steel Fan Cover and Conduit Box
  • Dual Drilled Feet - Longer Frames (i.e. 145T Drilled also for 143T
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Blue Gray – Munsell 7.5 BG 3.5/ .05
  • Vacuum De-Gassed Re-Greasable Bearings for Frames 280TS-449T/TS with Polyrex EM Grease
  • Double Shielded Bearings on Frames 140T-280T Pre-Packed with MULTEMP SRL Grease
  • Automatic Grease Discharge on Frames on Re-Greaseable Motors
  • Labyrinth Type Metal Flinger on Both Ends for Frames 280TS-449T/TS
    Rubber Flinger on Drive-End for Frames 140T - 280T
  • Cast Iron Inner and Outer Bearing Caps for Frames 280TS-449T/TS
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
  • Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1 Part 31.4.4.3.
  • Speed Ranges: 20:1 VT, 10:1 CT
  • VFD Rated per NEMA MG1, Part 31.4.4.2.
  • 9 Leads - 5 hp and Below
    12 Leads 7.5 hp - 125 hp
    6 Leads - 15

Applications

  • Fans & Blowers
  • Pumps
  • Crushers
  • Compressors
  • Mixers
  • Conveyors
