/Products/Electric Motors/3 Phase/Lincoln/Hydraulic Elevator Duty/LM30093 Lincoln 15HP Elevator Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: LM30093

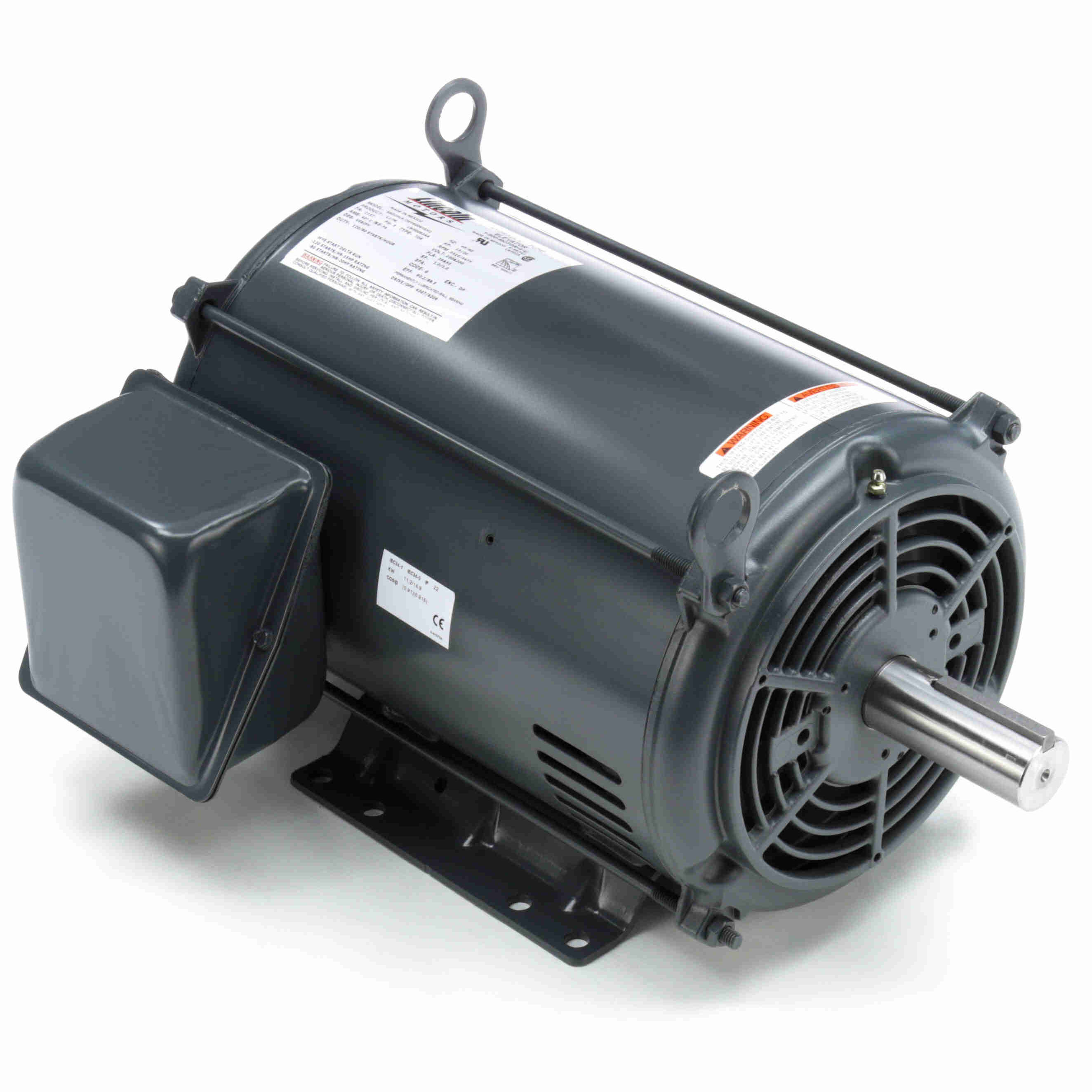

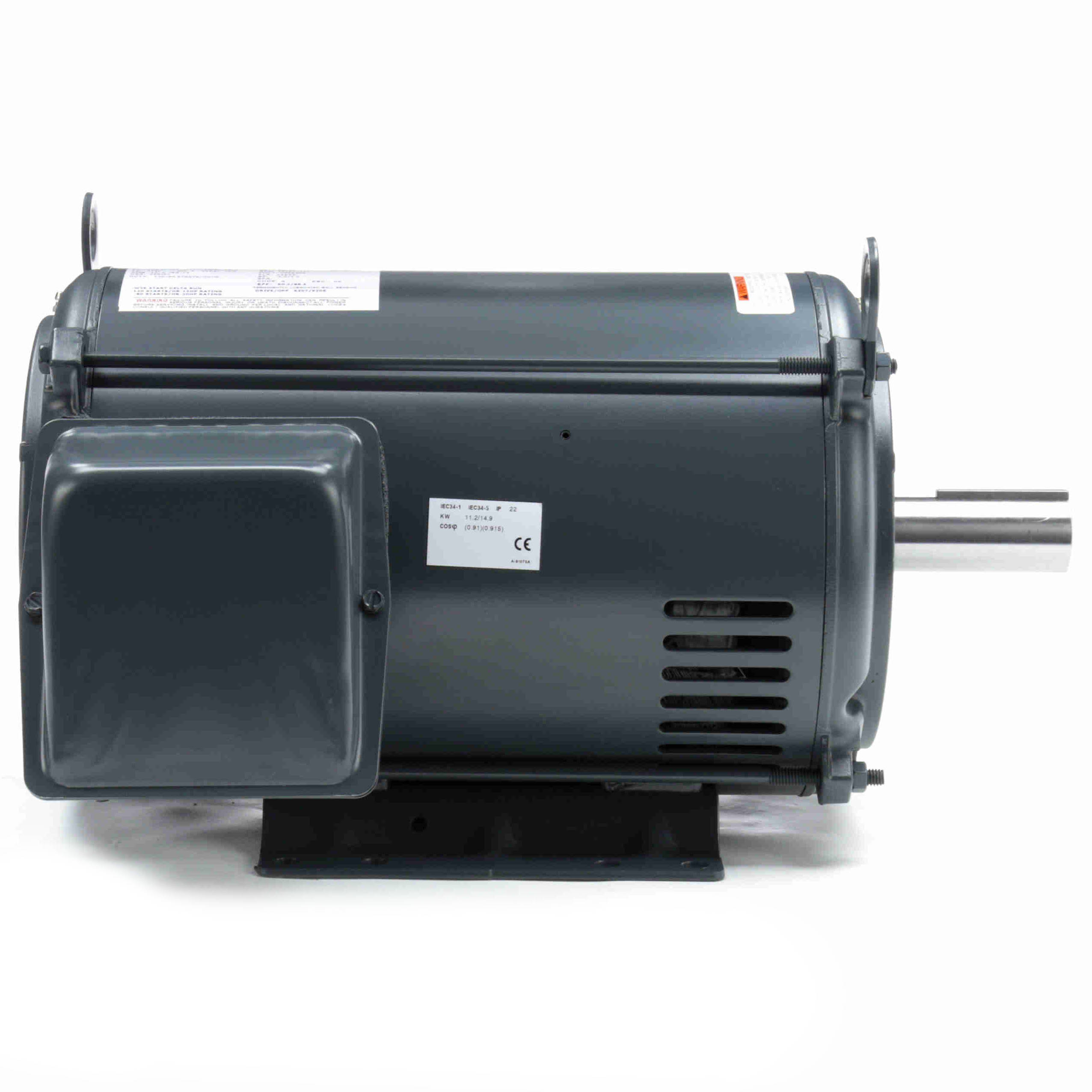

LM30093 Lincoln 15HP Elevator Duty Electric Motor, 3600RPM

MFG: Lincoln Motors
MFG Part Number: LM30093

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
ODP, 215T Frame, 200VAC 60Hz 3-Phase, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Features

  • Dual rated nameplates for 80 & 120 starts/hour
  • Designed for belt driven pumps
  • Wye Start/Delta Run
  • Class F Insulated; 40° C ambient
  • F-1 mounting
  • Ball bearings with grease fittings and automatic relief
  • NEMA® dimensions
  • UL recognized component listing and CSA approved
  • Constructed for low noise and low vibration

General Specifications

UPC: 691720020722 Weight: 135.00 LB
Packaged Length: 22.5 IN Packaged Width: 16.81 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 15 Hp Output KW: 11.2 kW
Frequency: 60 Hz Voltage: 200 V
Current: 39.0 A Speed: 3510 rpm
Service Factor: 1 Phase: 3
Efficiency: 90.2 % Power Factor: 91
Duty: 120/80 Starts/Hour Insulation Class: F
Design Code: INV KVA Code: G
Frame: 215T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6206
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Wye Start Delta Run
Poles: 2 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: T Overall Length: 18.54 in
Frame Length: 12.40 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in Assembly/Box Mounting: F1 ONLY

Load Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 116.00 682.0 34.50 153.0 0 42.0 15.00
Break-Down 73.50 432.0 65.50 291.0 3,025 75.0 15.00
No Load 4.10 24.0 0.00 0.0 3,600 15.00
Pull-Up 100.00 588.0 31.00 138.0 1,200 15.00
1/3 110.00 647.0 33.00 147.0 600 15.00
Full Load 17.00 100.0 22.50 100.0 3,510 15.00
2/3 90.00 529.0 33.00 147.0 1,800 15.00

Speed Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 9.43 13.80 20.70 29.90 39.10 44.85 49.45
Rated Output (KW) 0.50 3.20 6.10 9.20 12.50 14.50 15.50
Efficiency (%) 0.0 88.5 91.0 91.7 90.2 90.2 89.5
Power Factor (%) 9.0 69.0 84.5 89.5 91.0 91.5 91.5
Speed (RPM) 3,600 3,580 3,560 3,535 3,510 3,495 3,485
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 45.0 55.0
Torque (ft-lbs) 0.00 5.50 11.00 16.70 22.50 26.00 28.50
