Product ID: LM28868

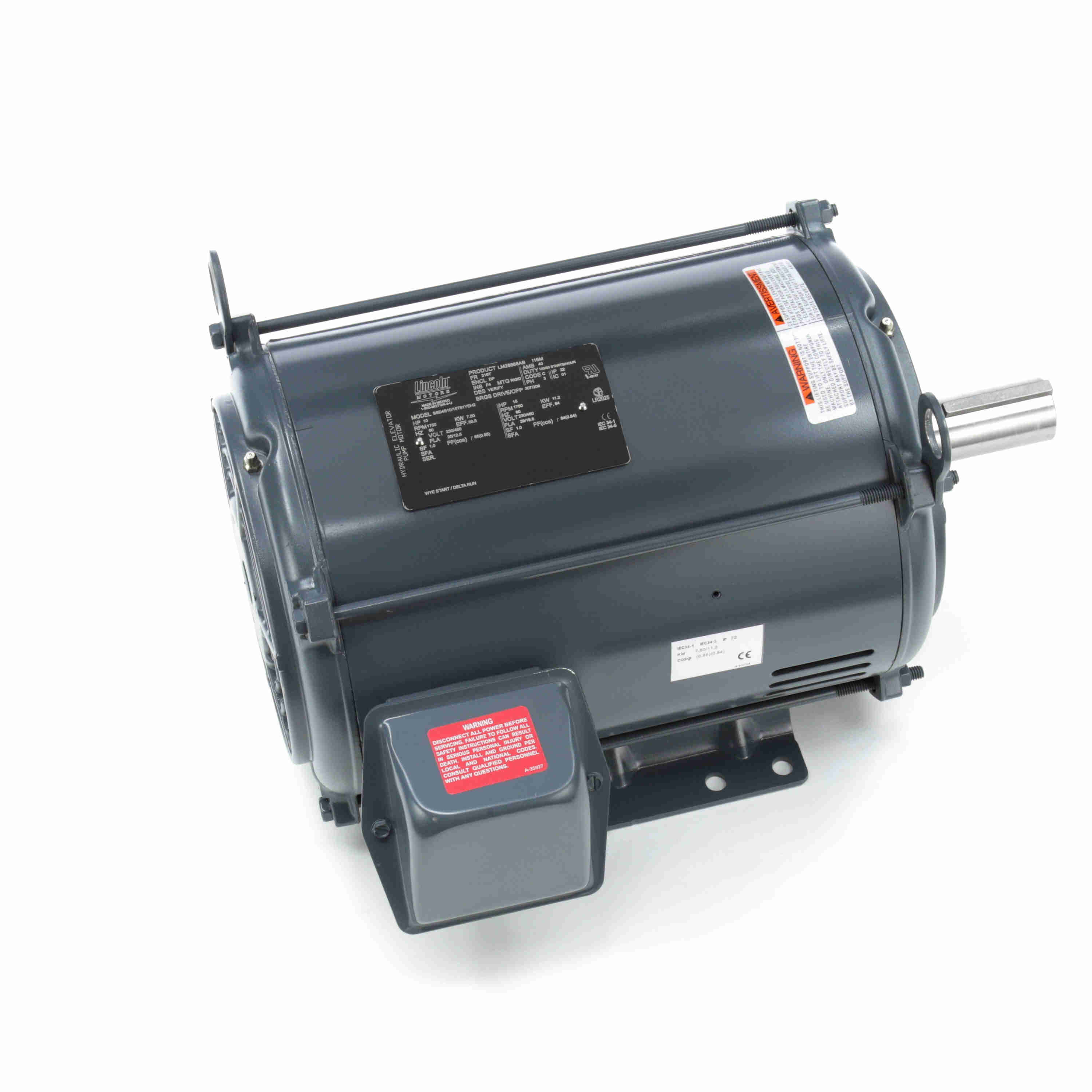

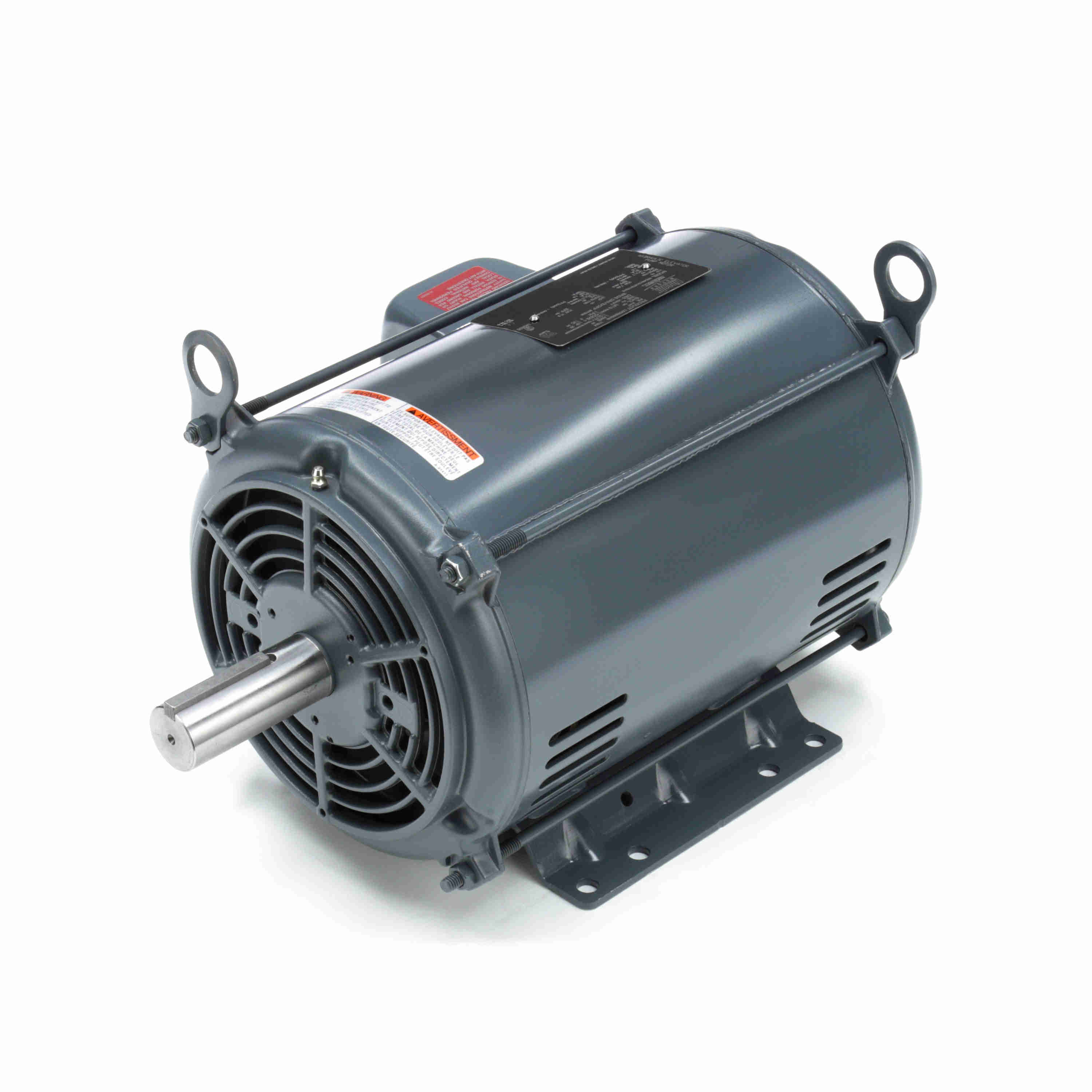

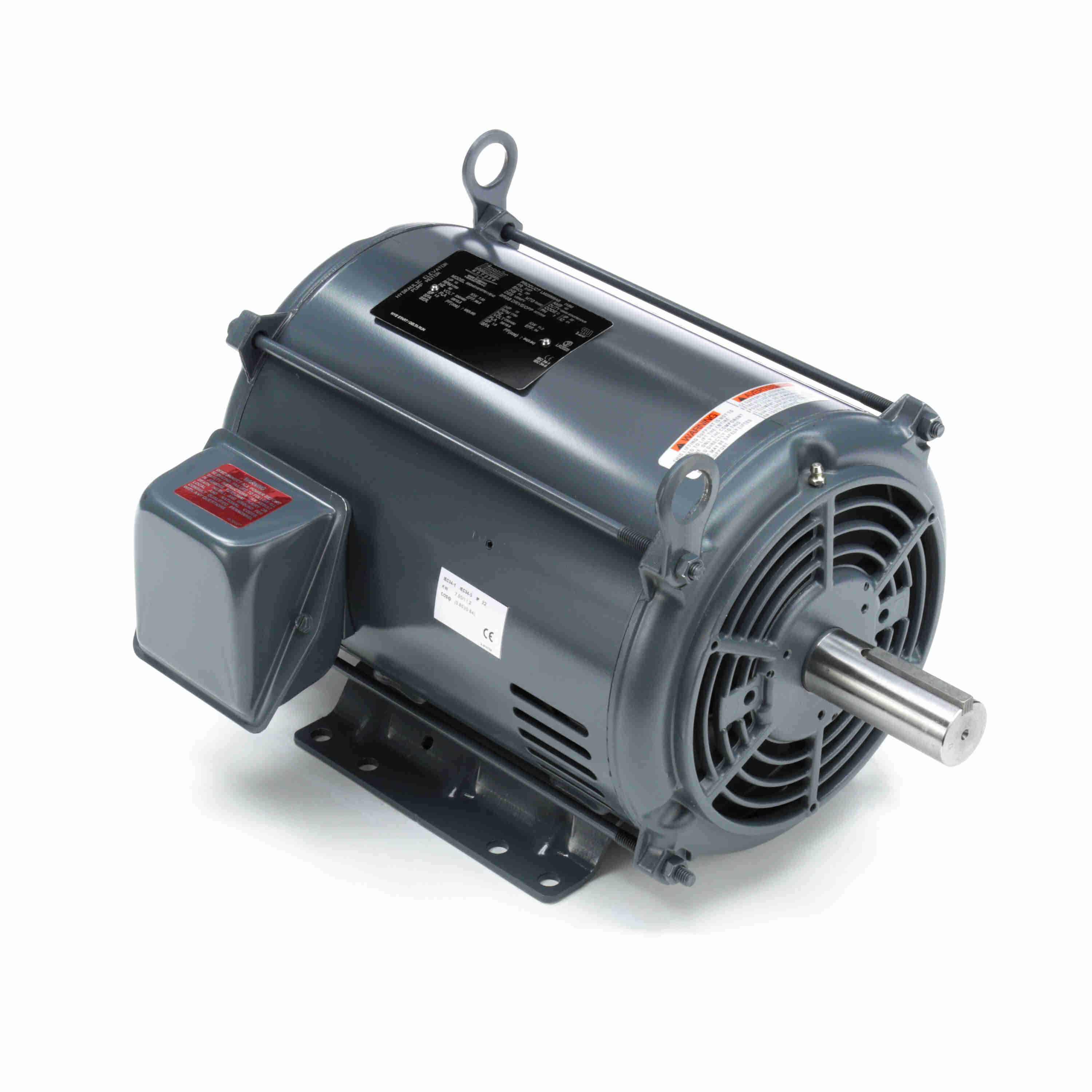

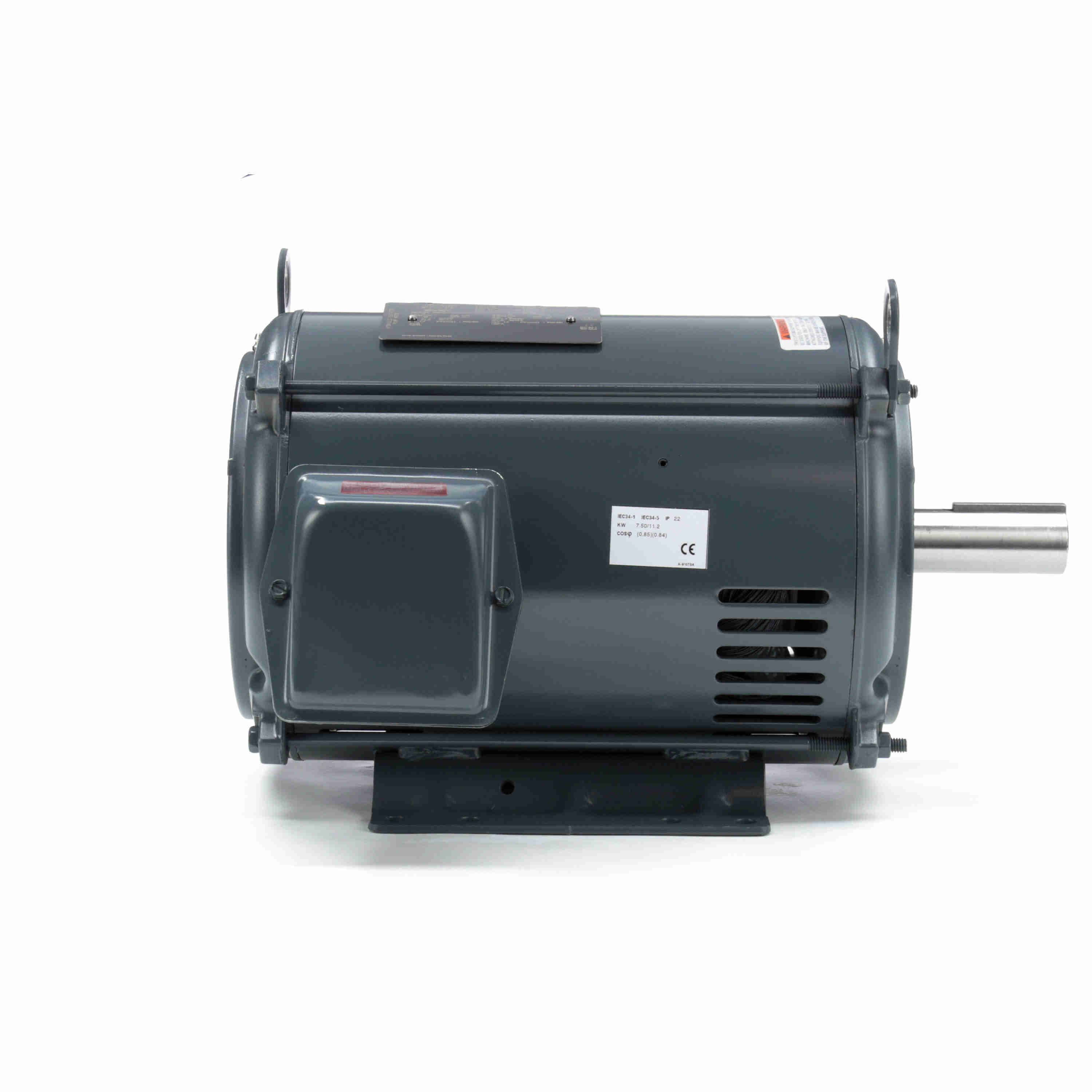

LM28868 Lincoln 10HP Elevator Duty Electric Motor, 1800RPM

MFG: Lincoln Motors
MFG Part Number: LM28868

Selected accessories will also be added to cart

$999.97 / Each

Quantity:

ODP, 215T Frame, 230/460VAC 3-Phase 60Hz, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Details
Purchase Components

Features

Dual rated nameplates for 80 & 120 starts/hour
Designed for belt driven pumps
Wye Start/Delta Run
Class F Insulated
40° C ambient
F-1 mounting
Ball bearings with grease fittings and automatic relief
NEMA dimensions
UL recognized component listing and CSA approved
Constructed for low noise and low vibration

General Specifications

UPC:	691720103135	Weight:	124.00 LB
Packaged Length:	22.19 IN	Packaged Width:	16.5 IN
Packaged Height:	14 IN

Nameplate Specifications

Output HP:	10 Hp	Output KW:	7.5 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	25.0/12.5 A	Speed:	1750 rpm
Service Factor:	1	Phase:	3
Efficiency:	89.5 %	Power Factor:	85
Duty:	120/80 Starts/Hour	Insulation Class:	F
Design Code:	INV	KVA Code:	C
Frame:	215T	Enclosure:	Drip Proof
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	307	Opp Drive End Bearing Size:	206
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	22

Technical Specifications

Electrical Type:	Squirrel Cage Induction Run	Starting Method:	Wye Start Delta Run
Poles:	4	Rotation:	Reversible
Resistance Main:	1.31 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	T	Overall Length:	17.29 in
Frame Length:	11.15 in	Shaft Diameter:	1.375 in
Shaft Extension:	3.38 in	Assembly/Box Mounting:	F1/F2 CAPABLE

Speed & Load Characteristics

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	(%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Full Load	12.50	100.0	30.00	100.0	1,755			10.00
2/3	70.00	560.0	55.00	183.0	1,200			10.00
Break-Down	48.00	384.0	78.00	260.0	1,510			10.00
1/3	78.00	624.0	45.00	150.0	600			10.00
Locked-Rotor	74.00	592.0	52.00	173.0	0		46.0	10.00
No Load	4.00	32.0	0.00	0.0	1,800			10.00
Pull-Up	75.00	600.0	48.00	160.0	900			10.00

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	125 %
Current (Amps)	4.00	5.00	7.00	9.50	12.50	14.20	15.50
Rated Output (KW)	0.20	2.10	4.10	6.30	8.40	9.70	10.60
Efficiency (%)	0.0	88.0	88.5	89.5	89.5	88.5	87.5
Power Factor (%)	6.5	54.0	74.0	85.0	85.0	86.0	85.5
Speed (RPM)	1,800	1,790	1,780	1,765	1,750	1,745	1,740
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	7.50	15.00	22.50	30.00	34.50	37.50
