/Products/Electric Motors/3 Phase/Lincoln/Compressor Duty/LM24169 Lincoln 2HP Compressor Duty Electric Motor, 1800RPM
Click Image to Expand

Product ID: LM24169

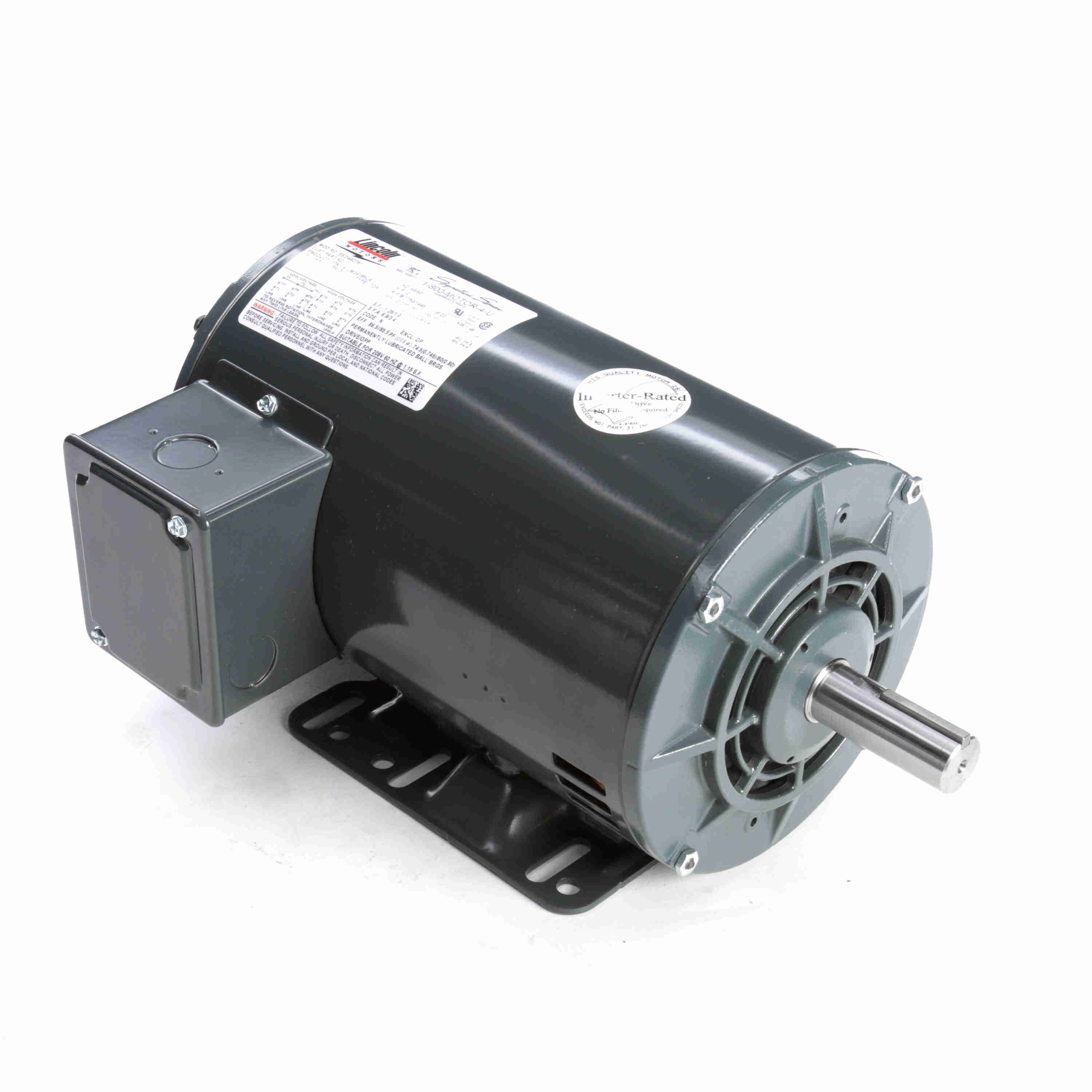

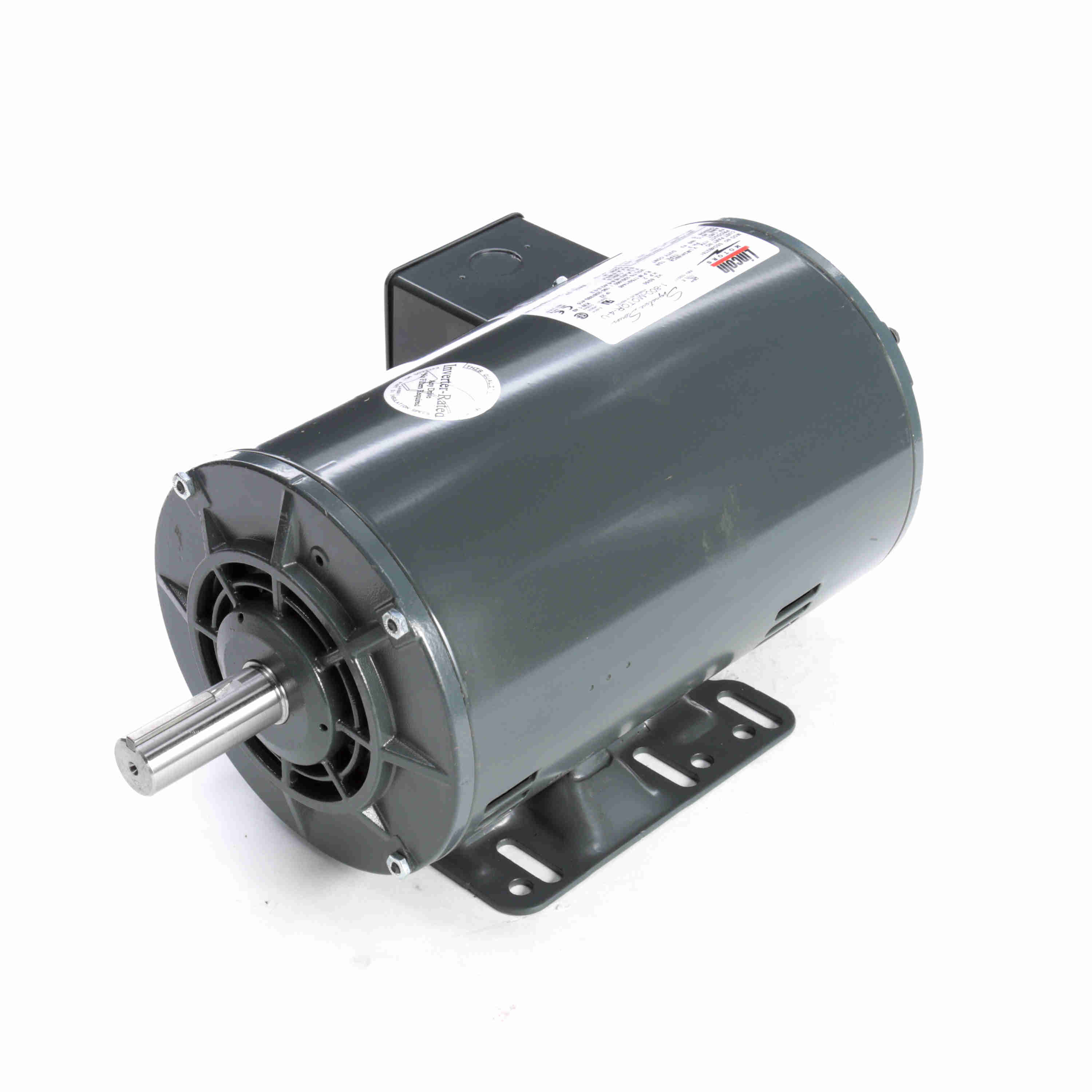

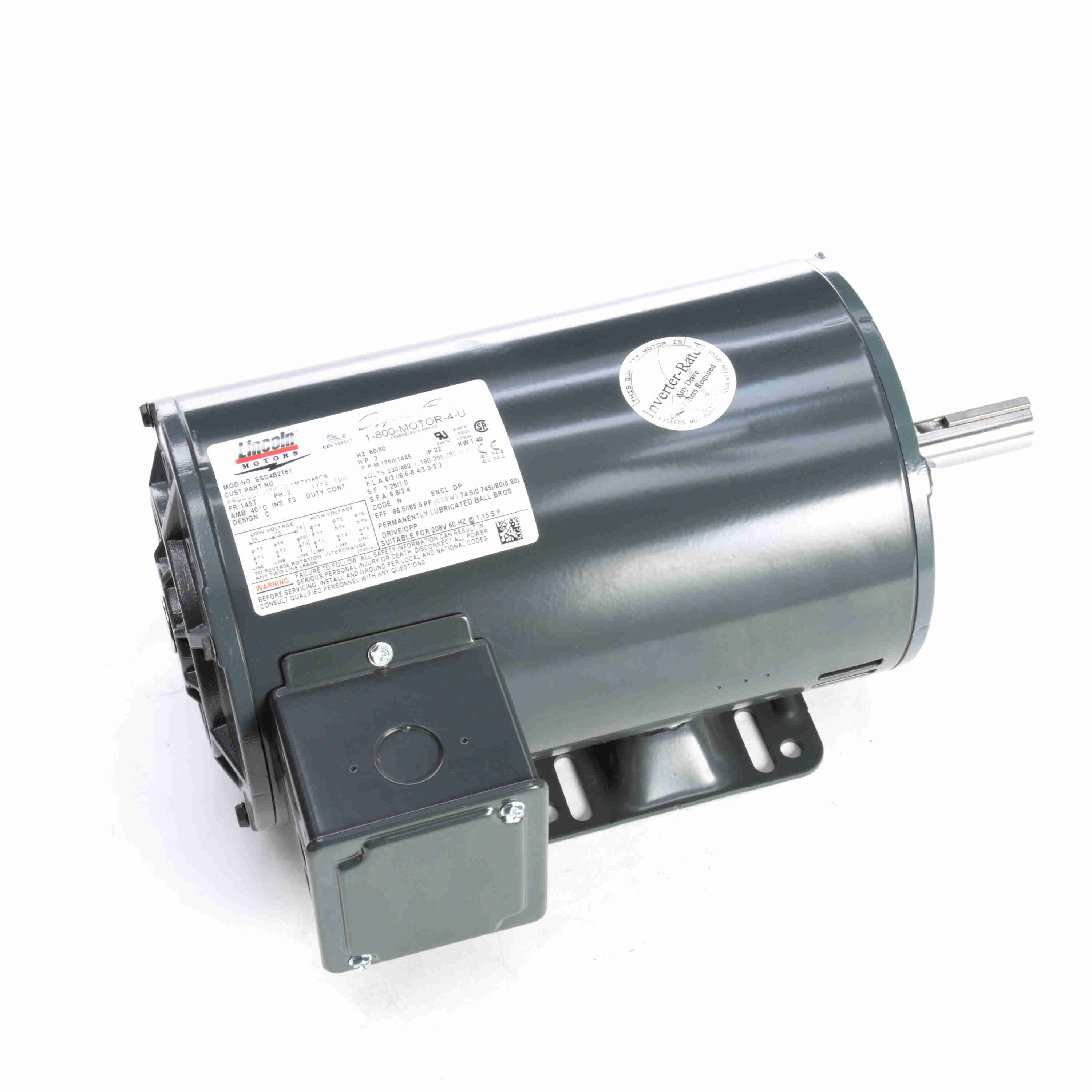

LM24169 Lincoln 2HP Compressor Duty Electric Motor, 1800RPM

MFG: Lincoln Motors
MFG Part Number: LM24169

Selected accessories will also be added to cart
$563.79 / Each
Quantity:
ODP, 145T Frame, 230/460VAC 60Hz 3-Phase, SSD4B2T61, Foot Mount, Rolled Steel, 7/8" Keyed Shaft

Features

  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation
  • UL recognized and CSA certified; Meets or exceeds NEMA ® service factors; Continuous Duty
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Rolled Steel

General Specifications

UPC: 691720002414 Weight: 48.00 LB
Packaged Length: 16.38 IN Packaged Width: 10.5 IN
Packaged Height: 8.12 IN

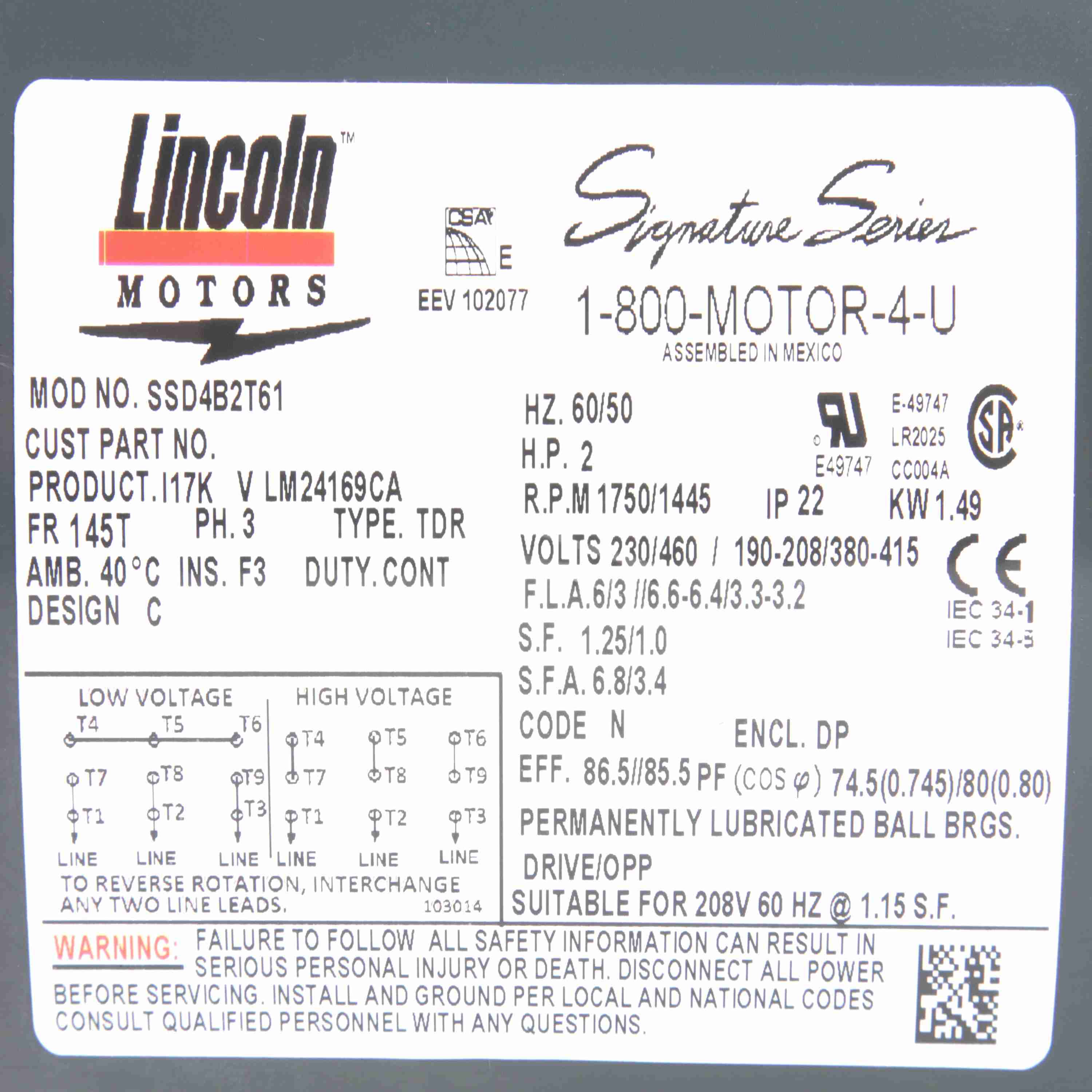

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 6.0/3.0 A Speed: 1750 rpm
Service Factor: 1.25 Phase: 3
Efficiency: 86.5 % Power Factor: 74.5
Duty: Continuous Insulation Class: F
Design Code: C KVA Code: N
Frame: 145T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 6.4 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.49 in
Frame Length: 9.56 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 27.00 931.0 20.50 342.0 600 0.00 0.0 2.00
Locked-Rotor 28.40 979.0 24.10 402.0 0 16.10 71.5 2.00
2/3 22.70 783.0 25.30 422.0 1,200 0.00 0.0 2.00
Pull-Up 25.50 879.0 22.00 367.0 125 0.00 0.0 2.00
Break-Down 17.60 607.0 30.70 512.0 1,220 0.00 90.0 2.00
No Load 1.75 60.0 0.00 0.0 1,800 0.11 7.9 2.00
Full Load 3.00 100.0 6.00 100.0 1,750 0.00 0.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 120 % 125 % 150 %
Current (Amps) 1.75 1.85 2.10 2.50 3.00 3.20 3.30 3.40 4.00
Rated Output (KW) 0.11 0.50 0.90 1.30 1.72 2.00 2.10 2.16 2.62
Efficiency (%) 0.0 76.2 82.8 85.8 86.5 86.8 86.9 87.0 86.0
Power Factor (%) 7.9 33.9 53.8 65.3 74.5 78.4 79.1 79.7 82.2
Speed (RPM) 1,800 1,789 1,778 1,765 1,750 1,745 1,743 1,740 1,725
Temp. Rise @ FL 0.0 0.0 0.0 0.0 38.0 50.0 0.0 60.0 0.0
Torque (ft-lbs) 0.00 1.50 2.95 4.45 6.00 7.00 7.30 7.60 9.20
