/Products/Electric Motors/3 Phase/Teco-Westinghouse/MAX-E2, IEEE 841/Footed, NEMA Premium (HH)/HH0154 Teco-Westinghouse 15HP IEEE 841 Ready Electric Motor, 1800 RPM

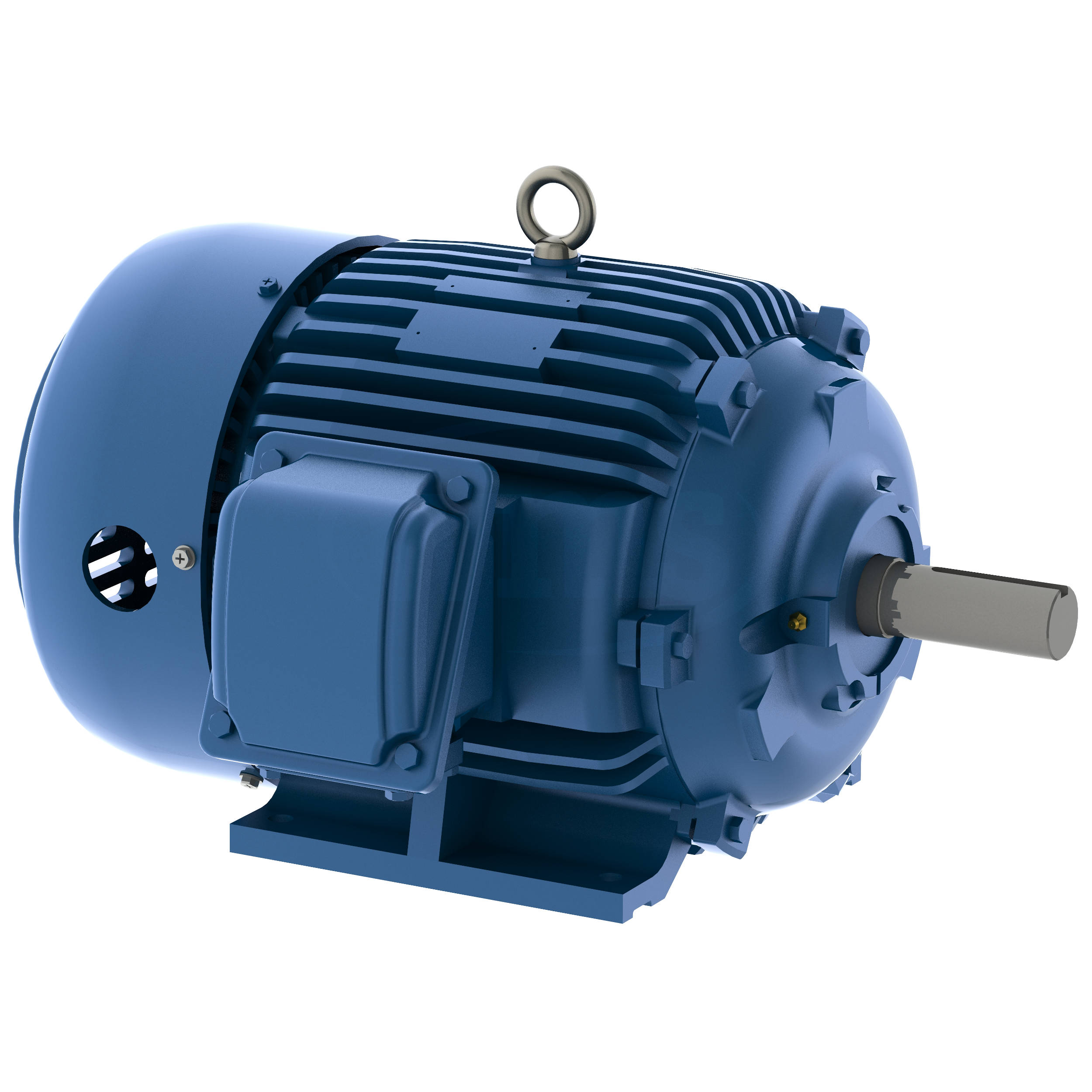

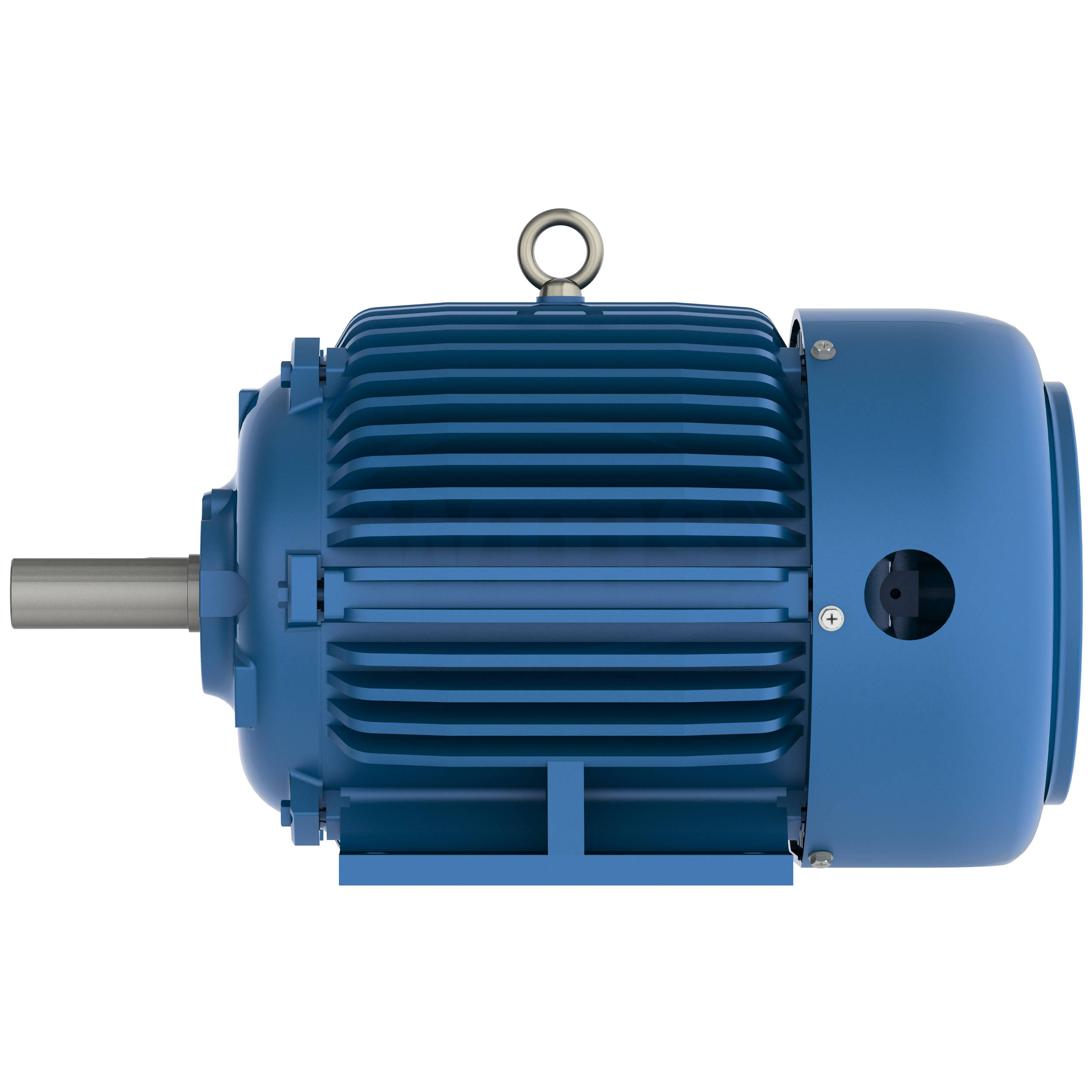

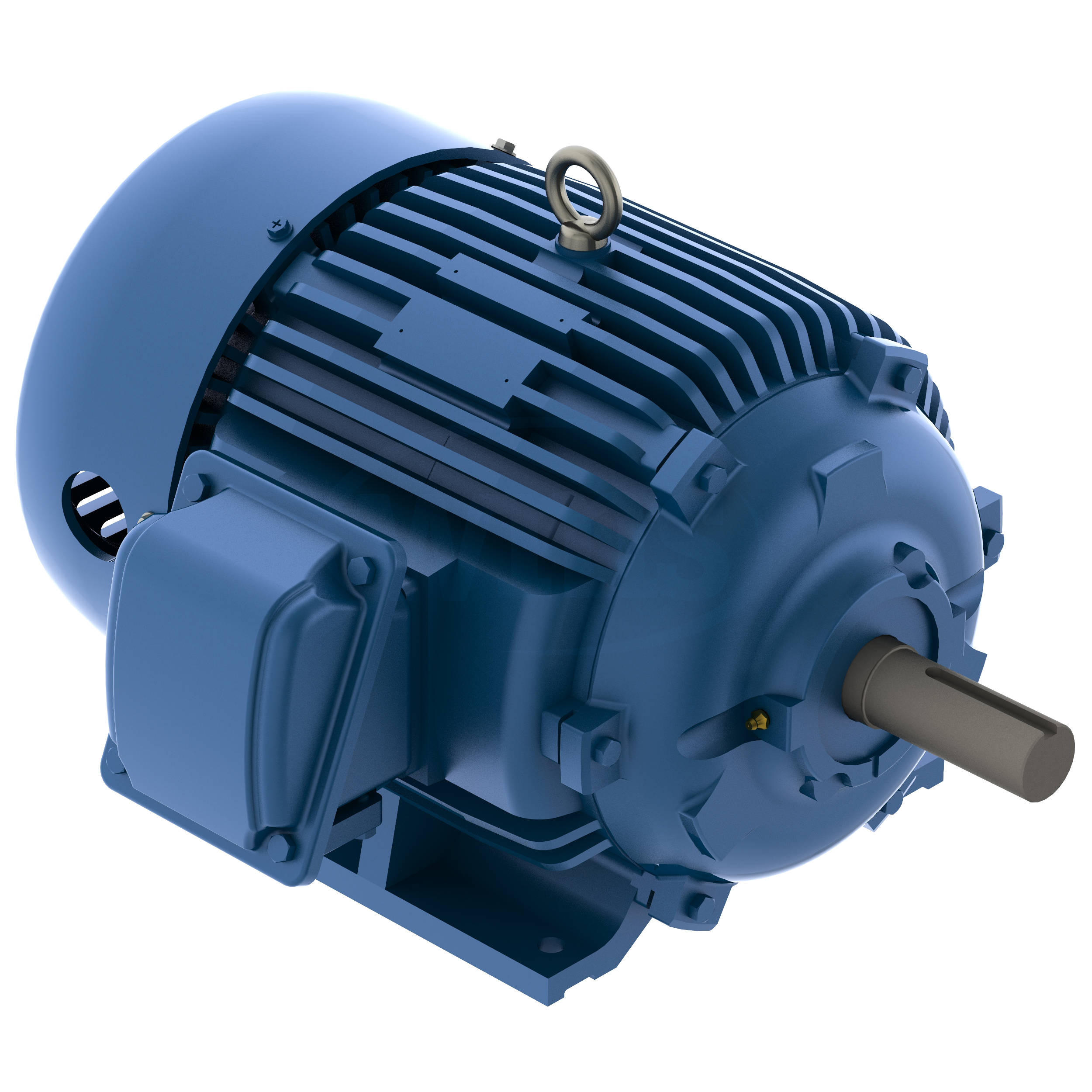

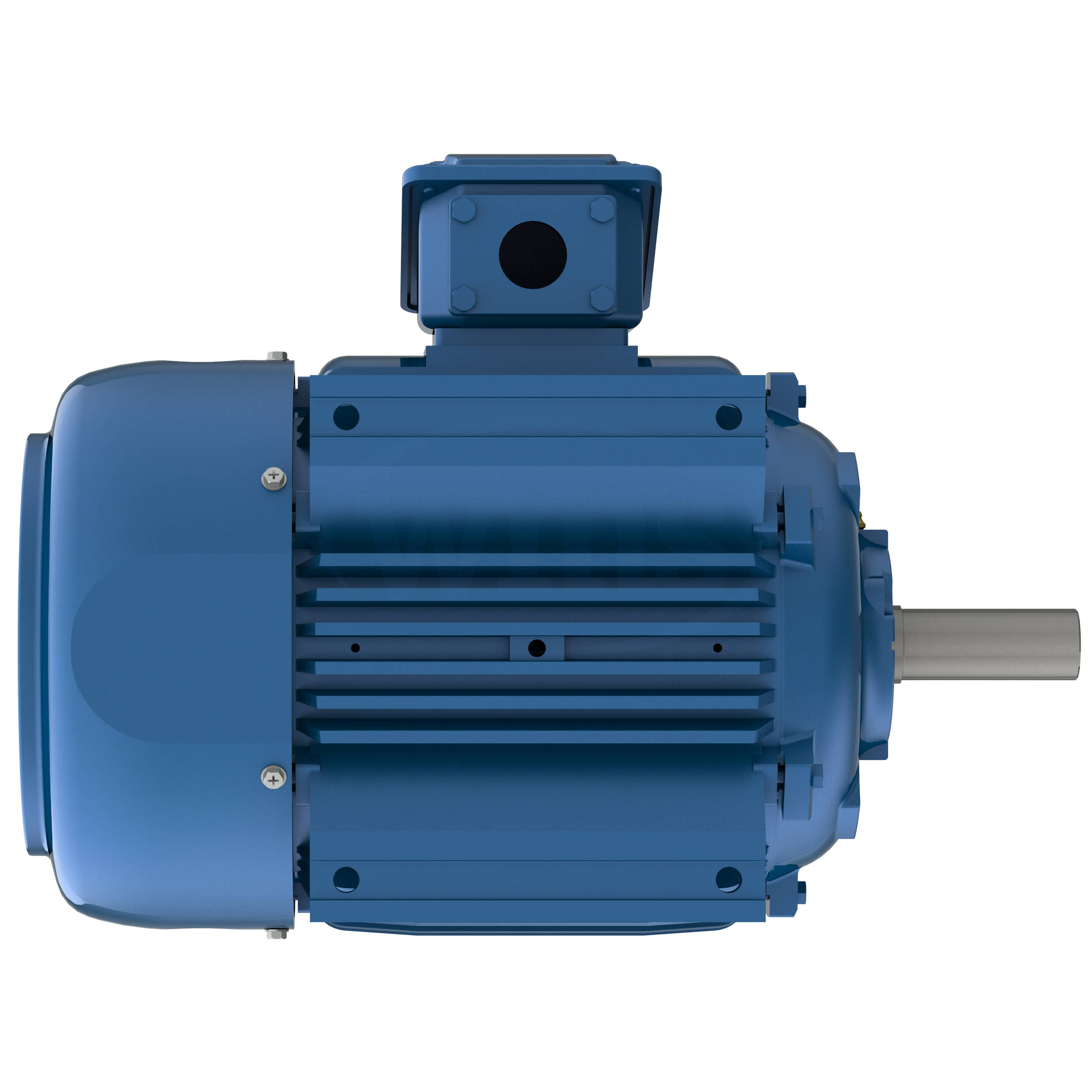

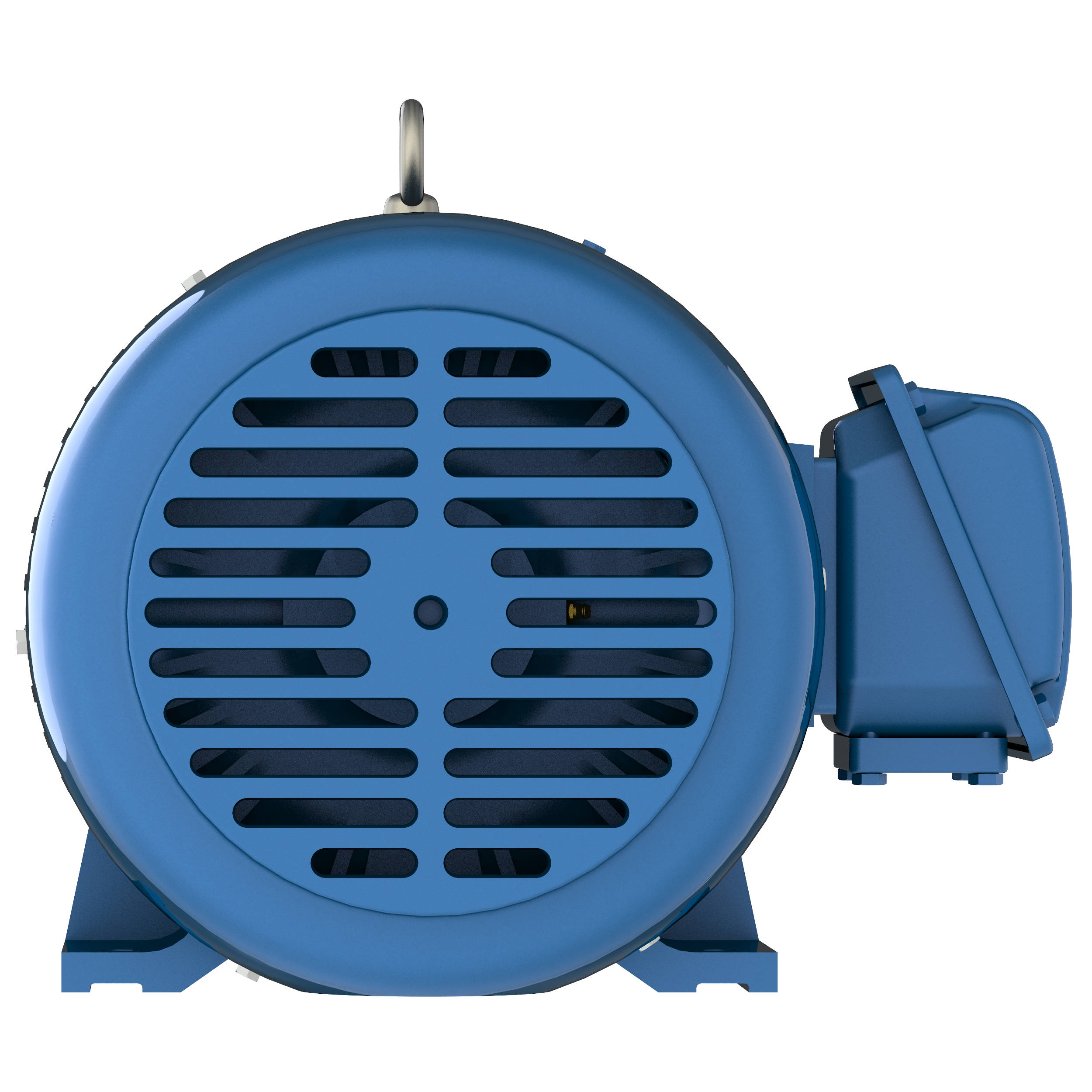

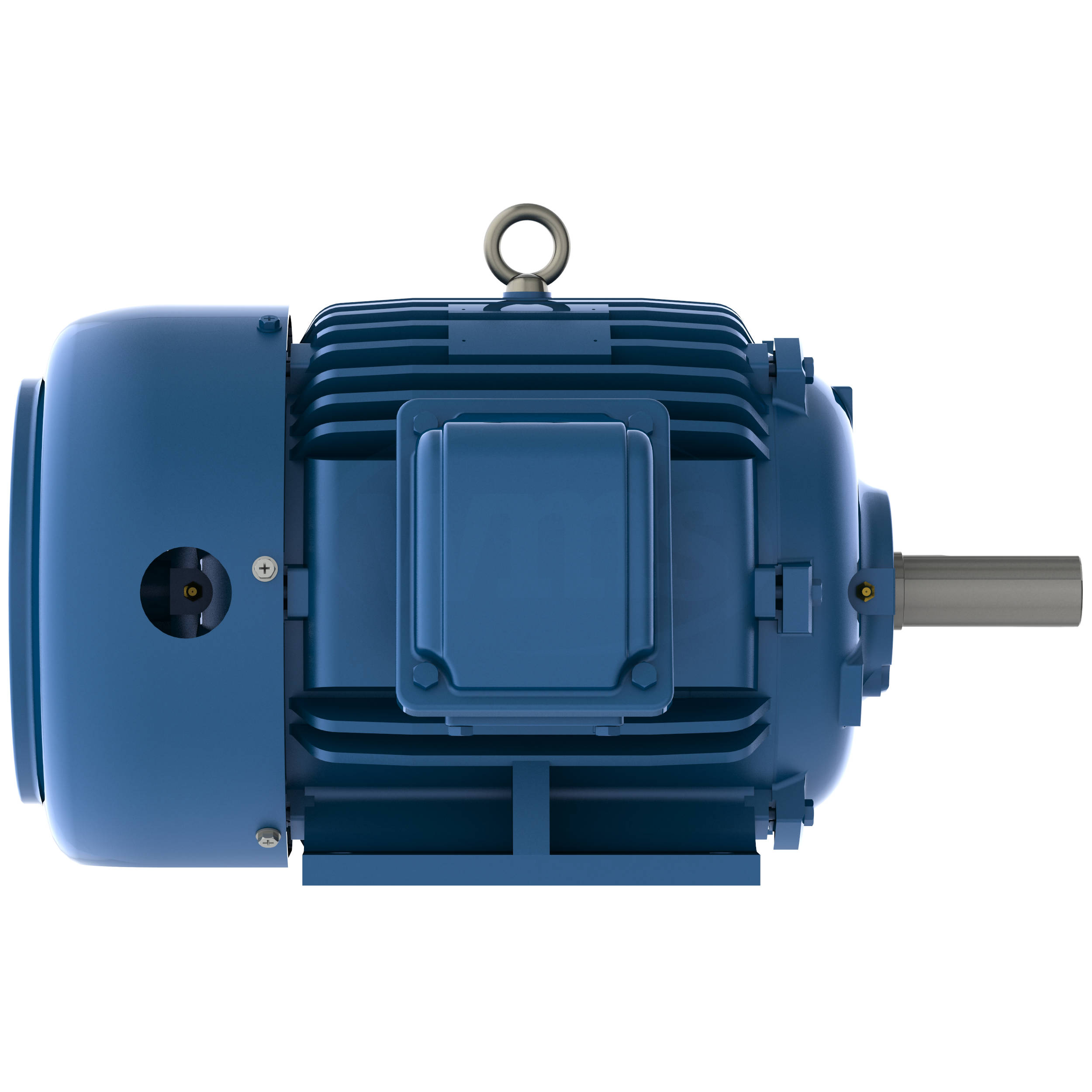

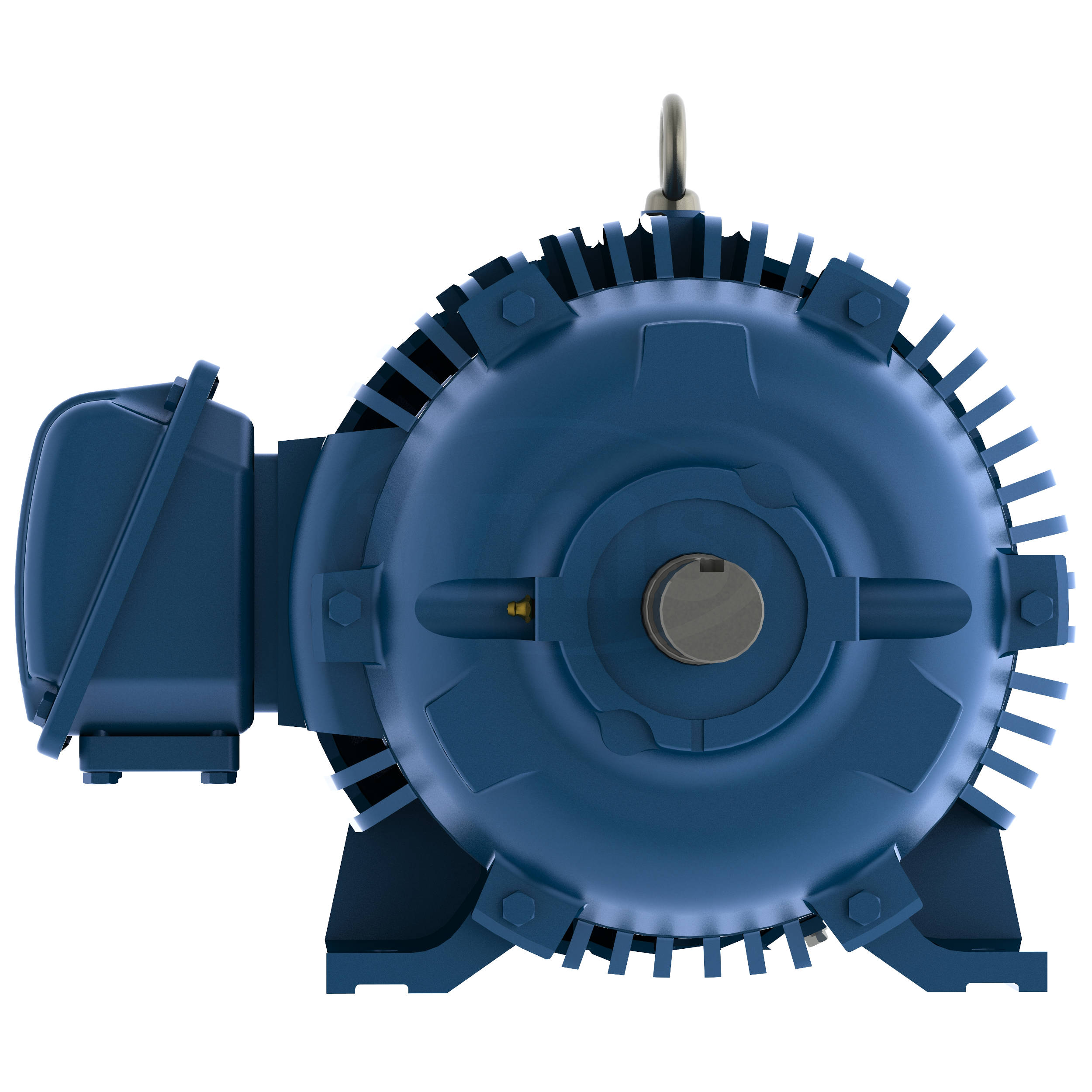

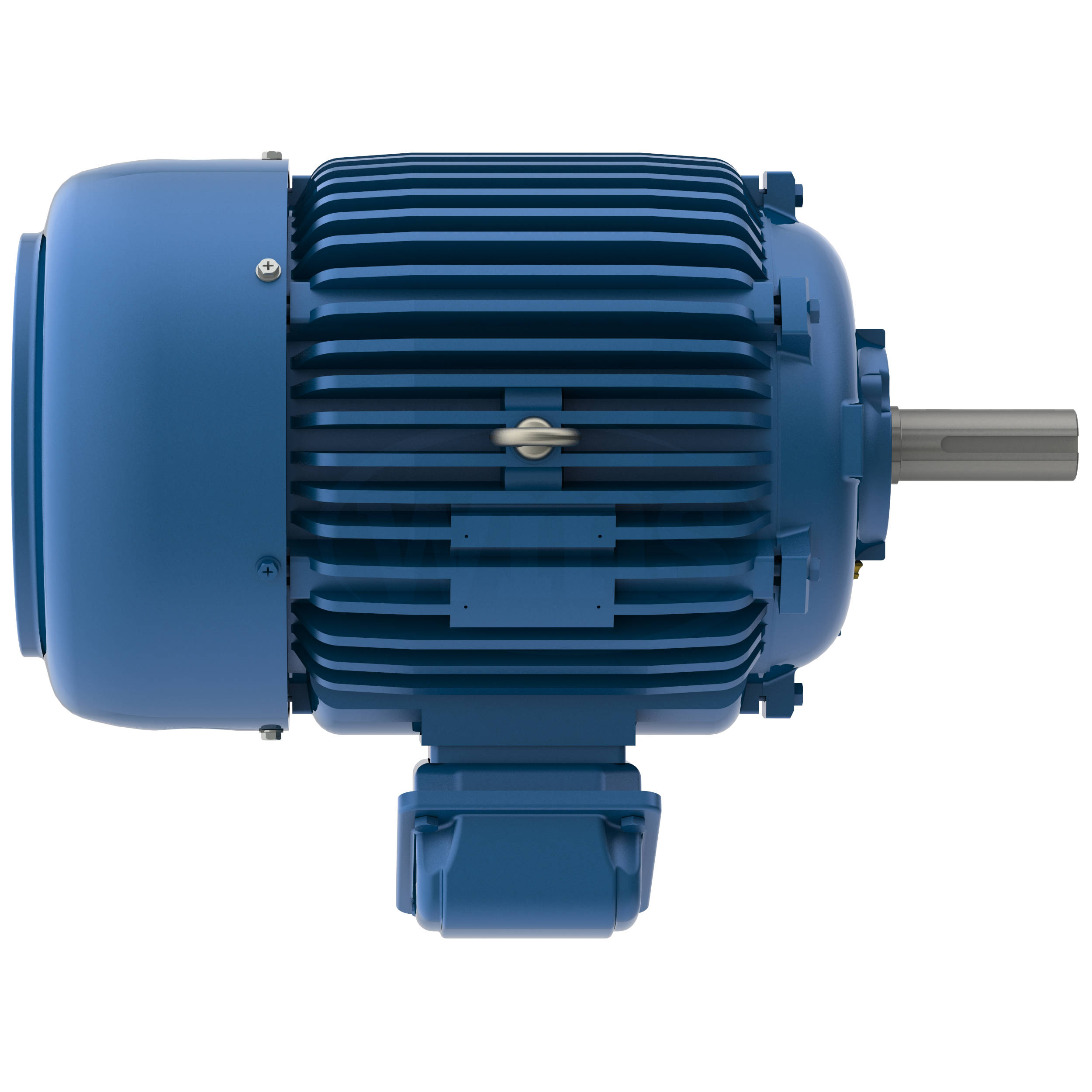

Click Image to Expand

Product ID: HH0154

HH0154 Teco-Westinghouse 15HP IEEE 841 Ready Electric Motor, 1800 RPM

MFG: TECO-Westinghouse
MFG Part Number: HH0154

Selected accessories will also be added to cart
$1,097.94 / Each
Quantity:
TEFC, 254T Frame, 460VAC 60Hz, 380VAC 50Hz 3-Phase

APPLICATIONS:

• Fans & Blowers
• Compressors
• Any Severe Duty/ Petro-Chem/
• Pumps
• Mixers Pulp & Paper Application
• Crushers
• Conveyors

FEATURES:

• 15 hp
• 1800 RPM
• Totally Enclosed Fan Cooled (IP55 Rating)
• IEEE 841 Ready
• Meets GM 7E-TA Specifications
• Meets IEEE 45 Marine Duty
• NEMA Premium Efficient
• Department of Energy Efficiency Certification #CC002A
• 36 Month Warranty from Date of Manufacture
• 60 Hz , 460V Only
• 1.15 Service Factor – Continuous
• NEMA Design B Torques as a Minimum
• Class B Temperature Rise, Class F Insulation with Phenolic Alkyd Resin Varnish – 2 Dips and Bakes
• Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed with NPT Threaded Entrance –
F1 Mounted. F2 Available – See EXTRAS/ OPTIONS Below
• Designed for 40°C Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• CSA Certified for Class I, Division II, Groups B, C, D; Temp Code T3C, Non-Sparking, Non-Static Fan - Note (3)
• Bidirectional Rotation
• Cast Iron Frame, End Brackets, Fan Cover, and Main Conduit Box
• Cast Iron Inner and Outer Bearing Caps
• Dual Drilled Feet – Longer Frames. (i.e. 145T Drilled Also for 143T)
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: 2 Part Epoxy
• Paint Color: Blue – Munsell 5PB 3/ 8
• Vacuum De-Gassed Re-Greasable Ball Bearings Using Polyrex EM Grease
• Automatic Grease Discharge Fittings on Frames on Re-Greaseable Motors
• Grounding Terminal Inside Main Box with Provisions for Grounding on Foot
• Stainless Steel Nameplate and Hardware
• Stainless Steel Automatic Breather Drains
• UL and CSA Approved for Inverter Duty per NEMA MG 1, Part 31 - Note (4)
• Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of Up to 2200 Volts
• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1, Part 31.4.4.3.
• Speed Ranges: 20:1 VT, 10:1 CT
• 3 Leads Only
• Vibration Not to Exceed 0.08 Inches per Second
• Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded
