/Products/Electric Motors/3 Phase/TechTop/Premium NEMA Aluminum, TEFC (GX3)/Rigid Base/GX3-AL-TF-145T-6-B-D-1 Techtop 1HP Cast Aluminum Electric Motor, 1200RPM
Click Image to Expand

Product ID: GX3-AL-TF-145T-6-B-D-1

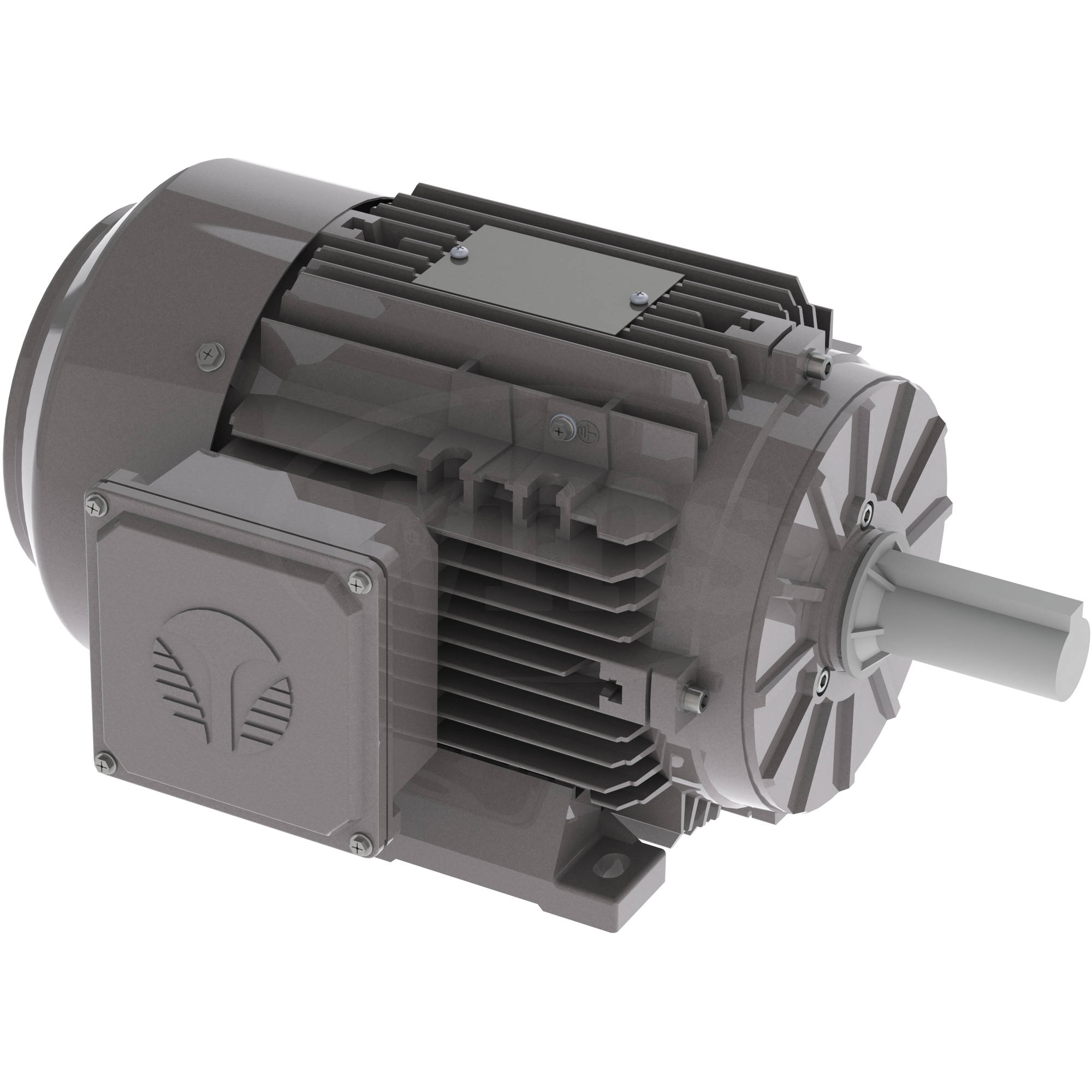

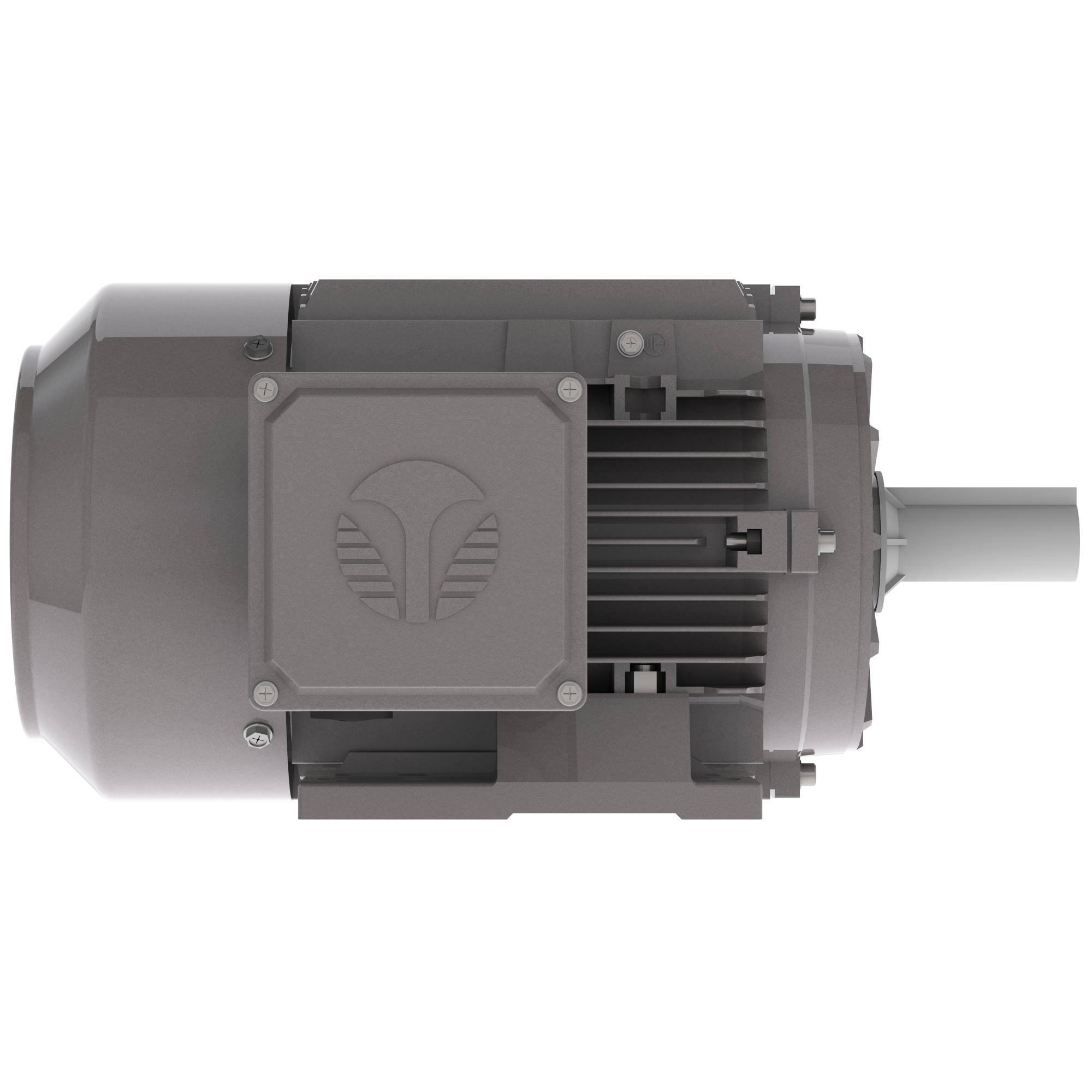

GX3-AL-TF-145T-6-B-D-1 Techtop 1HP Cast Aluminum Electric Motor, 1200RPM

MFG: TechTop Industries, Inc.
MFG Part Number: GX3-AL-TF-145T-6-B-D-1

Selected accessories will also be added to cart
$363.97 / Each
Quantity:
TEFC, 145T Frame, 230/460VAC 190/380VAC 50/60Hz 3 Phase, Removeable Rigid Base, Cast Aluminum Frame

Standard Features

  • NEMA Premium Efficiency
  • Dual Voltage – Three Phase
  • Inverter Duty – 15: Constant Torque (MG1 Part 31)
  • Totally Enclosed Fan Cooled, IP55 Protection
  • VPI Lap Wound Stator with Anti-Fungal Coating
  • Double Lip Oil Seal on DE & ODE
  • Internal Shaft Grounding Brush
  • 1.25 Service Factor – 143T Frame and Up
  • 50 Hz Capabble at 1.00 Service Factor
  • 40°C Ambient Temperature Rating
  • 1045 Carbon Steel Shaft
  • Multi-Mount Frame with Removable Feet
  • Oversized Drive End Bearing
  • One-Way Brass Condensation Drains
  • Aluminum Conduit Box, 90° Rotatable
  • Class F Insulation System with Class H Stator
  • F1, F2 & F3 Box Position Convertible (Shipped F1)
  • Class 1, Division 2, Group C & D Compliant
  • Installation up to 3300ft Altitude
  • 36 Month Warranty from Purchase Date

General Data

Brand Techtop
Model Number GX3-AL-TF-145T-6-B-D-1
Factory Type TXA
Frame Size 145T
Frame Enclosure TEFC
Mounting Rigid
Insulation Class F
Duty Continuous / S1
NEMA Design B
Frame Material Cast Aluminum
Ingress Protection IP55
Tropicalization True
Cable Entry One 3/4" NPT
Feet Removable True
Double Drilled -
Paint Color Graphite Gray
Paint RAL 7024
Weight 34.5 lbs

Electrical Data

Horsepower 1 HP
Speed 1145 RPM @ 60Hz
935 RPM @ 50Hz
Voltage 208-230/460VAC
190/380VAC
Phase 3
Full Load Amps 3.36/3.26/1.63 Amps (208/230/460V) @ 60Hz
3.80/1.90 Amps (190/380V) @ 50Hz
Power Factor 0.7 @ 60Hz
Nominal Efficiency 82.5% @ 60Hz
79.1% @ 50Hz
Service Factor 1.25 @ 60Hz
1.00 @ 50Hz
KVA Code H @ 60Hz
G @ 50Hz
Number of Leads 9
Connection YY/Y

Mechanical Data

DE Bearing 6205ZZ
NDE Bearing 6205ZZ
Wavy Washer NDE

Site Conditions

Ambient Temperature 40°C
Altitude 1000m above sea level

Dimensions

Techtop Motor Dimensions
