/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, C-Face, Rigid Base/GT1207A Marathon 2HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT1207A

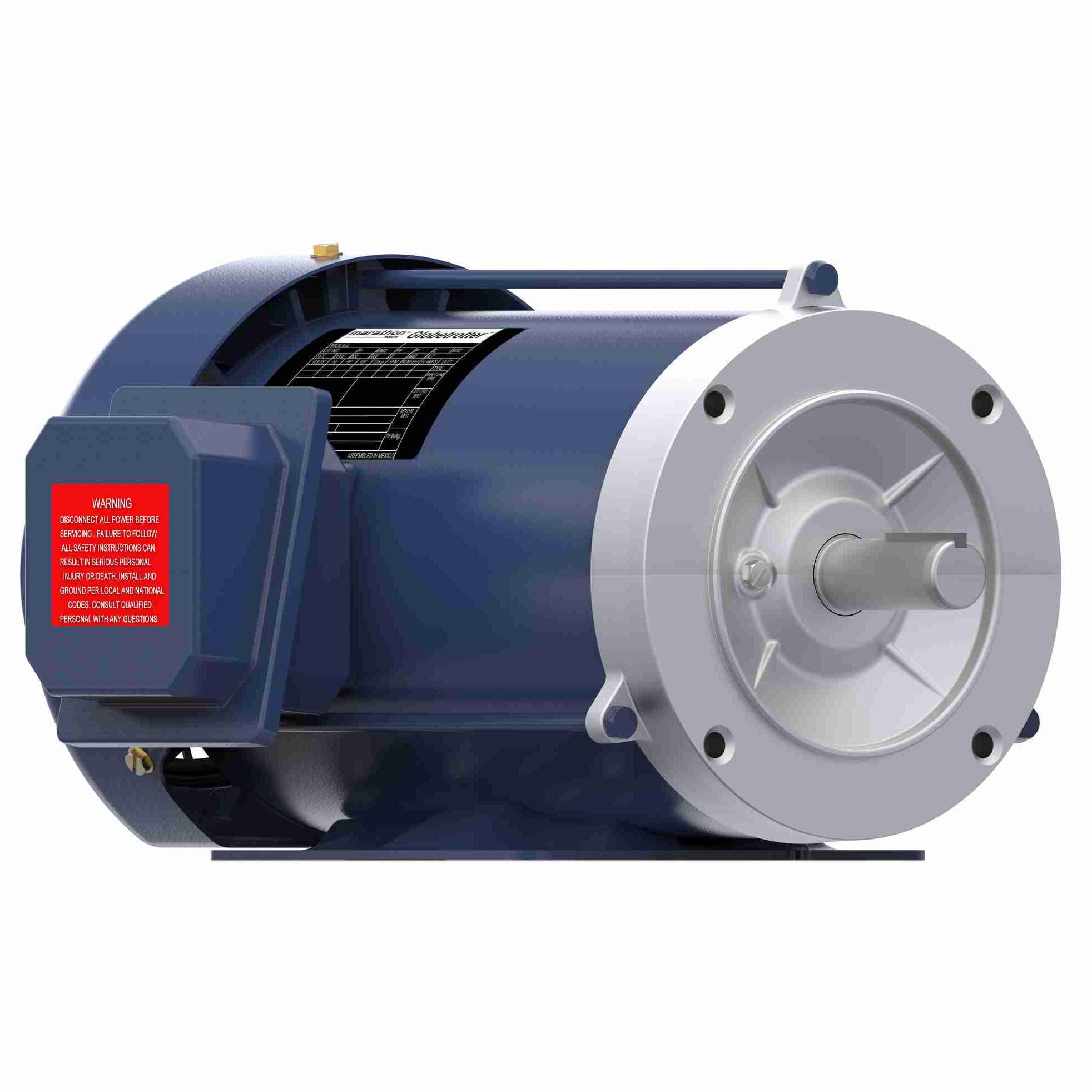

GT1207A Marathon 2HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1207A

Selected accessories will also be added to cart
$949.97 / Each
Quantity:
TEFC, 145TC Frame, 230/460VAC 60Hz 3-Phase, 145TTFBD16028, C-Face, Rigid Base, Rolled Steel Frame, 7/8" Keyed Shaft

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • IP43 enclosure
  • Inverter Duty 4:1 Constant Torque
  • Continuous duty cycle design allows maximum operation at the rated power specifications.
  • Class B or F Insulation protects motor for a maximum temperature rating.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Rolled Steel Frame

General Specifications

UPC: 722856202246 Weight: 55.00 LB
Packaged Length: 17.88 IN Packaged Width: 13 IN
Packaged Height: 12 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 5.8-5.4/2.7 A Speed: 1745 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 80
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: M
Frame: 145TC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 9.55 Ohms Mounting: Bolt-on Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Shaft Diameter: 0.875 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 26.00 0.0 21.30 365.0 0 13.60 65.7 2.00
Break-Down 16.40 0.0 24.40 410.0 1,066 10.50 80.5 2.00
No Load 1.60 0.0 0.00 0.0 1,800 0.11 9.0 2.00
Full Load 2.70 100.0 6.00 100.0 1,745 1.73 80.0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.50 1.60 1.90 2.30 2.70 3.00 3.30
Rated Output (KW) 0.11 0.49 0.89 1.30 1.73 2.00 2.20
Efficiency (%) 0.0 75.9 84.2 86.2 86.5 86.5 85.5
Power Factor (%) 9.0 37.0 58.0 72.0 80.0 83.0 84.0
Speed (RPM) 1,800 1,785 1,775 1,760 1,745 1,735 1,730
Temp. Rise @ FL 0.0 0.0 0.0 0.0 80.0 100.0 0.0
Torque (LB-FT) 0.00 1.50 3.00 4.50 6.00 7.00 7.60
