/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, Rigid Base/GT1056A Marathon 200HP Globetrotter Electric Motor, 1200RPM
Click Image to Expand

Product ID: GT1056A

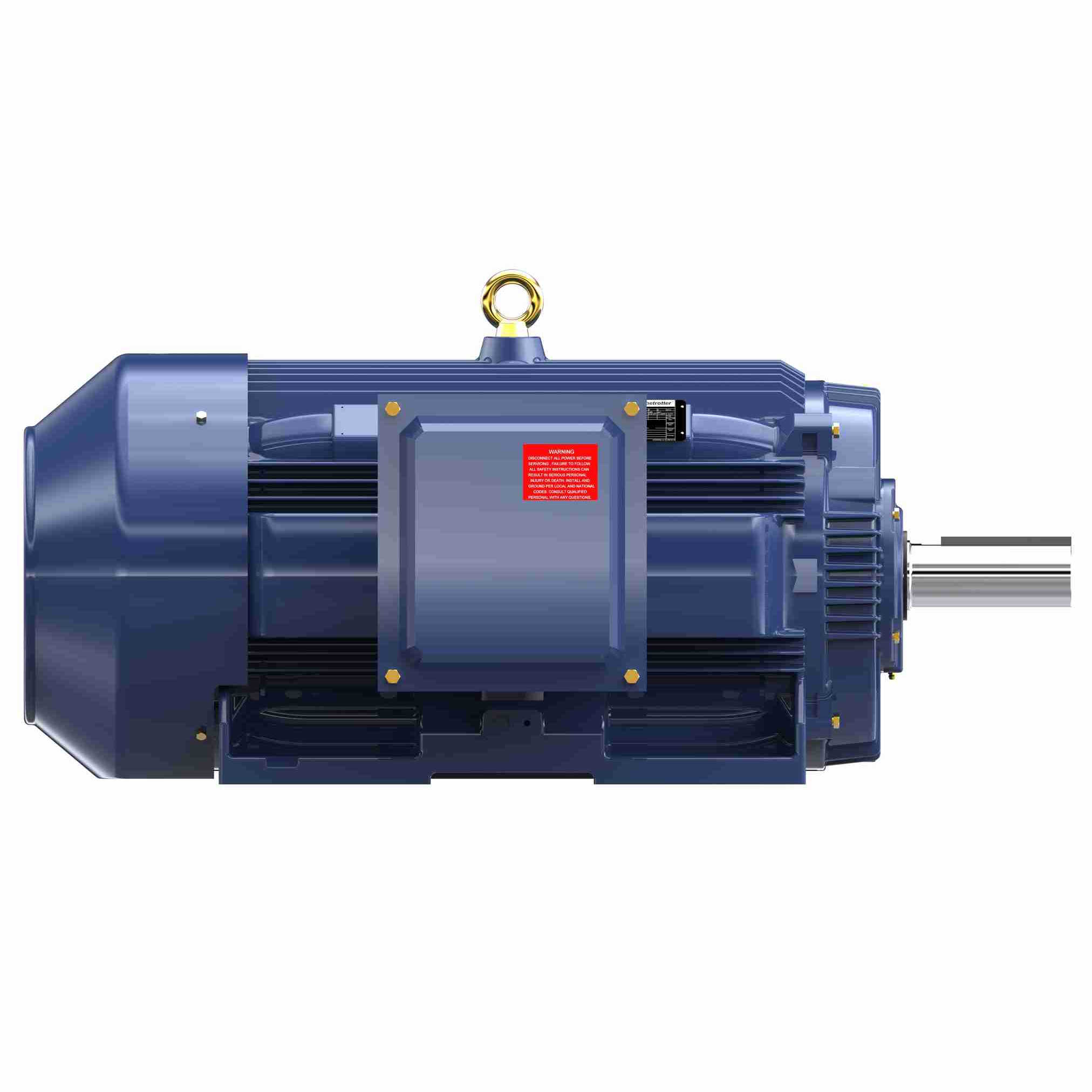

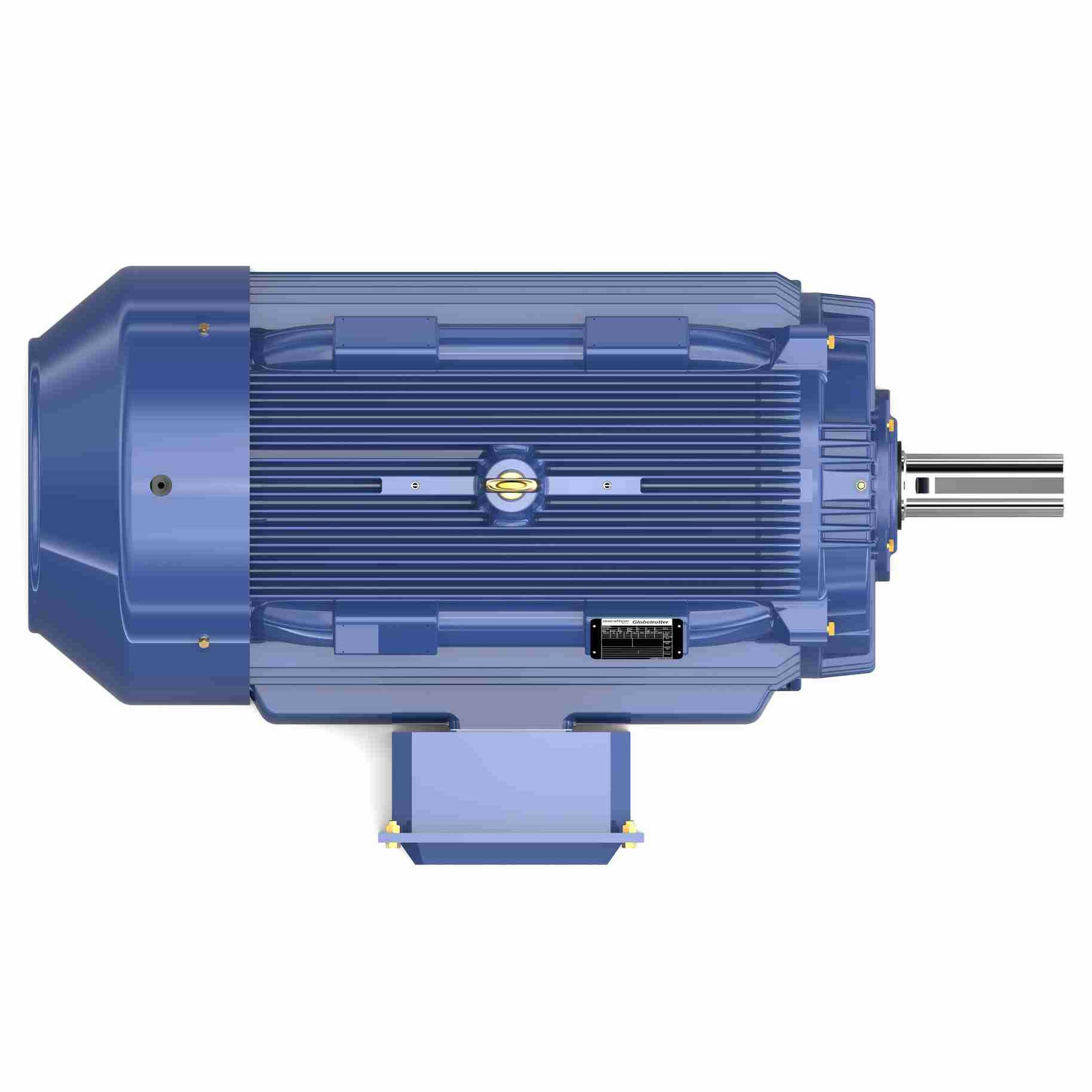

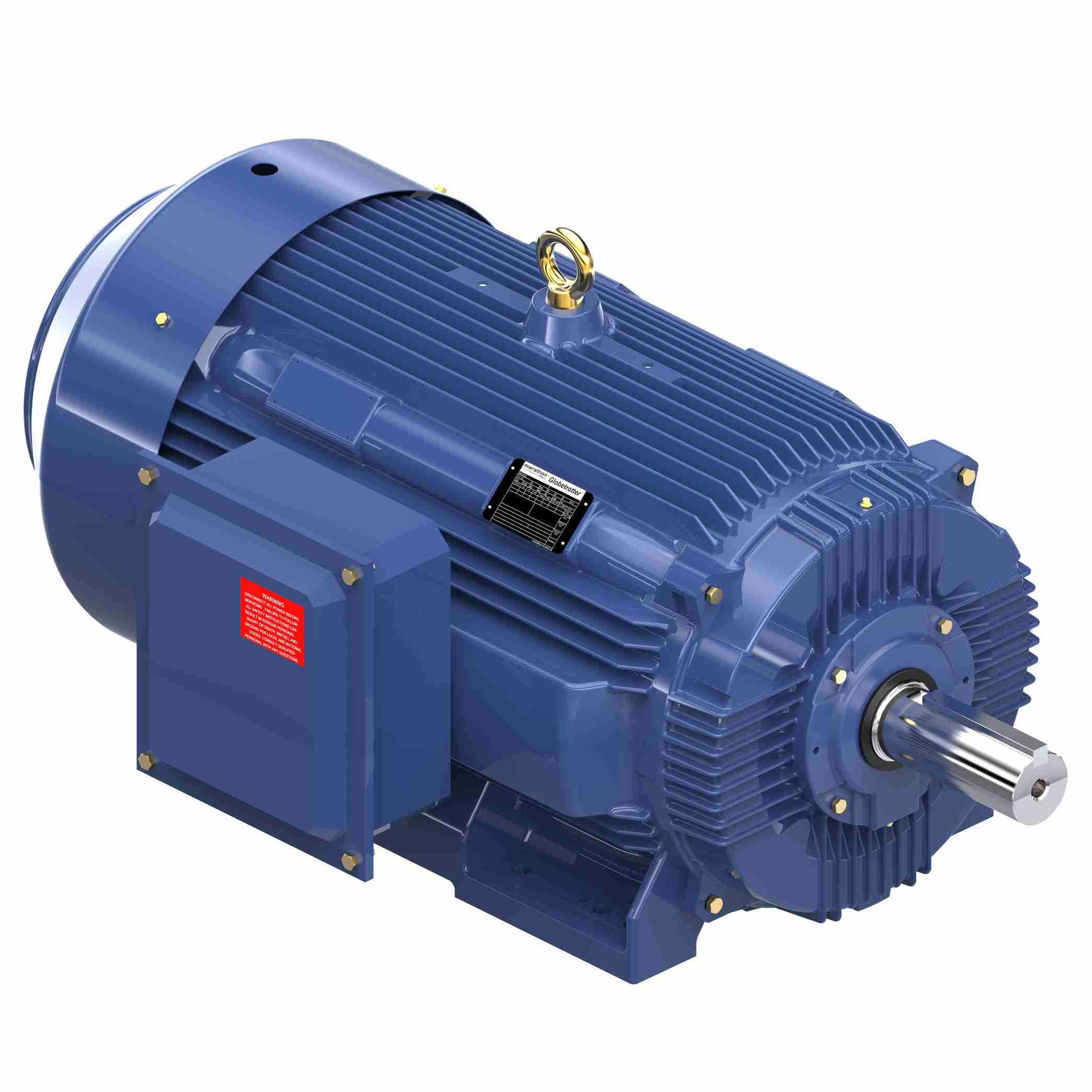

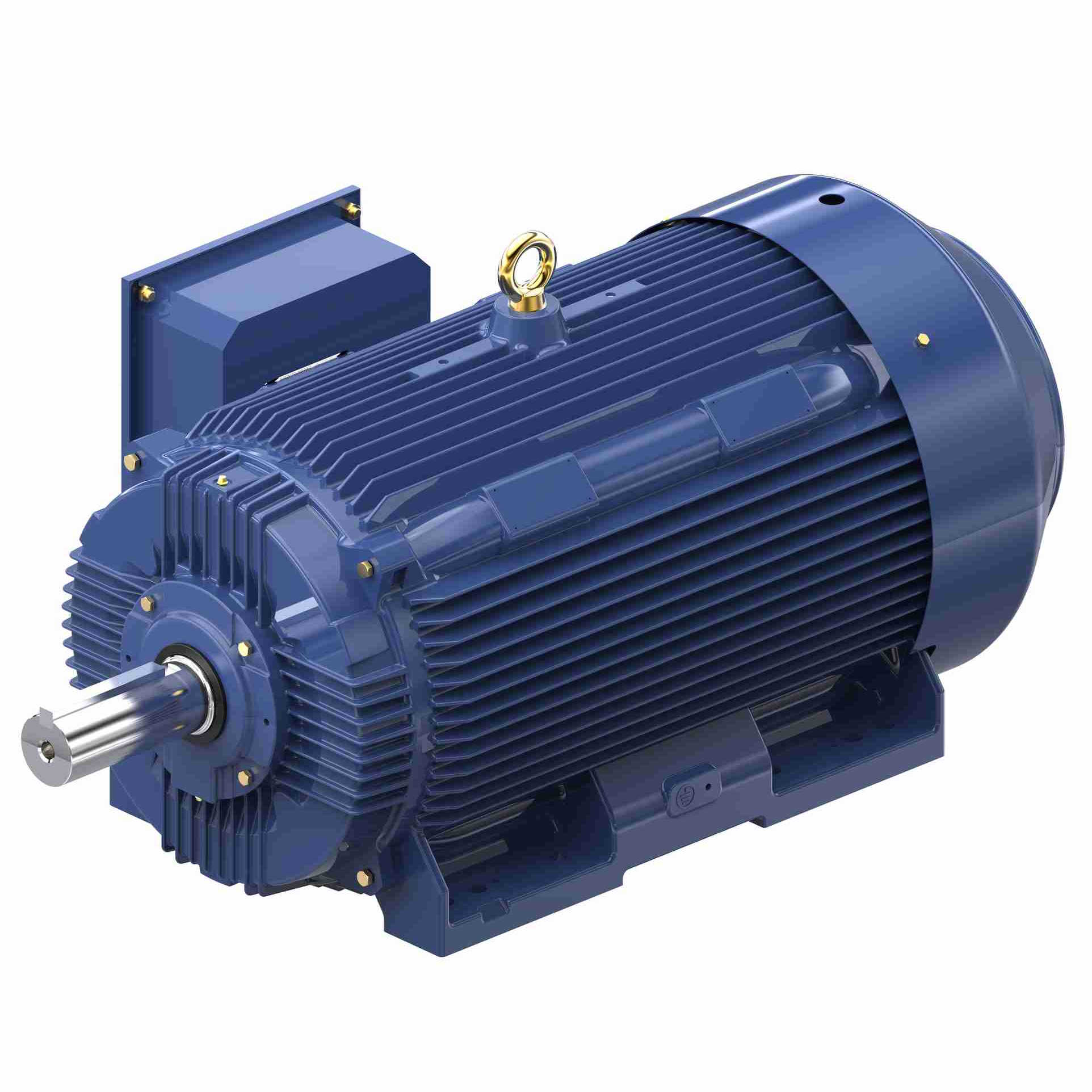

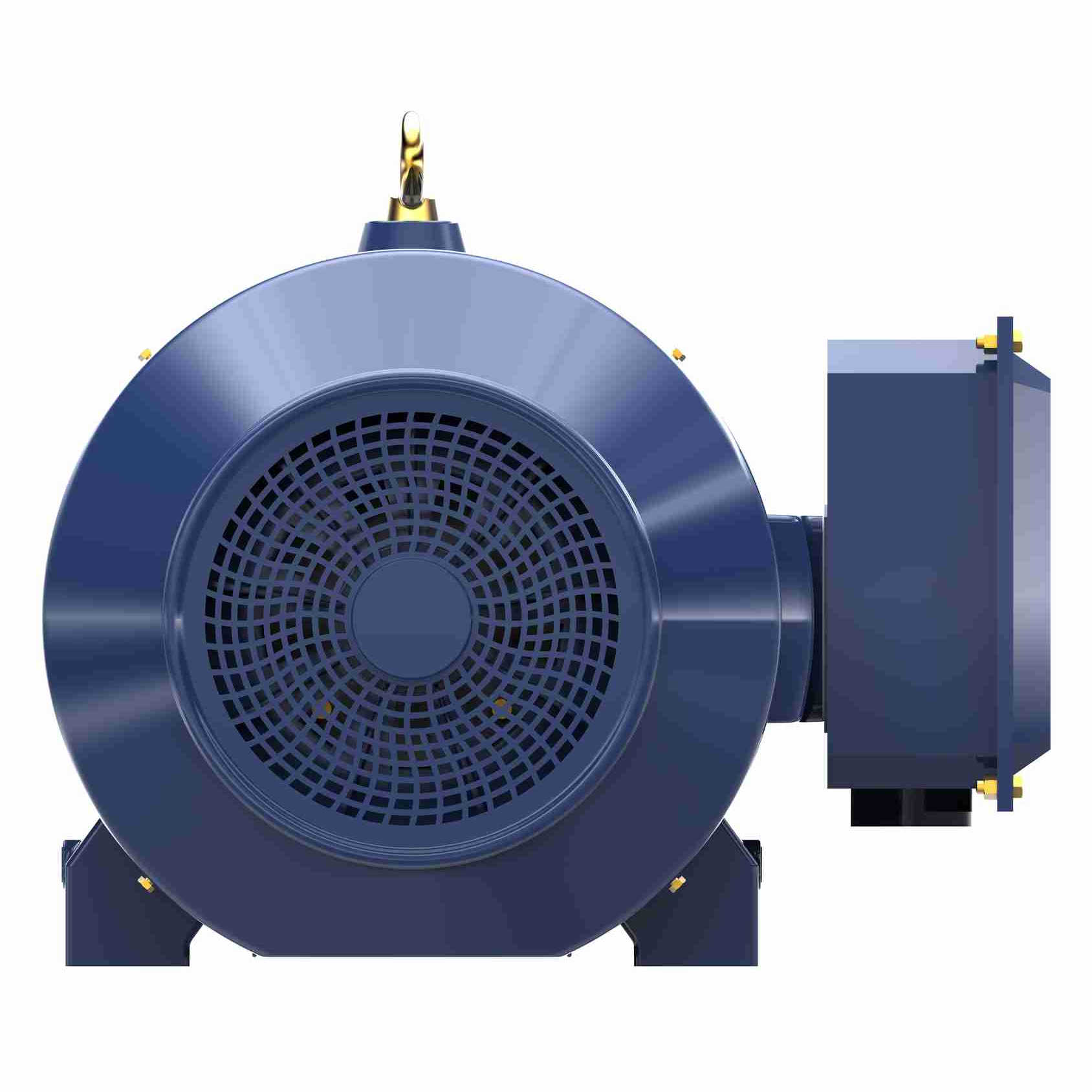

GT1056A Marathon 200HP Globetrotter Electric Motor, 1200RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1056A

Selected accessories will also be added to cart
$22,199.97 / Each
Quantity:
TEFC, 449T Frame, 460VAC 60Hz, 3-Phase, 449TTFCD6088, Rigid Base, Cast Iron Frame, 3-3/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2047
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • CONSTANT 2:1/VARIABLE 20:1
  • IP55 enclosure on cast iron frames
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Inverter Duty 20:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856068279 Weight: 2,493.85 LB
Packaged Length: 58 IN Packaged Width: 35 IN
Packaged Height: 31 IN

Nameplate Specifications

Output HP: 200 Hp Output KW: 149.0 kW
Frequency: 60 Hz Voltage: 460 V
Current: 230.0 A Speed: 1190 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 95.8 % Power Factor: 85
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 449T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6319 Opp Drive End Bearing Size: 6317
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Part Wdg Start Or Inverter
Poles: 6 Rotation: Selective Clockwise
Resistance Main: .0186 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 55.21 in
Shaft Diameter: 3.375 in Shaft Extension: 8.5 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 1,425.00 640.0 1,550.00 175.0 0 31.0 200.00
2/3 1,045.00 460.0 1,700.00 195.0 800 200.00
Full Load 230.00 100.0 883.00 100.0 1,190 85.0 200.00
1/3 1,262.00 555.0 1,355.00 152.0 400 200.00
No Load 69.50 31.0 0.00 0.0 1,200 4.0 200.00
Break-Down 780.00 345.0 2,350.00 265.0 1,155 62.0 200.00
Pull-Up 1,160.00 510.0 1,372.00 155.0 600 200.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 69.50 88.50 129.00 178.00 230.00 265.00 290.00
Rated Output (KW) 2.70 39.50 78.00 117.00 156.00 180.00 196.00
Efficiency (%) 0.0 94.1 95.4 95.8 95.8 95.4 95.0
Power Factor (%) 4.0 56.5 76.0 82.5 85.0 85.5 85.5
Speed (RPM) 1,200 1,198 1,195 1,192 1,190 1,188 1,188
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 105.0 0.0
Torque (LB-FT) 0.00 220.00 440.00 661.00 883.00 1,018.00 1,106.00
