/Products/Ball Bearings/6300 Series Ball Bearings/63172RSC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6317-2RS

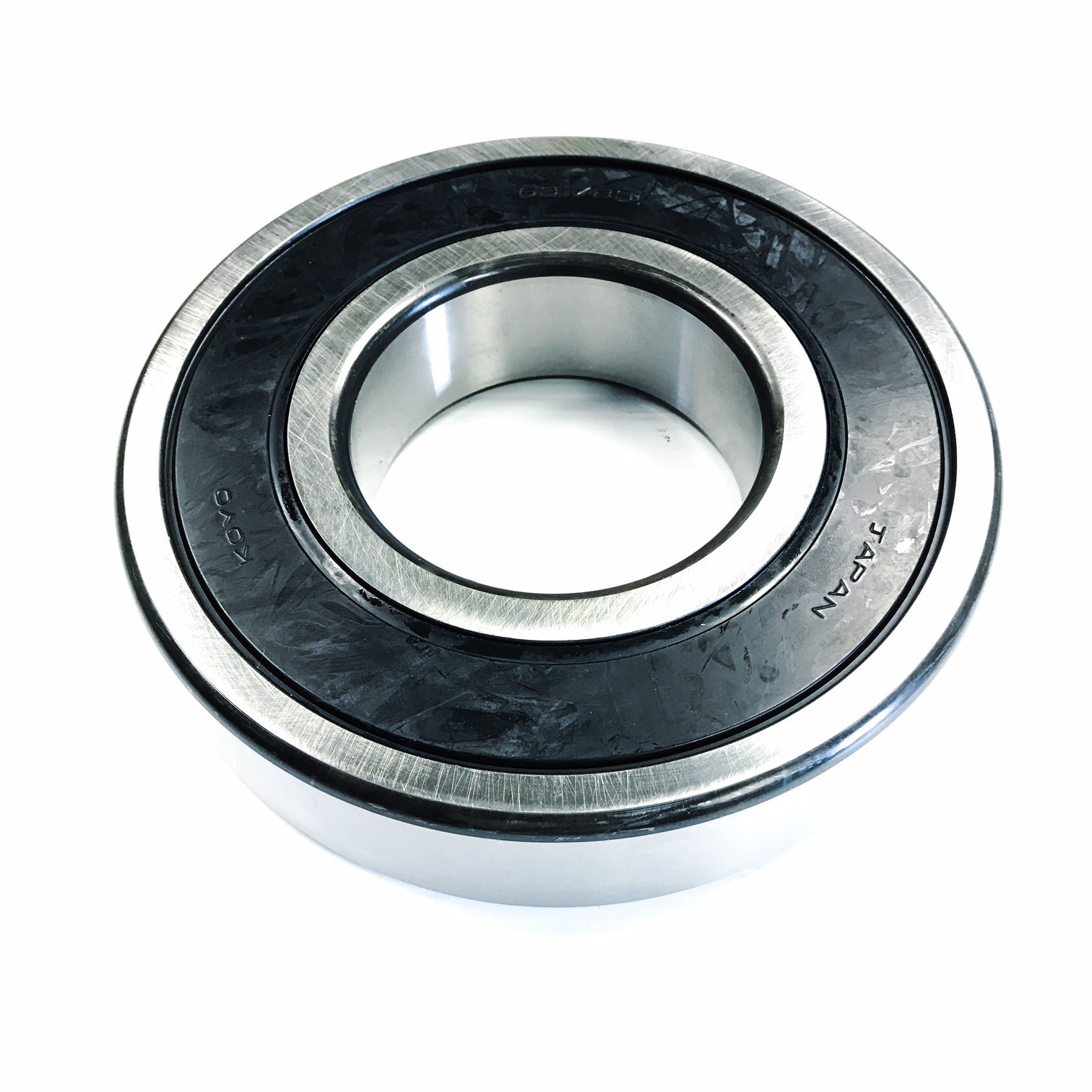

63172RSC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63172RSC3

Available Stock: 1
Selected accessories will also be added to cart
$271.21 / Each
Quantity:
6317-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63172RSC3
Group Deep Groove Ball Bearings

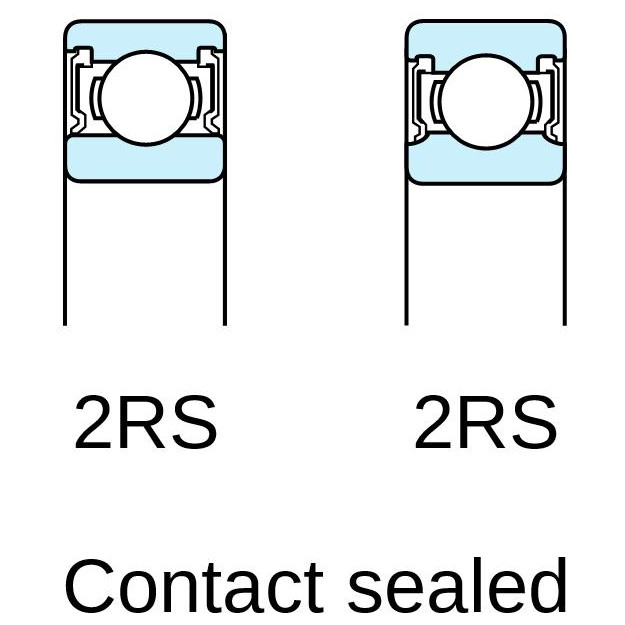

Type Contact Sealed (2RS)
Bore / Inside Diameter (d) 85 mm
Housing / Outside Diameter (D) 180 mm
Width (B) 41 mm
Minimum Radius (r) 3 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 133 kN
C0r 96.8 kN
Fatigue Load Limit (Cu) 6.35 kN
Factor (f0) 13.3
Limiting Speeds (Grease Lubrication) 2,500 min-1

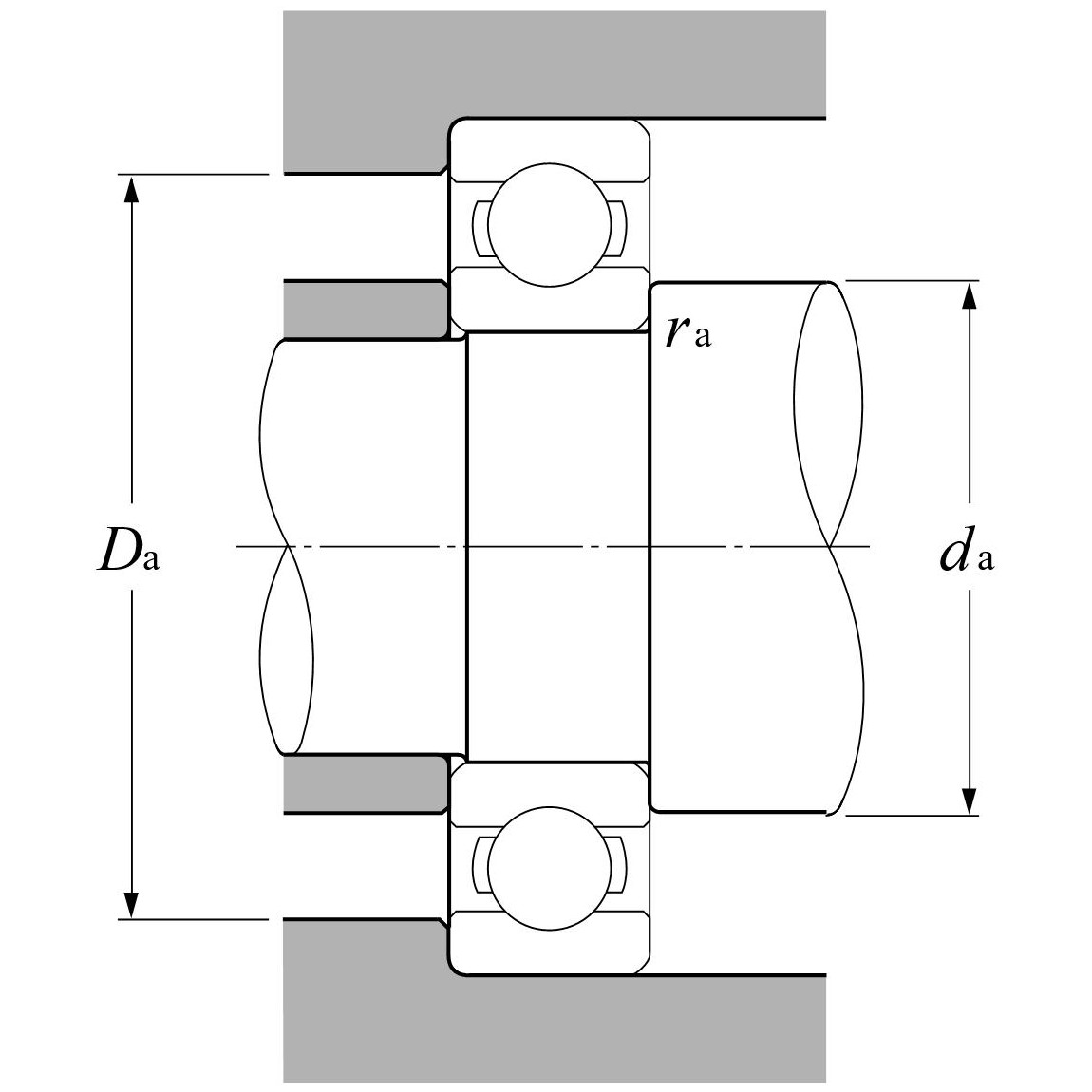

Shaft Shoulder Mounting Dimension (da) 98 mm Minimum
111 mm Maximum
Housing Shoulder Mounting Dimension (Da) 167 mm Maximum
Shoulder Radius (ra) 2.5 mm Maximum
Mass 4.23 kg
9.33 lbs
UPC
Country of Manufacture Japan
