/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, Rigid Base/GT1034A Marathon 40HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT1034A

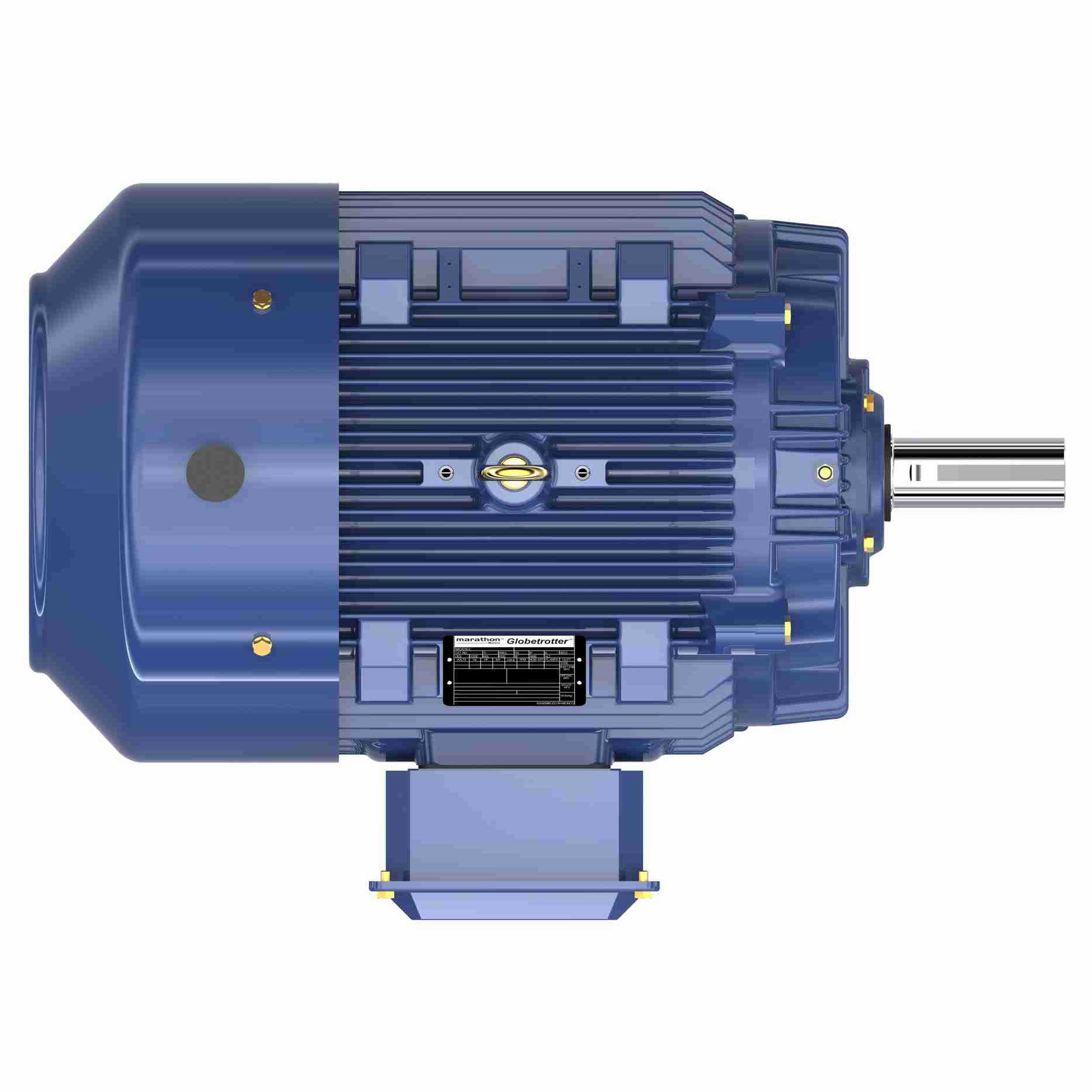

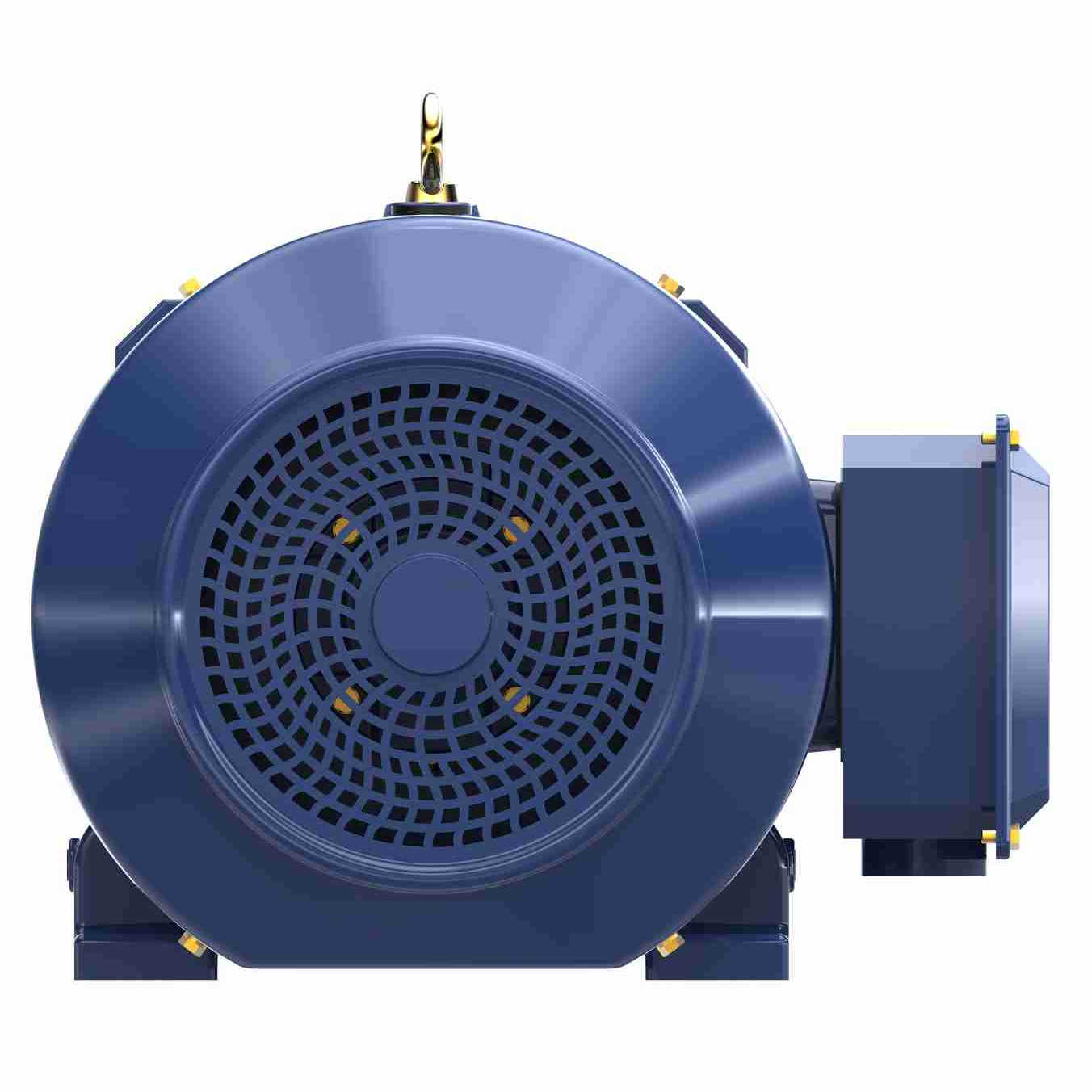

GT1034A Marathon 40HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1034A

Selected accessories will also be added to cart
$4,299.97 / Each
Quantity:
TEFC, 324T Frame, 230/460VAC 60Hz, 3-Phase, 324TTFCD6026, Rigid Base, Cast Iron Frame, 2-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2025
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • CONSTANT 10:1/VARIABLE 20:1
  • IP55 enclosure on cast iron frames
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856060716 Weight: 624.02 LB
Packaged Length: 31.77 IN Packaged Width: 28.03 IN
Packaged Height: 28.14 IN

Nameplate Specifications

Output HP: 40 Hp Output KW: 30.0 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 95.0/47.5 A Speed: 1782 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 94.1 % Power Factor: 84
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 324T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6312 Opp Drive End Bearing Size: 6212
UL: Listed CSA: Y
CE: Y IP Code: 55
Hazardous Location: DIVISION 2 T2B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter
Poles: 4 Rotation: Selective Clockwise
Resistance Main: .18 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 29.69 in
Shaft Diameter: 2.125 in Shaft Extension: 5.25 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 47.50 100.0 118.00 100.0 1,782 31.50 84.0 40.00
Locked-Rotor 290.00 610.0 212.00 180.0 0 71.50 32.0 40.00
Pull-Up 230.00 485.0 180.00 152.0 900 0.00 0.0 40.00
1/3 250.00 525.0 175.00 150.0 600 0.00 0.0 40.00
2/3 210.00 440.0 220.00 185.0 1,200 0.00 0.0 40.00
Break-Down 170.00 360.0 313.00 265.0 1,710 90.70 67.0 40.00
No Load 17.50 37.0 0.00 0.0 1,800 0.00 5.0 40.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 17.50 20.50 27.80 37.00 47.50 54.20 59.00
Rated Output (KW) 0.70 8.20 15.90 23.70 31.70 36.60 39.90
Efficiency (%) 0.0 91.0 93.6 94.1 94.1 93.6 93.0
Power Factor (%) 5.0 50.5 72.5 81.0 84.0 85.5 85.5
Speed (RPM) 1,800 1,795 1,790 1,788 1,782 1,780 1,778
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 80.0 0.0
Torque (LB-FT) 0.00 29.30 58.50 88.30 118.00 136.00 148.50
