/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, Rigid Base/GT1007 Marathon 2HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT1007

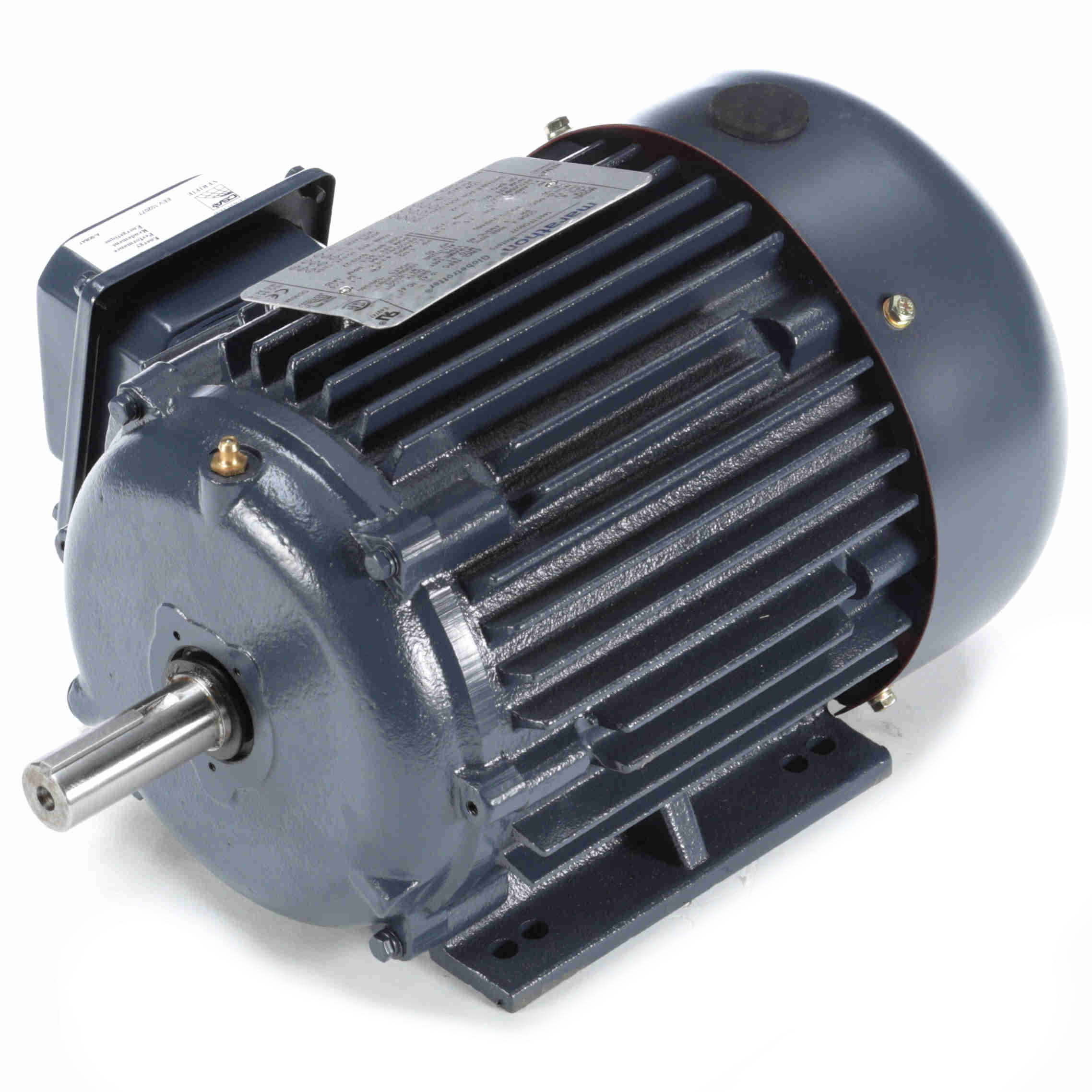

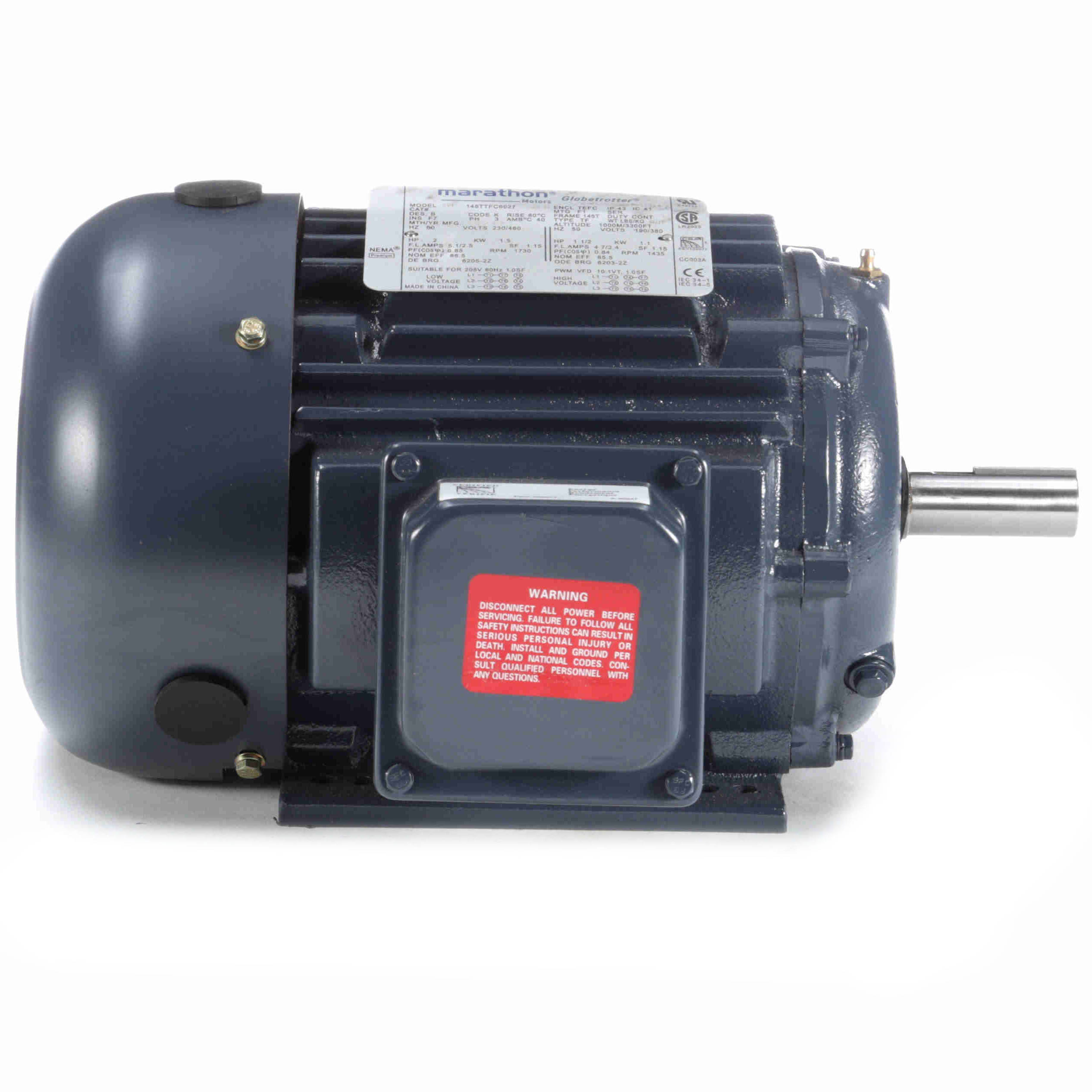

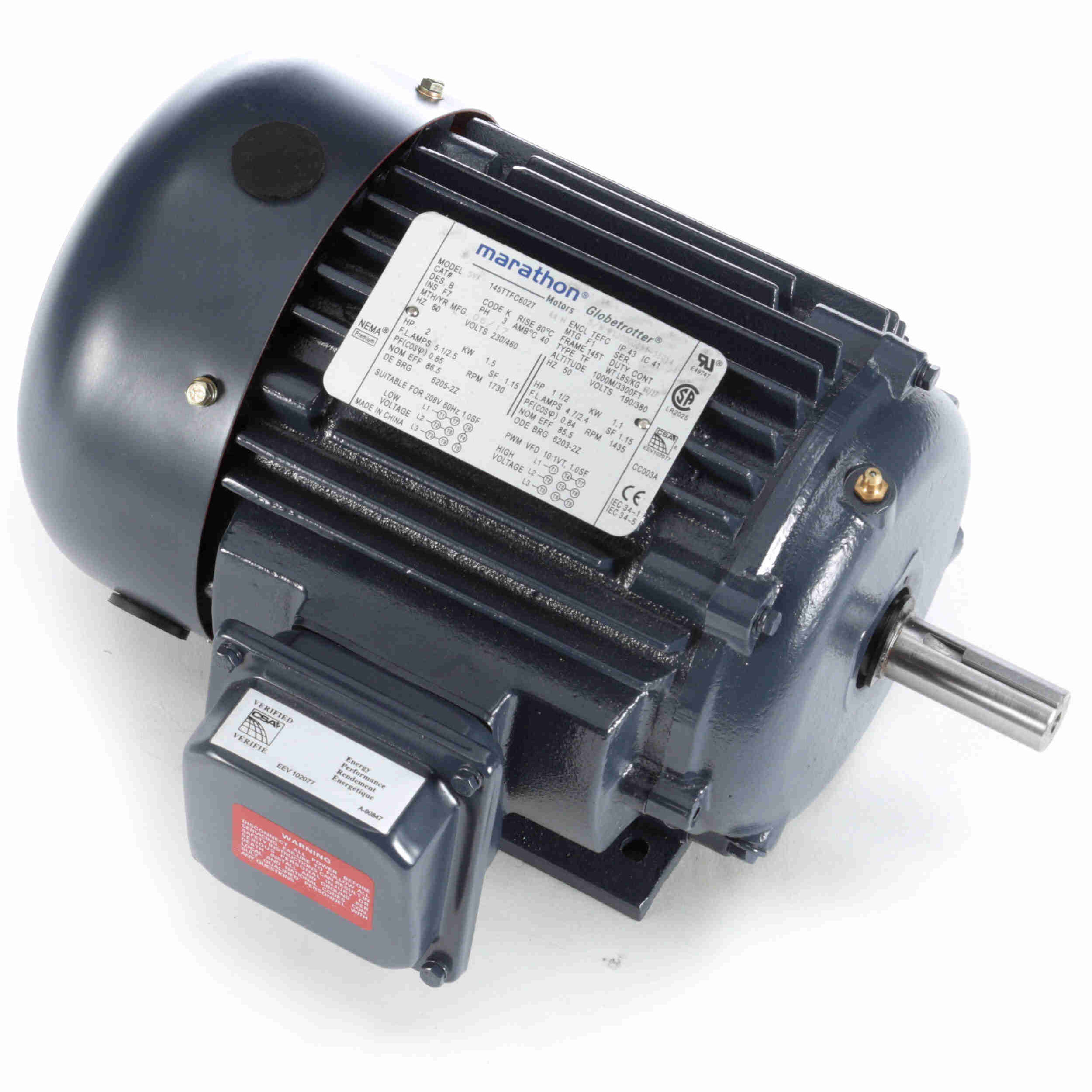

GT1007 Marathon 2HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1007

Selected accessories will also be added to cart
$709.97 / Each
Quantity:
TEFC, 145T Frame, 230/460VAC 60Hz 3-Phase, 145TTFC6027, Rigid Base, Cast Iron, 7/8" Keyed Shaft

Features

  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section

General Specifications

UPC: 722856049629 Weight: 60.00 LB
Packaged Length: 14.96 IN Packaged Width: 12.79 IN
Packaged Height: 9.8 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 5.0/2.5 A Speed: 1730 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 85
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 145T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Rigid base Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Cast Iron Shaft Type: T
Overall Length: 14.20 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 1.10 44.0 0.00 0.0 1,800 6.5 2.00
2/3 15.60 624.0 18.00 295.0 1,200 2.00
1/3 19.50 780.0 12.00 196.0 600 2.00
Pull-Up 17.60 704.0 15.50 254.0 900 2.00
Full Load 2.50 100.0 6.10 100.0 1,730 85.0 2.00
Break-Down 12.70 508.0 21.50 350.0 1,650 81.0 2.00
Locked-Rotor 20.50 800.0 16.30 265.0 0 62.5 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.10 1.20 1.60 2.00 2.50 2.90 3.20
Rated Output (KW) 0.15 0.43 0.84 1.30 1.70 2.00 2.20
Efficiency (%) 0.0 84.0 88.5 87.5 86.5 85.5 84.0
Power Factor (%) 6.5 45.5 68.0 79.0 85.0 86.5 87.5
Speed (RPM) 1,800 1,784 1,767 1,748 1,730 1,719 1,704
Temp. Rise @ FL 0.0 0.0 0.0 0.0 60.0 80.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.10 7.00 7.70
