/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/TEFC, Rigid Base/GT1004 Marathon 1.5HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT1004

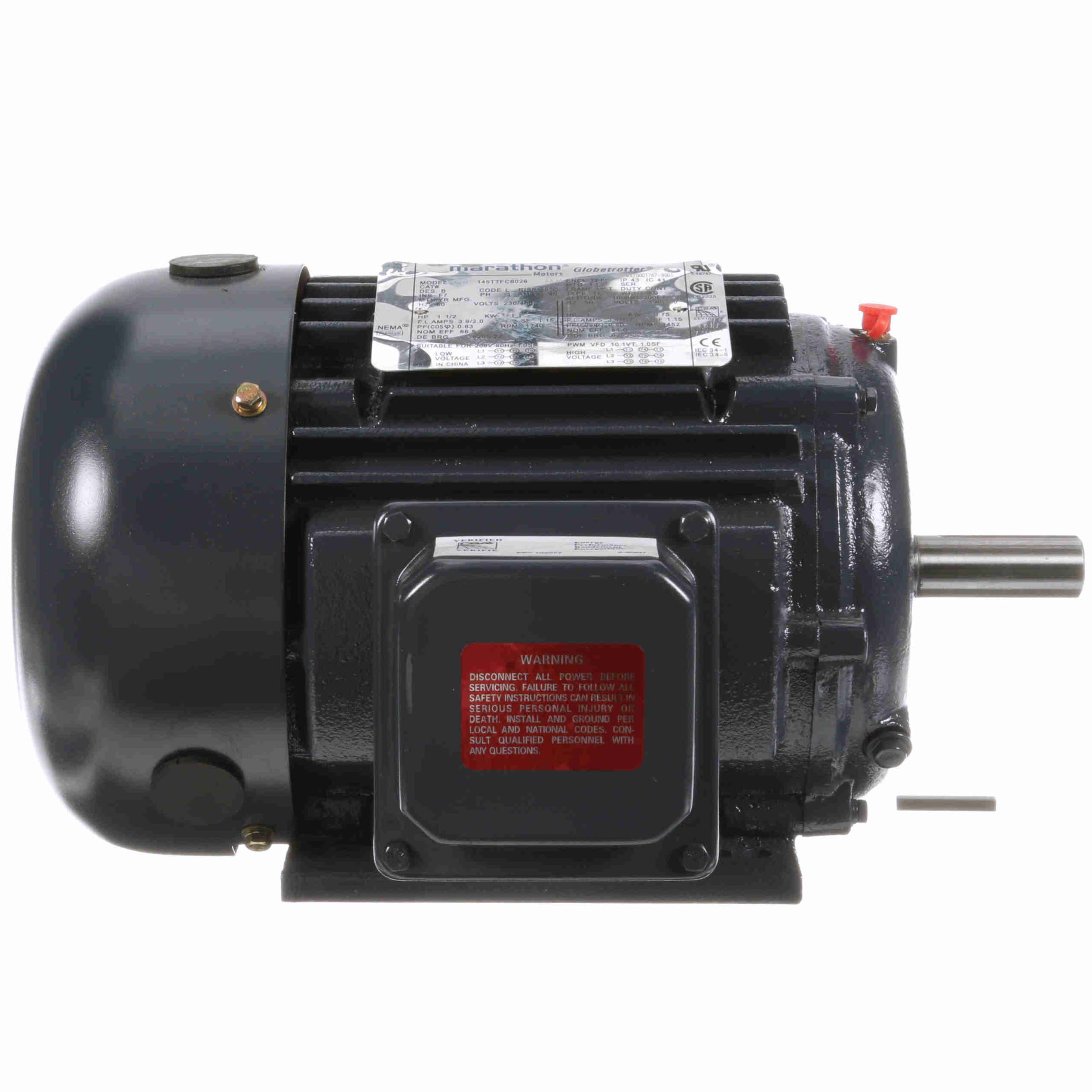

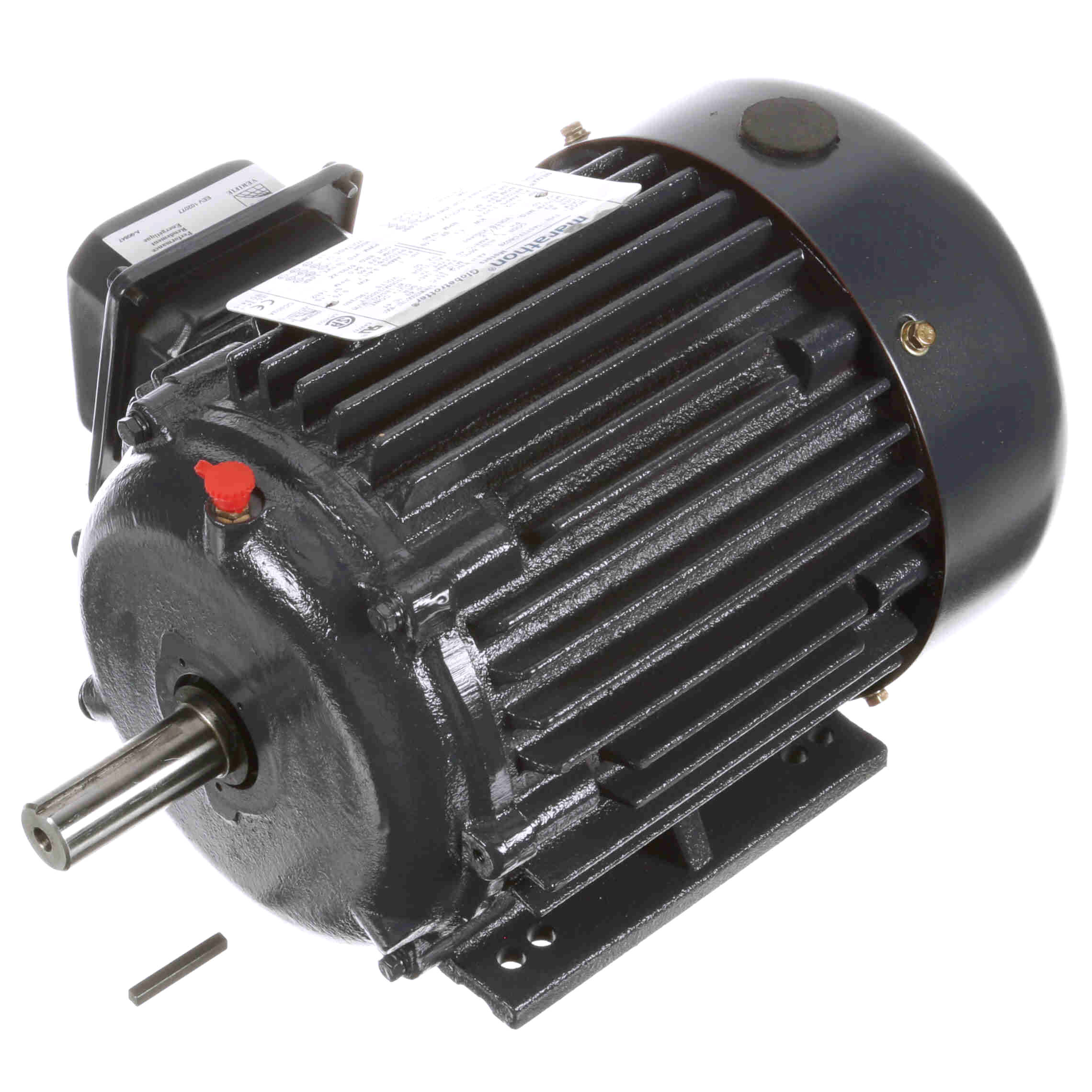

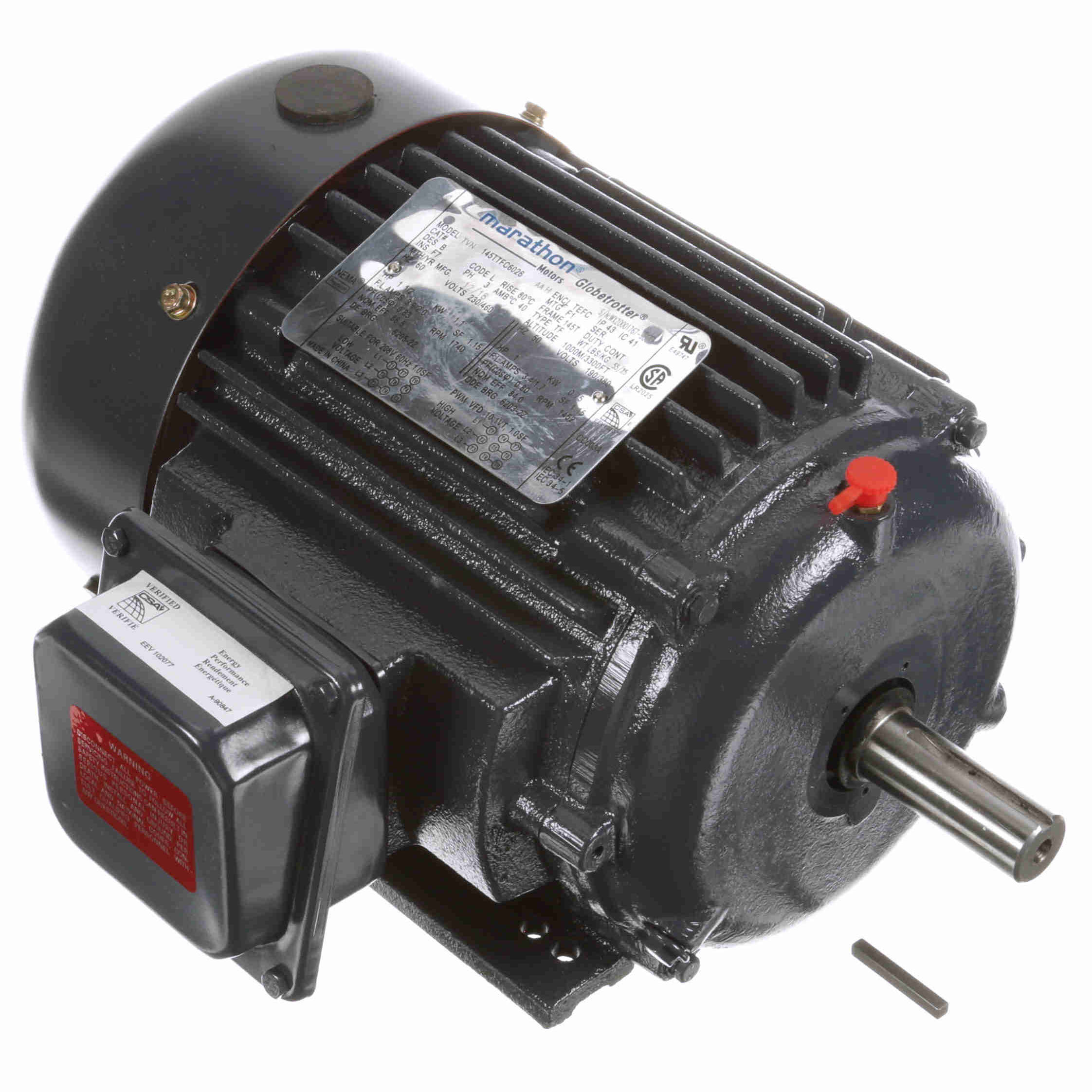

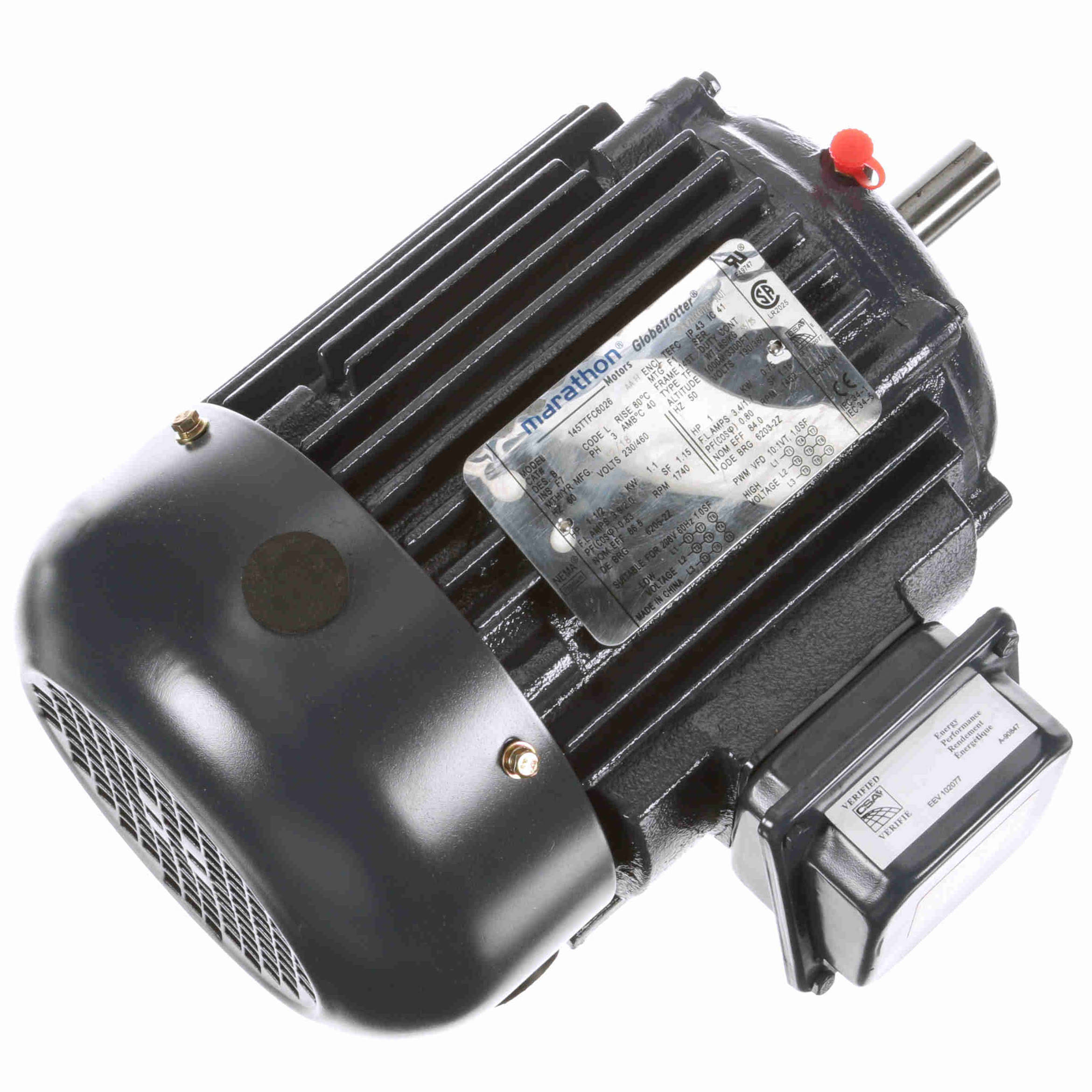

GT1004 Marathon 1.5HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT1004

Selected accessories will also be added to cart
$659.97 / Each
Quantity:
TEFC, 145T Frame, 230/460VAC 60Hz, 3-Phase, 145TTFC6026, Rigid Base, Cast Iron, 7/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Standard assembly F1, reversible to F2 assembly
  • Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
  • Class F Insulation
  • Cast iron frame material
  • 1.15 service factor on sinewave, 1.0 service factor on IGBT power
  • UL recognized, CSA certified and CE mark

General Specifications

UPC: 722856049612 Weight: 62.00 LB
Packaged Length: 14.96 IN Packaged Width: 12.79 IN
Packaged Height: 9.8 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.0/2.0 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 83
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 145T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Rigid base Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Cast Iron Shaft Type: T
Overall Length: 14.20 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 0.95 48.5 0.00 0.0 1,800 9.0 1.50
1/3 16.50 692.0 13.00 280.0 600 1.50
Full Load 2.00 100.0 4.50 100.0 1,740 83.0 1.50
2/3 13.00 615.0 14.00 311.0 1,200 1.50
Locked-Rotor 17.50 875.0 14.60 320.0 0 67.0 1.50
Break-Down 10.00 513.0 17.50 385.0 1,650 81.0 1.50
Pull-Up 15.00 667.0 12.00 267.0 900 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 0.95 1.05 1.30 1.60 2.00 2.20 2.35
Rated Output (KW) 0.15 0.37 0.67 1.00 1.30 1.50 1.60
Efficiency (%) 0.0 76.5 84.0 86.5 86.5 86.5 85.5
Power Factor (%) 9.0 44.0 66.0 78.0 83.0 85.0 86.0
Speed (RPM) 1,800 1,785 1,770 1,756 1,740 1,730 1,725
Temp. Rise @ FL 0.0 0.0 0.0 0.0 65.0 85.0 105.0
Torque (ft-lbs) 0.00 1.10 2.20 3.40 4.50 5.20 5.70
