/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/GT0113 Marathon 5HP Globetrotter General Purpose Electric Motor, 1800RPM

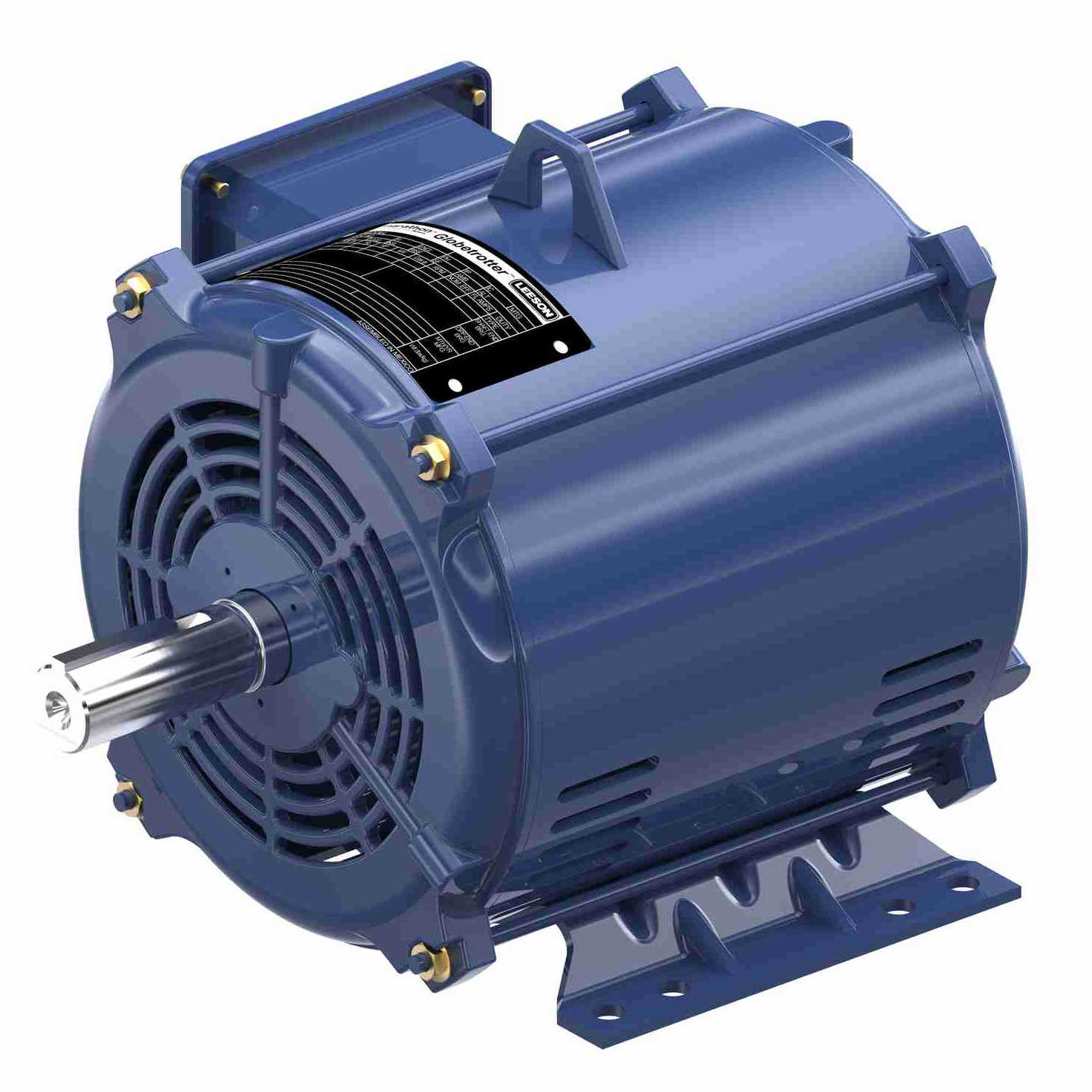

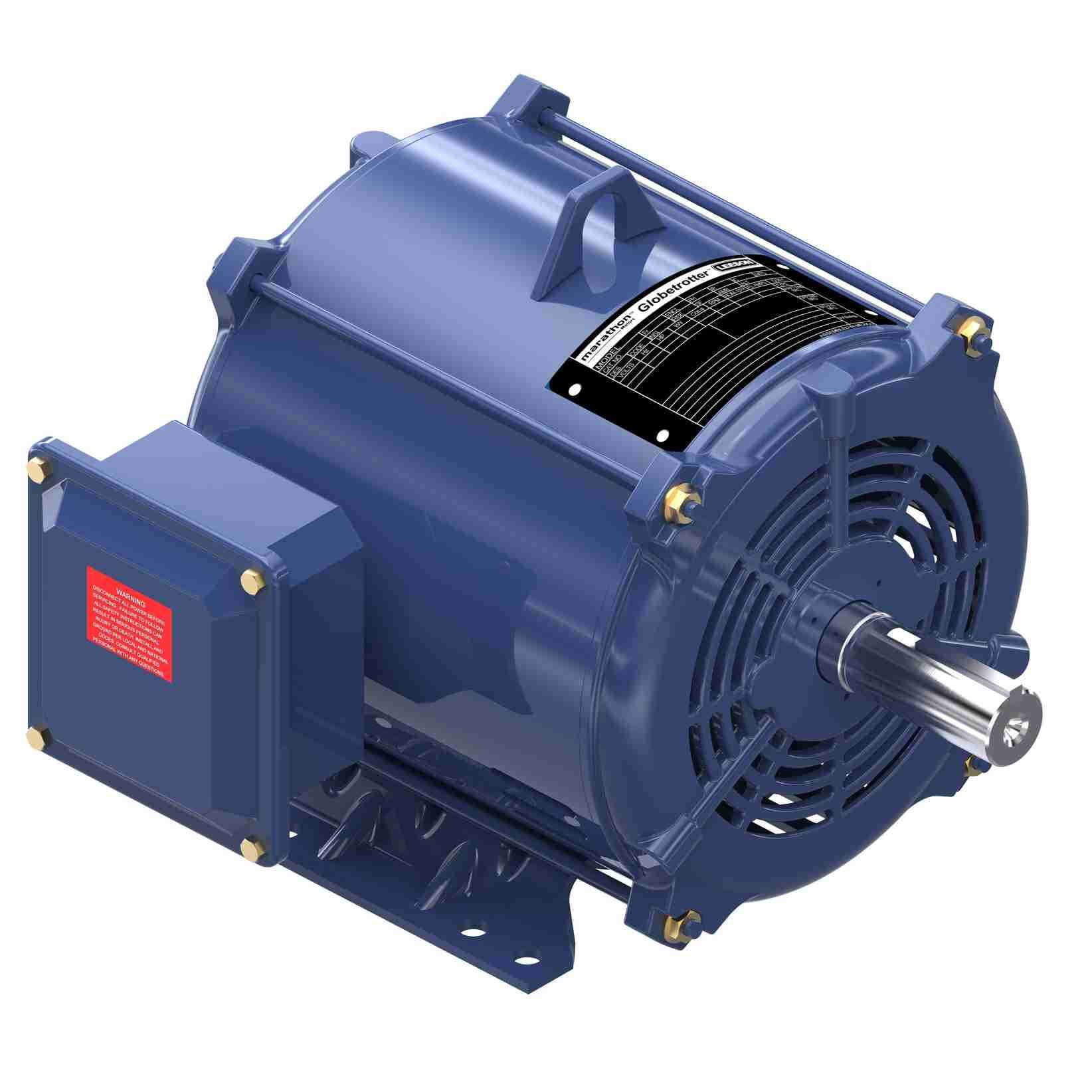

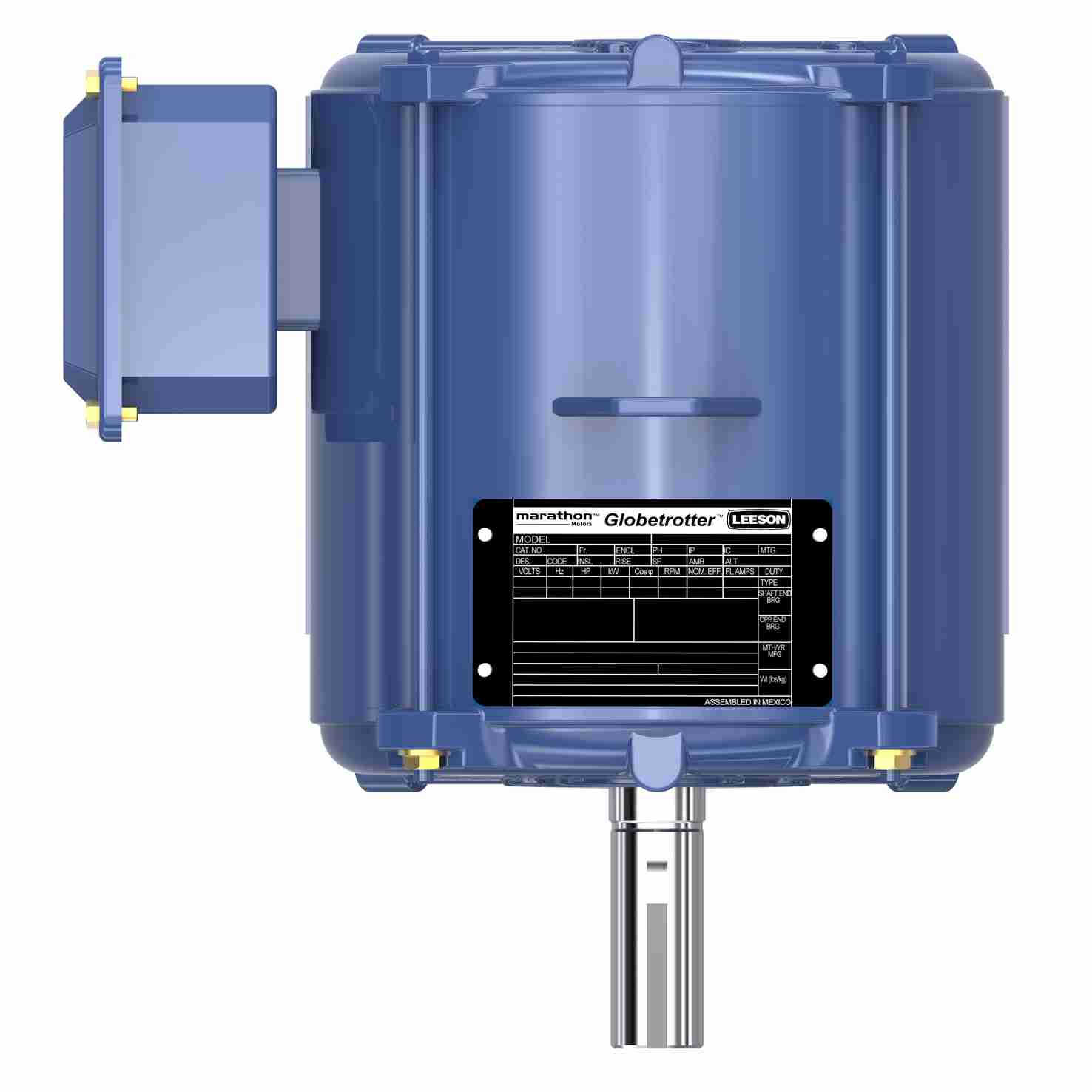

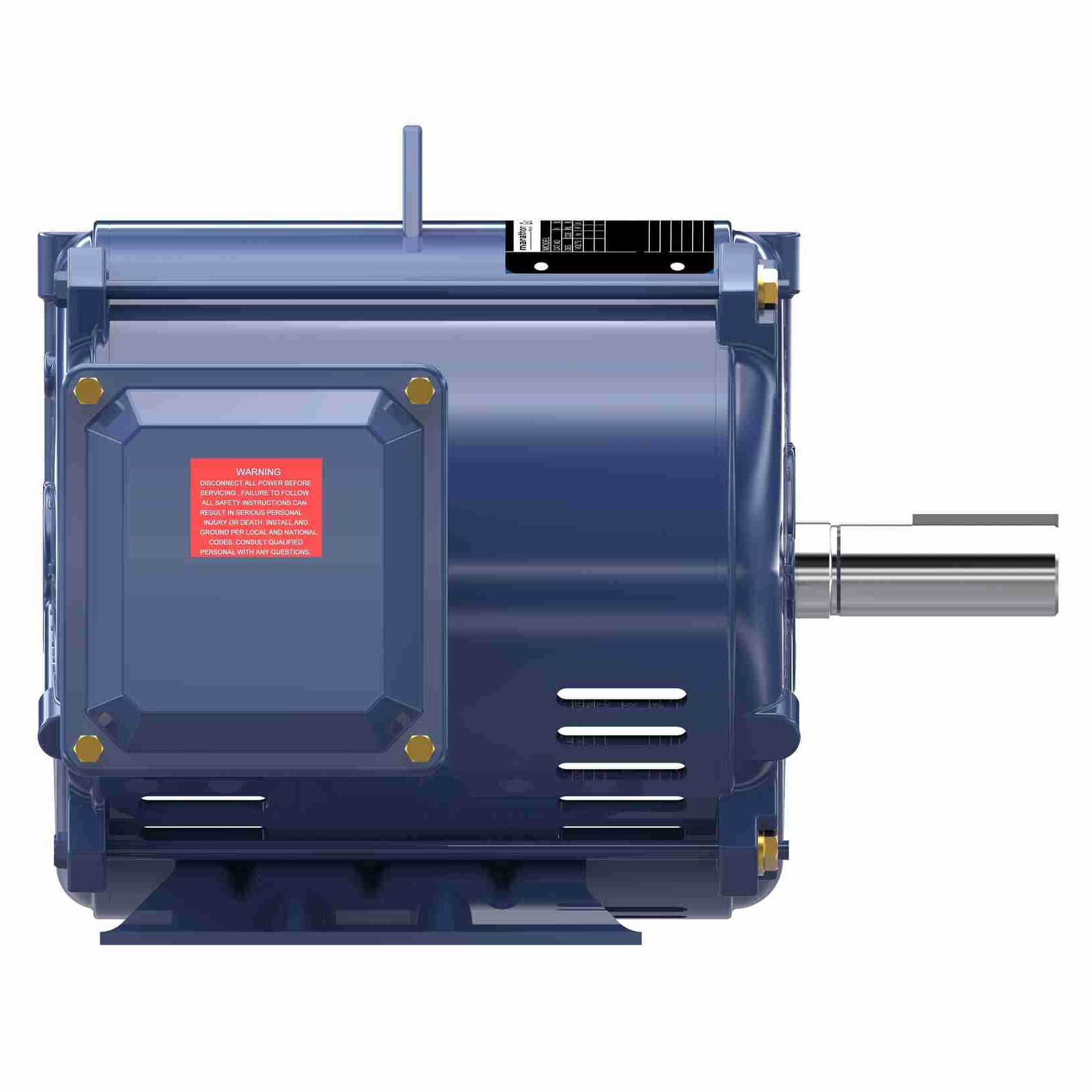

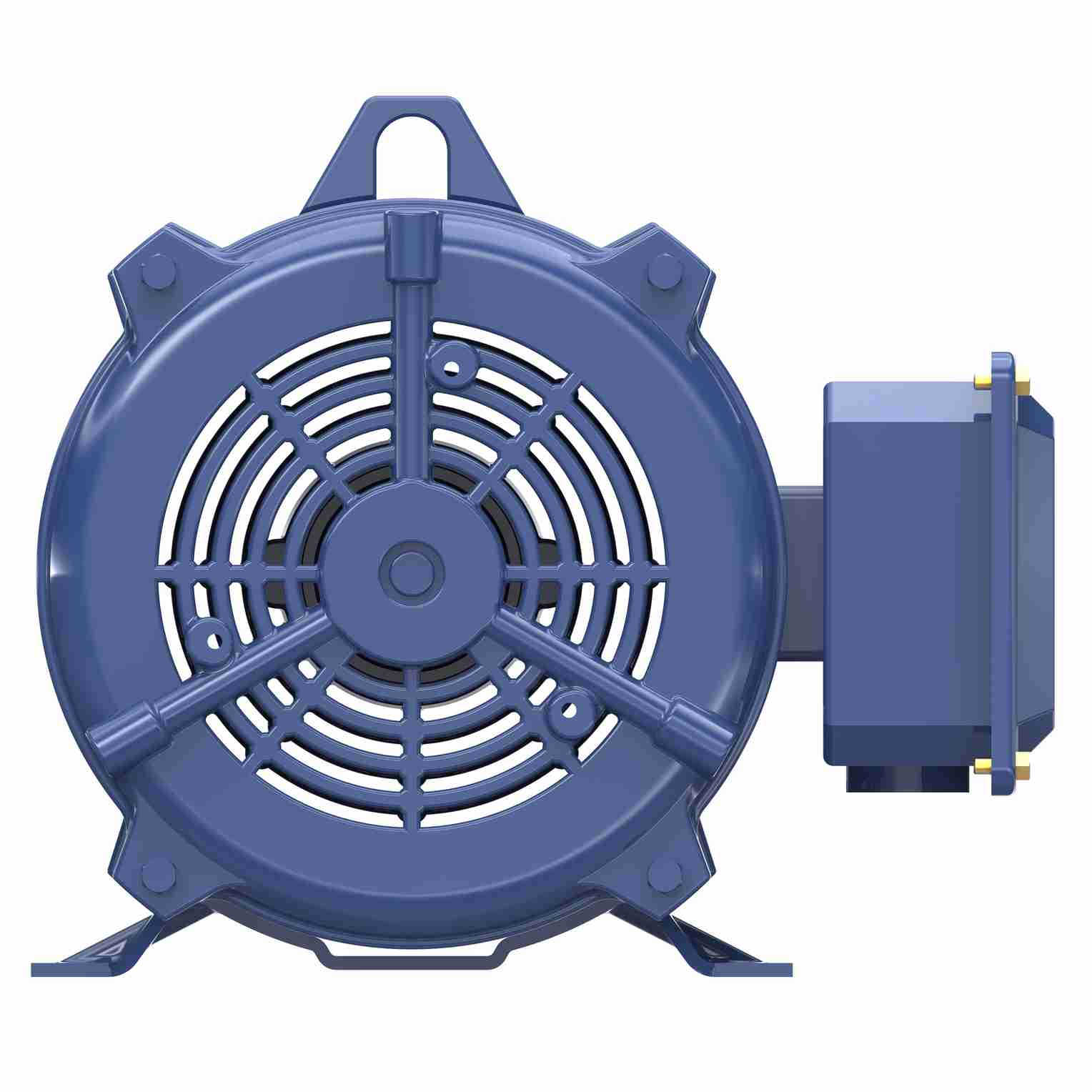

Click Image to Expand

Product ID: GT0113

GT0113 Marathon 5HP Globetrotter General Purpose Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0113

Selected accessories will also be added to cart
$889.97 / Each
Quantity:
ODP, 184T Frame, 575VAC 60Hz 3 Phase, 184TTDBD6030, Rigid Base, Rolled Steel Frame, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC: 722856181190 Weight: 36.00 LB
Packaged Length: 22.19 IN Packaged Width: 16.5 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 575 V
Current: 5.3 A Speed: 1765 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 80
Duty: Continuous Insulation Class: F
Design Code: A KVA Code: K
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 2.72 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.25 in
Frame Length: 210.00 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 50.00 758.0 27.00 181.0 900 0.00 0.0 5.00
Full Load 6.60 100.0 14.90 100.0 1,765 0.00 80.0 5.00
Break-Down 30.00 455.0 56.00 376.0 1,550 0.00 72.0 5.00
Locked-Rotor 55.00 833.0 36.00 242.0 0 0.00 50.0 5.00
2/3 45.00 682.0 42.00 282.0 1,200 0.00 0.0 5.00
No Load 3.60 55.0 0.00 0.0 1,800 0.00 6.0 5.00
1/3 53.00 803.0 33.00 221.0 600 0.00 0.0 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.88 3.04 3.60 4.40 5.28 5.92 6.40
Rated Output (KW) 0.25 1.10 2.10 3.10 4.20 4.80 5.30
Efficiency (%) 0.0 81.5 88.5 89.5 89.5 89.5 88.5
Power Factor (%) 6.0 37.0 59.0 72.0 80.0 82.0 83.0
Speed (RPM) 1,800 1,790 1,780 1,770 1,765 1,755 1,750
Temp. Rise @ FL 0.0 0.0 0.0 0.0 55.0 70.0 85.0
Torque (LB-FT) 0.00 3.70 7.40 11.20 14.90 17.40 18.80
