/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/ODP, Rigid Base/GT0013A Marathon 5HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT0013A

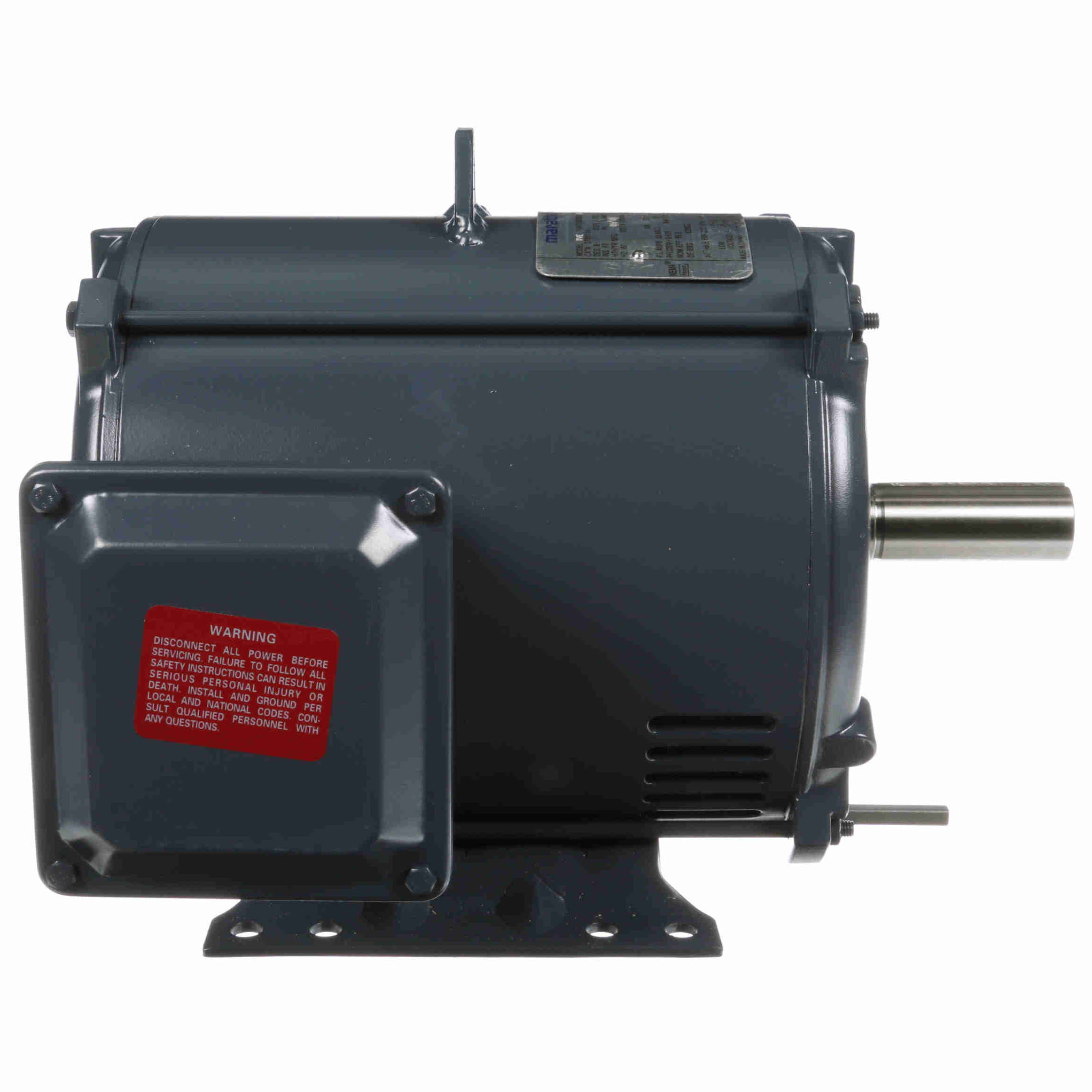

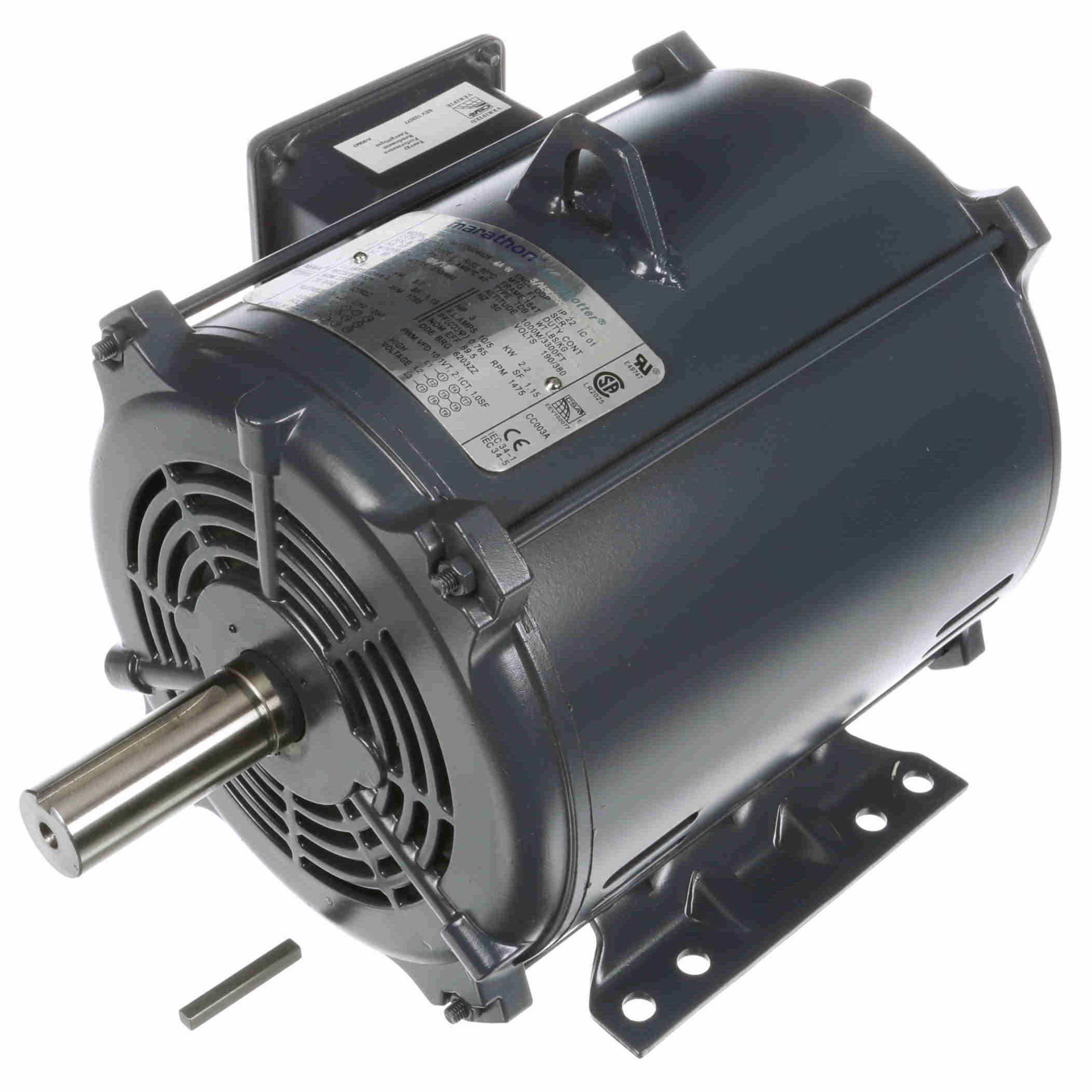

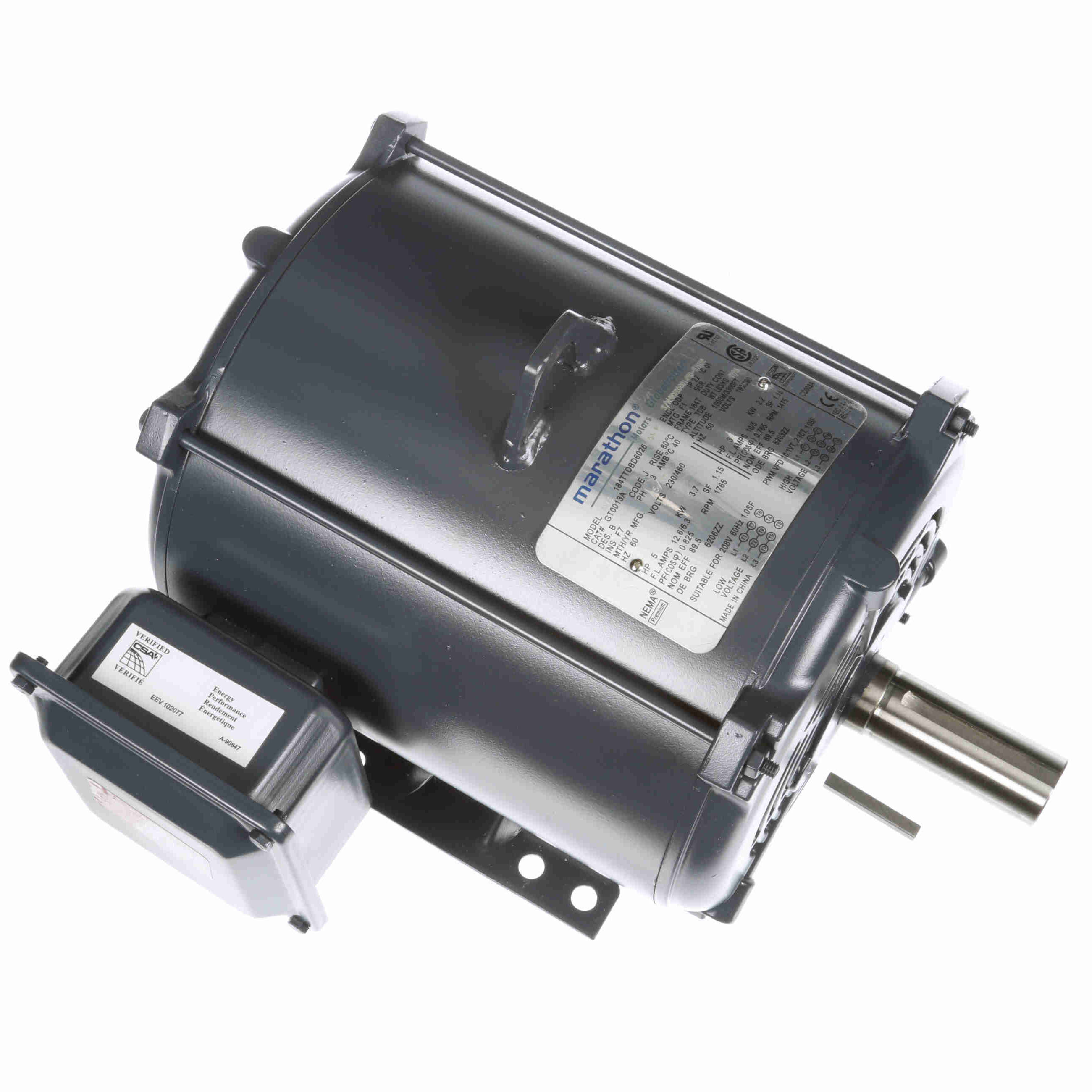

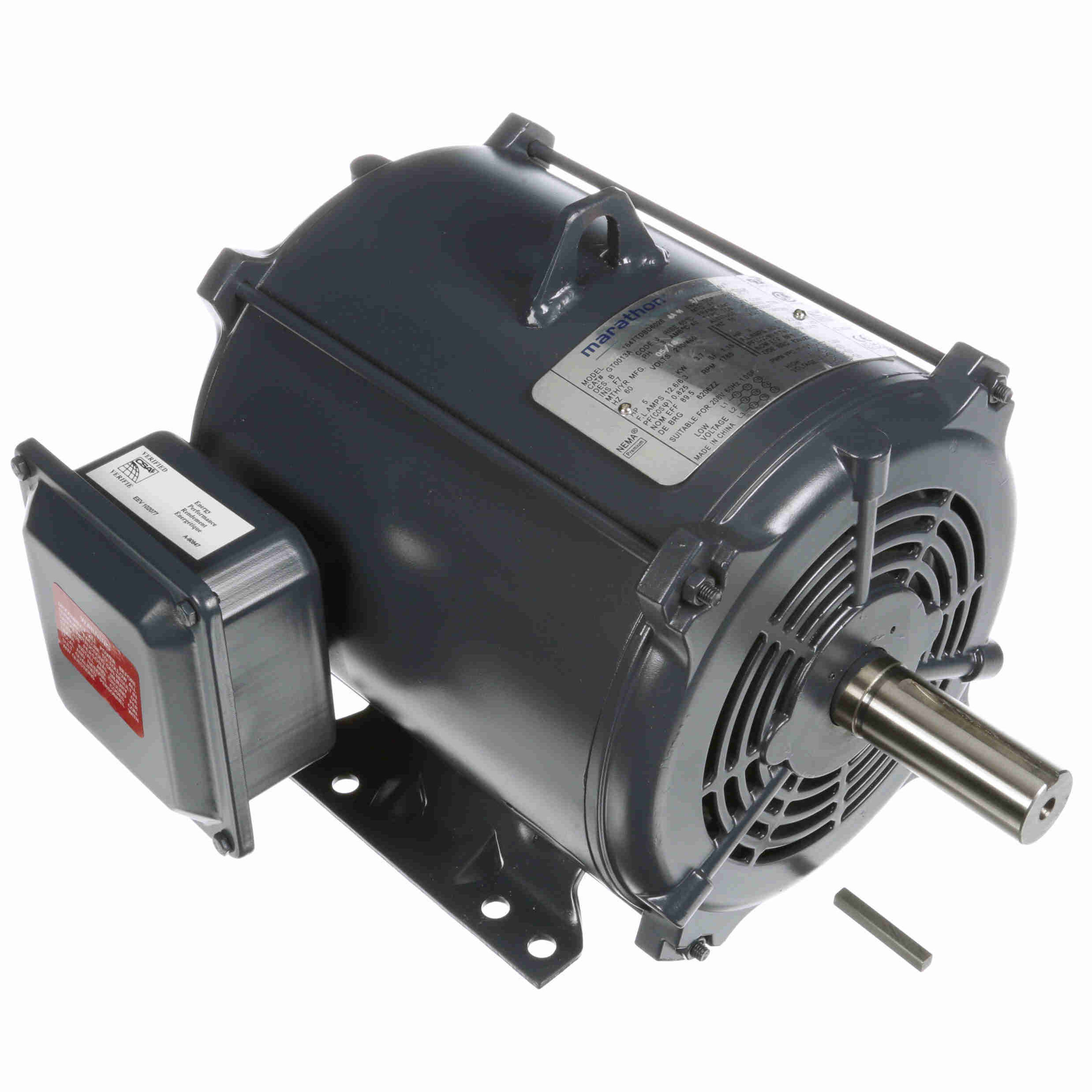

GT0013A Marathon 5HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0013A

Selected accessories will also be added to cart
$889.97 / Each
Quantity:
ODP, 184T Frame, 230/460VAC 60Hz 3-Phase, 184TTDBD6026, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC: 722856068828 Weight: 91.00 LB
Packaged Length: 14.62 IN Packaged Width: 12.74 IN
Packaged Height: 15.65 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 12.6/6.3 A Speed: 1765 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 89.5 % Power Factor: 82.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 2.688 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.25 in
Frame Length: 8.26 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
No Load 3.00 47.0 0.00 0.0 1,800 7.0 5.00
2/3 33.00 525.0 33.50 225.0 1,200 5.00
Full Load 6.30 100.0 14.90 100.0 1,765 82.5 5.00
Break-Down 26.00 410.0 44.70 300.0 1,542 72.0 5.00
1/3 40.00 635.0 26.50 178.0 600 5.00
Locked-Rotor 46.00 730.0 32.00 215.0 0 50.0 5.00
Pull-Up 37.00 585.0 27.00 180.0 900 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 3.00 3.30 4.00 5.10 6.30 7.10 7.70
Rated Output (KW) 0.25 1.10 2.10 3.10 4.20 4.80 5.30
Efficiency (%) 0.0 86.5 89.5 90.2 89.5 89.5 89.0
Power Factor (%) 7.0 42.5 65.0 76.8 82.5 84.5 85.5
Speed (RPM) 1,800 1,790 1,780 1,770 1,765 1,755 1,750
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 45.0 55.0
Torque (ft-lbs) 0.00 3.70 7.40 11.20 14.90 17.40 18.80
