/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/ODP, Rigid Base/GT0012A Marathon 5HP Globetrotter Electric Motor, 3600RPM
Click Image to Expand

Product ID: GT0012A

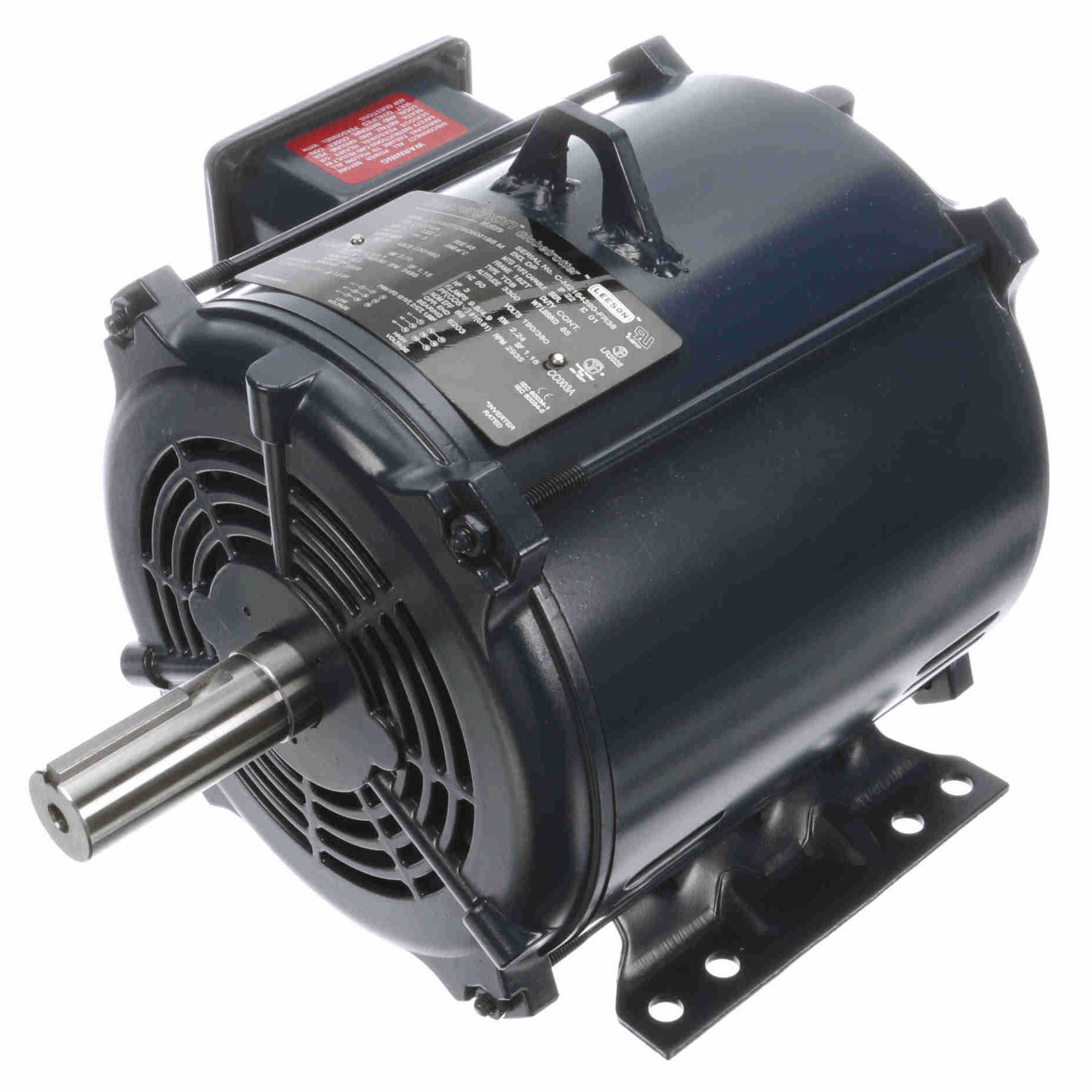

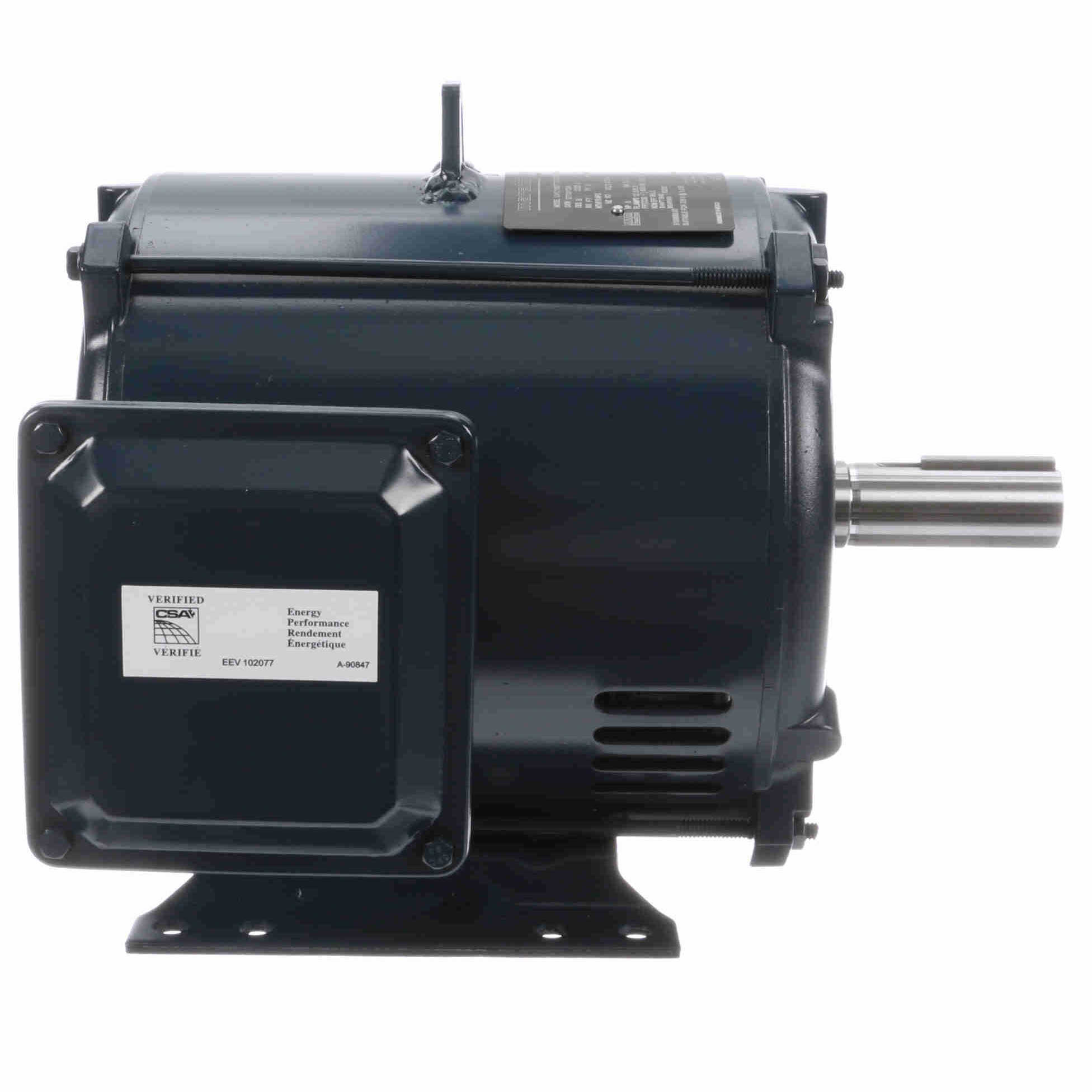

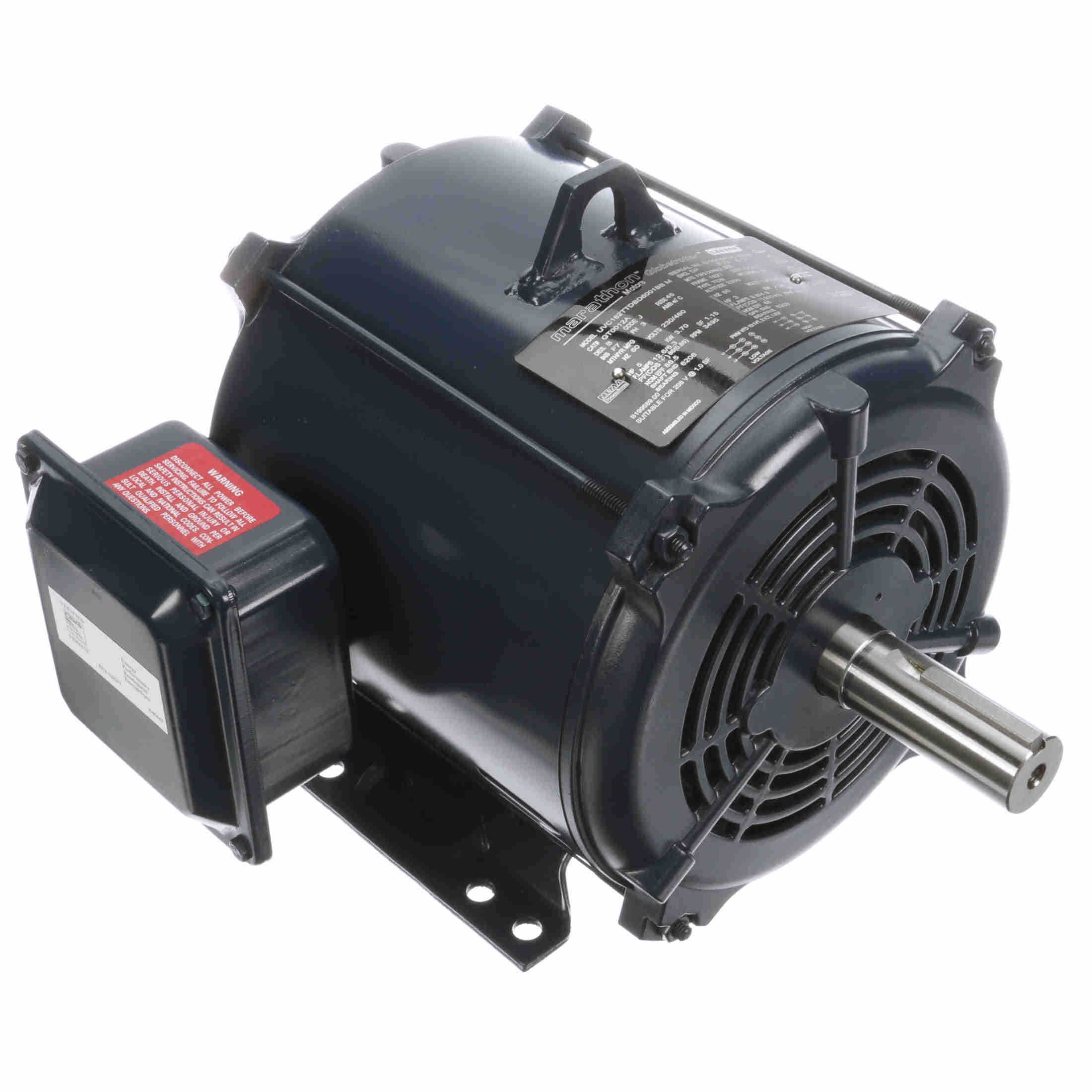

GT0012A Marathon 5HP Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0012A

Selected accessories will also be added to cart
$769.97 / Each
Quantity:
ODP, IP22, 182T Frame, 230/460VAC 60Hz 3-Phase, 182TTDBD6001, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC: 722856068811 Weight: 85.00 LB
Packaged Length: 13.62 IN Packaged Width: 12.74 IN
Packaged Height: 15.65 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 12.6/6.3 A Speed: 3495 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 86
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 182T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 2 Rotation: Reversible
Resistance Main: 4.33 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 12.25 in
Frame Length: 7.26 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 45.00 715.0 12.40 165.0 0 55.0 5.00
Pull-Up 35.00 555.0 10.00 133.0 1,800 5.00
Break-Down 24.50 390.0 20.30 270.0 2,985 79.0 5.00
2/3 31.00 495.0 13.00 173.0 2,400 5.00
1/3 38.50 610.0 10.20 135.0 1,200 5.00
Full Load 6.30 100.0 7.50 100.0 3,520 86.0 5.00
No Load 2.90 47.0 0.00 0.0 3,600 10.5 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.90 3.20 4.00 5.00 6.30 7.10 7.70
Rated Output (KW) 0.25 1.30 2.10 3.20 4.30 5.00 5.50
Efficiency (%) 0.0 78.5 85.5 87.0 86.5 86.0 84.8
Power Factor (%) 10.5 46.5 69.0 80.5 86.0 88.0 88.5
Speed (RPM) 3,600 3,570 3,538 3,502 3,495 3,475 3,450
Temp. Rise @ FL 0.0 0.0 0.0 0.0 45.0 60.0 70.0
Torque (ft-lbs) 0.00 1.80 3.70 5.60 7.50 8.70 9.50
