/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/ODP, Rigid Base/GT0008A Marthon 2HP Globetrotter Electric Motor, 1200RPM
Click Image to Expand

Product ID: GT0008A

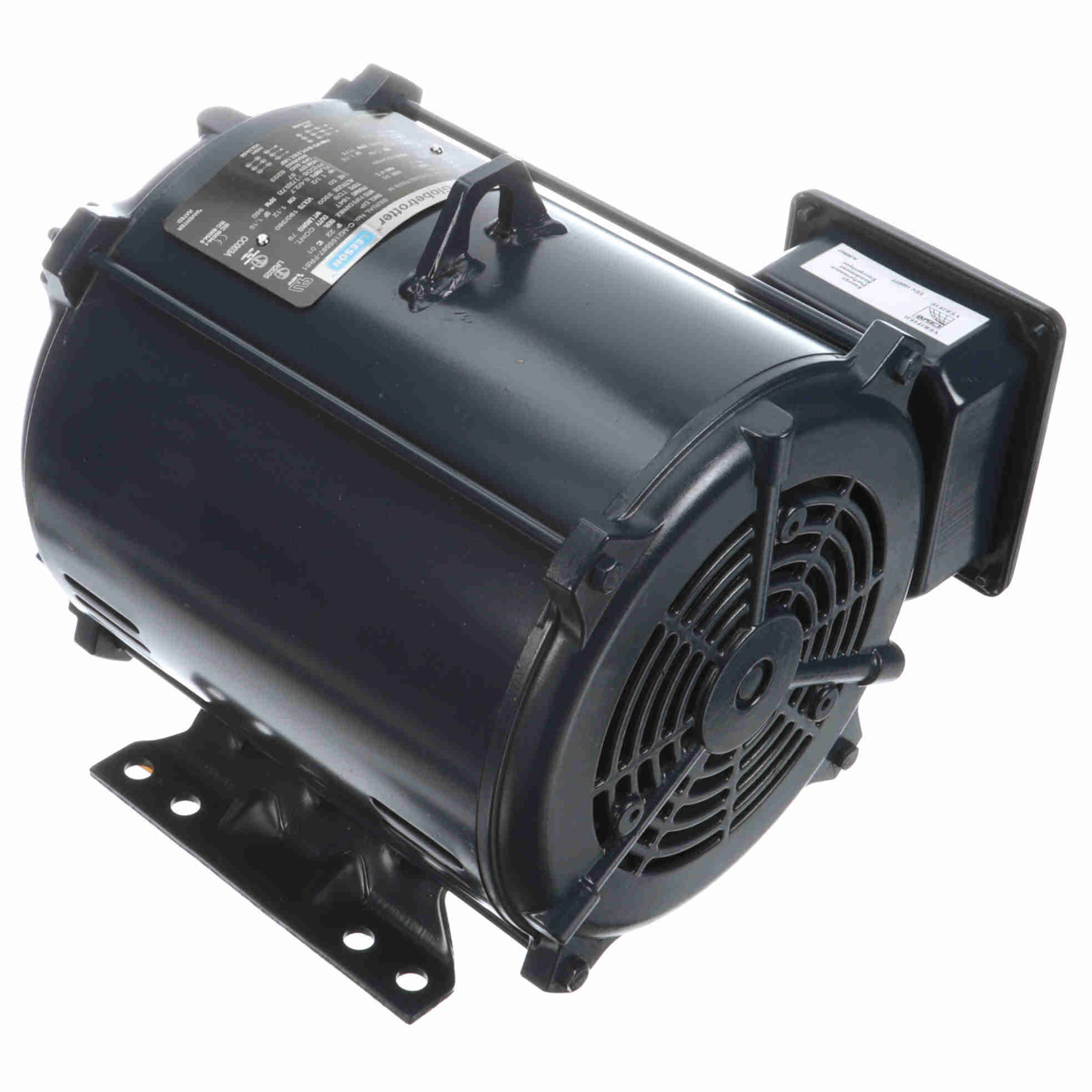

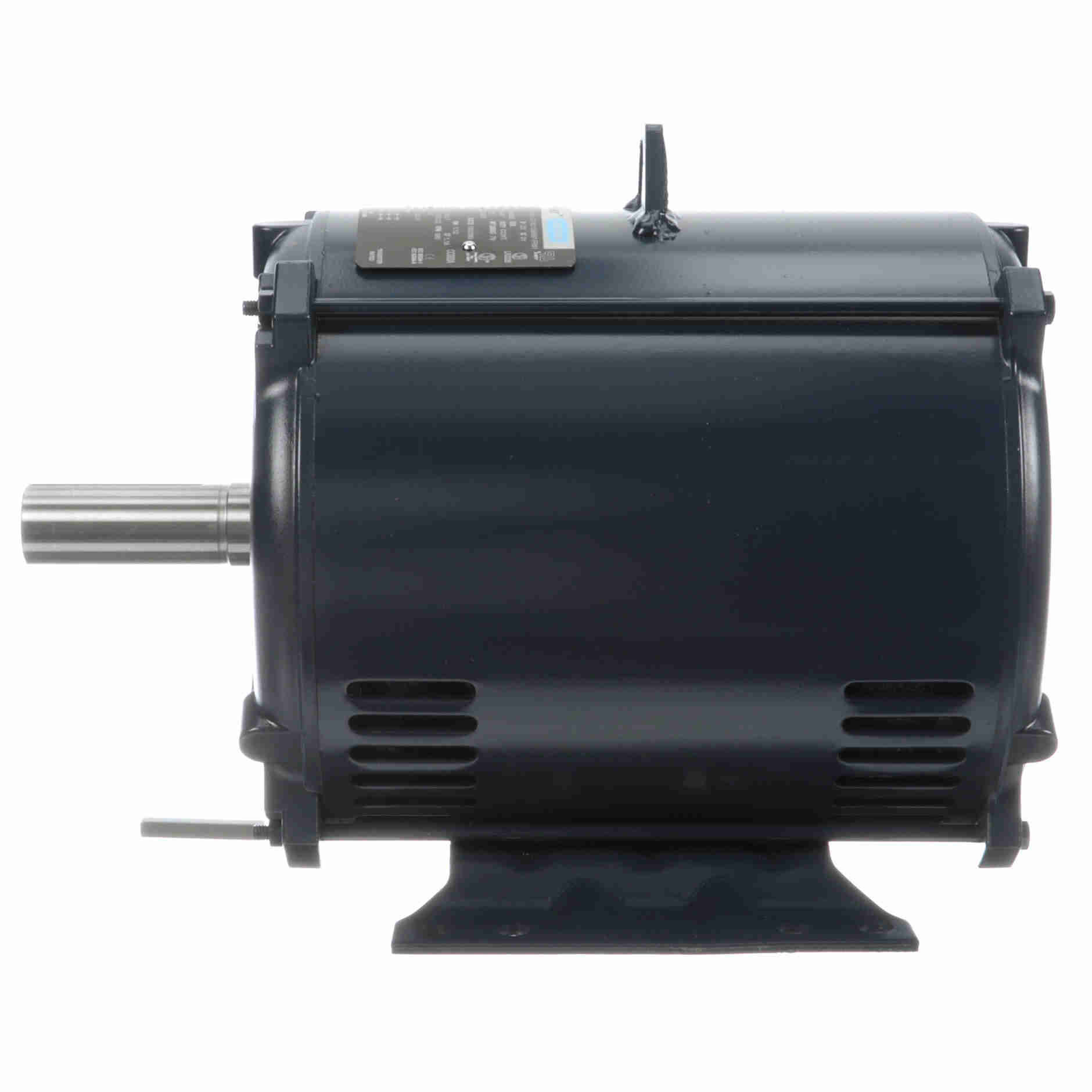

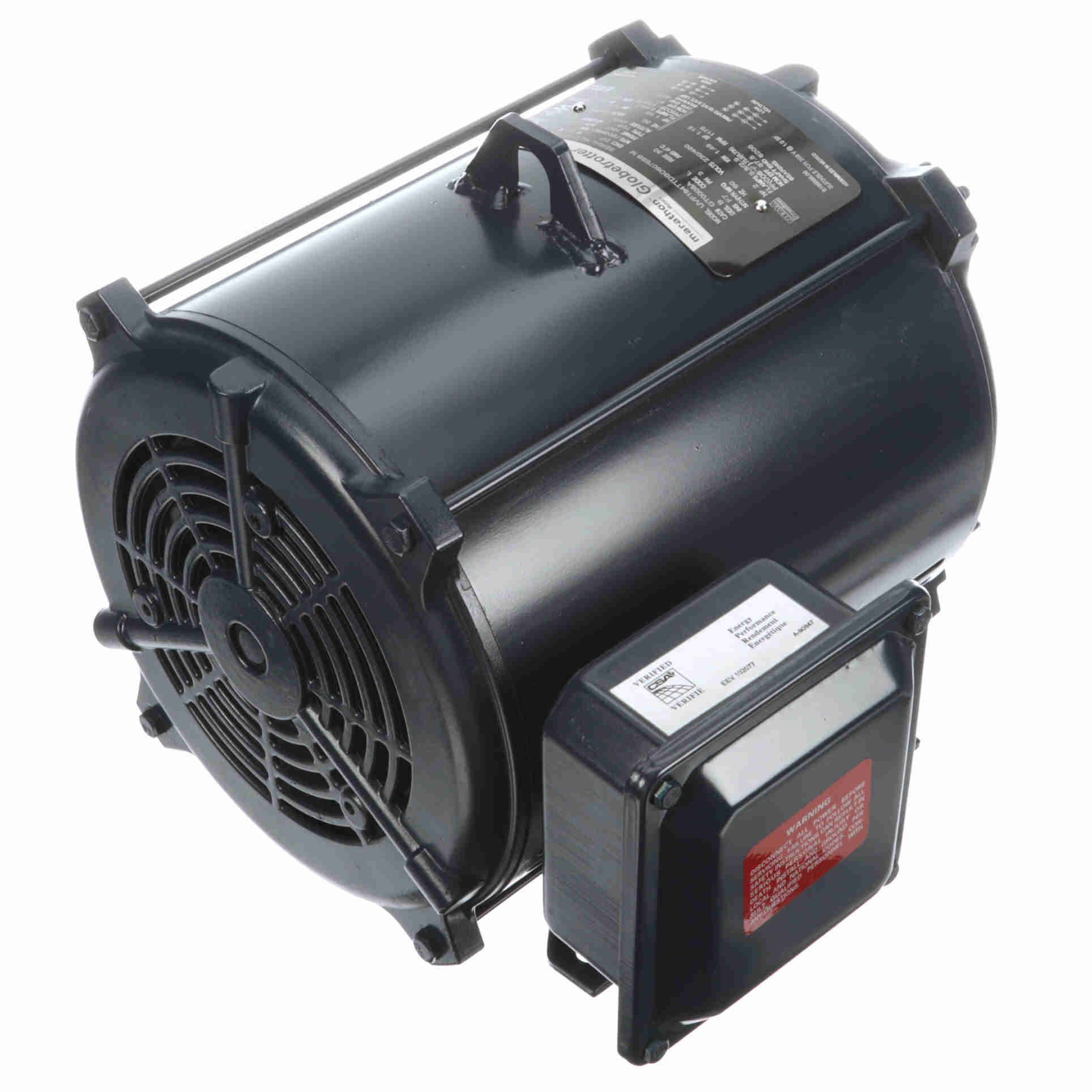

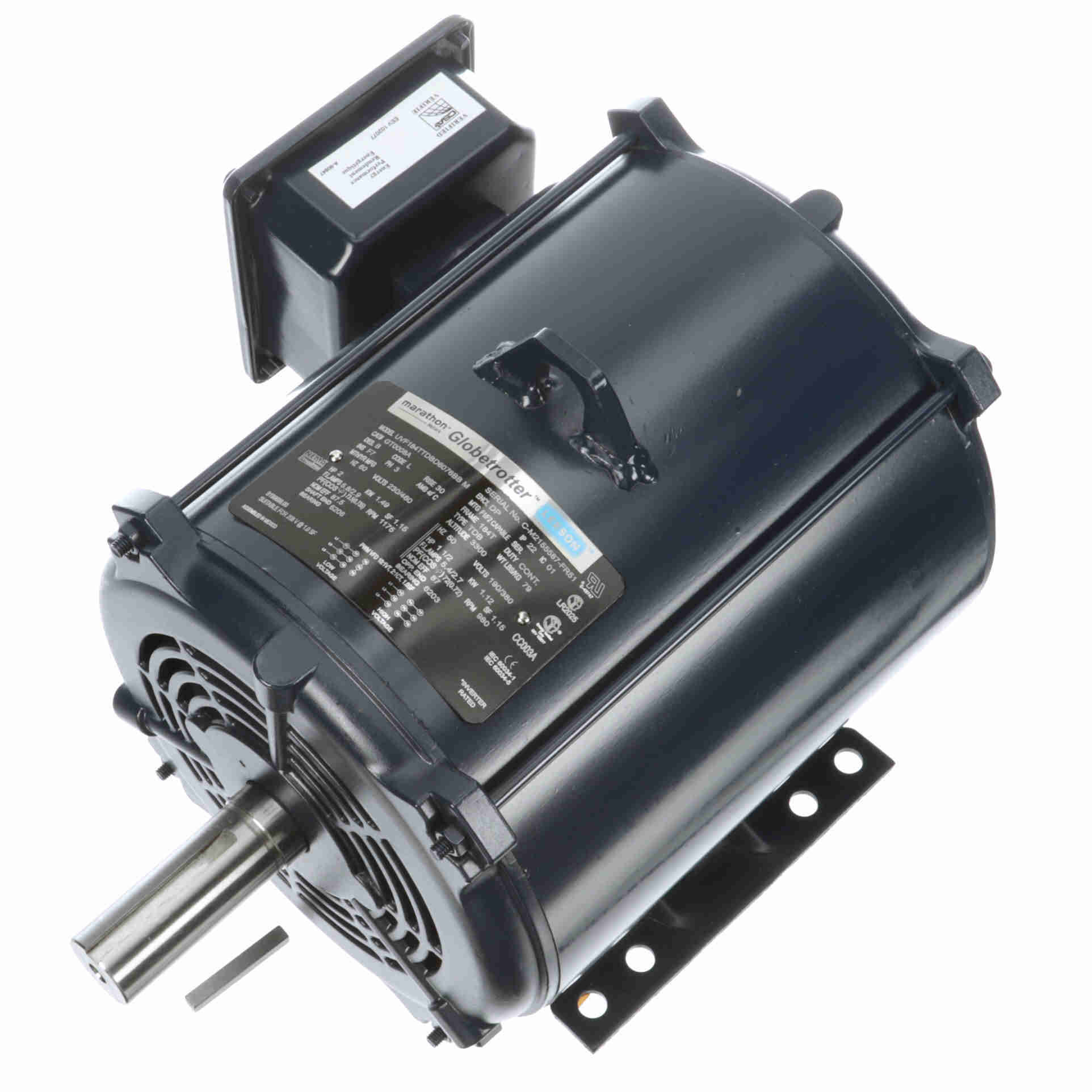

GT0008A Marthon 2HP Globetrotter Electric Motor, 1200RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0008A

Selected accessories will also be added to cart
$999.97 / Each
Quantity:
ODP, 184T Frame, 230/460VAC 60Hz 3-Phase, 184TTDBD6076, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes

General Specifications

UPC: 722856068798 Weight: 79.00 LB
Packaged Length: 16.07 IN Packaged Width: 14.37 IN
Packaged Height: 12.83 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 5.8/2.9 A Speed: 1175 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 87.5 % Power Factor: 73.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: 6.36 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Shaft Diameter: 1.125 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 14.00 480.0 25.80 290.0 970 68.0 2.00
Locked-Rotor 25.00 860.0 17.80 200.0 0 51.0 2.00
Full Load 2.90 100.0 8.90 100.0 1,175 73.5 2.00
Pull-Up 20.00 690.0 15.00 170.0 600 2.00
1/3 21.80 750.0 14.80 165.0 400 2.00
2/3 18.00 620.0 18.50 208.0 800 2.00
No Load 1.70 58.0 0.00 0.0 1,200 7.4 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.70 1.80 2.10 2.40 2.90 3.20 3.50
Rated Output (KW) 0.15 0.50 0.90 1.30 1.70 2.00 2.20
Efficiency (%) 0.0 80.8 85.5 87.5 87.5 87.0 87.5
Power Factor (%) 7.5 33.5 53.5 66.0 73.5 76.5 77.5
Speed (RPM) 1,200 1,195 1,190 1,185 1,175 1,170 1,165
Temp. Rise @ FL 0.0 0.0 0.0 0.0 30.0 40.0 50.0
Torque (ft-lbs) 0.00 2.20 4.40 6.70 8.90 10.30 11.20
