/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/ODP, Rigid Base/GT0005A Marathon 1.5HP Globetrotter Electric Motor, 1200RPM
Click Image to Expand

Product ID: GT0005A

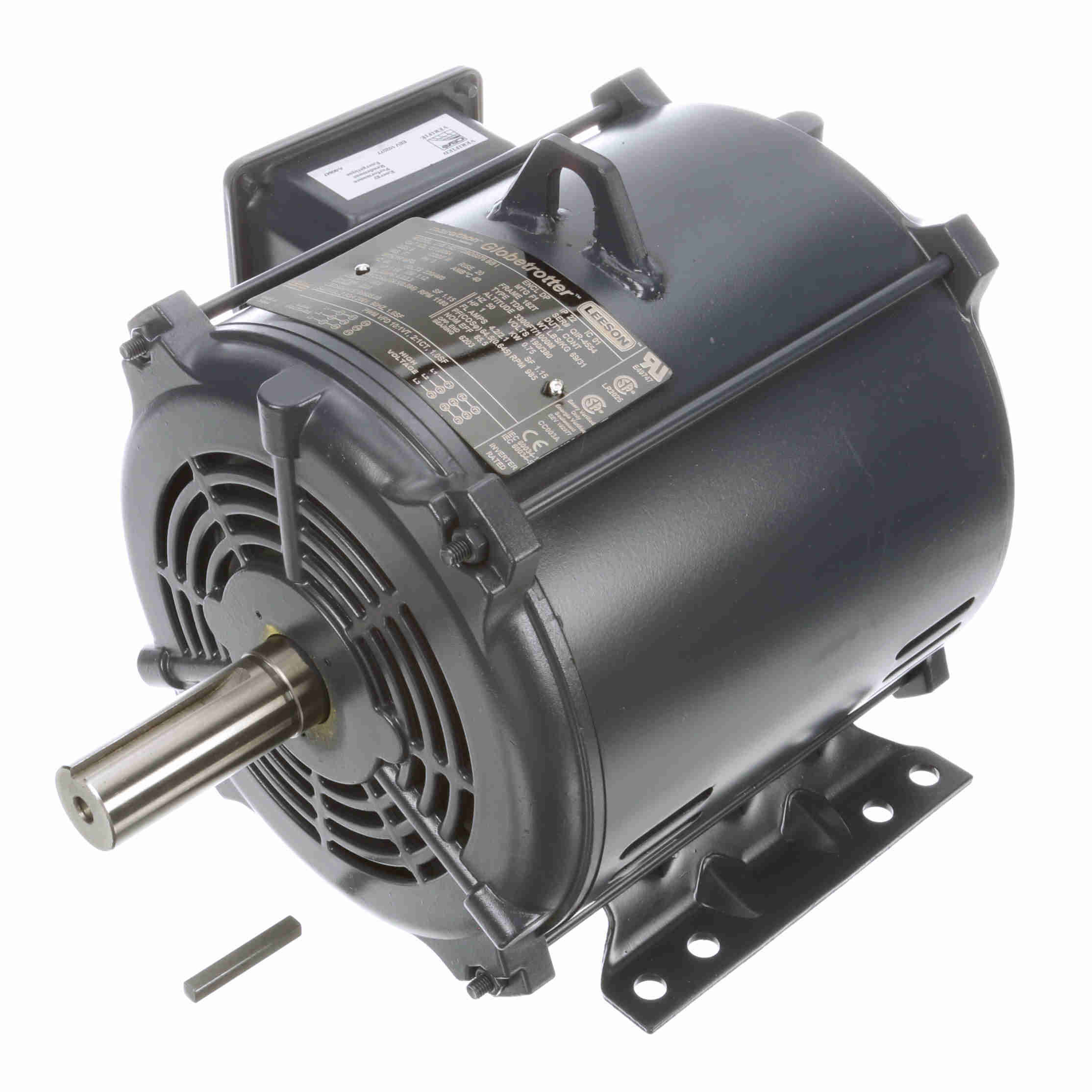

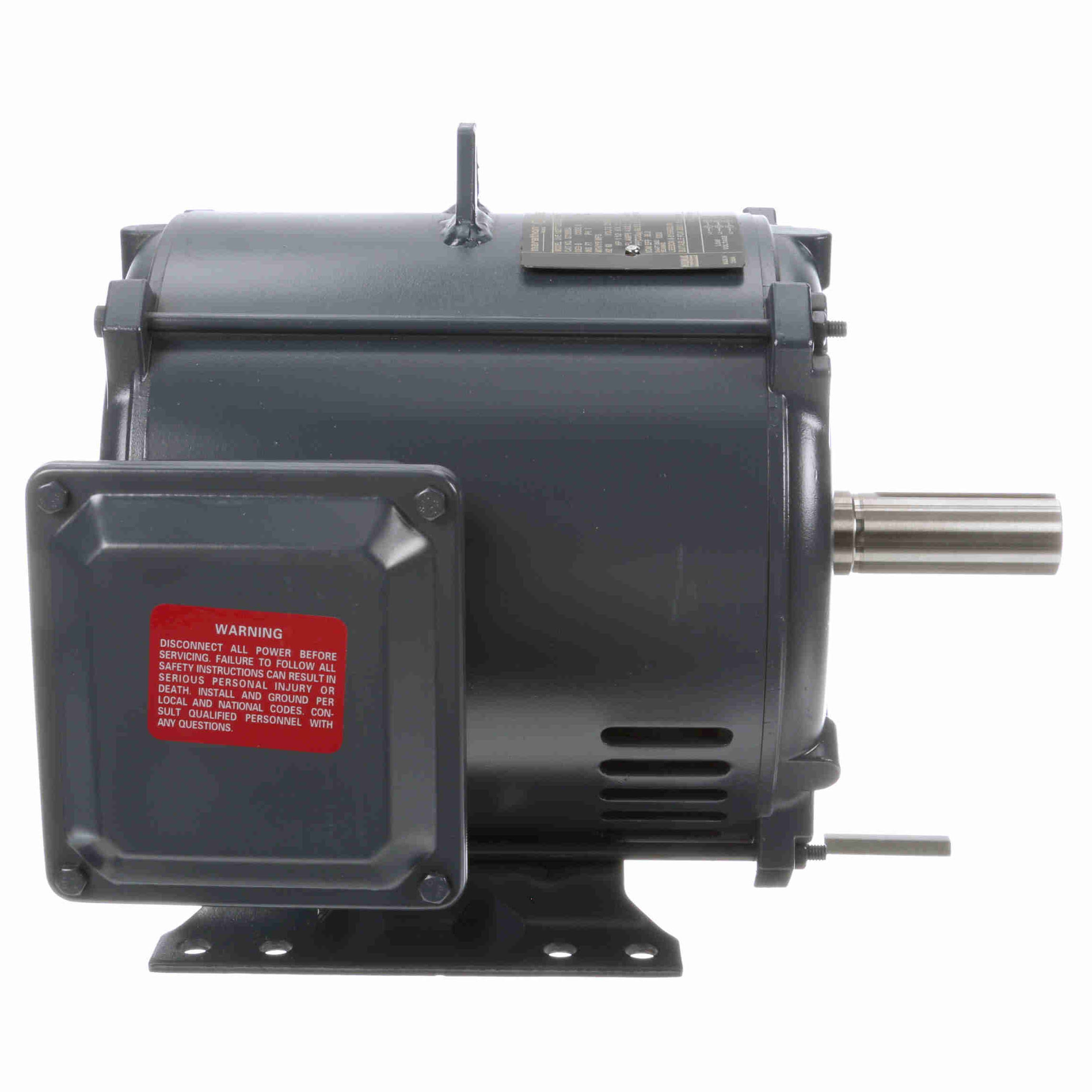

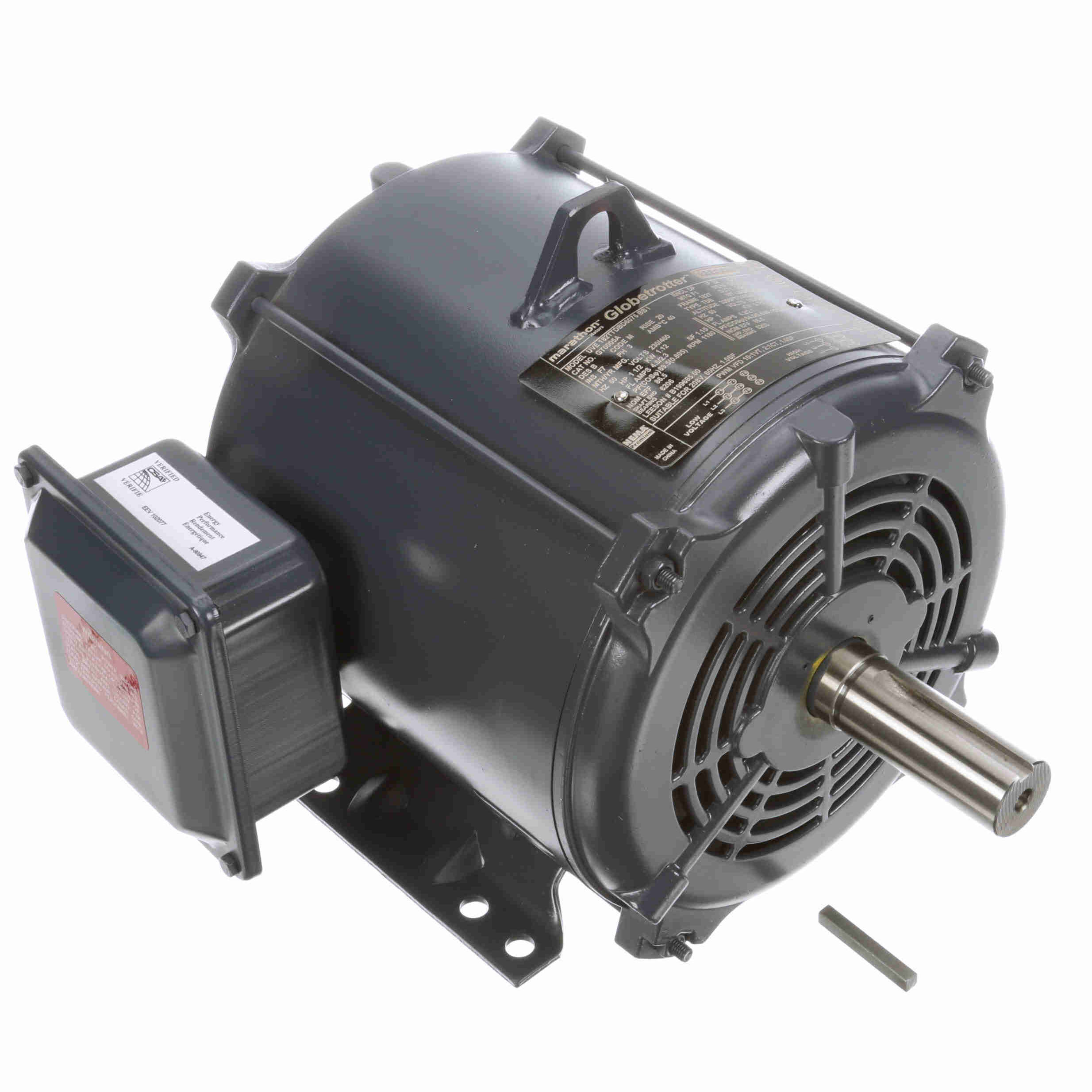

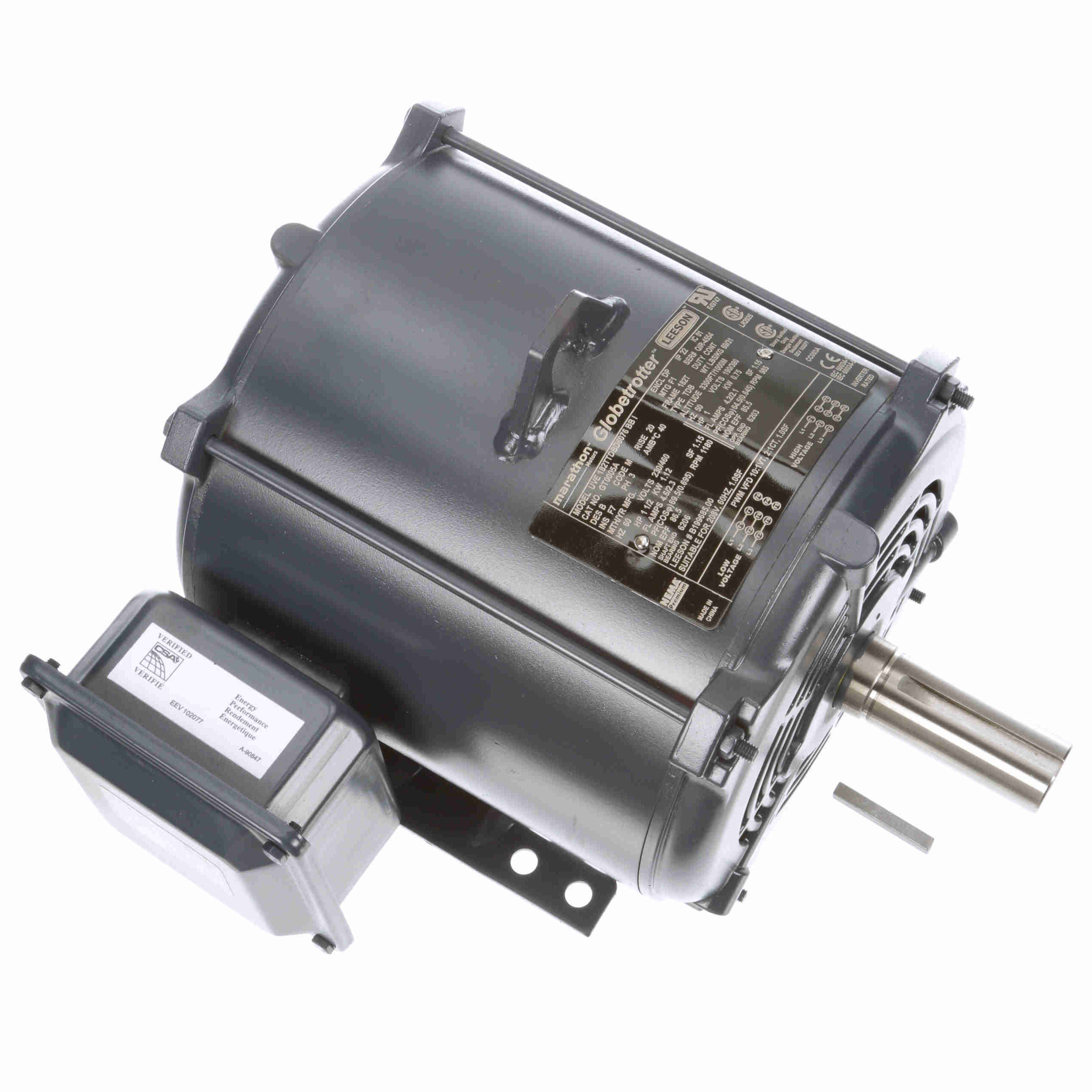

GT0005A Marathon 1.5HP Globetrotter Electric Motor, 1200RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0005A

Selected accessories will also be added to cart
$949.97 / Each
Quantity:
ODP, IP22, 182T Frame, 230/460VAC 60Hz 3-Phase, 182TTDBD6076, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiencies
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Class F insulation
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes
  • UL recognized, CSA certified, and CE mark

General Specifications

UPC: 722856068781 Weight: 69.00 LB
Packaged Length: 15.07 IN Packaged Width: 14.37 IN
Packaged Height: 12.83 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.6/2.3 A Speed: 1180 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 69.5
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: M
Frame: 182T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 6 Rotation: Reversible
Resistance Main: 8.55 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Shaft Diameter: 1.125 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
1/3 17.50 750.0 11.70 175.0 400 1.50
No Load 1.50 65.0 0.00 0.0 1,200 8.0 1.50
2/3 14.50 620.0 14.60 218.0 800 1.50
Locked-Rotor 20.00 860.0 14.10 210.0 0 54.0 1.50
Full Load 2.30 100.0 6.70 100.0 1,180 69.5 1.50
Pull-Up 16.00 685.0 11.80 176.0 600 1.50
Break-Down 12.00 515.0 20.10 300.0 990 71.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.50 1.60 1.80 2.00 2.30 2.60 2.70
Rated Output (KW) 0.15 0.35 0.65 1.00 1.30 1.50 1.60
Efficiency (%) 0.0 74.8 83.3 86.0 86.5 86.5 86.5
Power Factor (%) 8.0 30.0 48.0 61.0 69.5 73.0 74.8
Speed (RPM) 1,200 1,195 1,190 1,185 1,180 1,175 1,170
Temp. Rise @ FL 0.0 0.0 0.0 0.0 20.0 26.0 32.0
Torque (ft-lbs) 0.00 1.65 3.30 5.00 6.70 7.70 8.40
