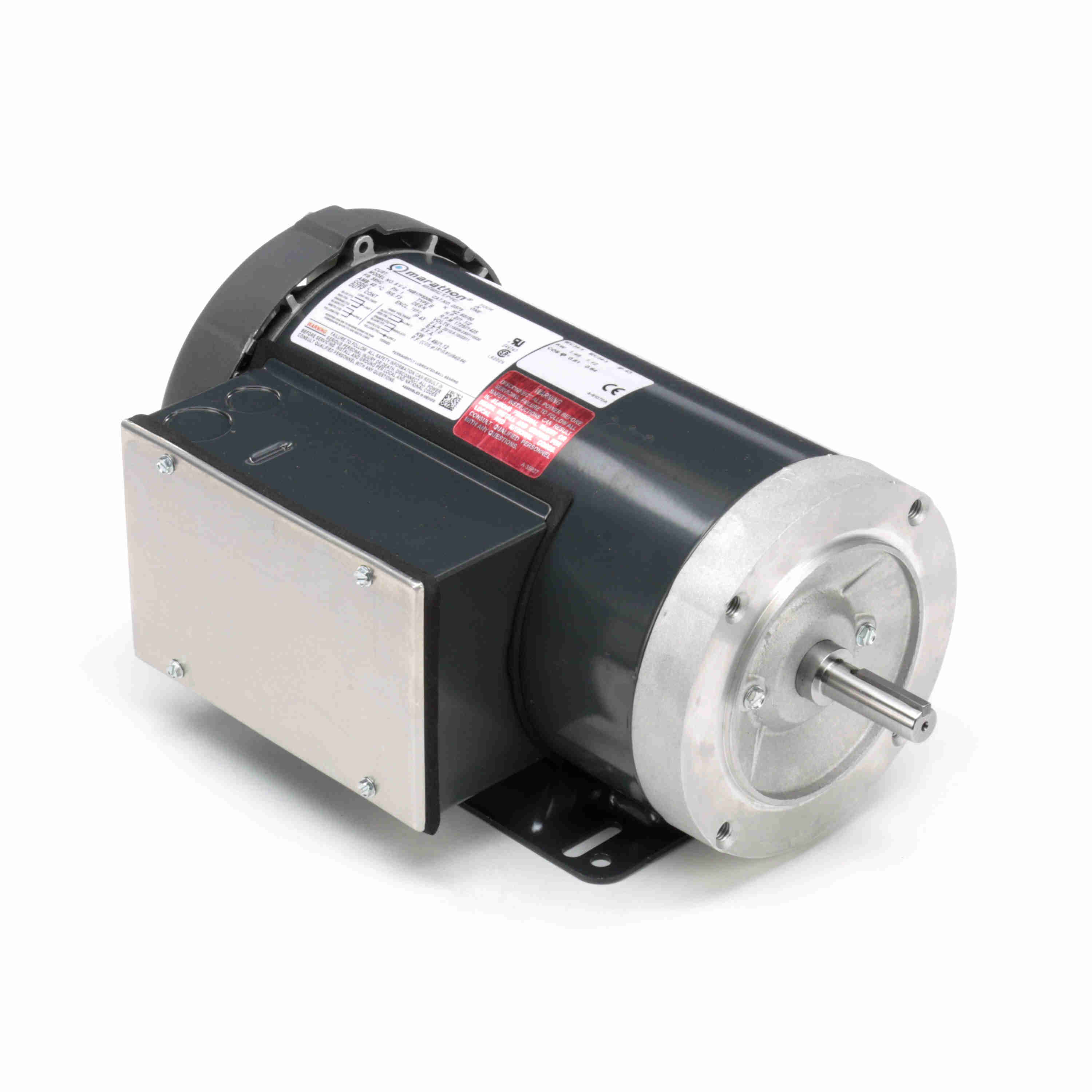

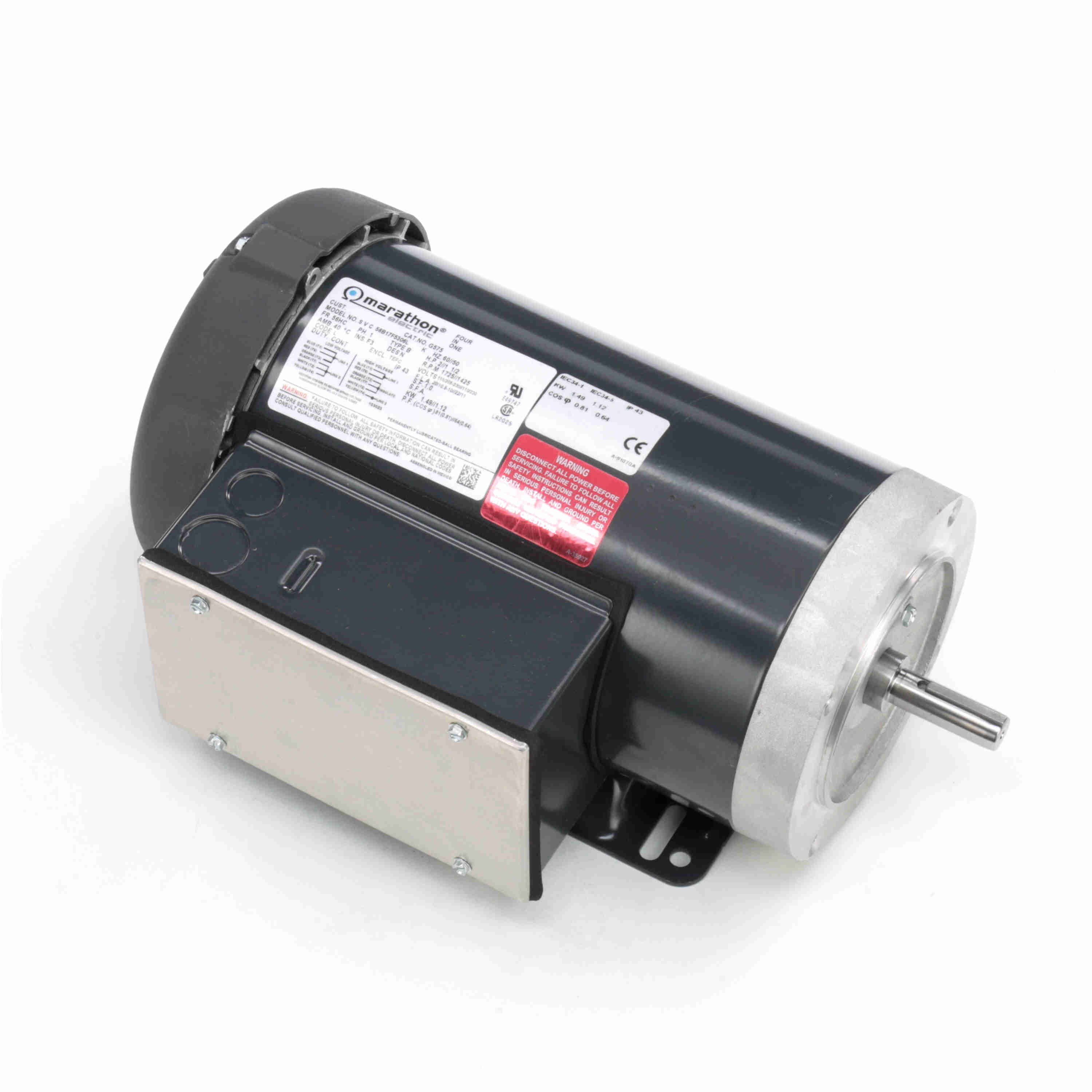

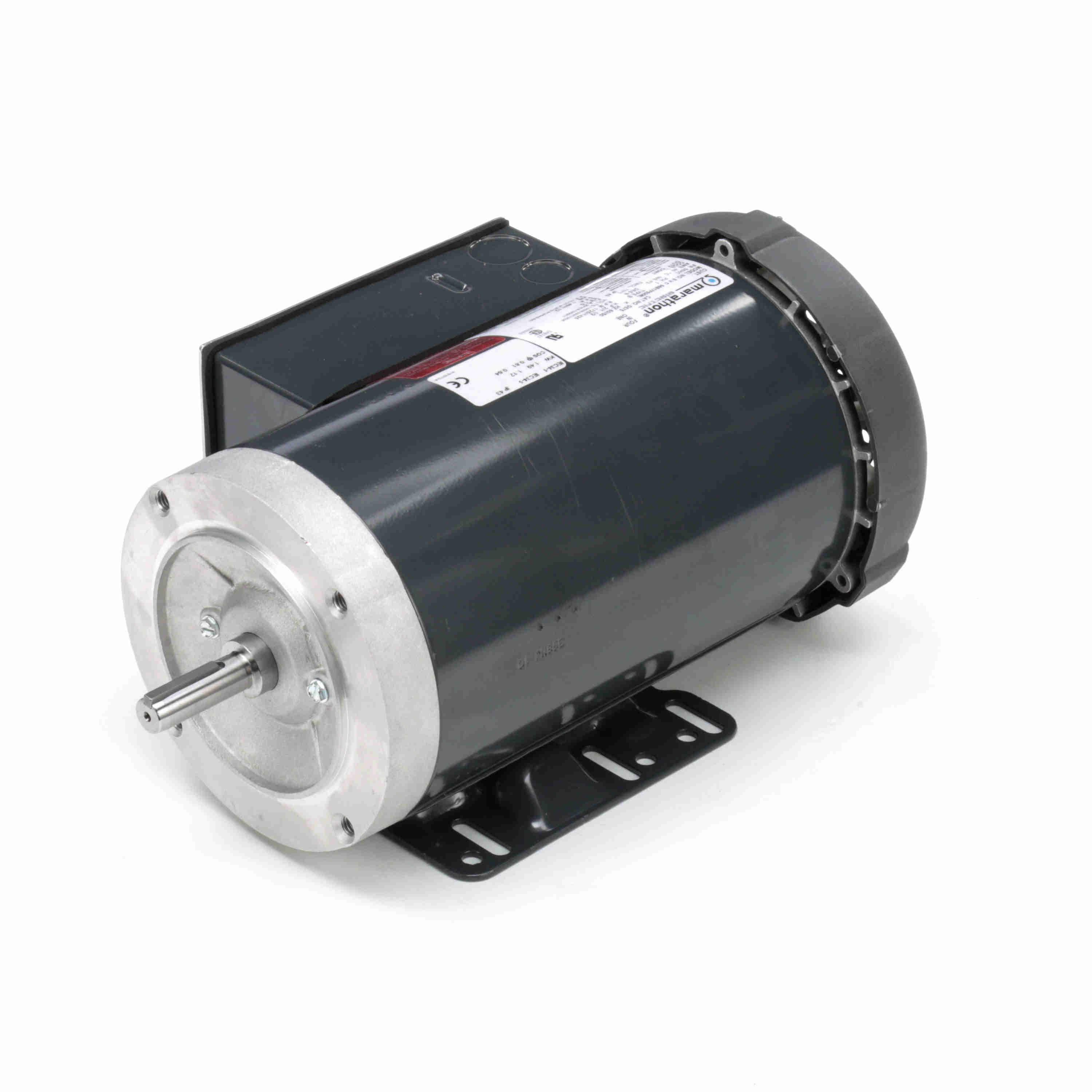

G575 Marathon 2HP Electric Motor, 1800RPM
Product ID: G575
MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: G575
Selected accessories will also be added to cart
$989.97 / Each
Quantity:
TEFC, 56HC Frame, 115/208-230V Single Phase 60Hz, 056B17F5306, Rigid Base, Capacitor Start, Capacitor Run
Details
Features
Features
Double sealed ball bearings, mechanically locked on shaft end
Heavy gauge steel constructions
Bolt-on, removable rigid base
Suitable for horizontal or vertical mounting
Capacitor start design for high starting torque
Capacitor start/capacitor run design for higher efficiency, as noted
Will accept brake kits, see Accessory section
Will accept drip cover kits, see Accessories section
General Specifications
General Specifications
Model :
056B17F5306
Catalog No :
G575
Part Description :
2,1725,TEFC,56HC,1/60/115/208-230
Category :
Totally Enclosed Fan Cooled (TEFC)
Stock :
Yes
Nameplate Specifications
Nameplate Specifications
Output HP :
2 Hp
Output KW :
1.5 kW
Frequency :
60 Hz
Voltage :
115/208-230 V
Current :
20.0/10.8-10.0 A
Speed :
1725 rpm
Service Factor :
1
Phase :
1
Efficiency :
80 %
Duty :
Continous
Insulation Class :
F
Design Code :
N
KVA Code :
L
Frame :
56HC
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6205
Opp Drive End Bearing Size :
6203
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
43
Technical Specifications
Technical Specifications
Electrical Type :
Capacitor Start Capacitor Run
Starting Method :
Across The Line
Poles :
4
Rotation :
Selective Counterclockwise
Mounting :
Bolt-on Base
Motor Orientation :
Horizontal
Drive End Bearing :
Ball
Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel
Shaft Type :
NEMA 56
Overall Length :
14.81 in
Frame Length :
9.56 in
Shaft Diameter :
0.625 in
Shaft Extension :
2.06 in
Assembly/Box Mounting :
F1 Only
UPC :
722856009500
Weight :
51.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Full Load
10.00
100.0
6.02
100.0
1,745
1.87
0.0
2.00
Locked-Rotor
68.00
680.0
19.40
322.0
0
13.50
0.0
2.00
Pull-Up
49.00
490.0
11.80
196.0
1,221
8.50
0.0
2.00
Break-Down
37.70
377.0
15.70
261.0
1,507
7.10
0.0
2.00
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
4.97
0.229
0.0
20.0
1,800
0.0
0.00
25 %
5.49
0.575
64.3
45.5
1,784
0.0
1.46
50 %
6.69
0.980
76.2
63.7
1,771
0.0
2.97
75 %
8.28
1.390
80.2
73.0
1,760
0.0
4.46
100 %
10.00
1.865
80.0
81.0
1,745
80.0
6.02
115 %
11.40
2.160
79.2
82.4
1,738
115.0
6.93
125 %
12.40
2.370
78.4
83.1
1,730
0.0
7.56
150 %
15.10
2.920
76.6
84.1
1,709
0.0
9.22
175 %
18.20
3.620
72.0
86.5
1,684
0.0
10.90
200 %
22.70
4.480
66.6
85.8
1,642
0.0
12.80
