| Nominal Applied Motor (Rated Output) |
125 HP with Single Phase Input
350 HP with 3-Phase Input |
|---|
| Rated Output Capacity |
128 kVA with Single Phase Input
330 kVA with 3-Phase Input |
|---|
| Rated Output Current |
161 Amps with Single Phase Input
415 Amps with 3-Phase Input |
|---|
| Output Frequency |
120Hz Maximum |
|---|
| Output Stability |
Analog Setting: ±0.2% of Maximum Frequency
Digital Setting: ±0.01% of Maximum Frequency (By Keypad) |
|---|
| Rated Voltage |
Three Phase, 380 to 480 VAC (with AVR Function) |
|---|
| Output Overload Capability |
110% for 1 Minute
(Overload capability interval : IEC 61800-2 compliant) |
|---|
| Rated Input Frequency |
50, 60 Hz |
|---|
| Main Power Supply Input |
Three Phase, 380 to 440 VAC, 50Hz
Three Phase, 380 to 480 VAC, 60Hz
Single Phase, 380 to 440 VAC, 50Hz
Single Phase, 380 to 480 VAC, 60Hz |
|---|
| Rated Input Current |
390 Amps |
|---|
| Required Input Power Supply Capacity |
180 kVA with Single Phase Input
311 kVA with 3-Phase Input |
|---|
| Auxiliary Control Power Supply |
Single Phase, 380 to 480 VAC 50/60Hz |
|---|
| Auxiliary Main Power Supply |
Single Phase, 380 to 440 VAC, 50Hz
Single Phase, 380 to 480 VAC, 60Hz |
|---|
| Voltage & Frequency Variations |
Voltage: +10 to -15%
Interphase Voltage Unbalance: 2% or less
Frequency: -5 to +5% |
|---|
| Braking Torque |
10 to 15 % |
|---|
| DC Injection Braking |
Starting frequency:0.0 to 60.0Hz
Braking time:0.0 to 30.0s
Braking level:0 to 60% |
|---|
| EMC Filter |
Built-In
EMC standards compliance : Category C3 (emission) / 2nd Env. (Immunity) |
|---|
| DC Reactor |
Standard Accessory
(IEC/EN 61000-3-12) |
|---|
| Power Factor (at Rated Load) |
>0.98 Displacement P.F. (cosf)
>=0.90 True Power Factor |
|---|
| Efficiency |
98 % at Rated Load |

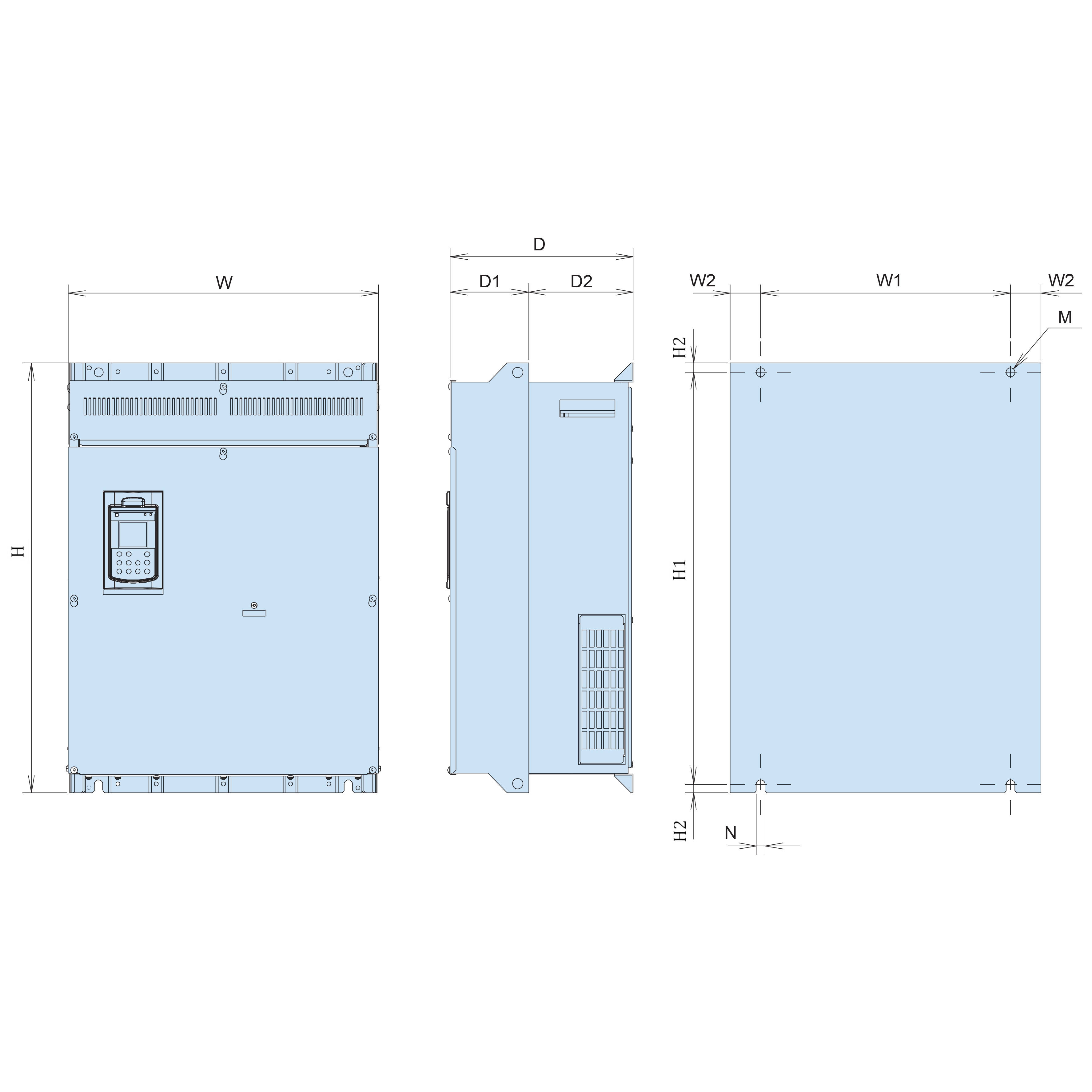

|---|
| Enclosure |
IEC/EN 60529: IP00
UL 50: UL Open Type |
|---|
| Cooling Method |
Fan Cooling |
|---|
| Weight/Mass |
129 kg |
|---|
| Ambient Temperature |
NEMA/UL Open Type: -10 to 50°C (14 to 122°F) |
|---|
| Storage Temperature |
-25 to 70°C (-13 to 158°F) |
|---|
| Relative Humidity |
5 to 95% RH (Without Condensation) |
|---|
| Installation Location |
IEC60664-1 Pollution Degree 2
(Free from Corrosive Gases, Flammable Gases, Oil Mist, Dust and Direct Sunlight)
Indoor Use Only |
|---|
| Altitude |
0 to 3,300ft (1,000m)
3,300ft (1,000m) to 9,900ft (3,000m) with Derating |
|---|
