/Products/VFD's & Soft Starters/Fuji/Options/OPC-ETH Fuji EtherNet Communication Card
Click Image to Expand

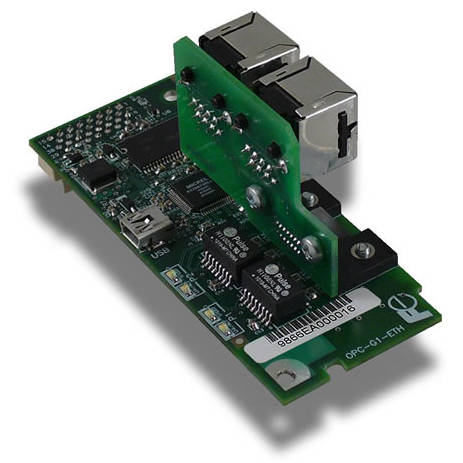

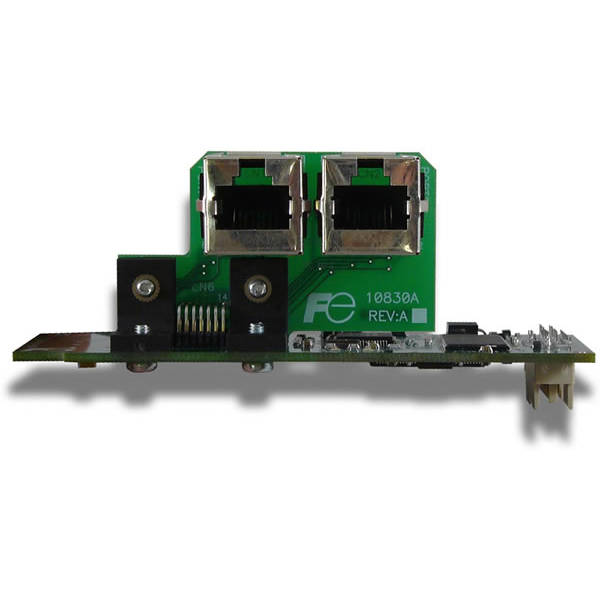

OPC-ETH Fuji EtherNet Communication Card

Product ID: OPC-ETH

MFG: Fuji Electric Corp. of America
MFG Part Number: OPC-ETH

Selected accessories will also be added to cart
$297.50 / Each
Quantity:
Replaced with OPC-PRT3

The OPC-ETH multiprotocol communication interface provides Ethernet-based network connectivity to Fuji FRENIC-MEGA and FRENIC-HVAC adjustable speed drives.
The OPC-ETH currently provides support for the following Ethernet networks:
• Modbus/TCP
• BACnet/IP
• EtherNet/IP
• Allen Bradley CSP (also known as "PCCC" and "AB Ethernet")
•
Documents
•
Brochure
• OPC-ETH Brochure (PDF, 1 Page, 304 KB)
Manual
• OPC-ETH User's Manual - Applicable for HVAC drive (PDF, 102 Pages, 7.37MB)
• OPC-ETH User's Manual - Applicable for MEGA drive (PDF, 99 Pages, 5.65MB)
• Quick Installation Guide (PDF, 2 Pages, 744KB)
• Function Code Register List (ZIP, 1MB)
• RS-485 User's Manual 24A7-E-0082 - Applicable for the OPC-ETH (PDF, 171 Pages, 1.83MB)
Version Information
• OPC-ETH Version Info (PDF, 3 Pages, 223KB)
Sample Application Programs
• RSLogix 5000 Examples (ZIP, 1.59MB)
• RSLogix 5000 Add-On Instructions (ZIP, 516KB)
• RSLogix 500 Examples (ZIP, 53KB)
Network Documents
• OPC-ETH EDS (ZIP, 3KB)
• OPC-ETH EDS icon (ICO, 61KB)
• XTPro Specification (PDF, 20 Pages, 249KB)
Certificates
• EtherNet/IP Declaration of Conformance (PDF, 1 Page, 84KB)
Web Server
• Default Web Server, Version 6 (ZIP, 281KB)
• XTPro example (ZIP, 599KB)
•
Software
•
• Fuji Finder
•
Firmware
•
CAUTION: Do not attempt to downgrade the firmware to an earlier version!
• OPC-ETH V1.046 firmware (ZIP, 269KB)
•
•
Features
•
Network
• Dual-port RJ-45 with embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch supports traditional star and daisy-chain topologies. Shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables.
• MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables.
• Supports multiple protocols simultaneously.
USB
• USB 2.0 port with mini-B connector provides composite USB device functionality. USB connection allows for product identification and firmware updating.
• Enumerates as a standard USB mass storage device ("flash drive") for configuration file copying and web page customization.
Custom Embedded Web Server
• Open XML-based socket data transfer allows end users to create their own custom web server content and load it onto the unit's internal file system via USB.
• The factory-default web server provides configuration and real-time inverter function code monitoring/control via standard web browsers such as Microsoft Internet Explorer and Mozilla Firefox.
Alarms
• Monitor any available inverter function code and send emails to up to four recipients when a certain condition is detected. Twenty individually-configurable alarms are available.
Network Timeout Action
• A configurable network timeout action can be programmed that allows function codes to have their own unique "fail-safe" conditions in the event of a network interruption.
XML Configuration File Upload/Download
• All interface configuration files are stored in the unit's internal filesystem in XML format. These files can be transferred to/from a PC via USB, which provides the capability for PC-based file backup and easy configuration copying to multiple units. Configuration files can also be viewed and edited via standard text editors, XML editors and web browsers.
Dashboard
• A variety of gauges, meters, and graphs can be configured to provide an at-a-glance graphical overview of critical application variables in real-time. A total of ten gauge windows are available (two at a time) and each gauge window can be configured to display one of six different gauge types.
• A virtual keypad interface provides quick access to control and monitor information.
Indicators
• 1 bicolor red/green module status LED.
• 1 bicolor red/green network status LED.
• 2 Ethernet speed LEDs.
• 2 Ethernet link/activity LEDs.
Field-Upgradeable
• As new firmware becomes available, the unit can be upgraded in the field by the end-user.
ROHS Compliant
• The OPC-ETH is lead-free.
