/Products/VFD's & Soft Starters/Fuji/FRENIC-HVAC (AR1)/200-240V/FRN003AR1M-2U 3 HP Fuji HVAC Variable Frequency Drive (VFD)
Click Image to Expand

Product ID: FRN003AR1M-2U

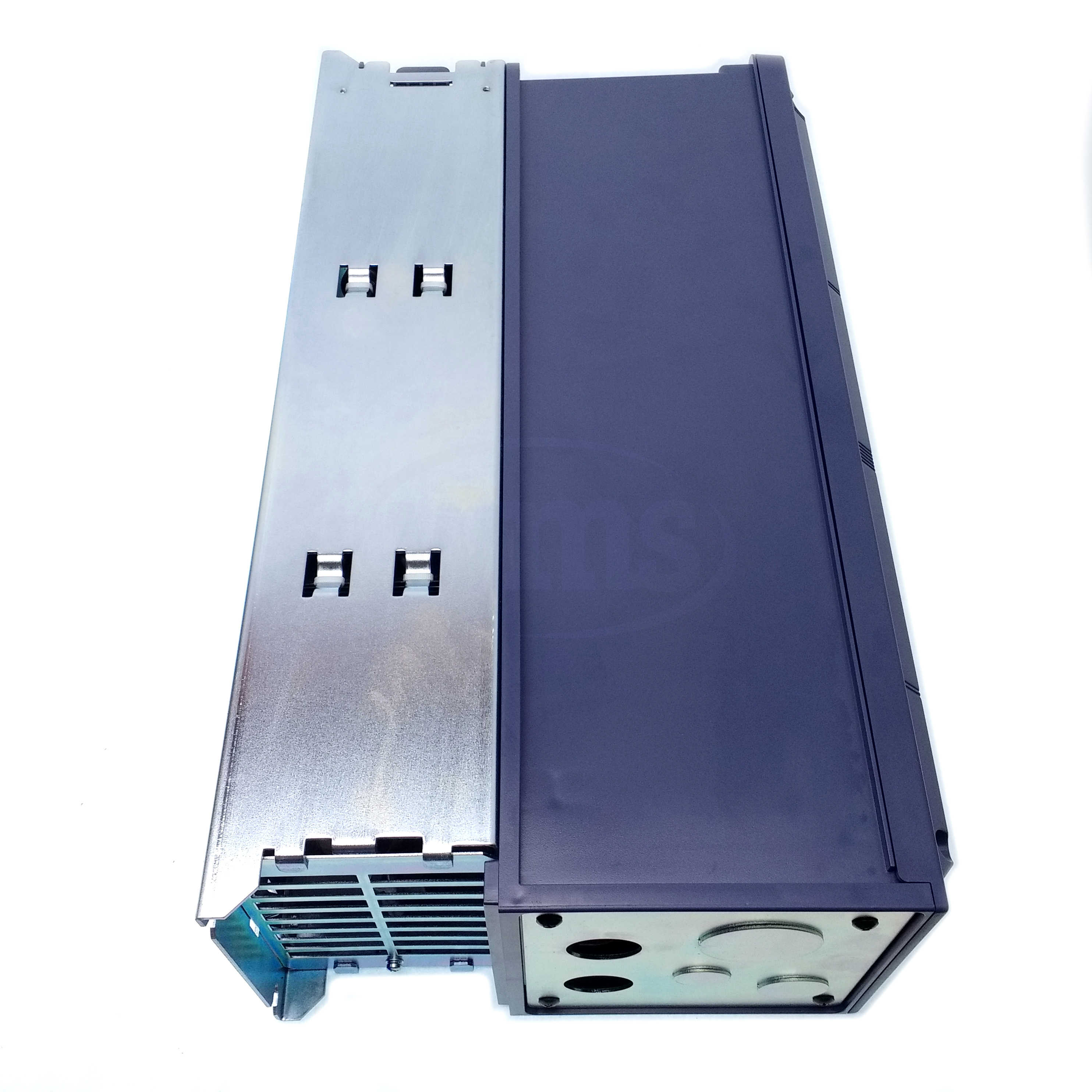

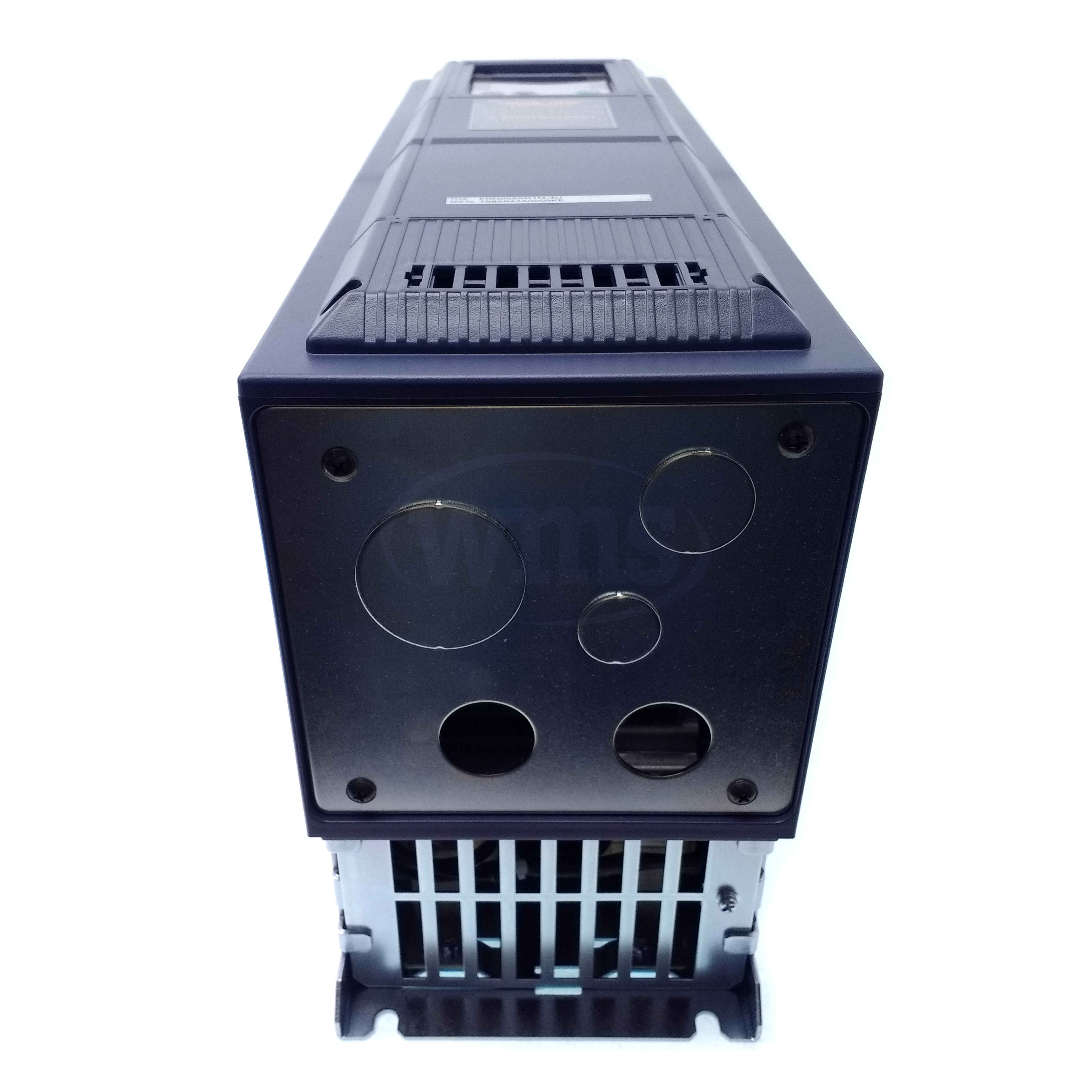

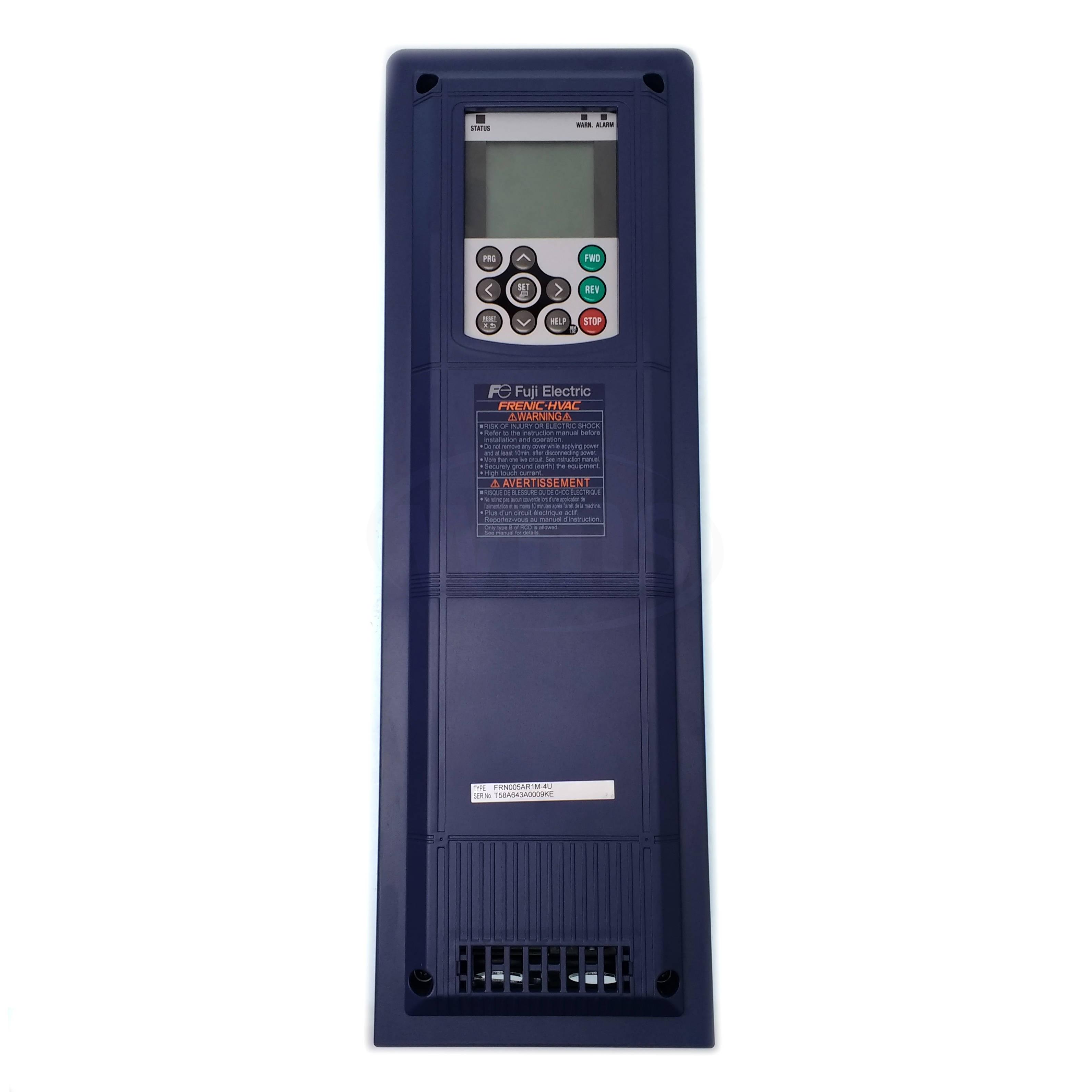

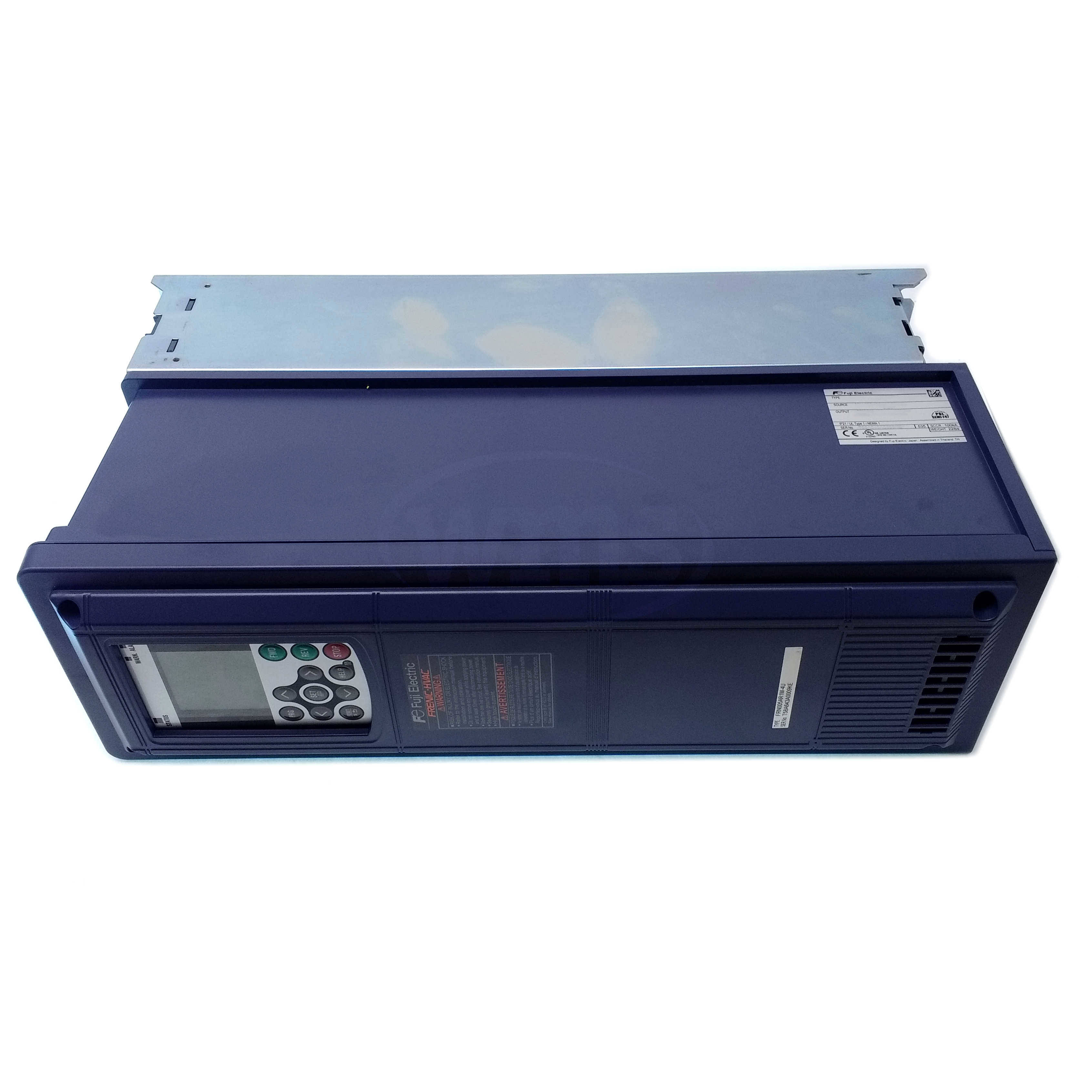

FRN003AR1M-2U 3 HP Fuji HVAC Variable Frequency Drive (VFD)

MFG: Fuji Electric Corp. of America
MFG Part Number: FRN003AR1M-2U

Selected accessories will also be added to cart
$709.20 / Each
Quantity:
208/230V, 50/60Hz, Single or 3 Phase Input (0-230V, 0-120Hz, 3-Phase Output), IP21/UL Type 1 Enclosure, 18.30" x 5.91" x 10.30" (H x W x D)
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

Fuji Electric’s FRENIC-HVAC Drive has been designed with features and functions specifically targeted to HVAC Motor Control Applications. The result is a low voltage drive that that provides the optimal environmental control to maintain comfortable conditions in commercial spaces and industrial facilities while generating efficiency beyond typical motor starters.

Developed with unyielding standards of quality and flexibility to meet the demands of various applications within HVAC motor control requirements the FRENIC-HVAC Drive is the right choice for a full range of HVAC installations

Fuji Electric’s robust design standards and Ease of Commissioning make the FRENIC-HVAC Drive a Service Provider’s favorite choice for quick and sustainable results.

Specifications

Manufacturer Fuji Electric
Model Number FRN003AR1M-2U
Enclosure UL/NEMA Type 1
IP21
Voltage 208/230VAC 60Hz
HP Rating 1 HP with Single Phase Input
3 HP with 3-Phase Input
Rated Current 4.2 Amps with Single Phase Input
11.0 Amps with 3-Phase Input
Weight 22 lbs
Dimensions 5.91" x 18.30" x 10.30" (W x H x D)
Warranty 3 Years from date of shipment

Detailed Specifications

Nominal Applied Motor (Rated Output) 3/4 HP with Single Phase Input @ 208 VAC
1 HP with Single Phase Input @ 230 VAC
3 HP with 3-Phase Input
Rated Output Capacity 1.6 kVA with Single Phase Input
4.3 kVA with 3-Phase Input
Rated Output Current 4.2 Amps with Single Phase Input
11 Amps with 3-Phase Input
Output Frequency 120Hz Maximum
Output Stability Analog Setting: ±0.2% of Maximum Frequency
Digital Setting: ±0.01% of Maximum Frequency (By Keypad)
Rated Voltage Three Phase, 200 to 240VAC, 50/60Hz (with AVR Function)
Output Overload Capability 110% for 1 Minute
(Overload capability interval : IEC 61800-2 compliant)
Rated Input Frequency 50, 60 Hz
Main Power Supply Input Three Phase, 200 to 240VAC, 50/60Hz
Rated Input Current 7.5 Amps
Required Input Power Supply Capacity 1.8 kVA with Single Phase Input
3.0 kVA with 3-Phase Input
Auxiliary Control Power Supply Single Phase, 200 to 240VAC, 50/60Hz
Auxiliary Main Power Supply -
Voltage & Frequency Variations Voltage: +10 to -15%
Interphase Voltage Unbalance: 2% or less
Frequency: +5 to -5%
Braking Torque 20 %
DC Injection Braking Starting frequency:0.0 to 60.0Hz
Braking time:0.0 to 30.0s
Braking level:0 to 60%
EMC Filter Built-In
EMC standards compliance : Category C2 (emission) / 2nd Env. (Immunity)
DC Reactor Built-in (IEC/EN 61000-3-2, IEC/EN 61000-3-12)
Power Factor (at Rated Load) >0.98 Displacement P.F. (cosf)
>=0.90 True Power Factor
Efficiency 97 % at Rated Load
Enclosure IEC/EN 60529: IP21
UL 50: Type 1

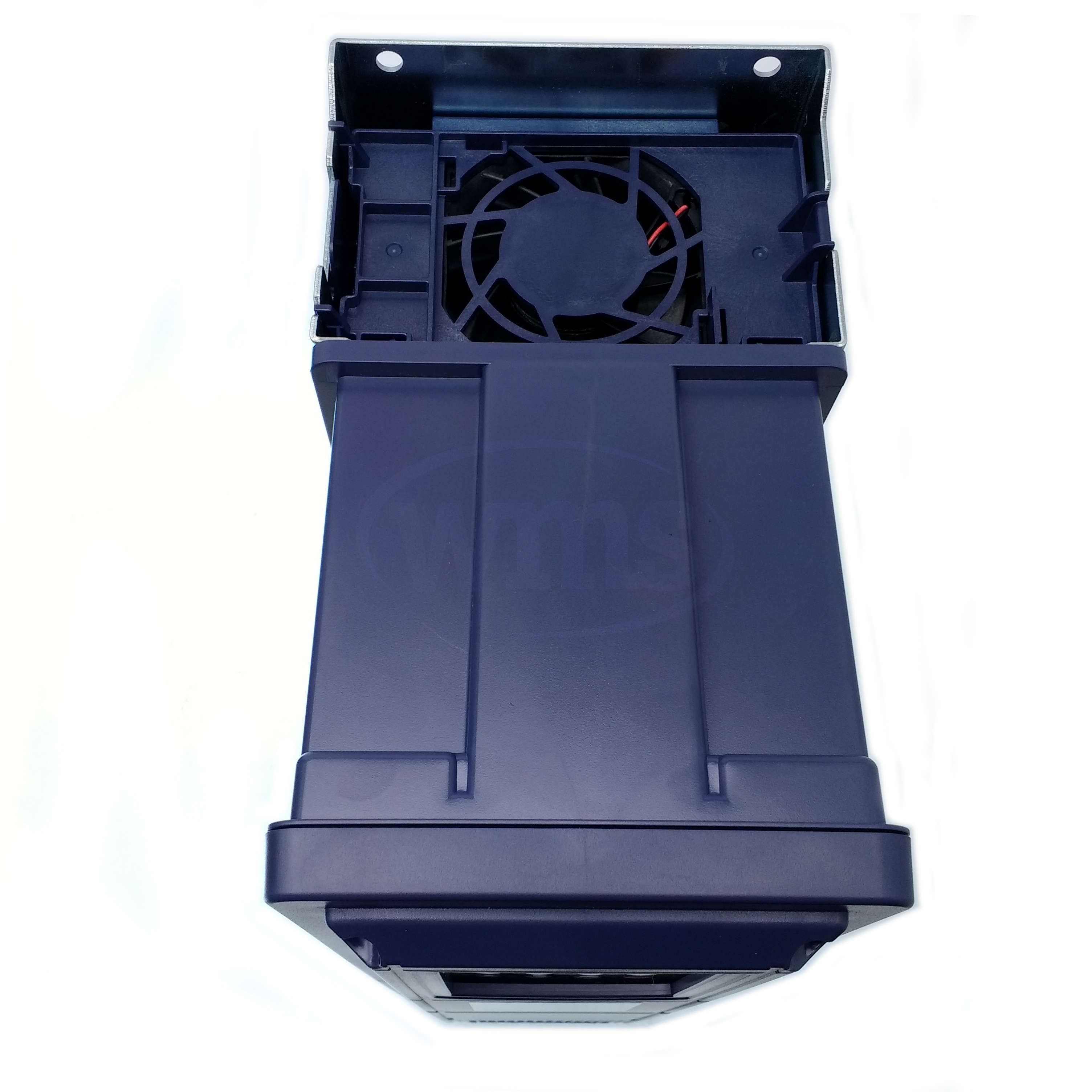

Cooling Method Fan Cooling
Weight/Mass 10 kg
Ambient Temperature NEMA/UL Open/Type 1: -10 to 50°C (14 to 122°F)
Storage Temperature -25 to 70°C (-13 to 158°F)
Relative Humidity 5 to 95% RH (Without Condensation)
Installation Location IEC60664-1 Pollution Degree 2
(Free from Corrosive Gases, Flammable Gases, Oil Mist, Dust and Direct Sunlight)
Indoor Use Only
Altitude 0 to 3,300ft (1,000m)
3,300ft (1,000m) to 9,900ft (3,000m) with Derating

Features

Control Inputs & Outputs
  • 9 Digital Inputs: X1 – X7, FWD, & REV Programmable
    67 Selectable Functions
  • 2 Safety Input (dedicated): EN1, EN2
  • 3 Analog Inputs: (2) 0 to +10Vdc & (1) 4 to 20mA
  • 6 Digital Outputs: (2) Relays (1 Form C & 1 Form A) & (4) Transistor
    77 Selectable Functions
  • 2 Analog Output: Selectable Type: 0 to 10Vdc or 4 to 20mA
    43 Selectable Functions
  • 2 RS-485 Connections: RJ45 Keypad Port & RS485 Control Terminal Block Connections
  • 24Vdc Output Terminal: Rated 200mA

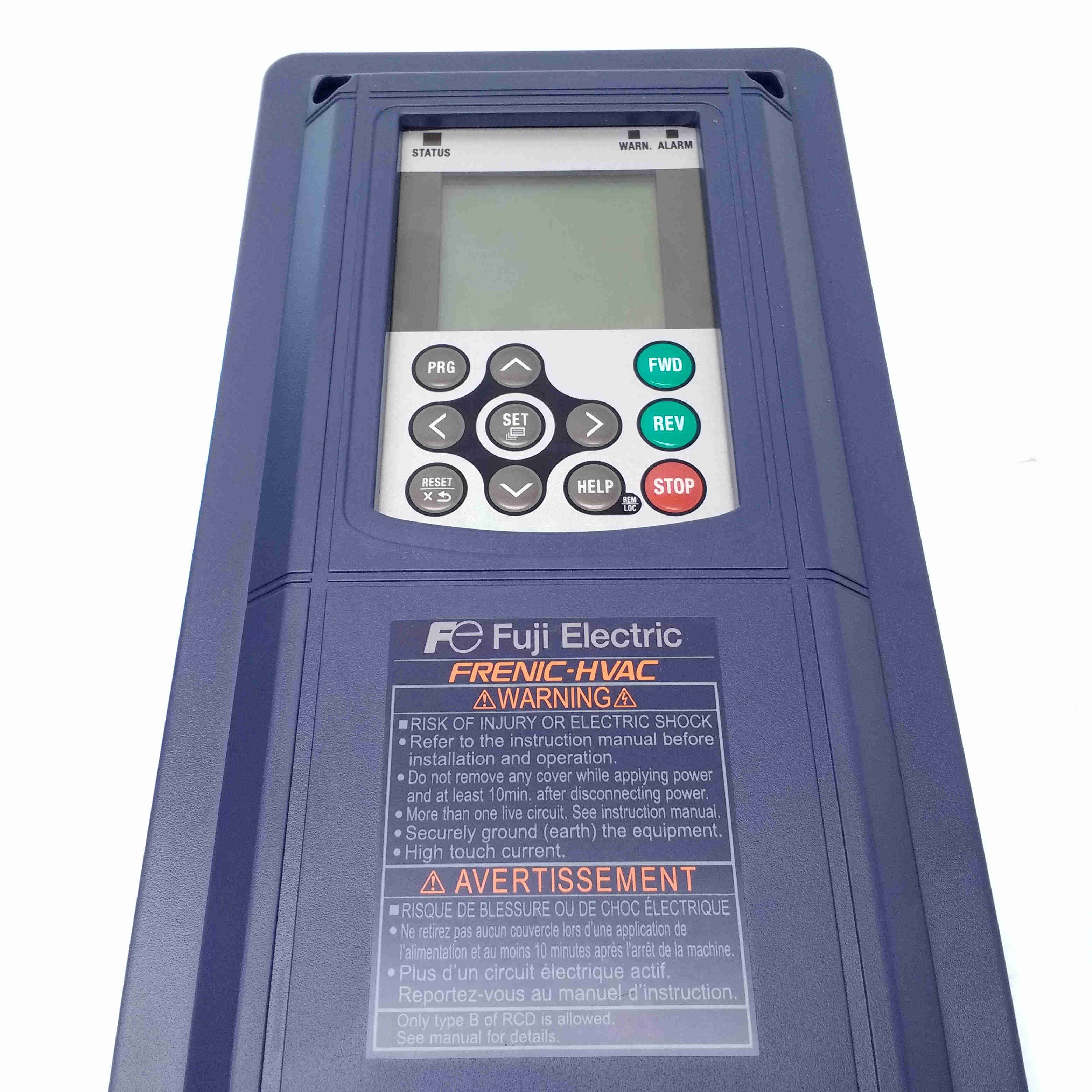

  • Keypad with large LCD Display Indicating HVAC System Operation and Associated Unit Conversion Displayed

Robust Design
  • Nickel (Ni) & Tin (Sn) Plated Bus Bars
  • Conformal Coated PCBs
  • Cooling Fan Board Coating + Anti-Rust Protection
  • 10 Year Design Life of Cooling Fan and Capacitor with Maintenance Alarm Output Signal

Flexibility & Functionality
  • Removable Control Terminal Block
  • CE Filter Built-In for All Models
  • DCR for All Models
  • PC Programming & Troubleshooting Software
  • USB Port on Control Card
  • Real Time Clock
  • Customizable Logic
  • Automatic Energy Savings Control
  • 4-PID Controllers
  • Fire Mode
  • Catch a Spinning Motor
  • Filter Clogging Prevention/Reversing Operation
  • Wet-Bulb Temperature Presumption Control
  • Selectable “Light” Alarms
  • PID Units of Measurement Display
  • Password
  • 3 Option Card Ports Built-In
  • Single Phase Input
  • BACnet MS/TP, Metasys N2, Modbus RTUD Embedded

Safety & Standards
  • Safety Input
  • UL 508C, CE
  • UL Plenum Rating
  • RoHS
  • SEMI F47-0706

Codes and Standards

  • UL508C
  • C22.2 No.14,
  • EN61800-5-1:2007

Options

    Communication Options
  • Ethernet
  • CC-Link
  • LONWORKS
  • DeviceNet
  • Profibus DP
  • CANopen

    I/O Options
  • Keypad with USB Port
  • Relay Output
  • Analog Inputs and Outputs
  • Temperature Sensor Input

Dimensions

W 150 mm
5.91"
H 465 mm
18.31"
D 262 mm
10.31"
D1 162 mm
6.38"
D2 100 mm
3.94"
W1 115 mm
4.53"
W2 17.5 mm
0.69"
H1 451 mm
17.76"
H2 7 mm
0.28"
H3 -
M 2x 8 mm diameter
2x 0.31" diameter
N 8 mm
0.31"
