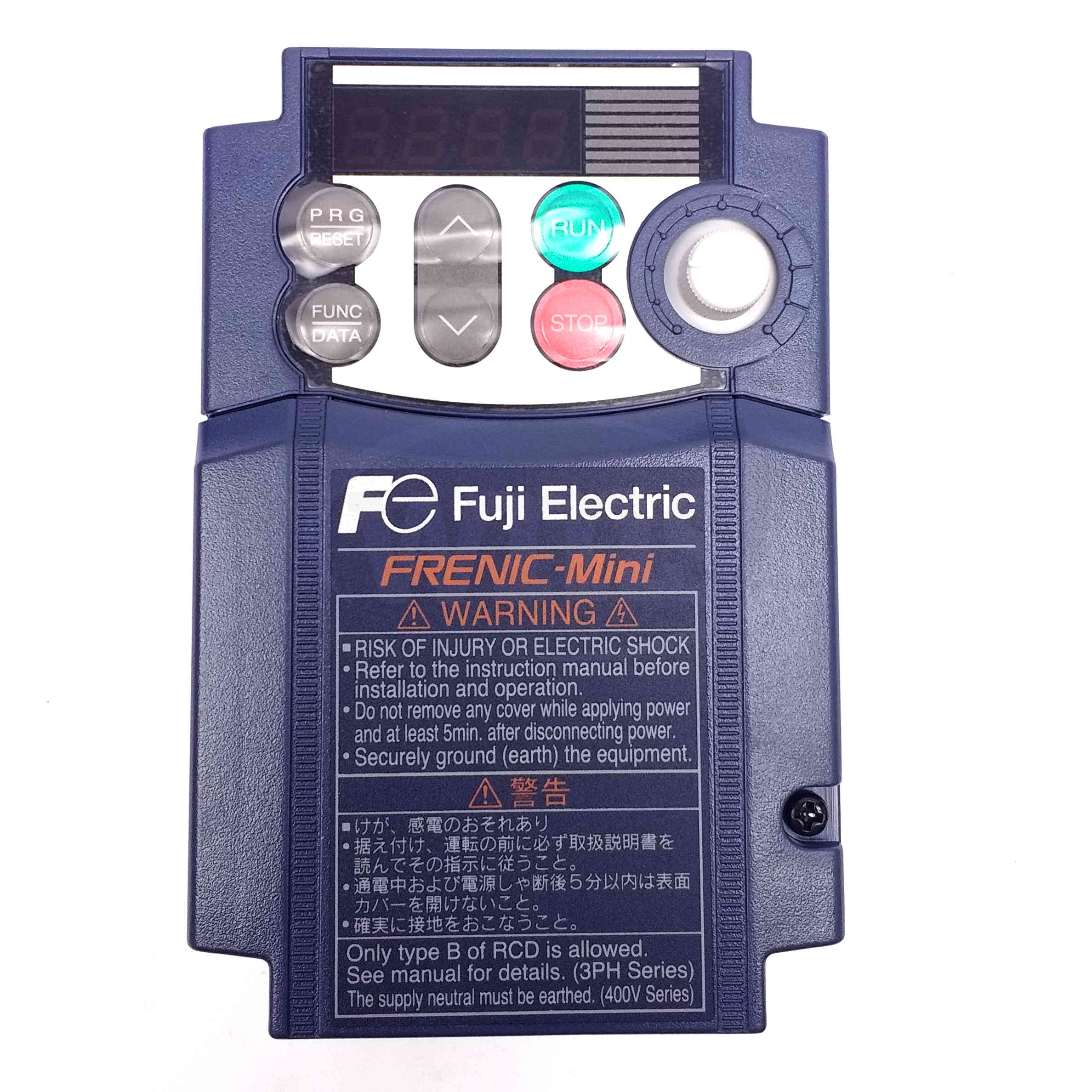

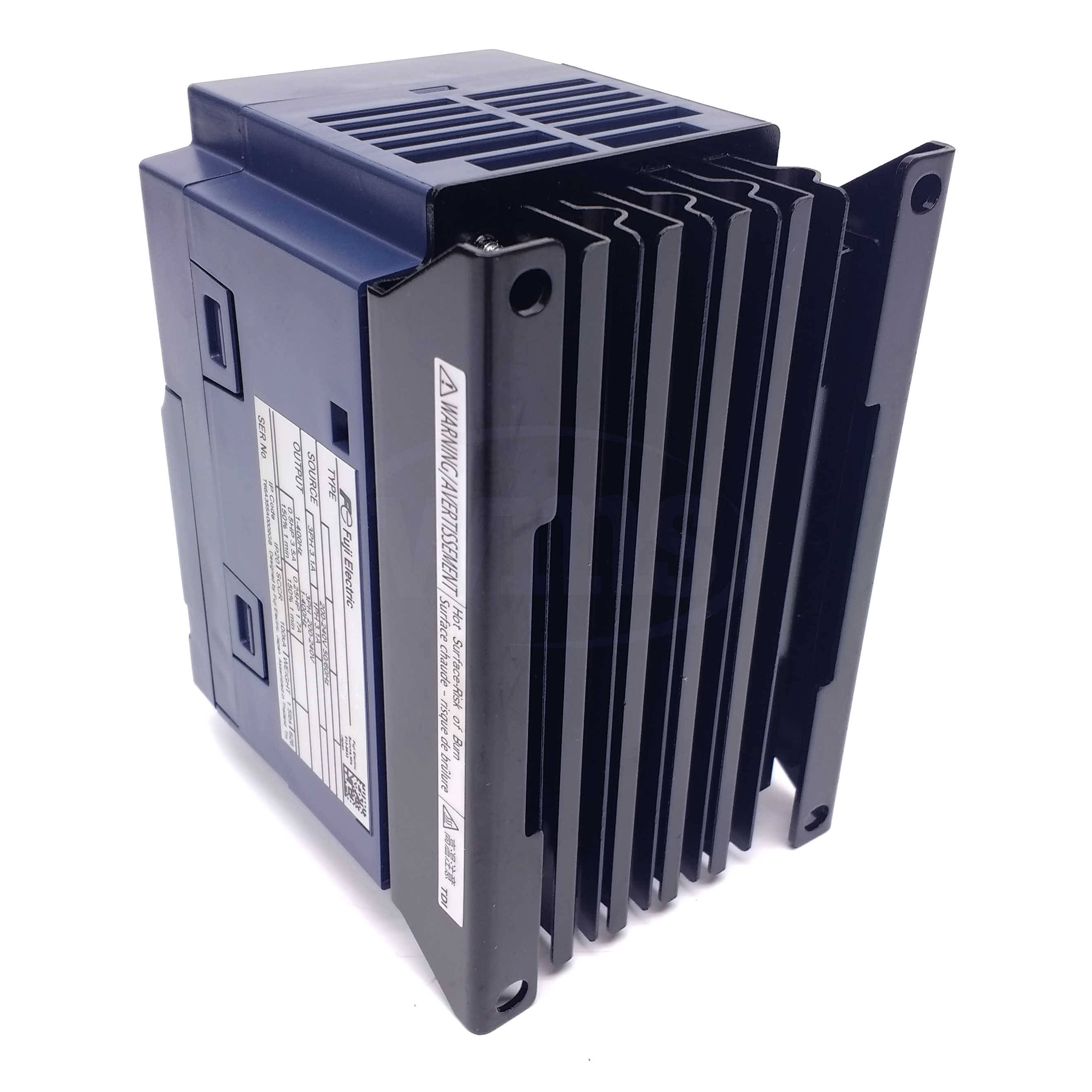

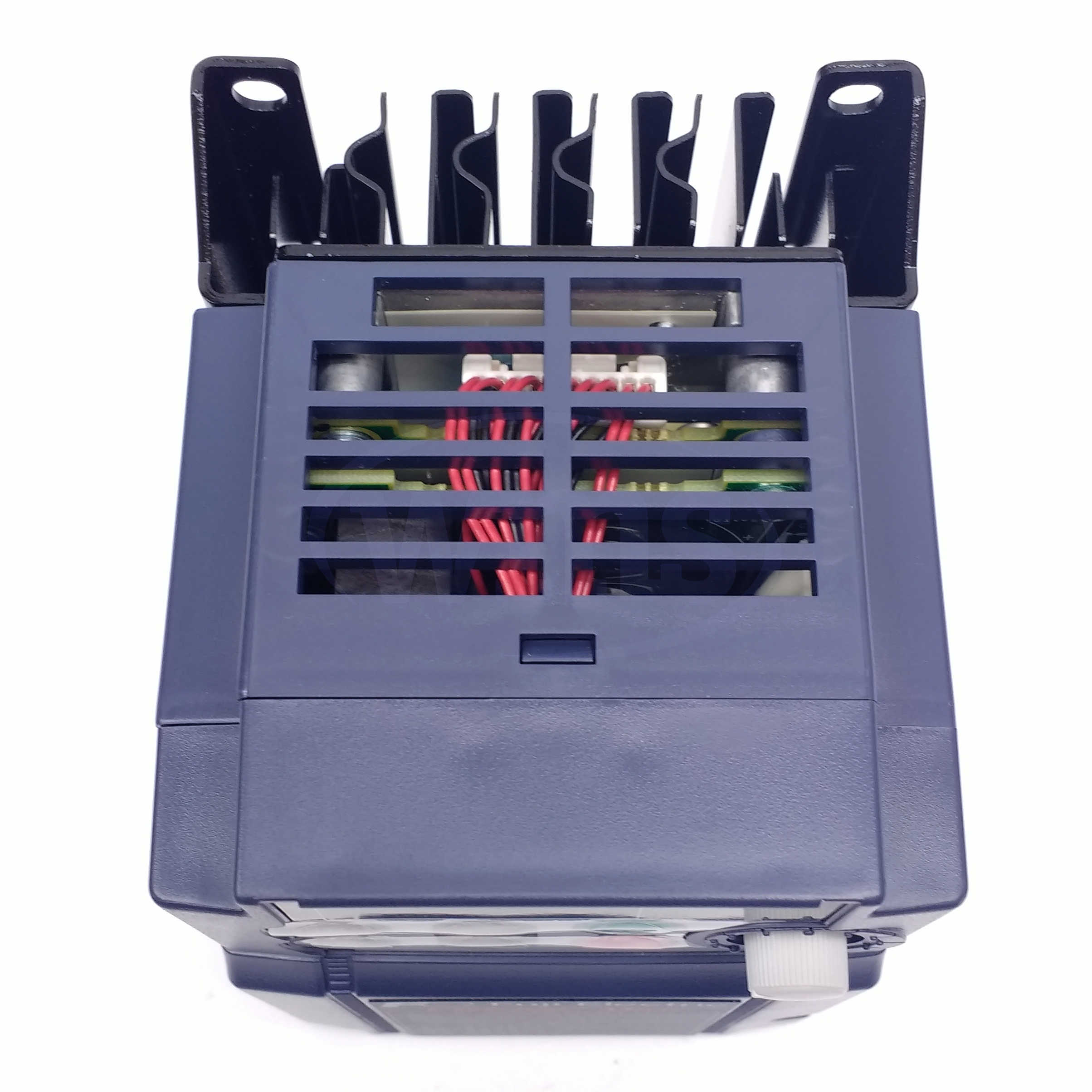

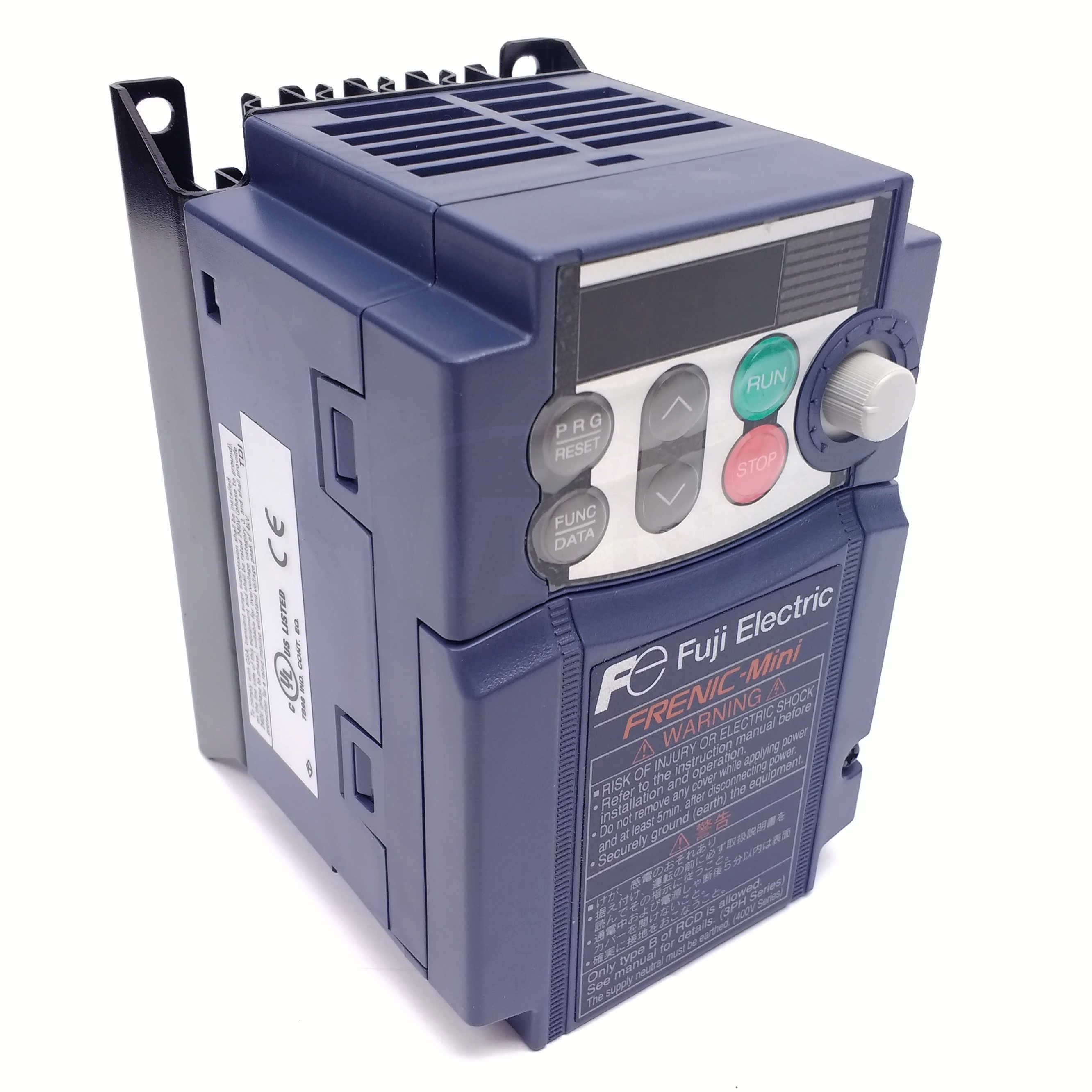

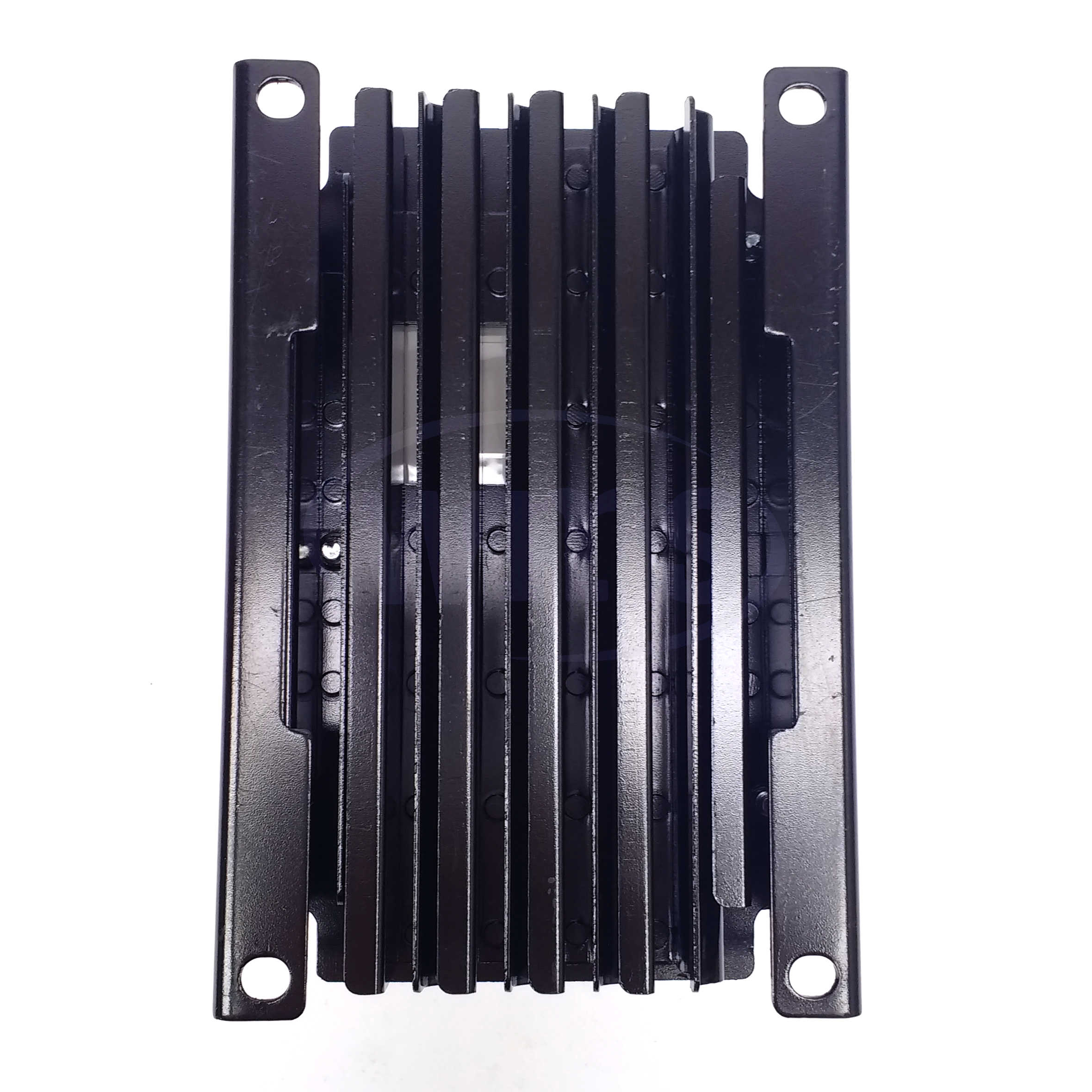

FRN0004C2S-7U 1/2 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 230V
Click Image to Expand
Previous
Next
Product ID: FRN0004C2S-7U
FRN0004C2S-7U 1/2 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 230V
MFG: Fuji Electric Corp. of America
MFG Part Number: FRN0004C2S-7U
Available Stock:
10
Selected accessories will also be added to cart
$181.05 / Each
Quantity:
1-Phase Input (230V 3-Phase Output)
Accessories
Select any of the accessories below to purchase them with this inventory item:
CB-1S Remote Operation Extension Cable (1 meter)
$28.00 / Each
CB-3S Remote Operation Extension Cable (3 meters)
$35.00 / Each
CB-5S Remote Operation Extension Cable (5 meters)
$42.00 / Each
DB0.75-2C Braking Resistor (10% Duty Cycle) 100 Ohm
$56.00 / Each
NEMA1-C2-102 Fuji NEMA/UL Type 1 Conversion Kit
$45.50 / Each
RMA-C1-0.75 DIN Rail Mount Adapter
$21.00 / Each
TK80W120 Braking Resistor (Compact Type)
$25.90 / Each
TP-E1 Remote Mount Keypad
$56.00 / Each
TP-E1U Fuji Electric USB-Equipped Remote Keypad
$59.50 / Each
Fuji TP-E1W Remote Mount Keypad with Gasket
$78.40 / Each
Details
Environmental
Enclosure
UL Open Type (IP20)
Optional UL Type 1
Ambient Temperature
+14 to +122°F (-10 to +50°C) - UL Open Type
+14 to +104°F (-10 to +40°C) - UL Type 1
Storage Temperature
-13 to +158°F (-25 to +70°C)
Humidity
5% to 95% With No Condensation
Altitude
0 to 3,300 ft. (1,000 m) Without Derating
Derate Output Current for Higher Altitudes per User's Manual
Codes and Standards
UL508C
EN 61800-5-1:2007
Electrical
Input Voltage: Range-Phase
200-240VAC - 1 Phase
Input Voltage: Tolerance, Unbalance
1 - Phase Input = +10% to -10%
Input Frequency: Nominal, Tolerance
50/60Hz, +/-5%
Displacement Power Factor
>0.98 (@ Rated Load)
Output Voltage: Range-Phase
0 to Maximum Input Voltage-3Ph
Maximum Output Frequency
400Hz
Rated Output Current
3.5
Nominal Applied Motor HP (KW)
1/2(.4)
Motor Control Method
Induction Motor: V/f
Dynamic Torque Vector
Slip Compensation
Auto-Torque Boost
Automatic Energy Savings
Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up
Overload Capacity
150% Rated Current for 1 minute
200% Rated Current for 0.5 second

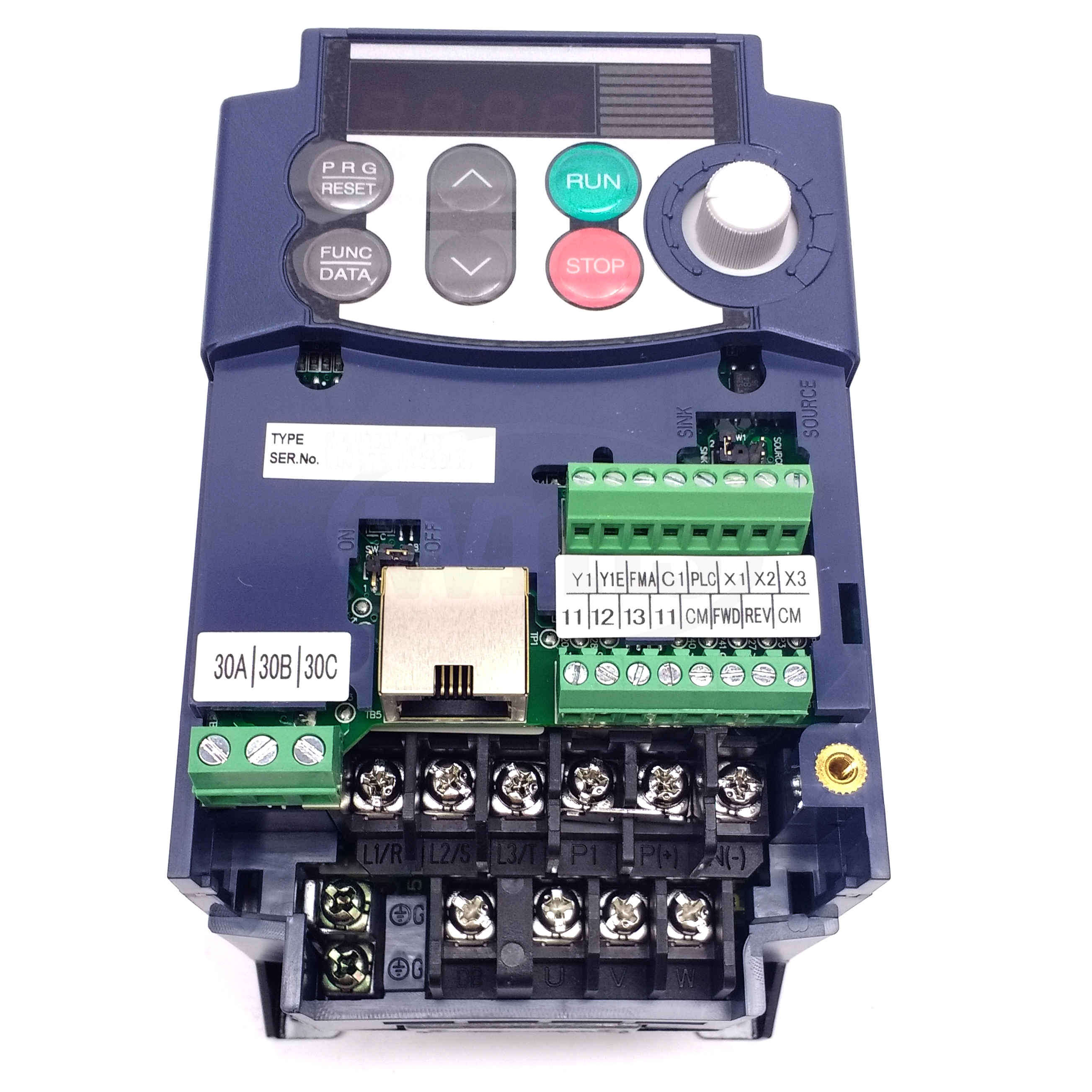

Analog Inputs
Qty 1: 0 to +10VDC
Qty 1: 0/4-20mA
Digital Inputs
Qty 5: Programmable
Analog Outputs
Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality
Digital Outputs
Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality
Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply
Qty 1: 24VDC, 50mA Max
Links
Fuji Electric FRENIC-Mini C2 Series User's Manual
Fuji Electric FRENIC-Mini C2 Series Quick Reference Guide
Fuji Electric FRENIC-Mini C2 Series Instruction Manual
Fuji Electric FRENIC-Mini C2 Series General Specifications
Fuji Electric FRENIC-Mini C2 Series Brochure
Fuji Electric FRENIC-Mini C2 Series Catalog
Fuji Electric FRENIC-Mini C2 Series Watts Loss
Application Notes
Fuji Electric FRENIC-Mini C2 Series Single Phase Ratings
Fuji Electric FRENIC-Mini C2 Series Automatic Restart after Power Failure
Fuji Electric FRENIC-Mini C2 Series PID Control with Pressure Transducer
Fuji Electric FRENIC-Mini C2 Series Pre-Set Speed Operation
Fuji Electric FRENIC-Mini C2 Series 3-Wire Start/Stop
