/Products/Electric Motors/Single Phase/US / Nidec/Farm Duty/FDU7CM2K21Z US/Nidec 7.5HP Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: FDU7CM2K21Z

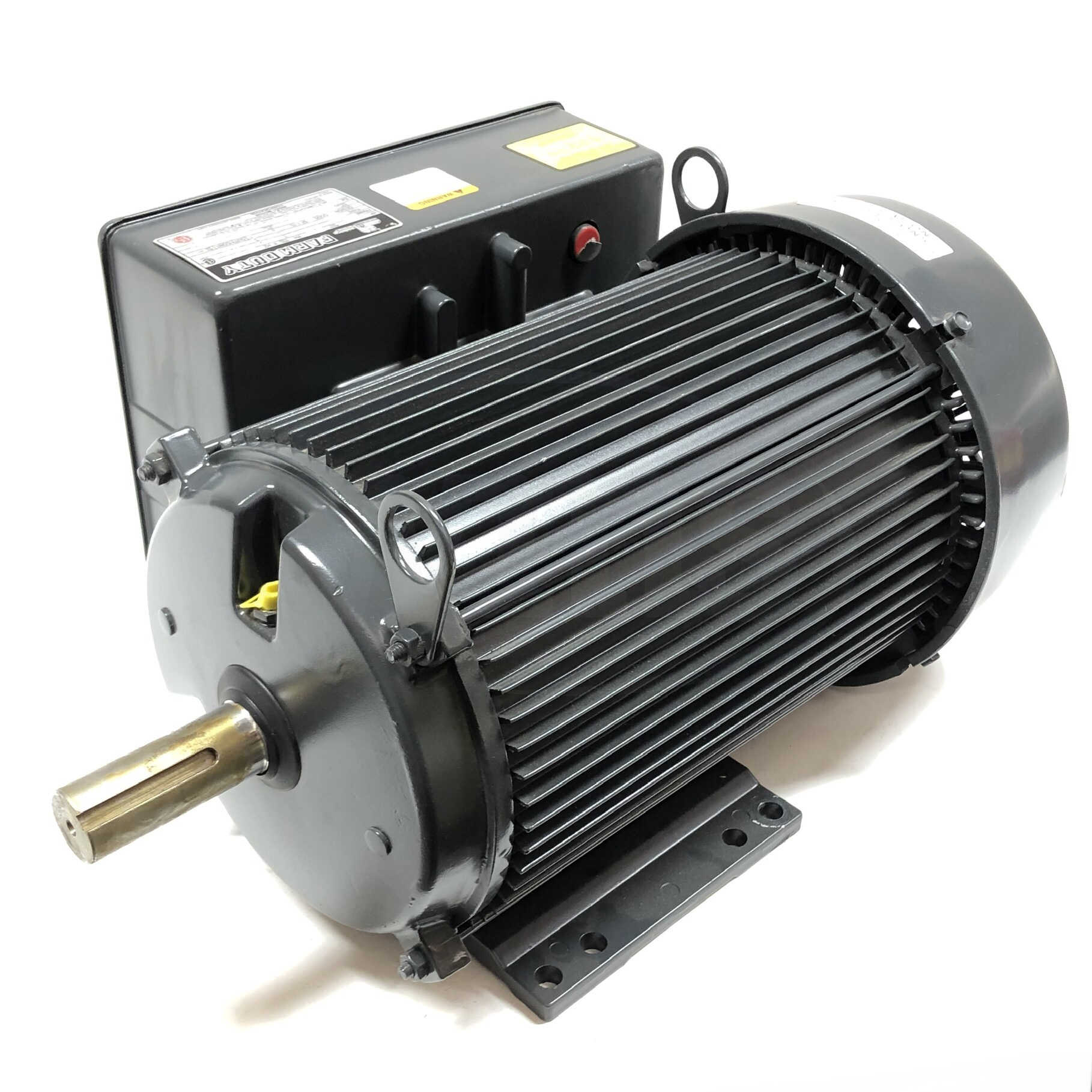

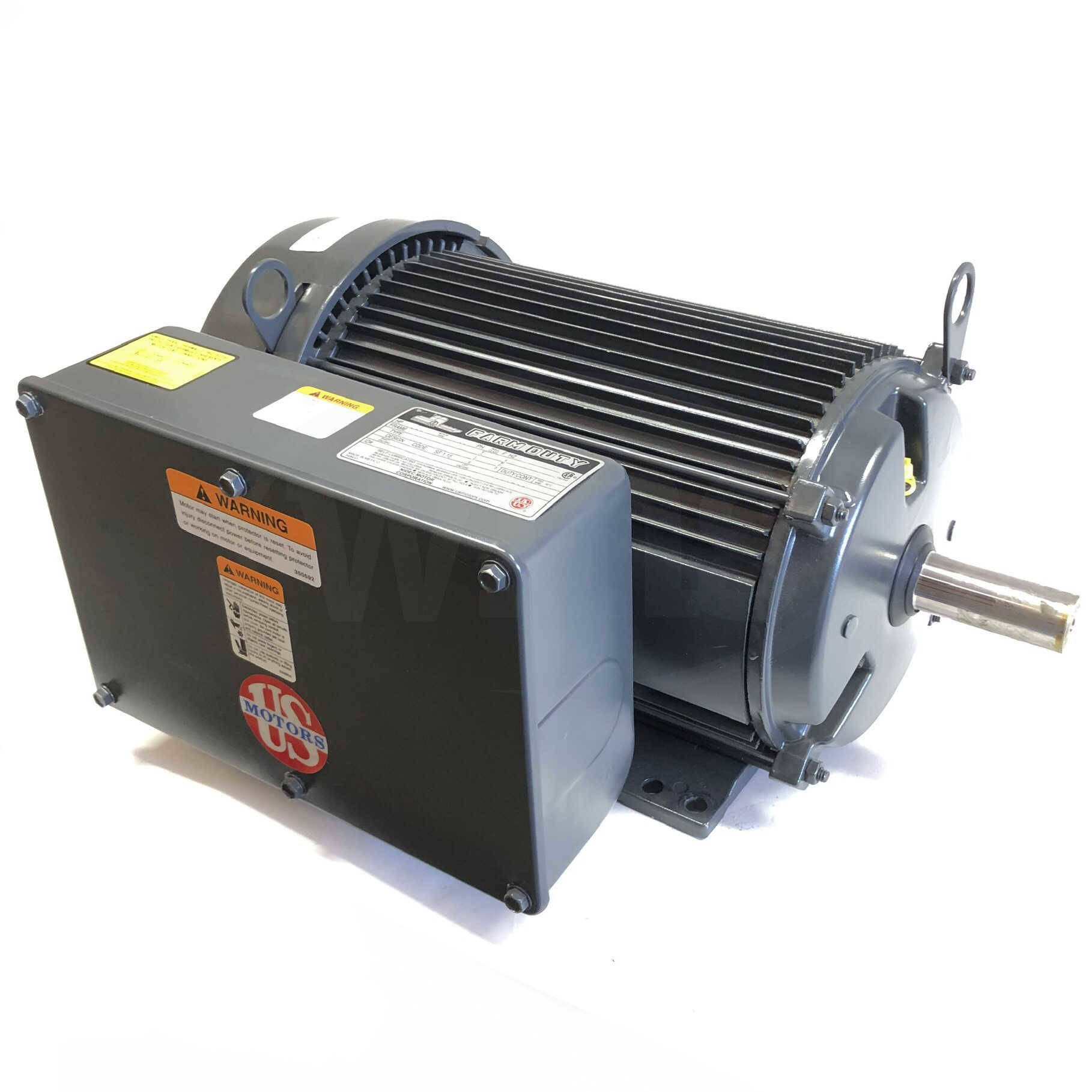

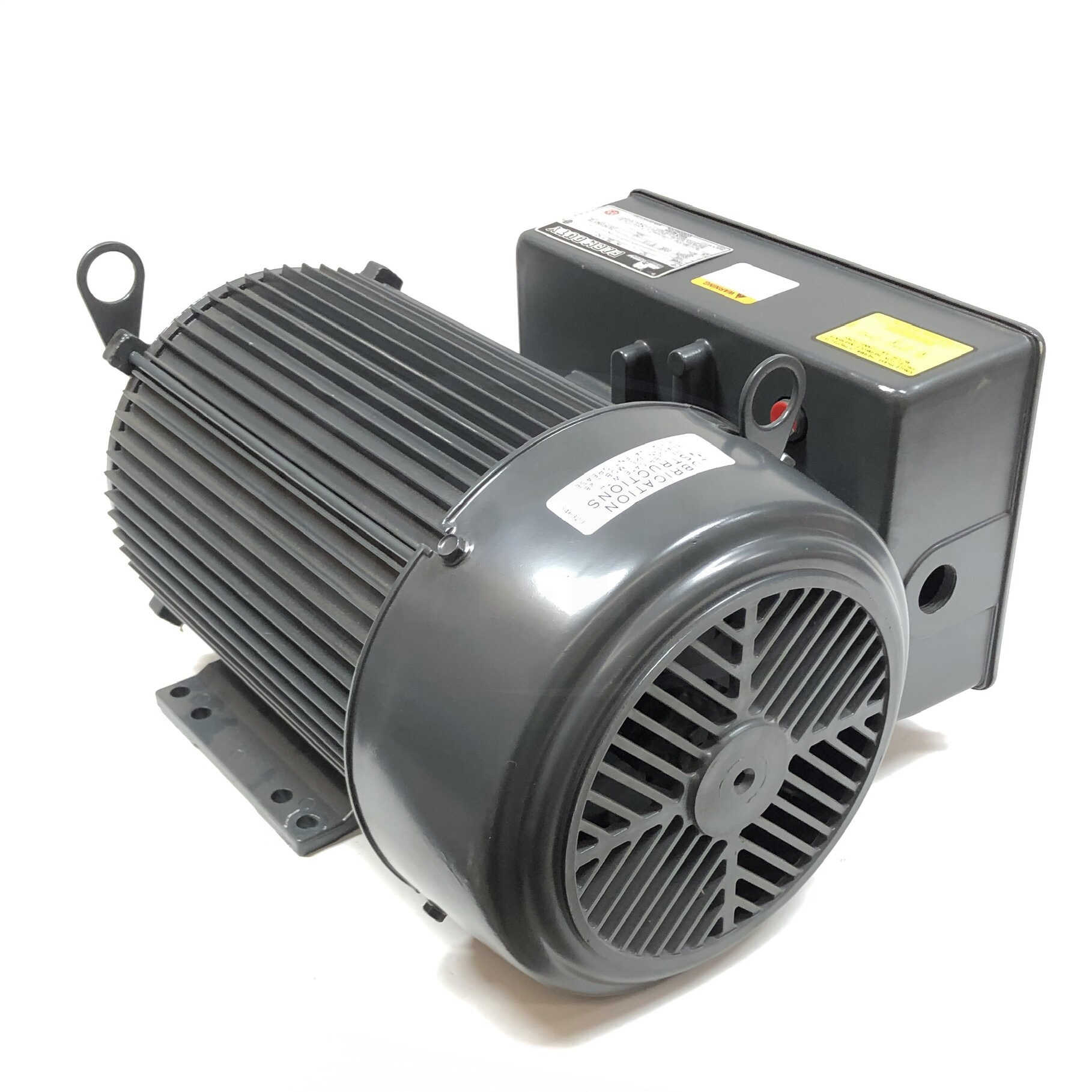

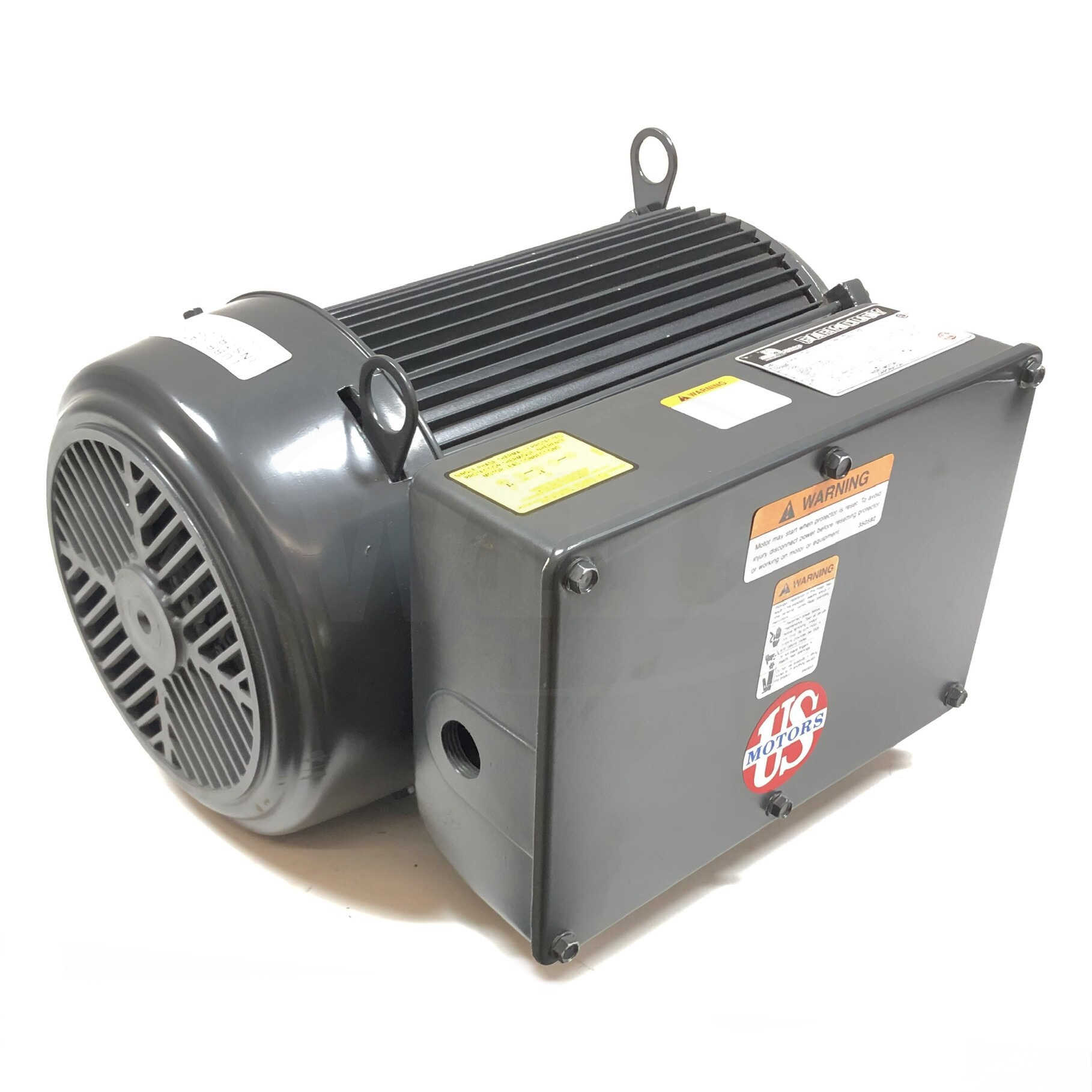

FDU7CM2K21Z US/Nidec 7.5HP Farm Duty Electric Motor, 1800RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: FDU7CM2K21Z

Available Stock: 9

Selected accessories will also be added to cart

$949.32 / Each

Quantity:

215TZ Frame, 230VAC Single Phase, Foot Mounted, FF53, Totally Enclosed (TE)

Details
Purchase Components

Model_Number:	FF53
PRODUCT NAME:	7.5 HP - TEFC - 1715
PHASETYPE:	1_PHASE
MOTOR ENCLOSURE:	TEFC
HORSEPOWER:	7.5
POLES:	4
NUMBER SPEEDS:	1
RPM:	1715
HERTZ:	60
VOLTS PRIMARY:	230
VOLTS :	230
FRME :	215
SHAFT CODE:	TZ
ASSEMBLY POSITION:	F1
MOTOR TYPE:	TMQ
OPPOSITE END BEARING:	6205-2Z-J/C3
SHAFT END BEARING:	6208-2Z-J/C3
AMBIENT:	40
SERVICE FACTOR:	1.15
STARTCAPMFD:	N\A
SHIPPING WEIGHT:	150
INSULATION CLASS:	F
KVA CODE LETTER:	G
FULL LOAD AMPS PRIMARY:	30.8
