/Products/Electric Motors/Single Phase/US / Nidec/Farm Duty/FDU5CM2K21Z US/Nidec 5HP Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: FDU5CM2K21Z

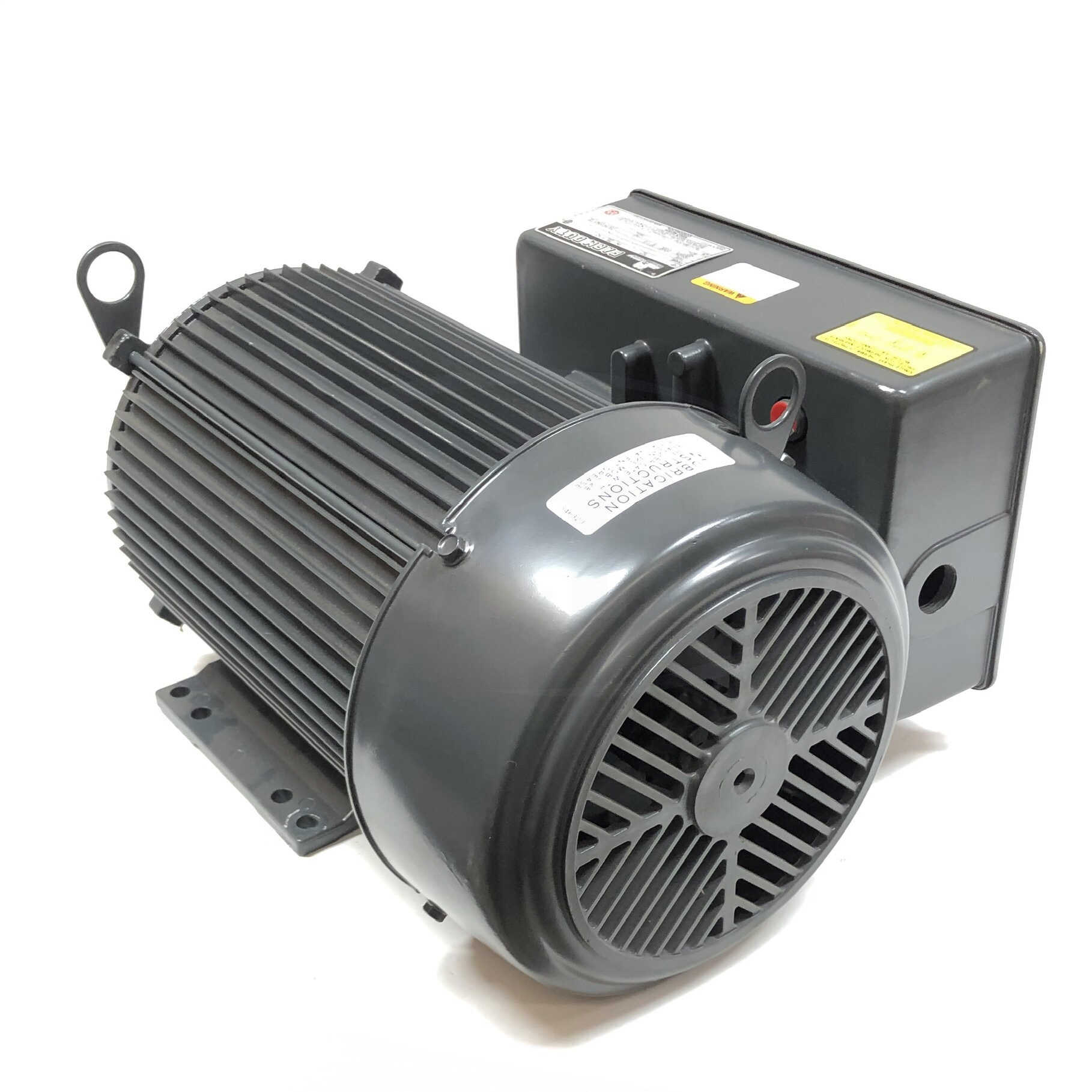

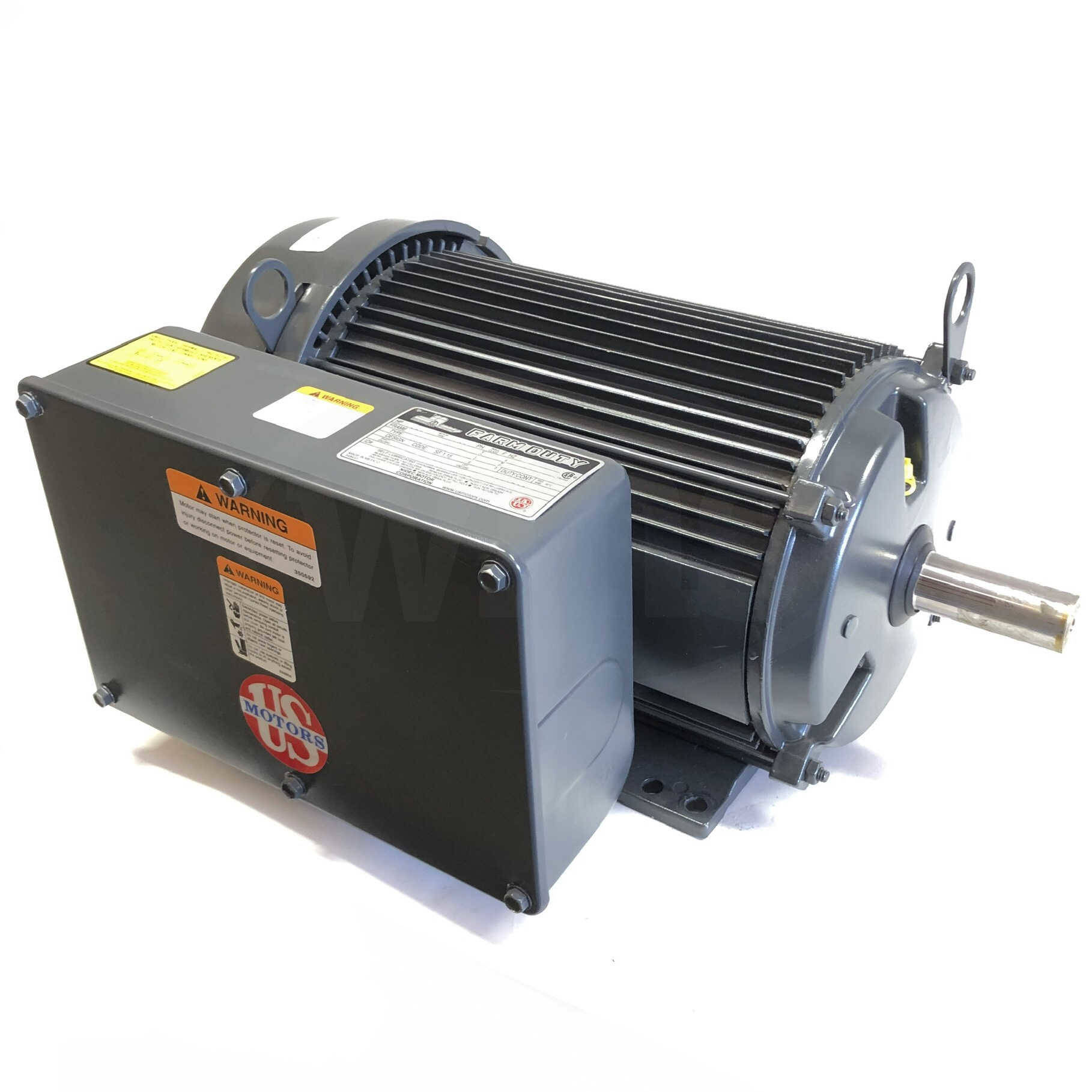

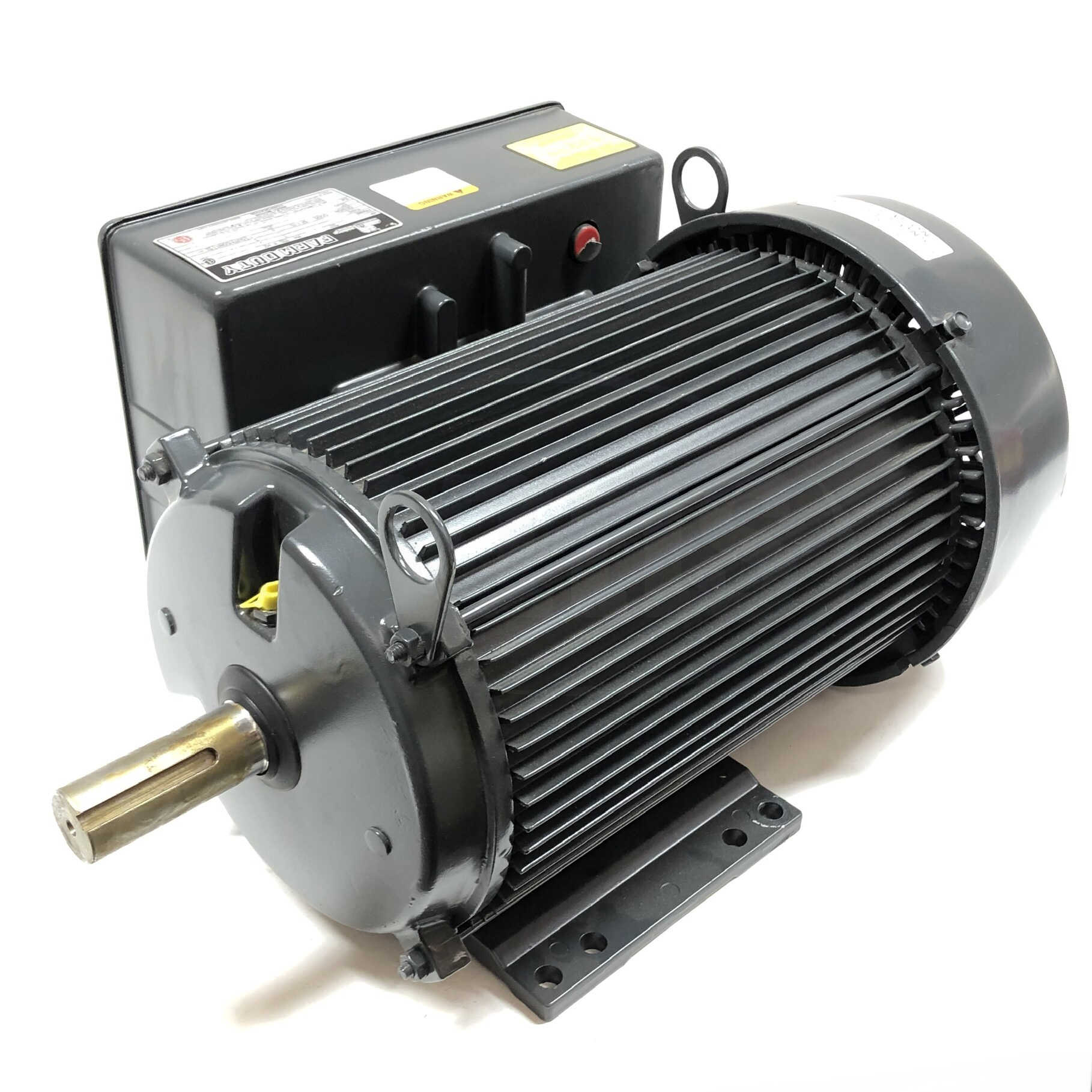

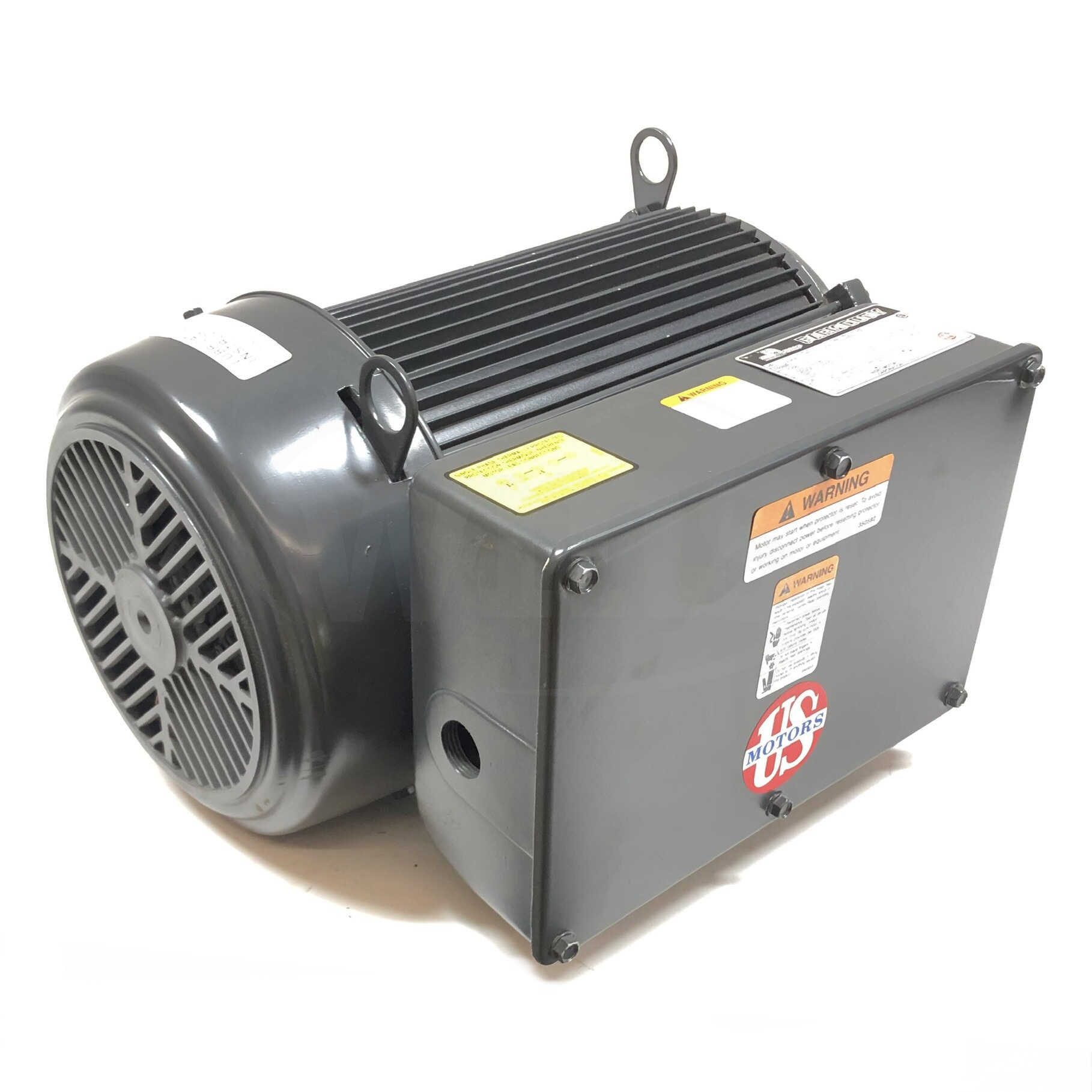

FDU5CM2K21Z US/Nidec 5HP Farm Duty Electric Motor, 1800RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: FDU5CM2K21Z

Available Stock: 6

Selected accessories will also be added to cart

$800.42 / Each

Quantity:

215TZ Frame, 230VAC Single Phase, Foot Mounted

Details
Purchase Components

Model_Number:	T849
PRODUCT NAME:	5 HP - TE - 1725
PHASETYPE:	1_PHASE
MOTOR ENCLOSURE:	TE
HORSEPOWER:	5
POLES:	4
NUMBER SPEEDS:	1
RPM:	1725
HERTZ:	60
VOLTS PRIMARY:	230
VOLTS :	230
FRME :	215
SHAFT CODE:	TZ
ASSEMBLY POSITION:	F-1
MOTOR TYPE:	TMQ
OPPOSITE END BEARING:	6205-2Z-J/C3
SHAFT END BEARING:	6208-2Z-J/C3
AMBIENT:	40
SERVICE FACTOR:	1.15
STARTCAPMFD:	N\A
SHIPPING WEIGHT:	142
INSULATION CLASS:	F
KVA CODE LETTER:	G
NEMA NOMINAL EFFICIENCY:	78.7
FULL LOAD AMPS PRIMARY:	29.0
