/Products/Electrical Components/WEG/Contactors/NEMA Contactors (CWM_N)/Size 1, 32 Amps (32N)/CWM32N-00-30V18 WEG NEMA Rated Contactor, 32 Amps, 3 NO Power Poles

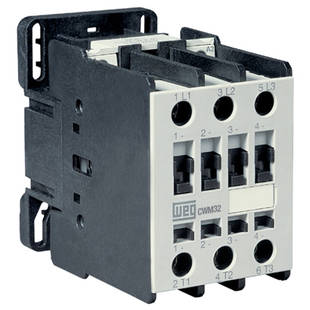

CWM32N-00-30V18 WEG NEMA Rated Contactor, 32 Amps, 3 NO Power Poles
Enlarge Photo

Product ID: CWM32N-00-30V18

CWM32N-00-30V18 WEG NEMA Rated Contactor, 32 Amps, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWM32N-00-30V18

Selected accessories will also be added to cart
$70.52 / Each
Quantity:
11697382, S-1, 110VAC 50Hz / 120VAC 60Hz Coil, No Auxiliary Contacts
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan 1,2 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 32 A (N)
Rated current In - AC-4 16 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 60 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 89 mm (3.50 in)
Width 55 mm (2.17 in)
Depth 98 mm (3.86 in)
Gross weight 1.2 kg
