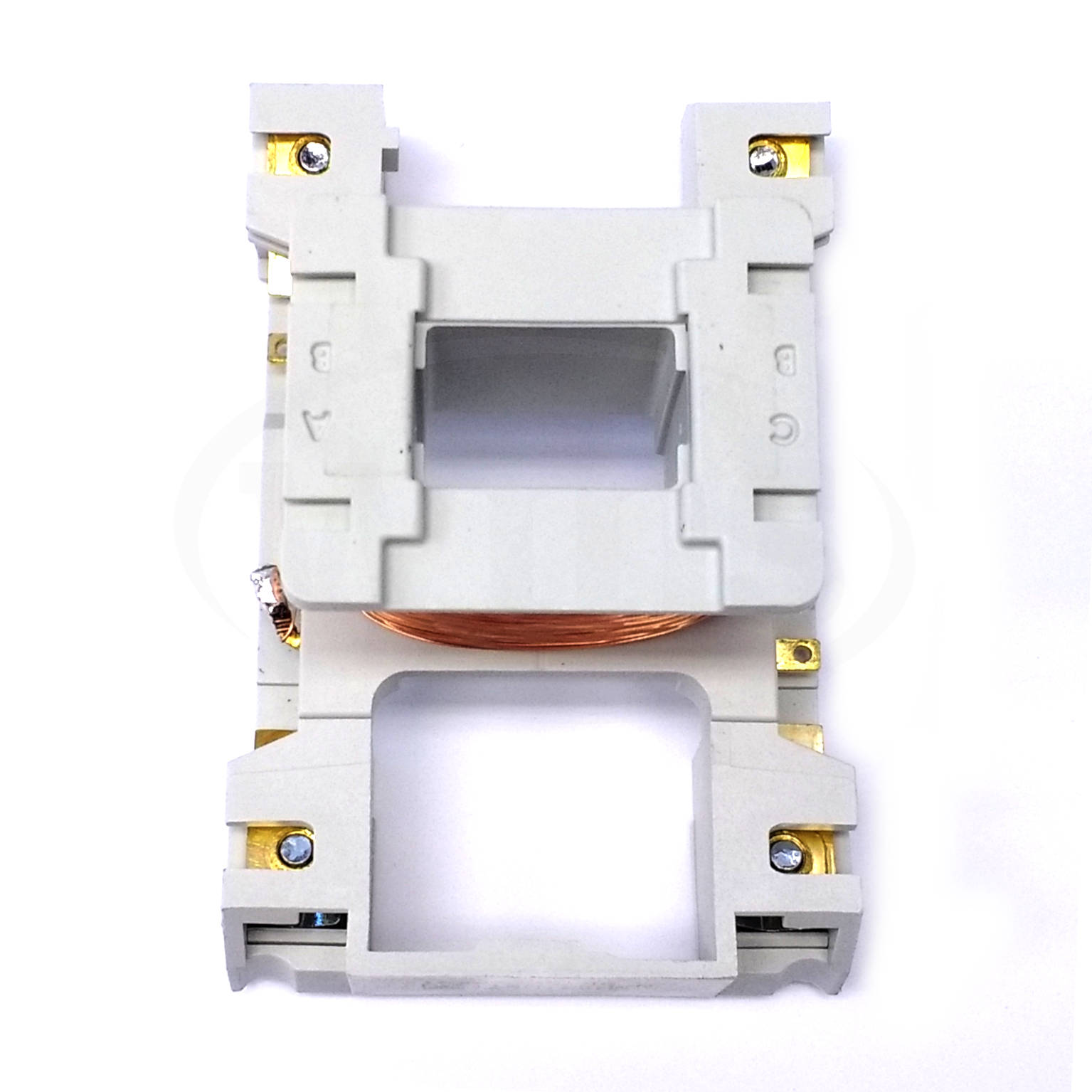

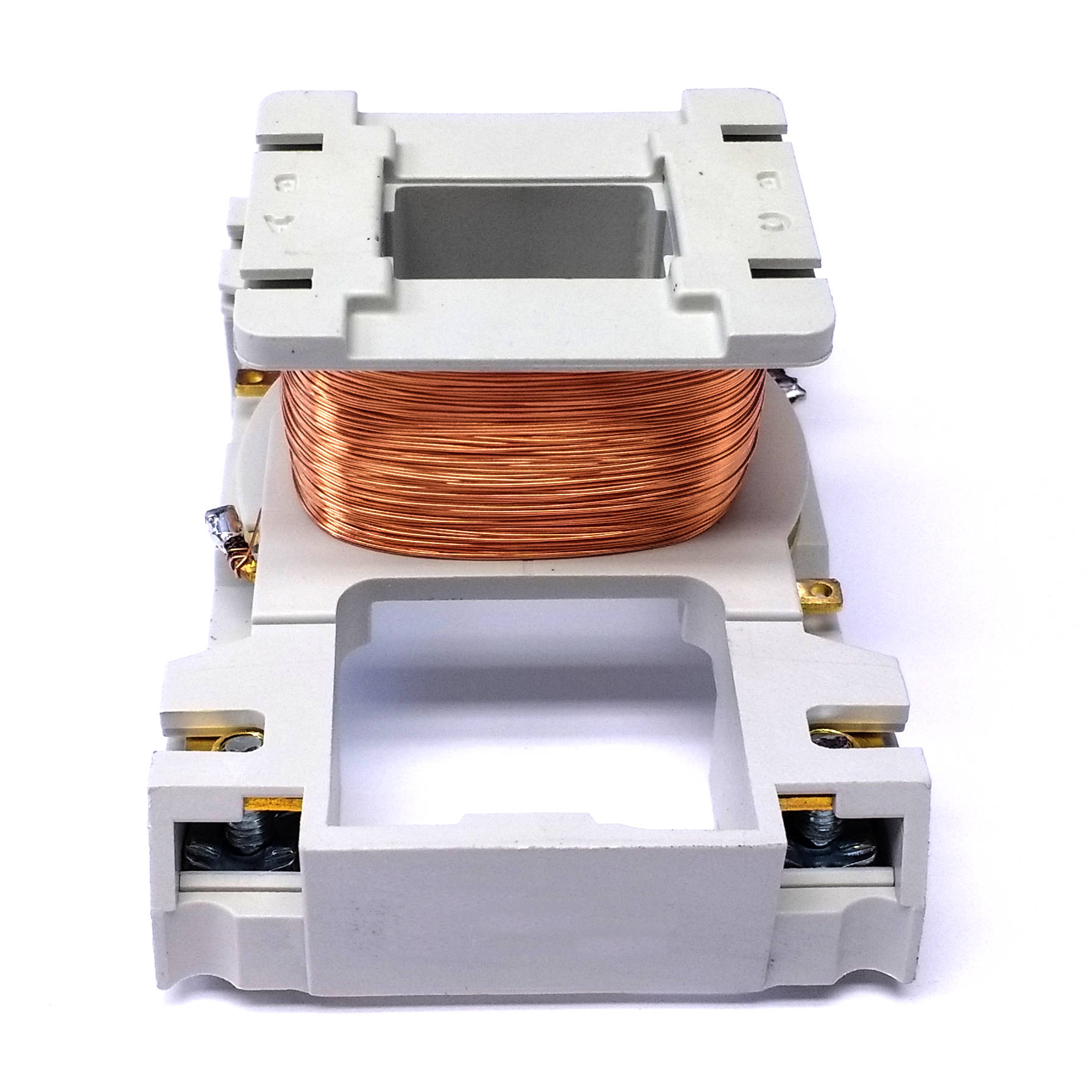

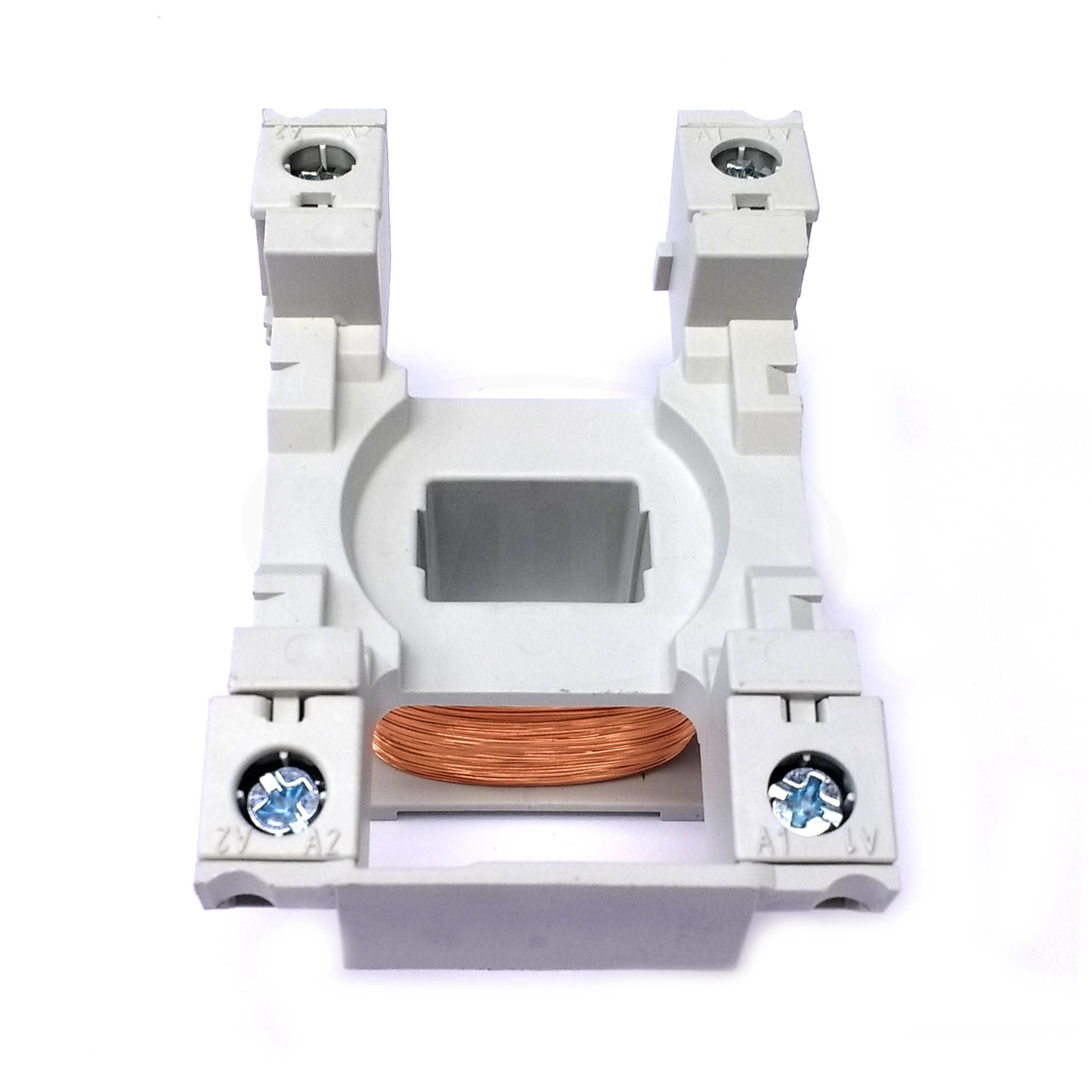

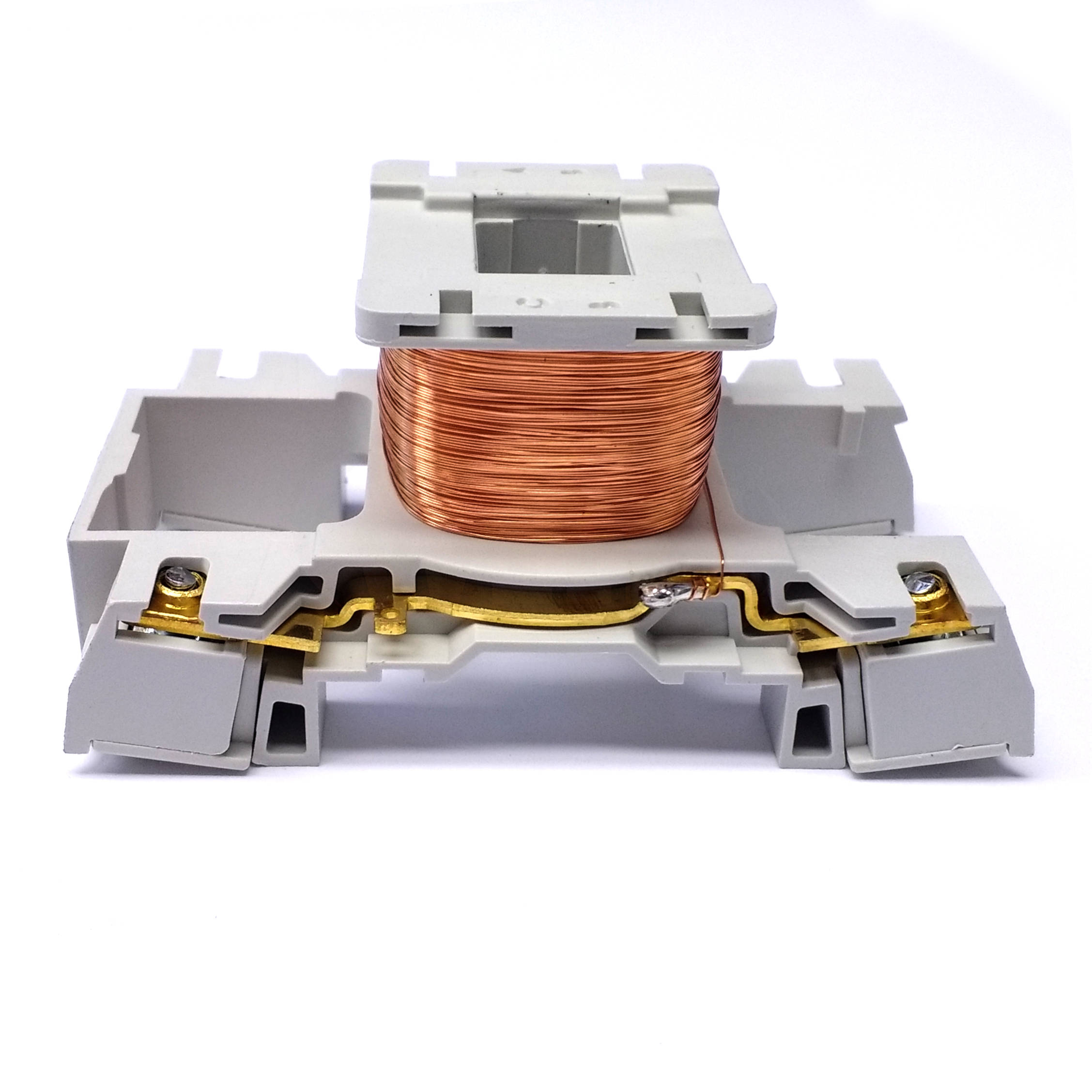

BCA4-40V18 Weg Contactor Coil, 120VAC 60Hz
Click Image to Expand
Previous
Next
BCA4-40V18 Weg Contactor Coil, 120VAC 60Hz
Product ID: BCA4-40V18
MFG: WEG Electric Corporation
MFG Part Number: BCA4-40V18
Available Stock:
2
Selected accessories will also be added to cart
$15.05 / Each
Quantity:
For Use With CWM32-40 and CWMC32
Details
Overview :
Brand
WEG
Catalog Number
BCA4-40V18
For use on
CWM32
CWM32N
CWM40
Number of Terminals
4
Type
AC Coil
Voltage
120VAC 60Hz
110VAC 50Hz
UPC
7890355187197
Weight
0.24 lbs
Control Circuit Ratings – AC Coil :
Rated Insulation Voltage (Ui)
IEC; VDE 0660: 1000 Volts
UL; CSA: 600 Volts
Rated Operating Voltage (Ue)
IEC; VDE 0660: 690 Volts
UL; CSA: 600 Volts
Coil Operating Limits
Pick-up xUc: 0.5-0.76
Drop-out xUc: 0.3-0.65
Operating Time
Coil Energization – N.O.: 10-19 ms
Coil de-energization – N.O.: 5-25 ms
Coil Consumption
Sealed: 6.6-12.5 VA
Inrush: 98 VA
Thermal Power Dissipation
60Hz: 4.3 W
Power Factor
Closed: 0.34 Cos phi
Opened: 0.69 Cos phi
Stranded / Solid (UL / CSA)
2x12-10 AWG
