Products
/
Pulleys & Sheaves
/
BK-H Single Groove
/
BK55H AMEC 5.25" "H" Style BK Single Groove V-Pulley
Click Image to Expand
Previous
Next
Product ID: BK55H

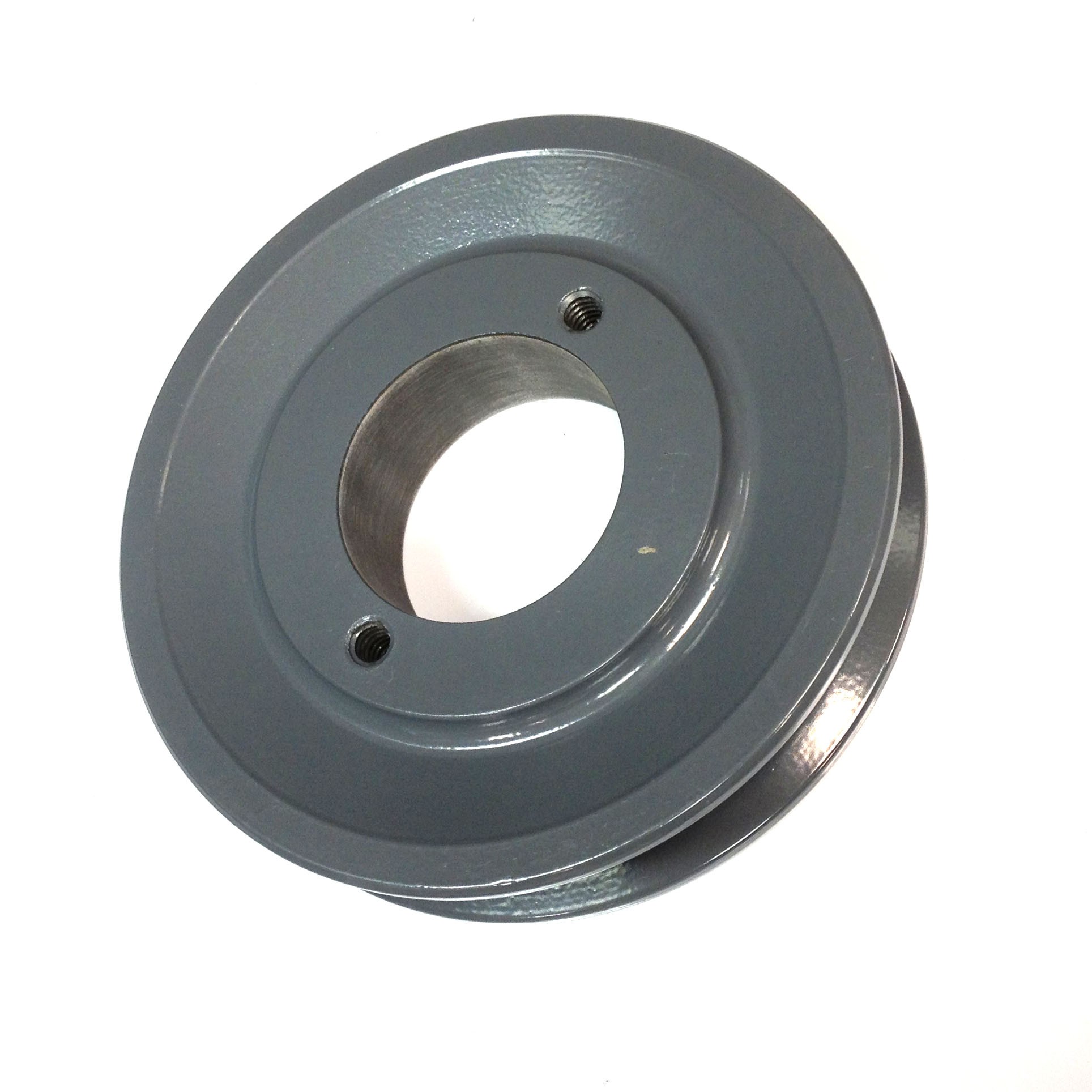

BK55H AMEC 5.25" "H" Style BK Single Groove V-Pulley
MFG: AMEC Industry, Inc
MFG Part Number: BK55H
Available Stock:
1
Selected accessories will also be added to cart
$19.87 / Each
Quantity:
Accessories
Select any of the accessories below to purchase them with this inventory item:
H10 AMEC "H" Style Taper Bushing, 5/8" Bore
$8.03 / Each
H11 AMEC "H" Style Taper Bushing, 11/16" Bore
$7.49 / Each
H12 AMEC "H" Style Taper Bushing, 3/4" Bore
$8.02 / Each
H14 AMEC "H" Style Taper Bushing, 7/8" Bore
$8.03 / Each
H15 AMEC "H" Style Taper Bushing, 15/16" Bore
$5.90 / Each
H16 AMEC "H" Style Taper Bushing, 1" Bore
$8.02 / Each
H16MM "H" Style Bushing, 16MM Bore
$6.16 / Each
H18 AMEC "H" Style Taper Bushing, 1-1/8" Bore
$8.03 / Each
H18MM "H" Stye Bushing, 18MM Bore
$5.55 / Each
H20 AMEC "H" Style Taper Bushing, 1-1/4" Bore
$9.66 / Each
H22 AMEC "H" Style Bushing, 1-3/8" Bore
$8.03 / Each
H22MM AMEC "H" Style Taper Bushing, 22MM Bore
$7.49 / Each
H24 AMEC "H" Style Taper Bushing, 1-1/2" Bore
$9.66 / Each
H25MM "H" Style Bushing, 25MM Bore
$5.20 / Each
Details
Specifications
• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand
Various
AMEC
Part Number
BK55H

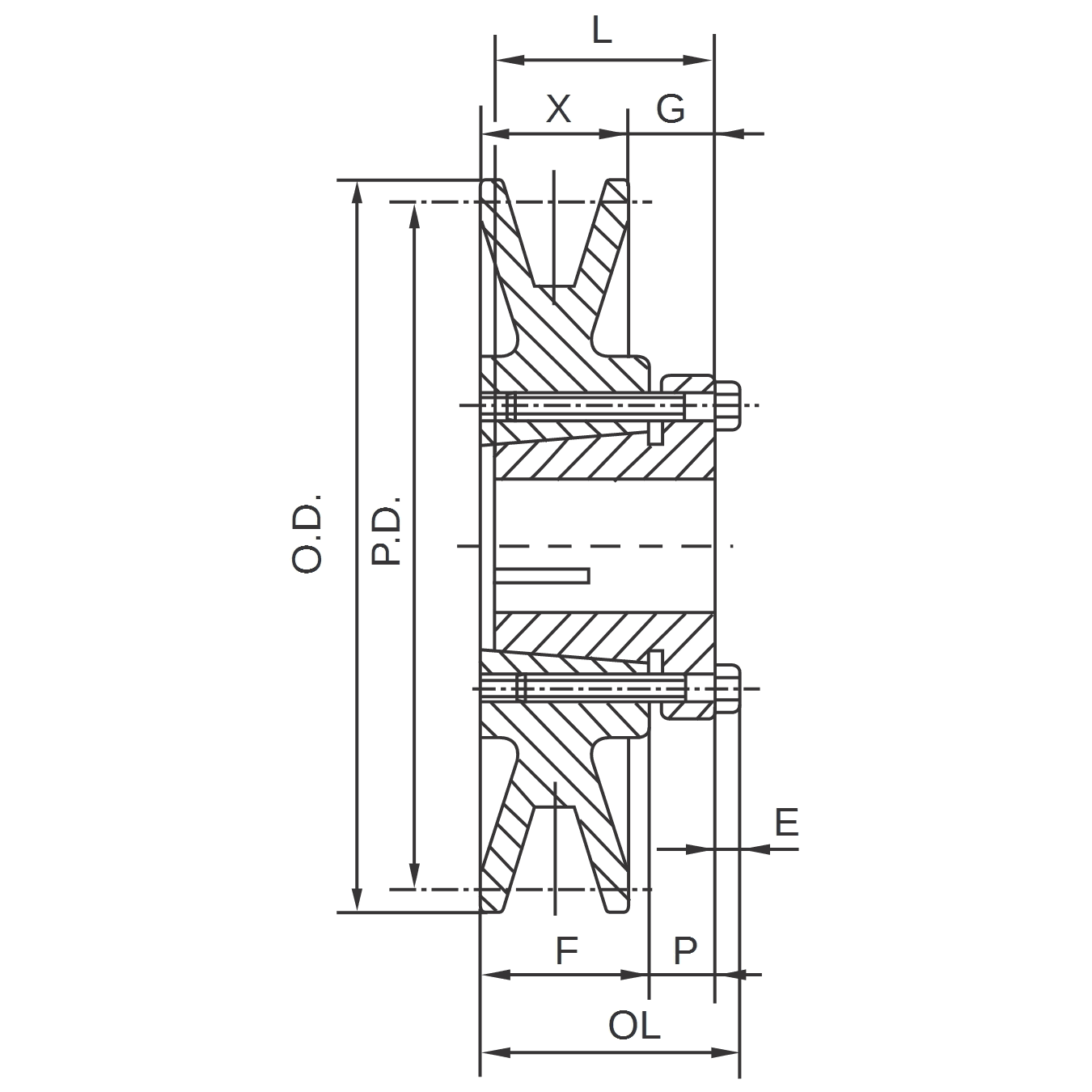

Outside Diameter
5.25"
Pulley Diameter "A"
4.50"
Pulley Diameter "3L"
4.90"
Type
2
Dimension "OL"
1-1/2"
Dimension "F"
7/8"
Dimension "L"
1-1/4"
Dimension "P"
7/16"
Dimension "X"
7/8"
Dimension "G"
7/16"
Dimension "E"
3/16"
Approximate Weight
2.7 lbs
UPC
