/Products/Pulleys & Sheaves/H Bushings/H20 AMEC "H" Style Taper Bushing, 1-1/4" Bore
Click Image to Expand

Product ID: H20

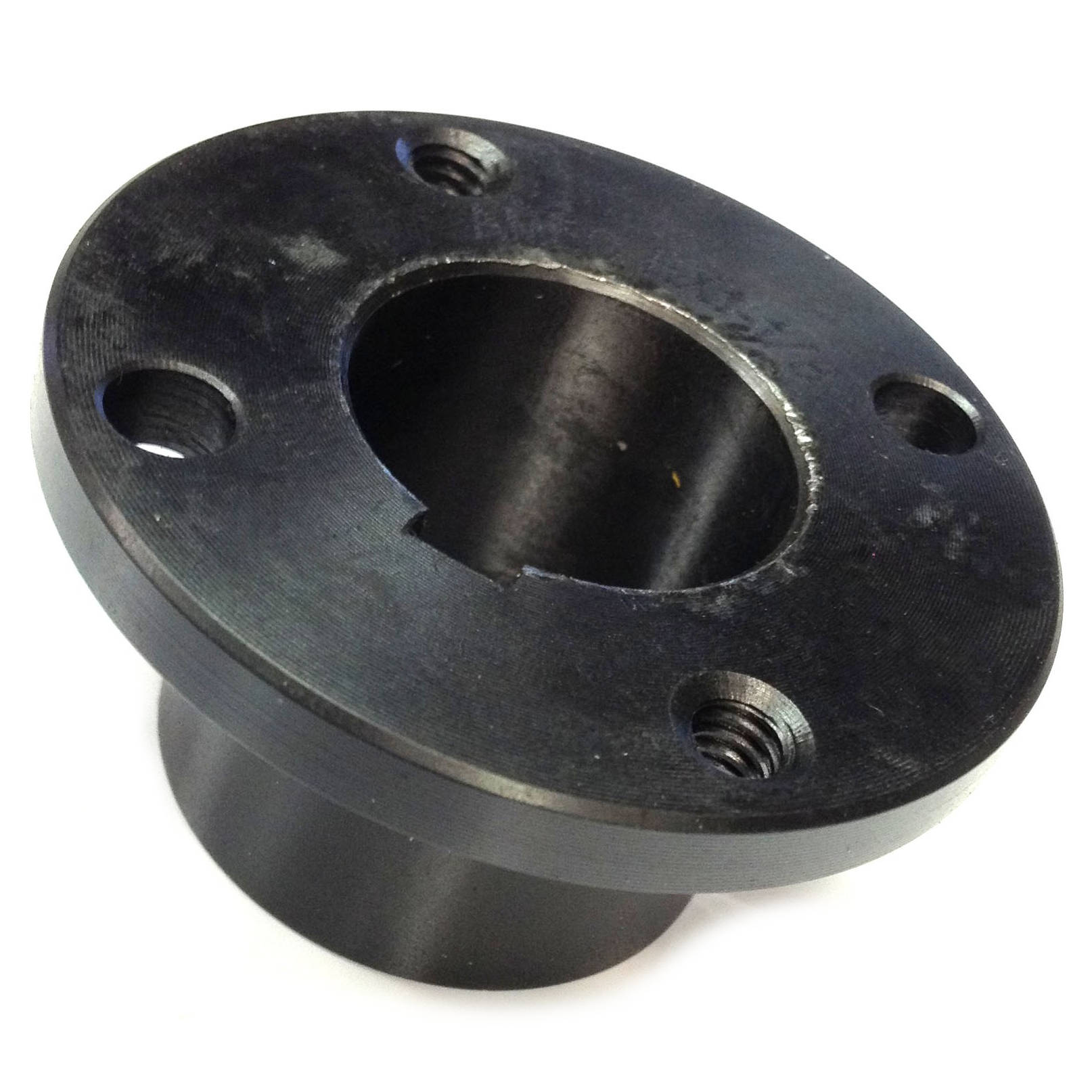

H20 AMEC "H" Style Taper Bushing, 1-1/4" Bore

MFG: AMEC Industry, Inc
MFG Part Number: H20

Available Stock: 3
Selected accessories will also be added to cart
$9.66 / Each
Quantity:

Specifications

Brand Various
AMEC
Part Number H20
H-20
HX1-1/4
Bore 1-1/4"
1.250"
Keyseat 1/4" x 1/8"
UPC
Country of Origin Various

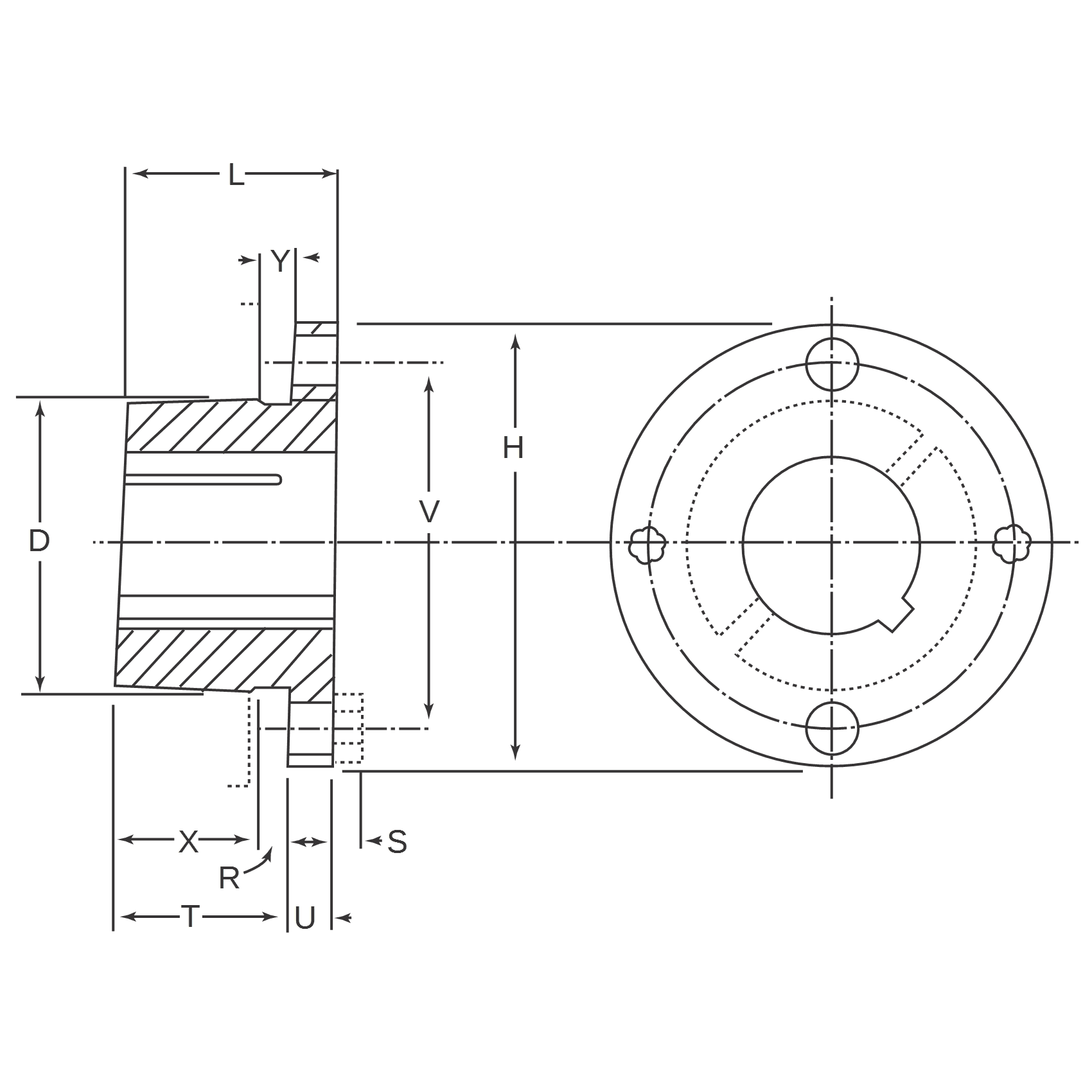

Dimension "L" 1-1/4"
Dimension "U" 1/4"
Dimension "T" 1"
Dimension "D" 1.625" (Large End)
1.570" (Small End)
Dimension "H" 2-1/2"
Dimension "V" 2"
Dimension "X" 7/8"
Dimension "Y" 3/16"
Dimension "R" 1/8"
Dimension "S" 3/16"
Number of Screws/Bolts 2
Screw/Bolt Size 1/4” x 3/4”
Wrench Torque 95 Inch-lbs
