/Products/Pulleys & Sheaves/BK-H Single Groove/BK36H AMEC 3.75" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK36H

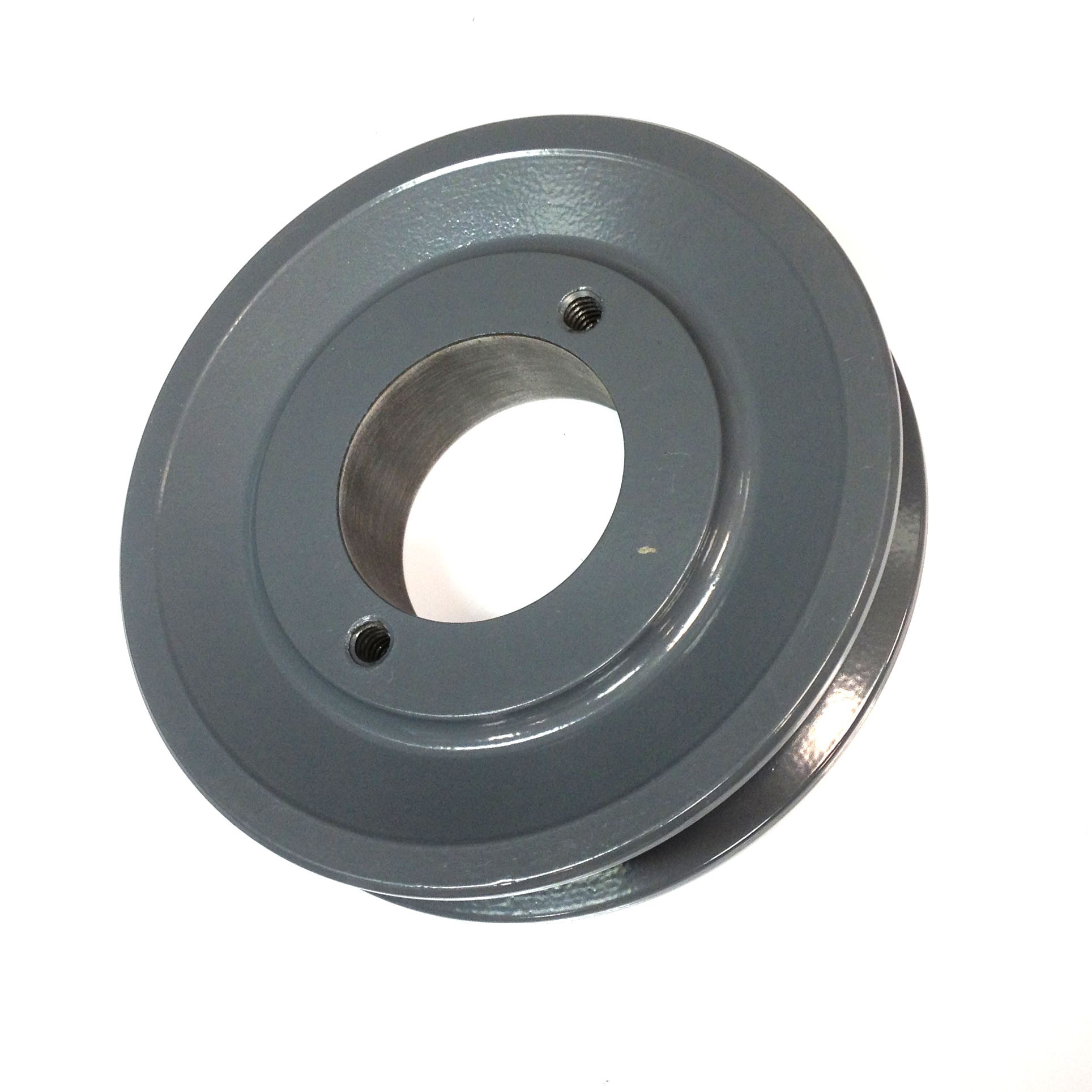

BK36H AMEC 3.75" "H" Style BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK36H

Available Stock: 2
Selected accessories will also be added to cart
$15.97 / Each
Quantity:
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand AMEC
Various
Part Number BK36H

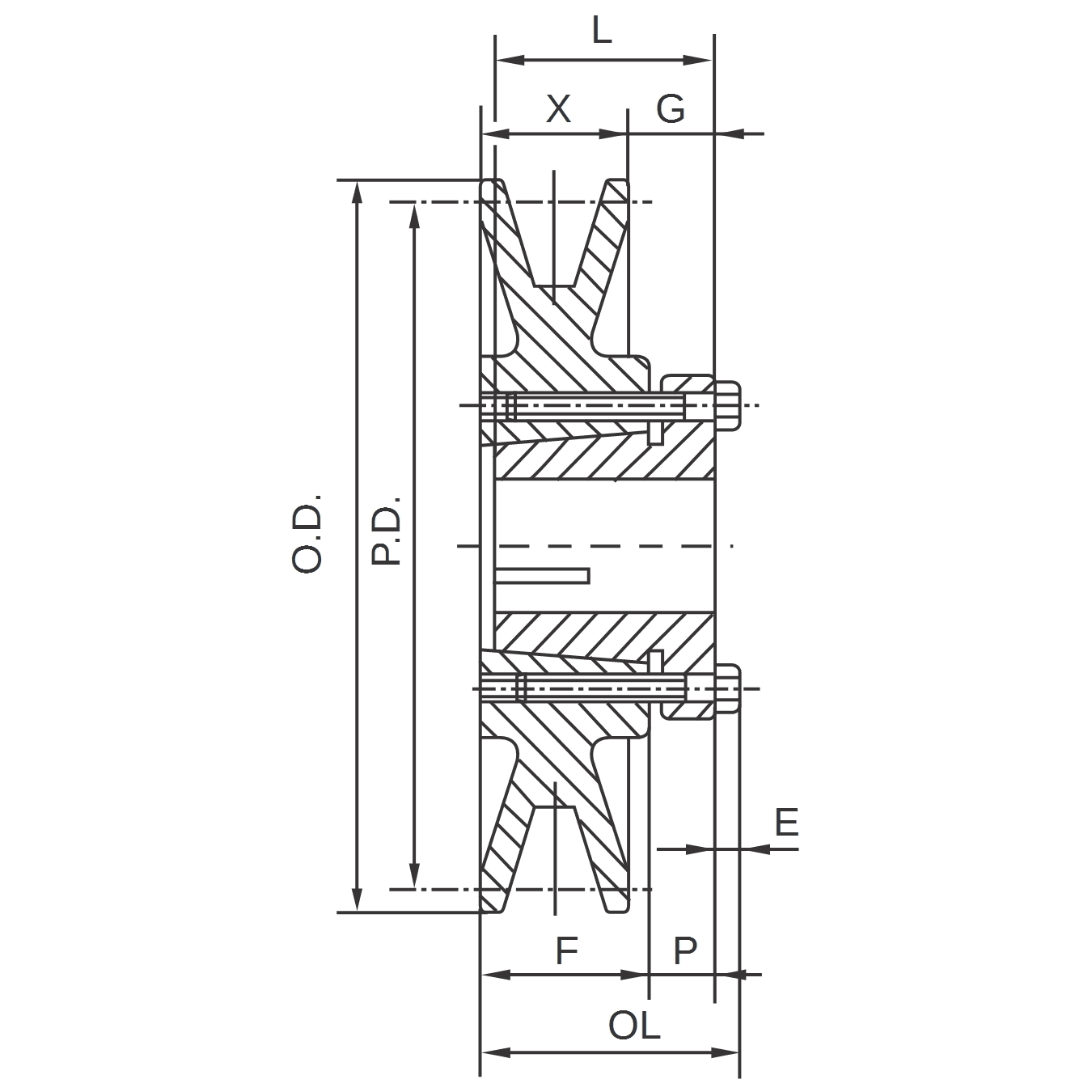

Outside Diameter 3.75"
Pulley Diameter "A" 3.00"
Pulley Diameter "3L" 3.40"
Type 2
Dimension "OL" 1-1/2"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 1.2 lbs
UPC
