/Products/Electric Motors/Single Phase/Marathon/Air Compressor/9038B Marathon 5HP Air Compressor Electric Motor, 3600RPM
Click Image to Expand

Product ID: 9038B

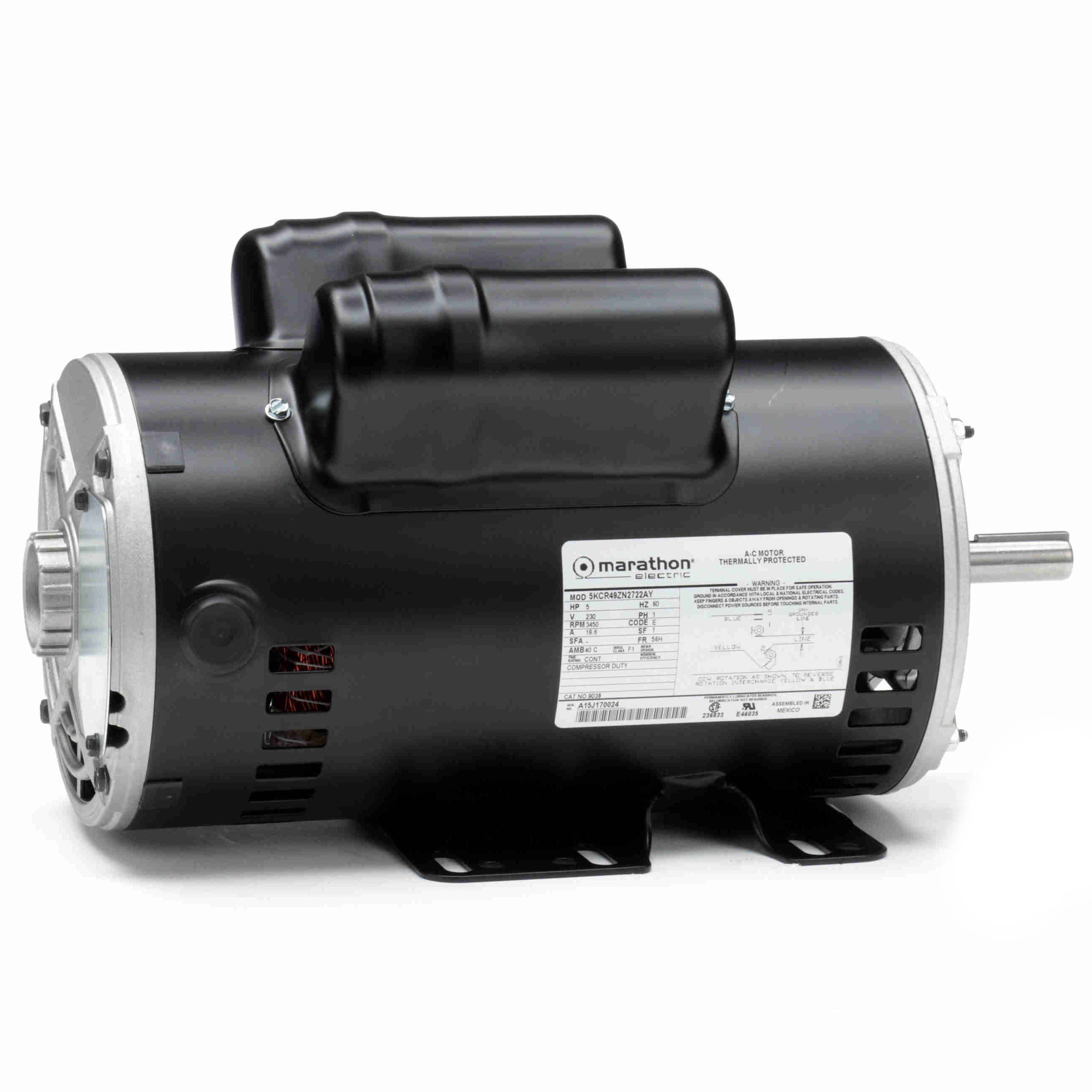

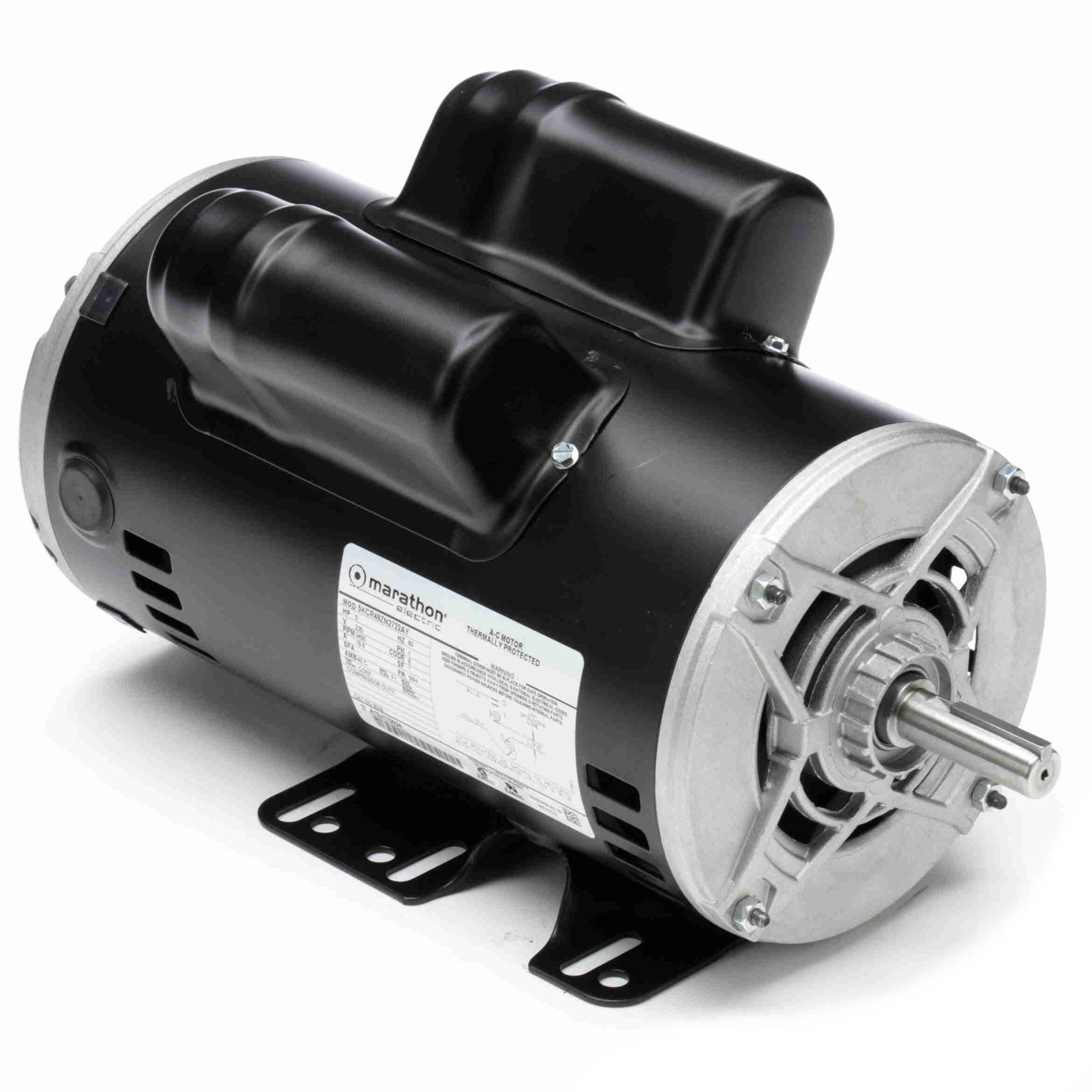

9038B Marathon 5HP Air Compressor Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 9038B

Selected accessories will also be added to cart
$1,049.97 / Each
Quantity:
ODP, 56H Frame, 230VAC 60Hz Single Phase, 5KCR49ZN2722Y, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Heavy gauge steel frame and base
  • Capacitor start/capacitor run design for reduced amperage
  • 56H, 143T, and 145T combination base with 12 mounting holes
  • Connected for CW rotation facing opposite shaft end. Reversible by reconnection of leads
  • Energy saver design

General Specifications

UPC: 722856003607 Weight: 50.00 LB
Packaged Length: 19.19 IN Packaged Width: 10.94 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230 V
Current: 19.6 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 81.6 % Power Factor: 0
Duty: Continuous Insulation Class: F1
KVA Code: E Frame: 56H
Enclosure: Drip Proof Thermal Protection: MAN
Ambient Temperature: 40 °C Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: SM
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Motor Orientation: ANY
Drive End Bearing: BALL Opp Drive End Bearing: BALL
Frame Material: Rolled Steel Overall Length: 15.04 in
Frame Length: 10.71 in Shaft Diameter: 0.63 in
Shaft Extension: 1.88 in
