/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/C-Face, Foot Mount/.7536OT3E56C-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

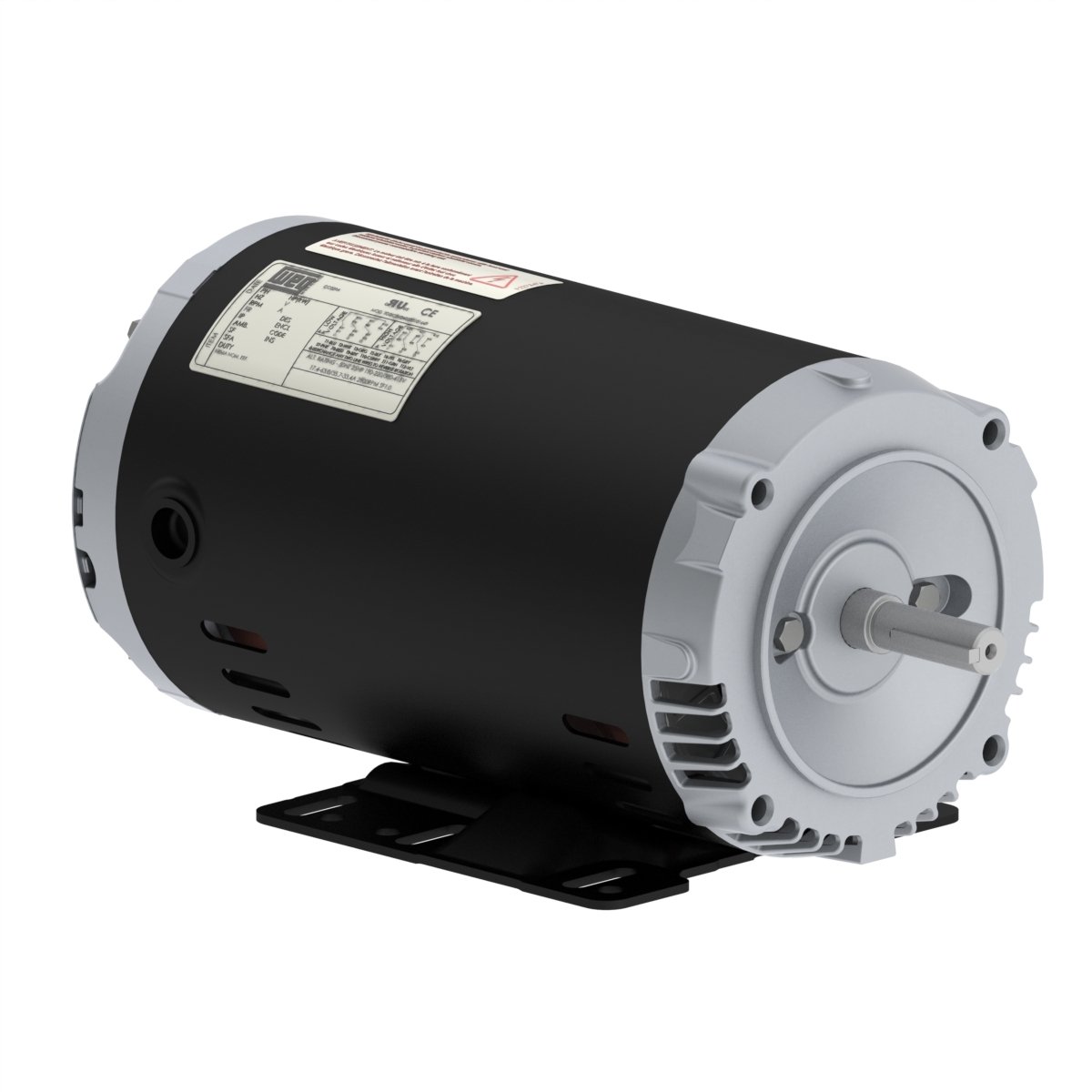

.7536OT3E56C-S WEG 3/4HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: .7536OT3E56C-S

.7536OT3E56C-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OT3E56C-S

Selected accessories will also be added to cart
$249.75 / Each
Quantity:
IC01 - ODP, 56C Frame, 208-230/460VAC 3-Phase 50/60Hz, 12809603, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 208-230/460 V
Rated current 2.52-2.28/1.14 A
L. R. Amperes 16.4-14.8/7.41 A
LRC 6.5x(Code J)
No load current 1.12-1.30/0.650 A
Rated torque 1.11 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 19.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
68.0  74.0  76.8

Power factor

50% 75% 100%
0.57  0.70  0.79
Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 190/380 V
Rated current 2.64/1.32 A
L. R. Amperes 13.2/6.60 A
LRC 5.0x(Code G)
No load current 1.20/0.600 A
Rated torque 1.37 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 64s (cold) 36s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 19.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.9  74.2  73.6

Power factor

50% 75% 100%
0.66  0.79  0.86
Frame 56C
Output 0.75 HP (0.550 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 220/415 V
Rated current 2.49/1.32 A
L. R. Amperes 13.7/7.26 A
LRC 5.5x(Code H)
No load current 1.86/0.986 A
Rated torque 1.35 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.0453 sq.ft.lb
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 19.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  71.6  73.2

Power factor

50% 75% 100%
0.55  0.69  0.79

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
