/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/.7536OT1B56-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

Product ID: .7536OT1B56-S

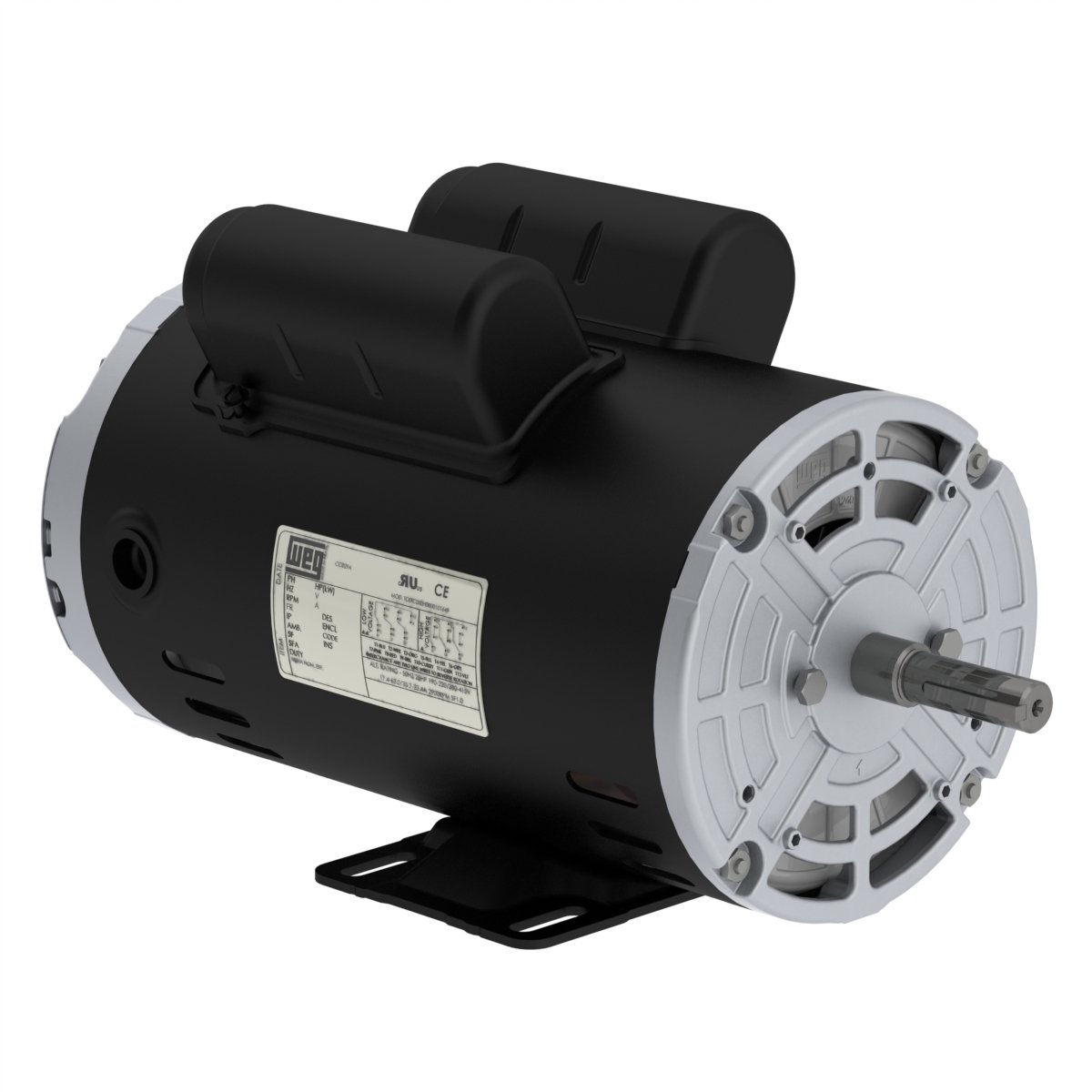

.7536OT1B56-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OT1B56-S

Selected accessories will also be added to cart

$240.00 / Each

Quantity:

IC01 - ODP, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13140284, Rolled Steel, Foot Mount, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	115/208-230 V
Rated current	6.80/3.76-3.40 A
L. R. Amperes	58.5/32.3-29.2 A
LRC	8.6x(Code K)
No load current	2.40/1.03-1.20 A
Rated torque	1.11 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.0434 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	28.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
64.0	71.0	76.2

Power factor

50%	75%	100%
0.88	0.92	0.93

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
