/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/.7536ES3H56-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

Product ID: .7536ES3H56-S

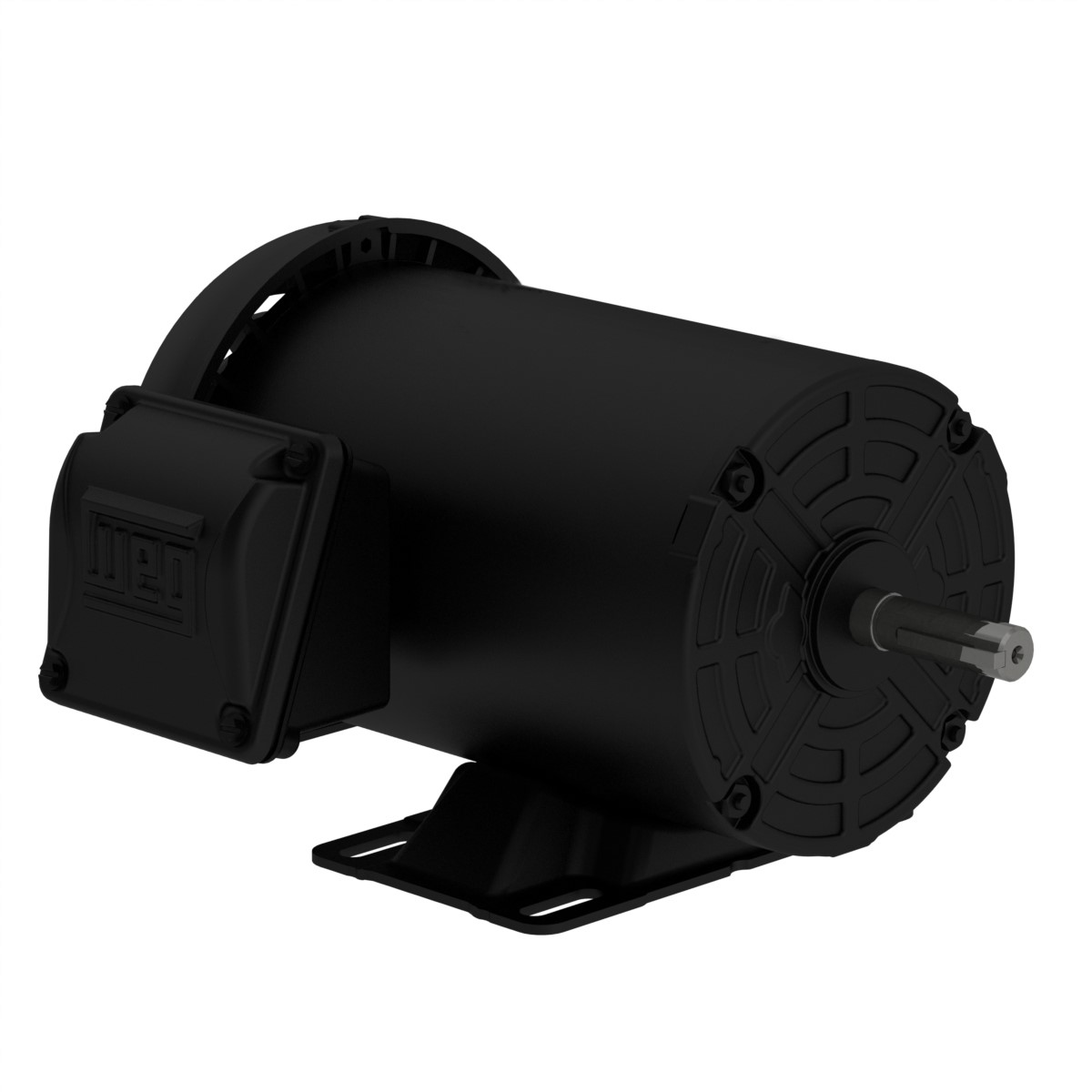

.7536ES3H56-S WEG 3/4HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536ES3H56-S

Selected accessories will also be added to cart

$216.00 / Each

Quantity:

IC411 - TEFC 56 Frame, 575VAC 3 Phase 60Hz, 12676242, Rolled Steel Standard Efficiency, Foot Mount, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3475 rpm
Slip	3.47 %
Rated voltage	575 V
Rated current	0.904 A
L. R. Amperes	6.33 A
LRC	7.0x(Code K)
No load current	0.440 A
Rated torque	1.12 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	20.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
62.0	68.0	72.0

Power factor

50%	75%	100%
0.70	0.79	0.85

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
