/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Jet Pump/.7536ES1BJPR56C-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

Product ID: .7536ES1BJPR56C-S

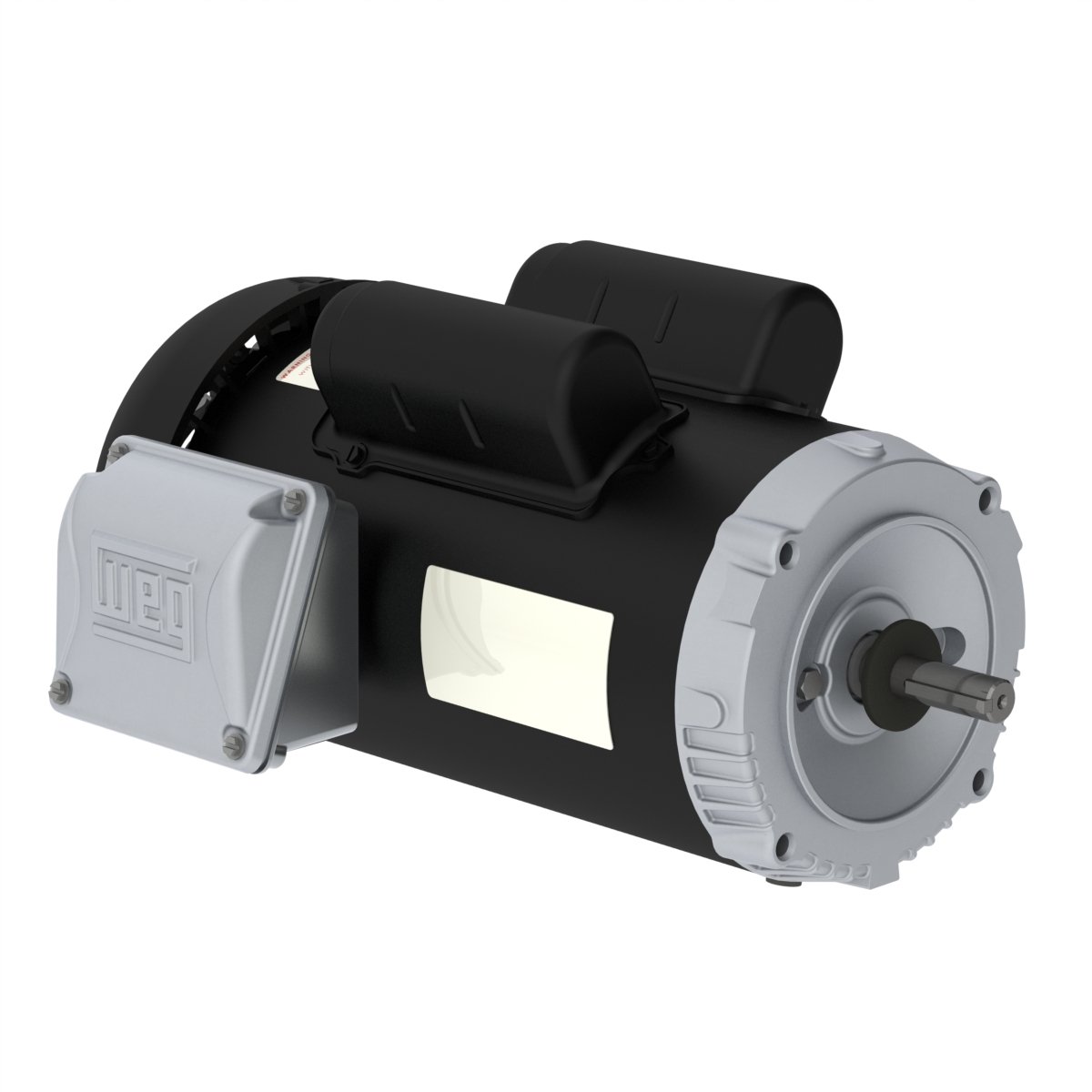

.7536ES1BJPR56C-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536ES1BJPR56C-S

Selected accessories will also be added to cart

$255.75 / Each

Quantity:

IC411 - TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 13653595, Footless, C-Face, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	8.00/4.42-4.00 A
L. R. Amperes	64.0/35.4-32.0 A
LRC	8.0x(Code L)
No load current	4.00/1.72-2.00 A
Rated torque	1.11 ft.lb
Locked rotor torque	280 %
Breakdown torque	290 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0394 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	68.0 dB(A)
Approx. weight³	25.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
52.0	62.0	66.0

Power factor

50%	75%	100%
0.81	0.87	0.91

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
