/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/.7518OT1BRBO56-S WEG 3/4HP Fan & Exhaust Electric Motor, 1800RPM
.7518OT1BRBO56-S WEG 3/4HP Fan & Exhaust Electric Motor, 1800RPM

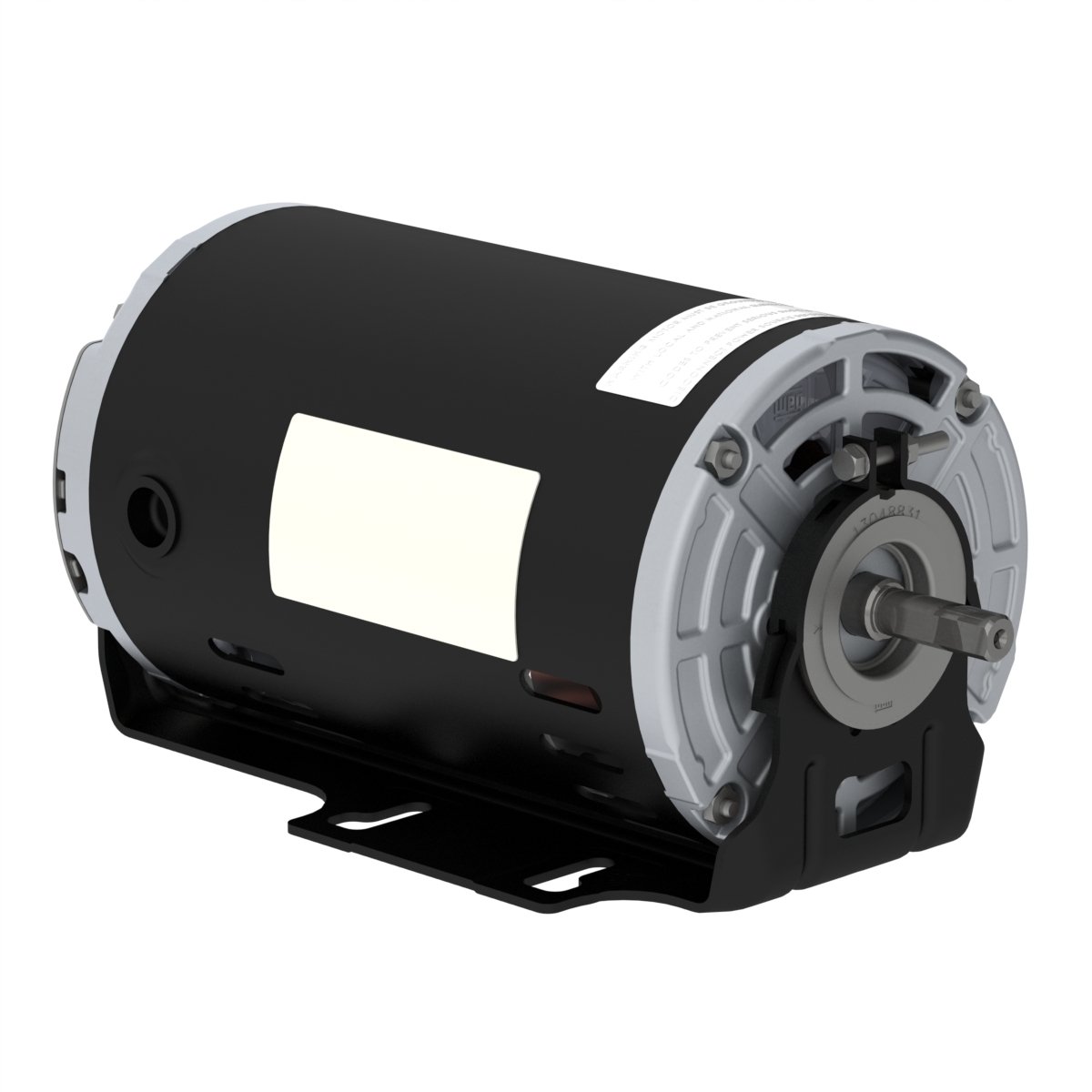

Enlarge Photo

Product ID: .7518OT1BRBO56-S

.7518OT1BRBO56-S WEG 3/4HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518OT1BRBO56-S

Selected accessories will also be added to cart
$325.50 / Each
Quantity:
IC01 - ODP, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13283678, Resilient Base, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 6.80/3.76-3.40 A
L. R. Amperes 54.4/30.1-27.2 A
LRC 8.0x(Code K)
No load current 2.60/1.12-1.30 A
Rated torque 2.22 ft.lb
Locked rotor torque 260 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.0973 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 35.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0  79.0  81.8

Power factor

50% 75% 100%
0.74  0.82  0.86

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6203 ZZ   6202 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
36 lb  72 lb
