/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Brake Motor/.7518ES3EBMW56-S WEG 3/4HP Electric Brake Motor, 1800RPM
Click Image to Expand

Product ID: .7518ES3EBMW56-S

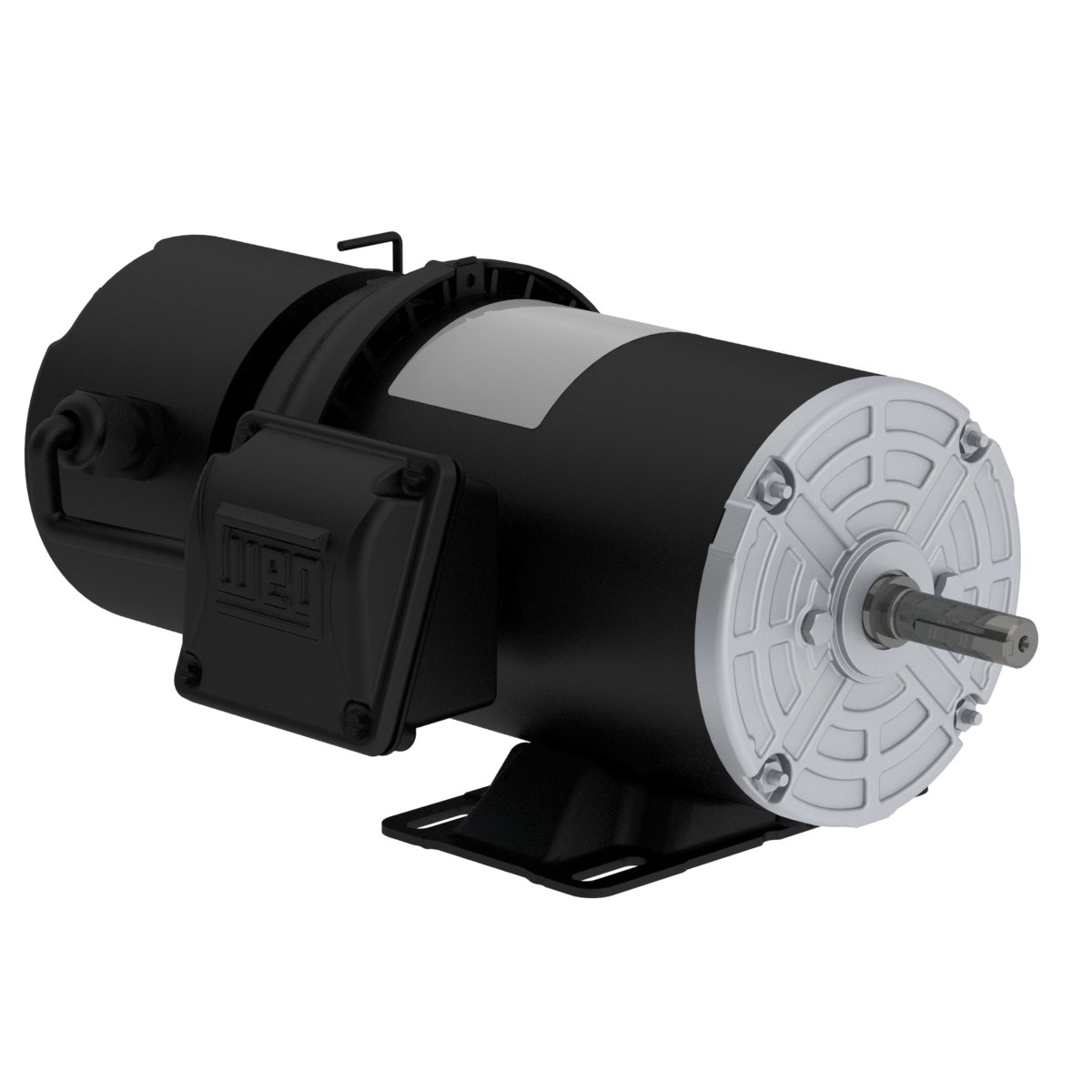

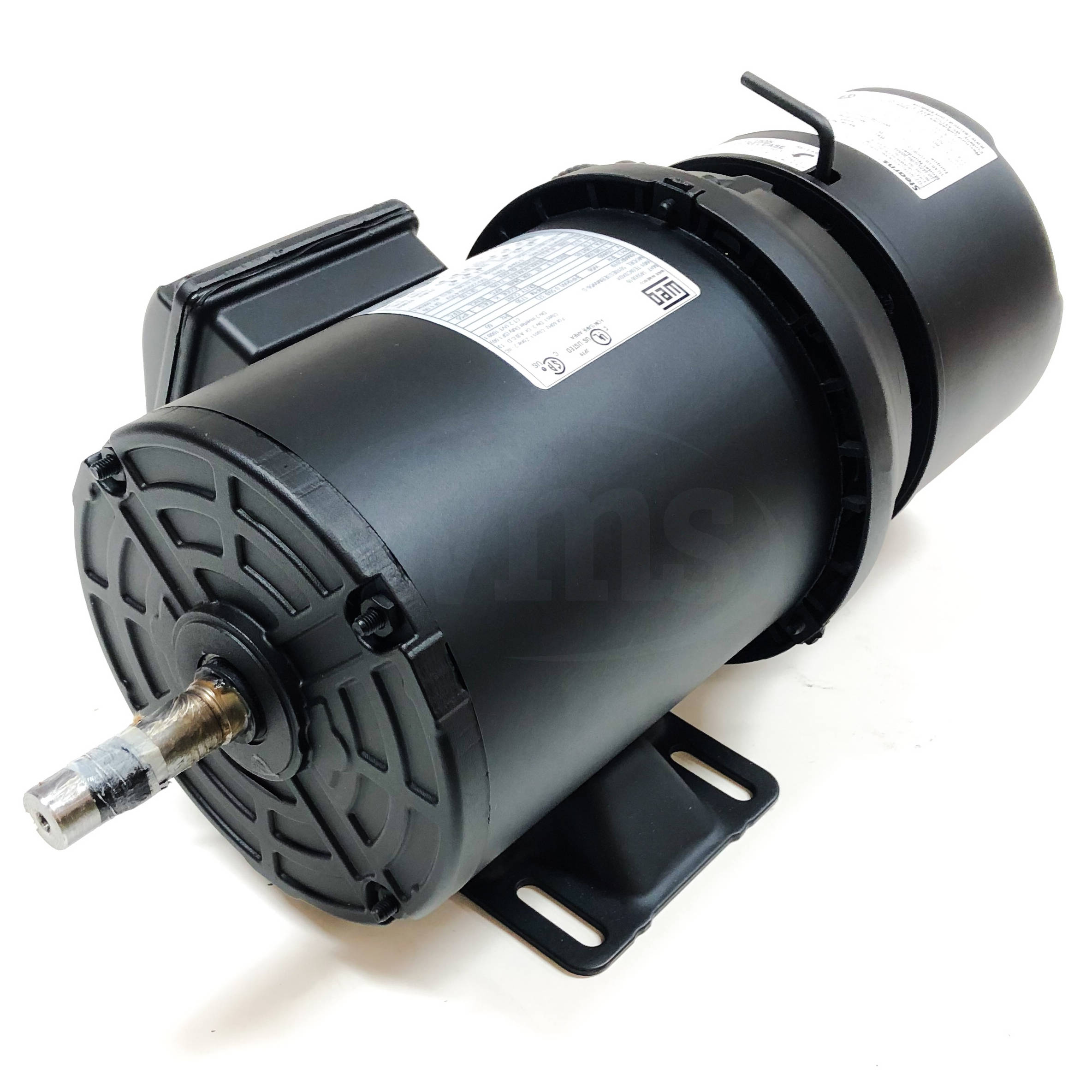

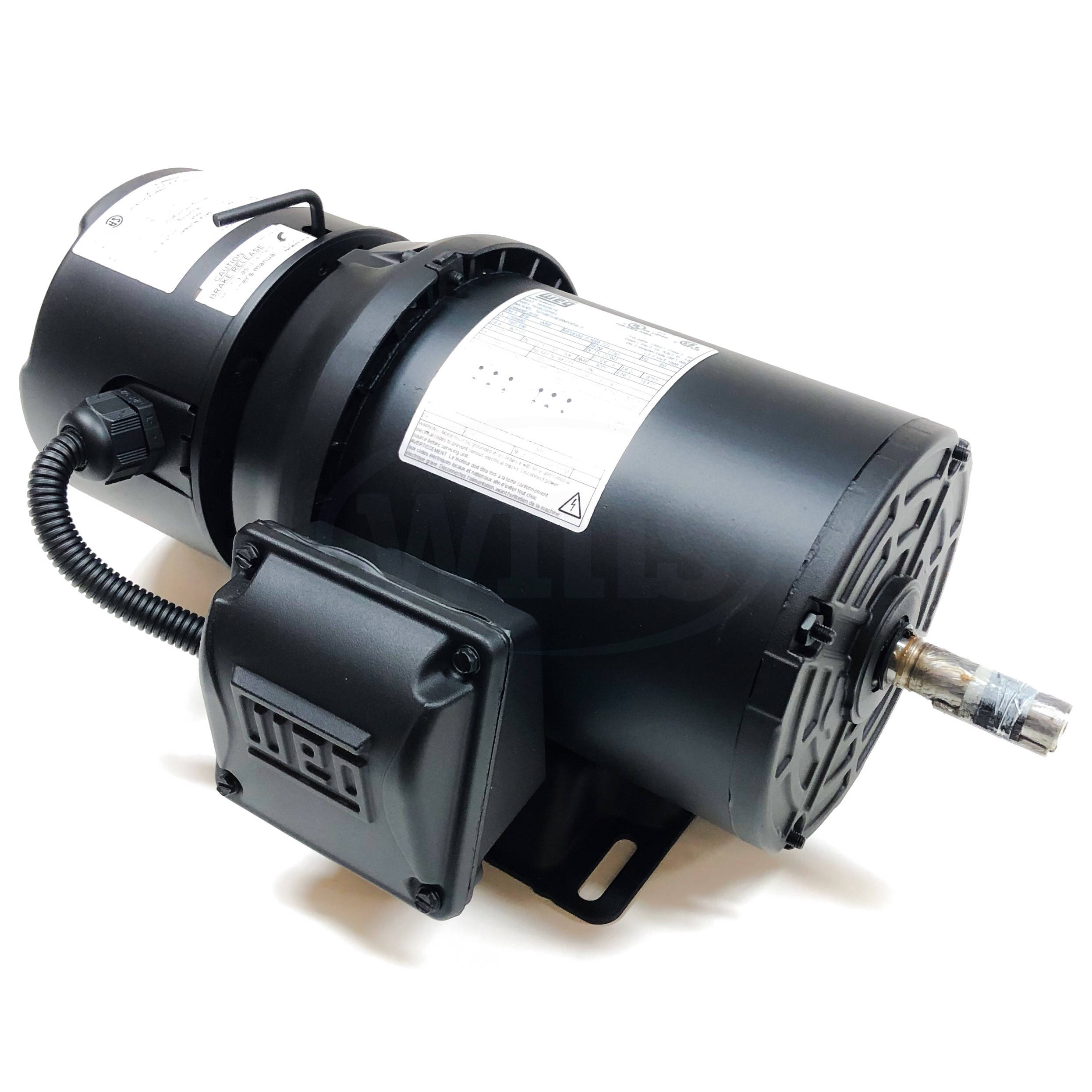

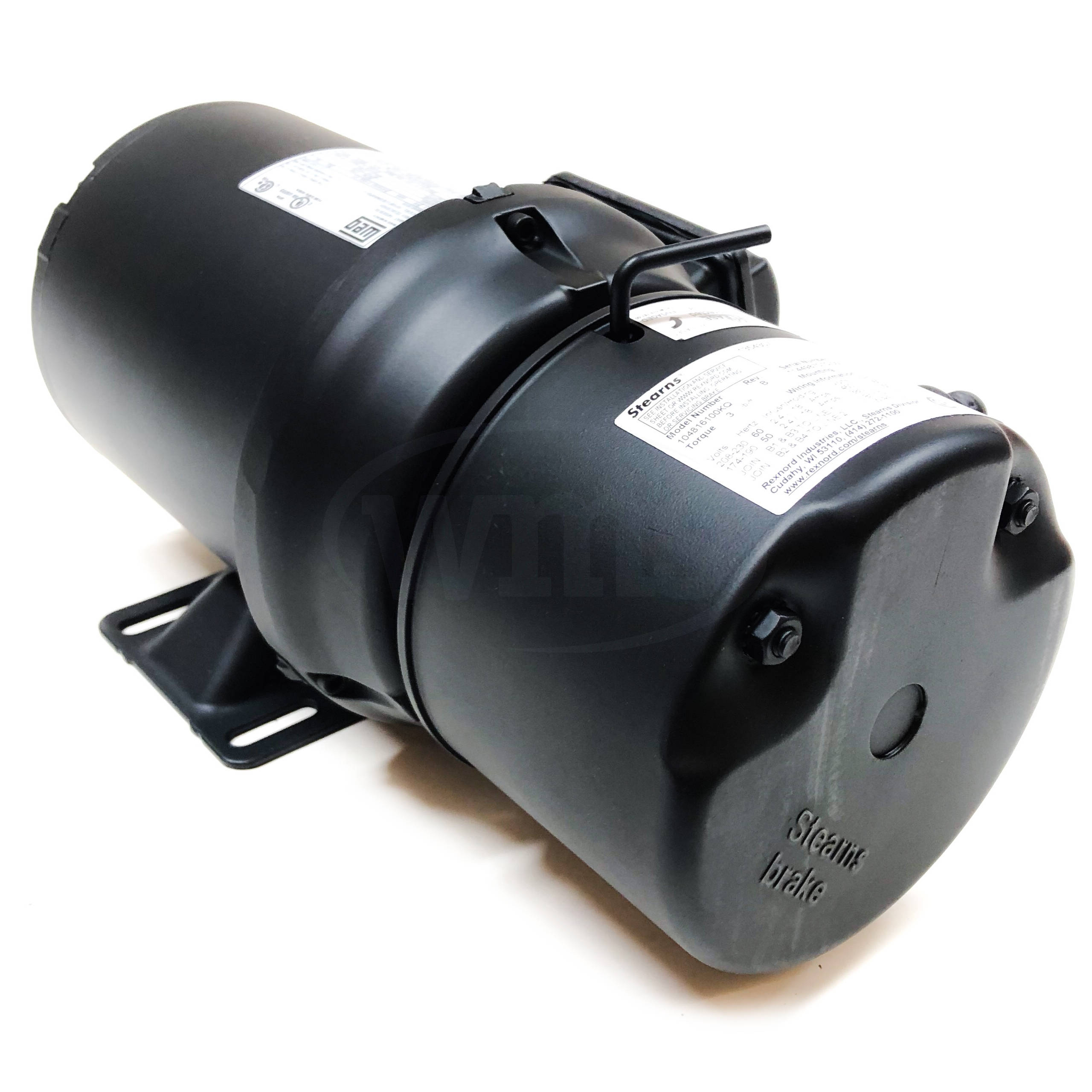

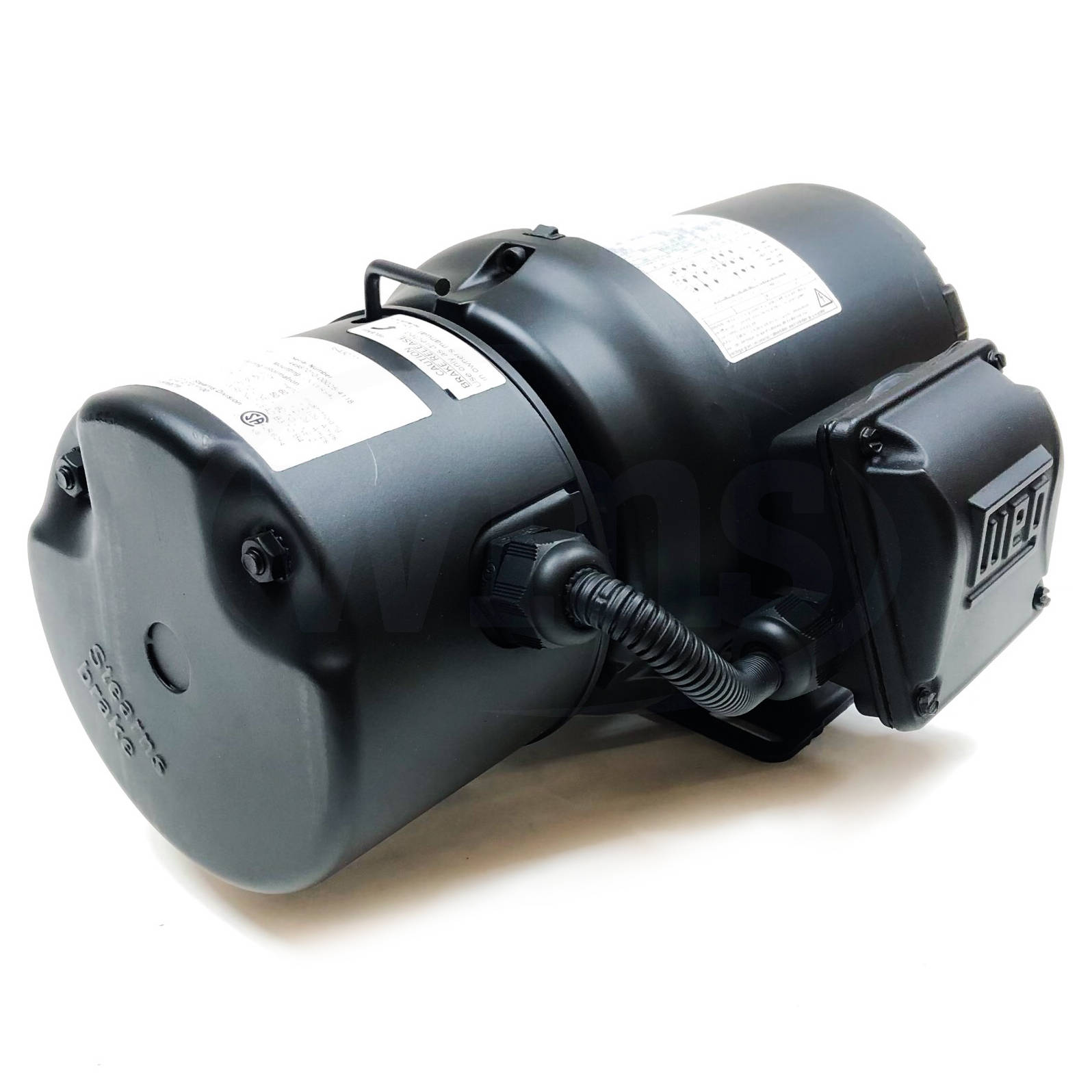

.7518ES3EBMW56-S WEG 3/4HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES3EBMW56-S

Selected accessories will also be added to cart
$975.75 / Each
Quantity:
IC411 - TEFC, IP55, W56 Frame, 208-230/460VAC 3-Phase 50/60Hz, 14593617, C-Face, Foot Mount, Rolled Steel, Standard Efficiency, 5/8" Keyed Shaft

Features

  • 1.15 Service Factor
  • Manual Release Lever
  • AC Brake
  • Inverter Rated
  • IP55 Enclosure
  • Dual Frequency (50/60Hz)

Applications

  • Conveyors
  • Door Operators
  • Packaging Equipment
  • Unit Handling

Technical Data

Electric Motors

Frame W56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 208-230/460 V
Rated current 2.70-2.44/1.22 A
L. R. Amperes 17.6-15.9/7.93 A
LRC 6.5x(Code K)
No load current 1.54-1.78/0.892 A
Rated torque 2.25 ft.lb
Locked rotor torque 270 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0479 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 29.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
68.0  74.0  75.5

Power factor

50% 75% 100%
0.52  0.65  0.75
Frame W56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1395 rpm
Slip 7.00 %
Rated voltage 190/380 V
Rated current 2.84/1.42 A
L. R. Amperes 14.2/7.10 A
LRC 5.0x(Code G)
No load current 1.73/0.866 A
Rated torque 2.79 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.0479 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 29.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
69.0  71.0  71.0

Power factor

50% 75% 100%
0.60  0.75  0.83
Frame W56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1415 rpm
Slip 5.67 %
Rated voltage 220/415 V
Rated current 2.68/1.42 A
L. R. Amperes 14.7/7.81 A
LRC 5.5x(Code J)
No load current 2.09/1.11 A
Rated torque 2.75 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0479 sq.ft.lb
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 29.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.0  70.0  71.0

Power factor

50% 75% 100%
0.52  0.66  0.76

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1/2"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Aluminum
Tropicalized Painting Without
Fan material Plastic
Brake input Voltage 208-230/460//190/380 V
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
