/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/.7518ES3E56-S WEG 3/4HP General Purpose Electric Motor, 1800RPM
.7518ES3E56-S WEG 3/4HP General Purpose Electric Motor, 1800RPM

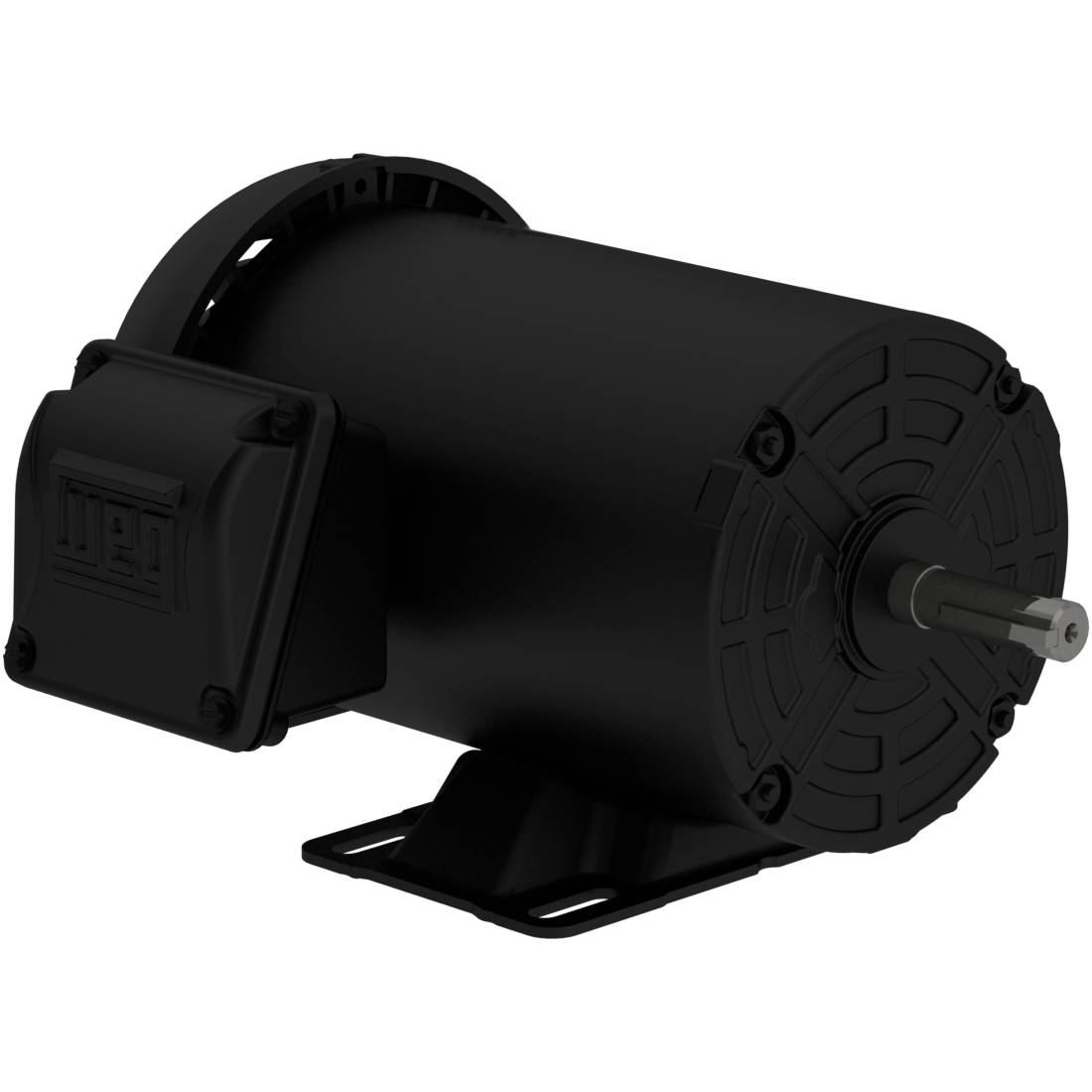

Enlarge Photo

Product ID: .7518ES3E56-S

.7518ES3E56-S WEG 3/4HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES3E56-S

Available Stock: 2
Selected accessories will also be added to cart
$233.25 / Each
Quantity:
IC411 - TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, 12676264, 14797712, Rolled Steel, Foot Mounted, Standard Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 2.70-2.44/1.22 A
L. R. Amperes 18.6-16.8/8.42 A
LRC 6.9x(Code K)
No load current 1.55-1.80/0.900 A
Rated torque 0.306 kgfm
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0027 kgm²
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 10.4 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  77.0  78.5

Power factor

50% 75% 100%
0.48  0.61  0.72
Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 190/380 V
Rated current 2.74/1.37 A
L. R. Amperes 15.3/7.67 A
LRC 5.6x(Code H)
No load current 1.71/0.856 A
Rated torque 0.373 kgfm
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0027 kgm²
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 10.4 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
73.1  76.5  76.5

Power factor

50% 75% 100%
0.58  0.72  0.80
Frame 56
Output 0.75 HP (0.550 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 220/415 V
Rated current 2.60/1.38 A
L. R. Amperes 16.1/8.56 A
LRC 6.2x(Code K)
No load current 2.06/1.09 A
Rated torque 0.370 kgfm
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.0027 kgm²
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 10.4 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
68.6  74.2  76.1

Power factor

50% 75% 100%
0.49  0.62  0.73
