/Products/Electric Motors/Single Phase/WEG/Farm Duty - General Purpose/.7518ES1RFD56-S WEG 3/4HP Farm Duty Electric Motor, 1800RPM

Click Image to Expand

Previous Next

Product ID: .7518ES1RFD56-S

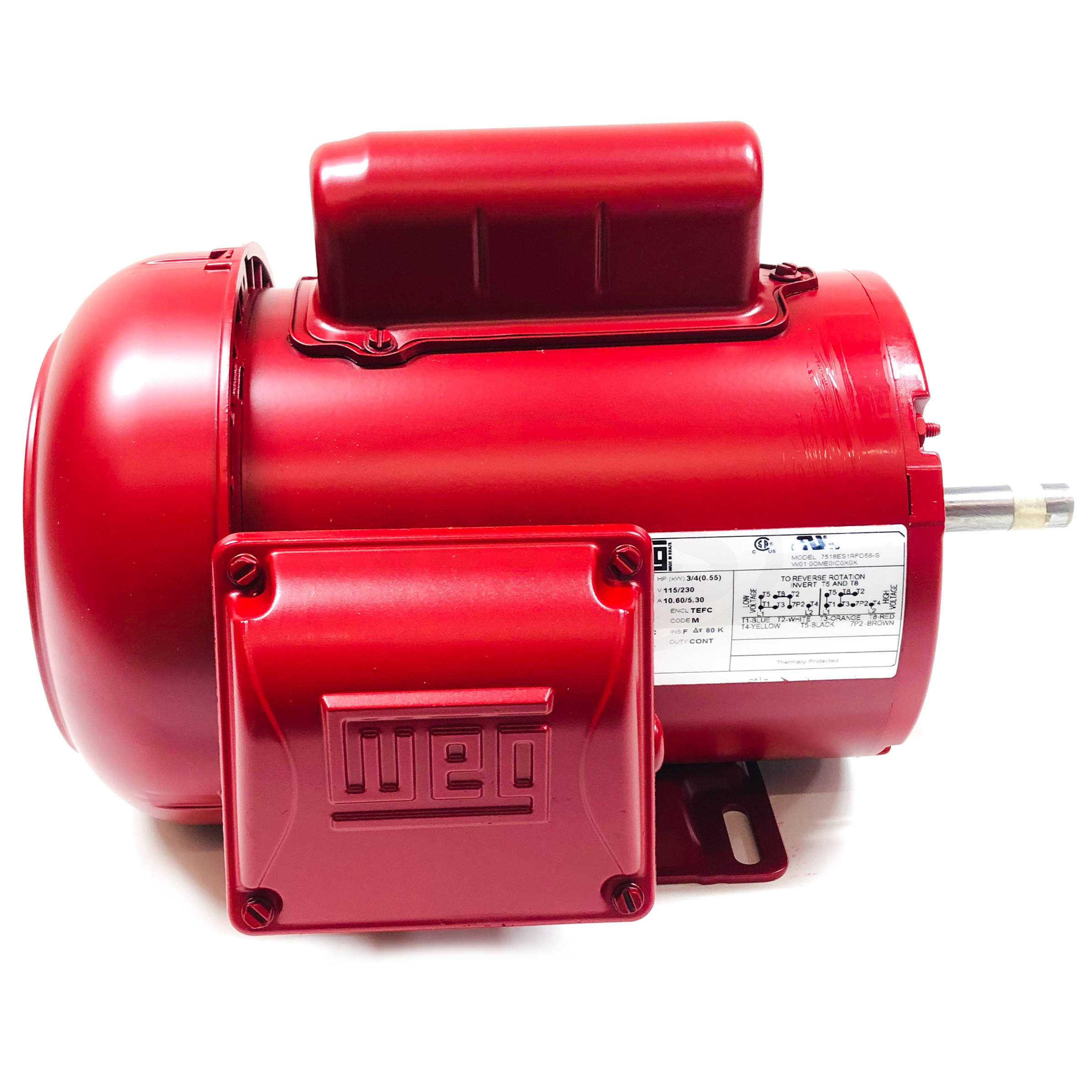

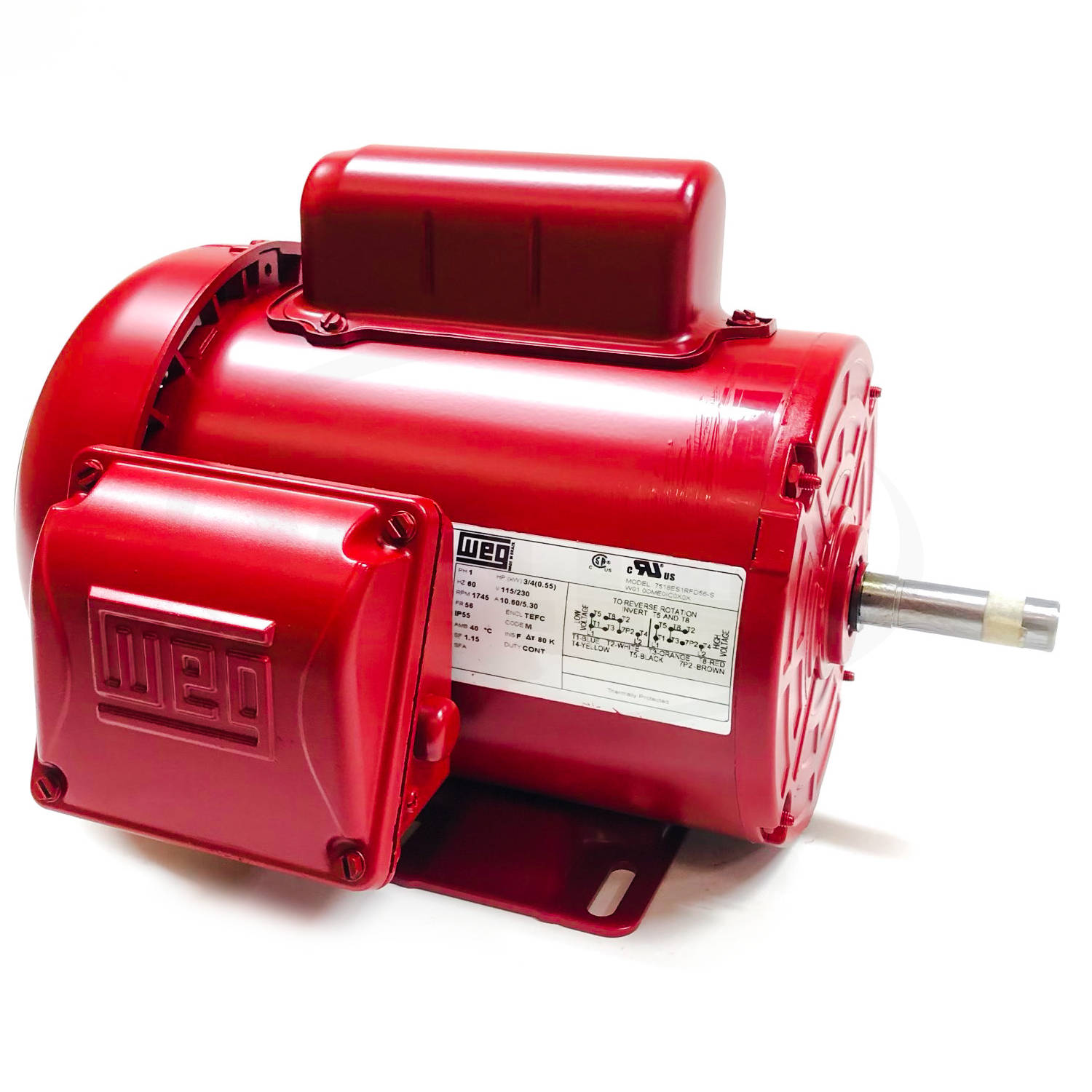

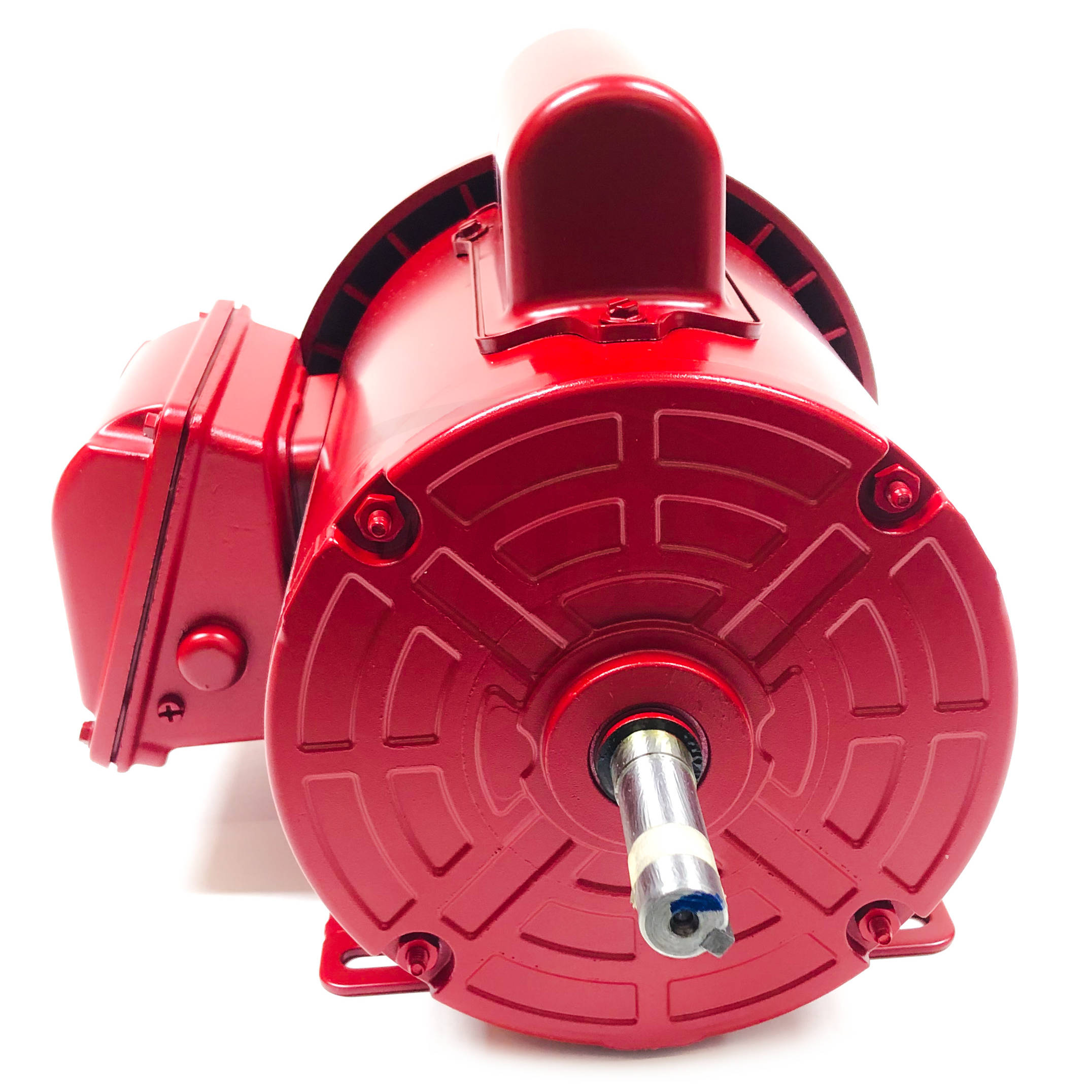

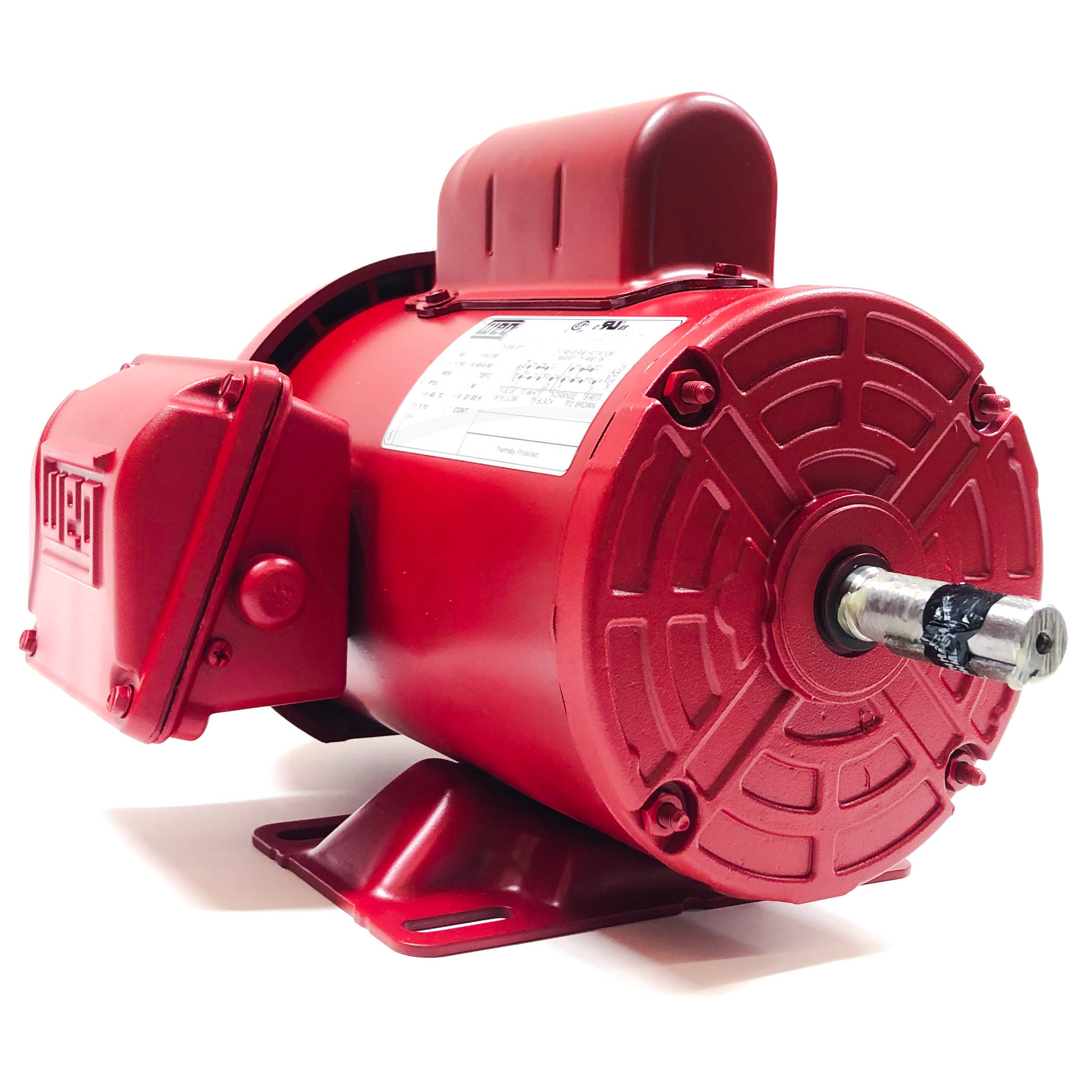

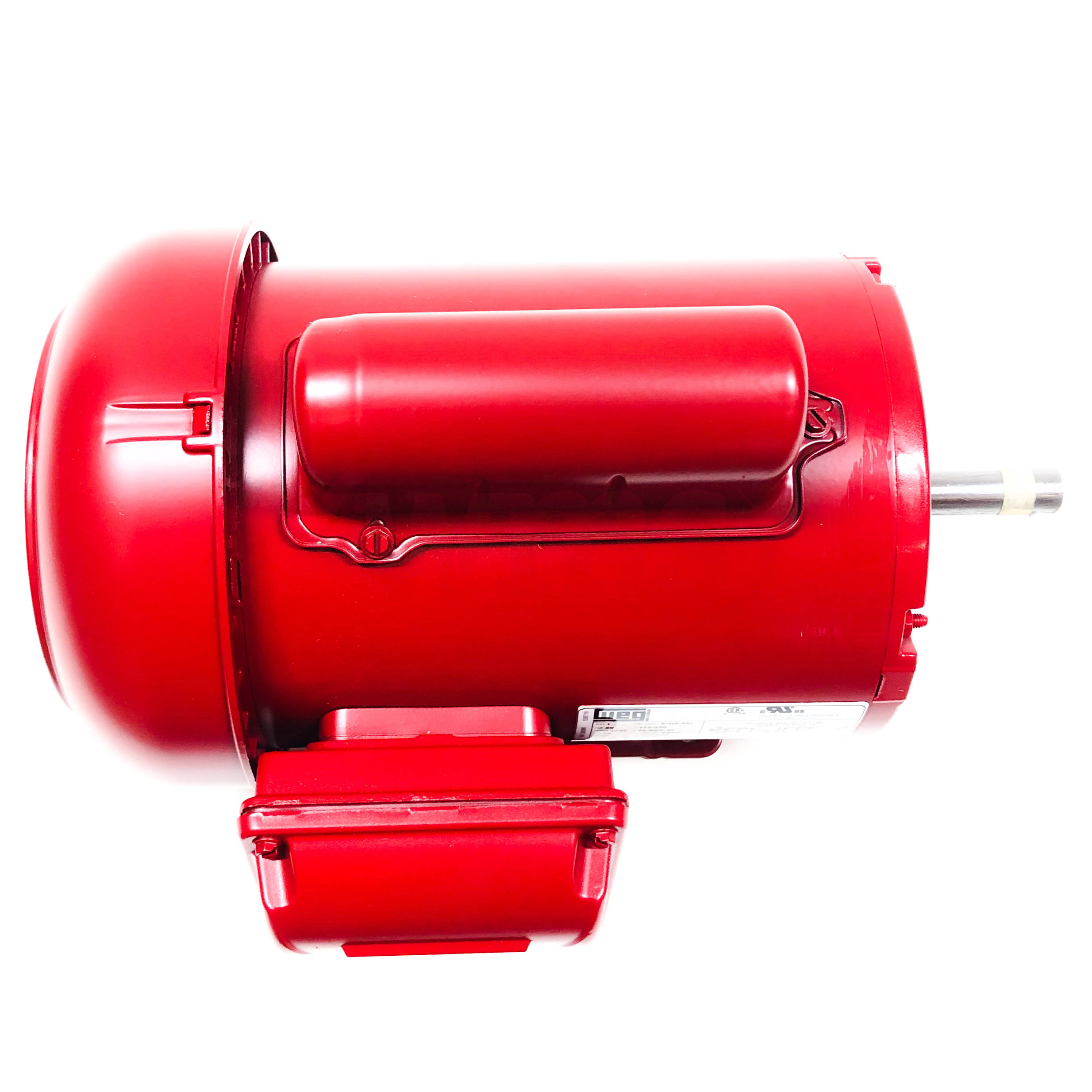

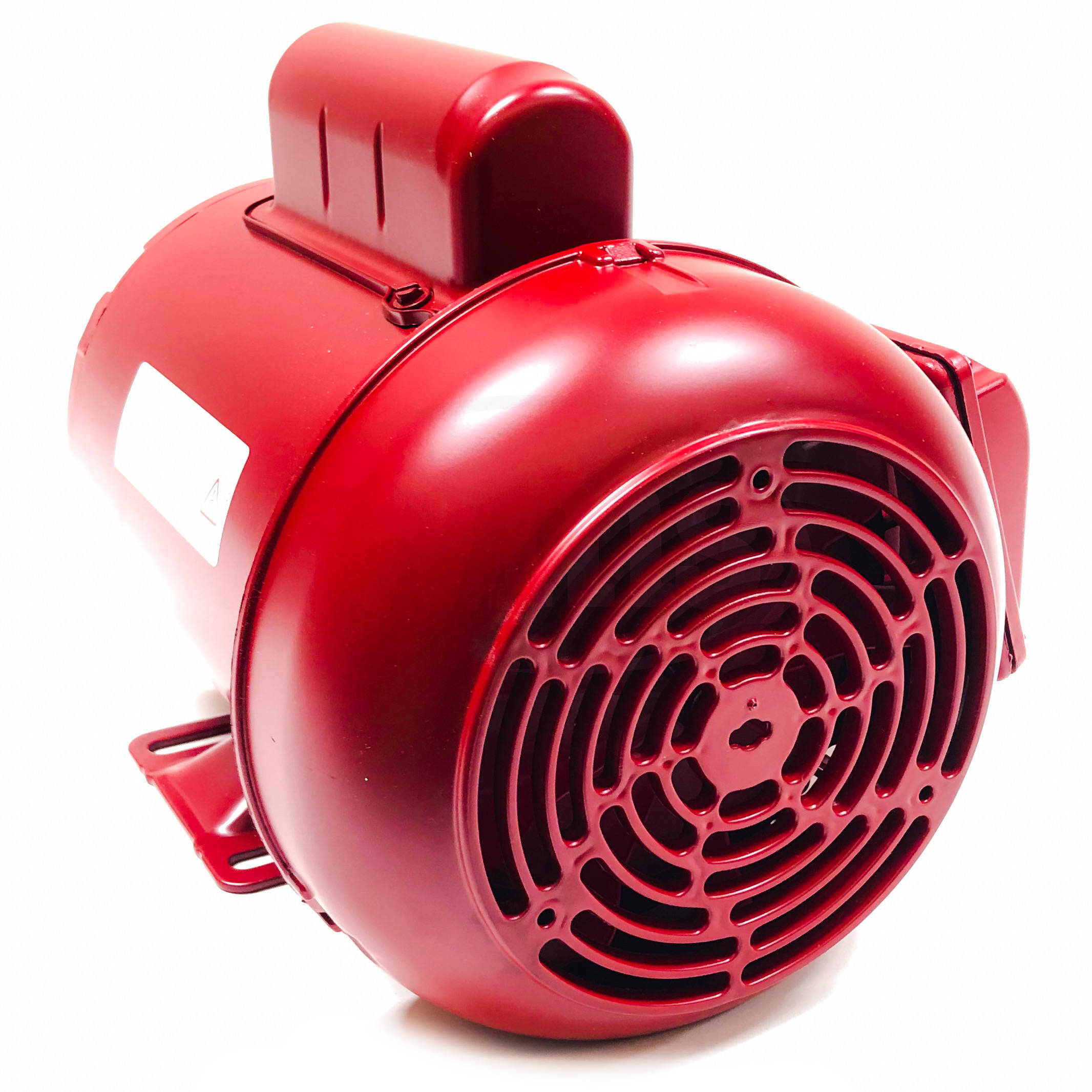

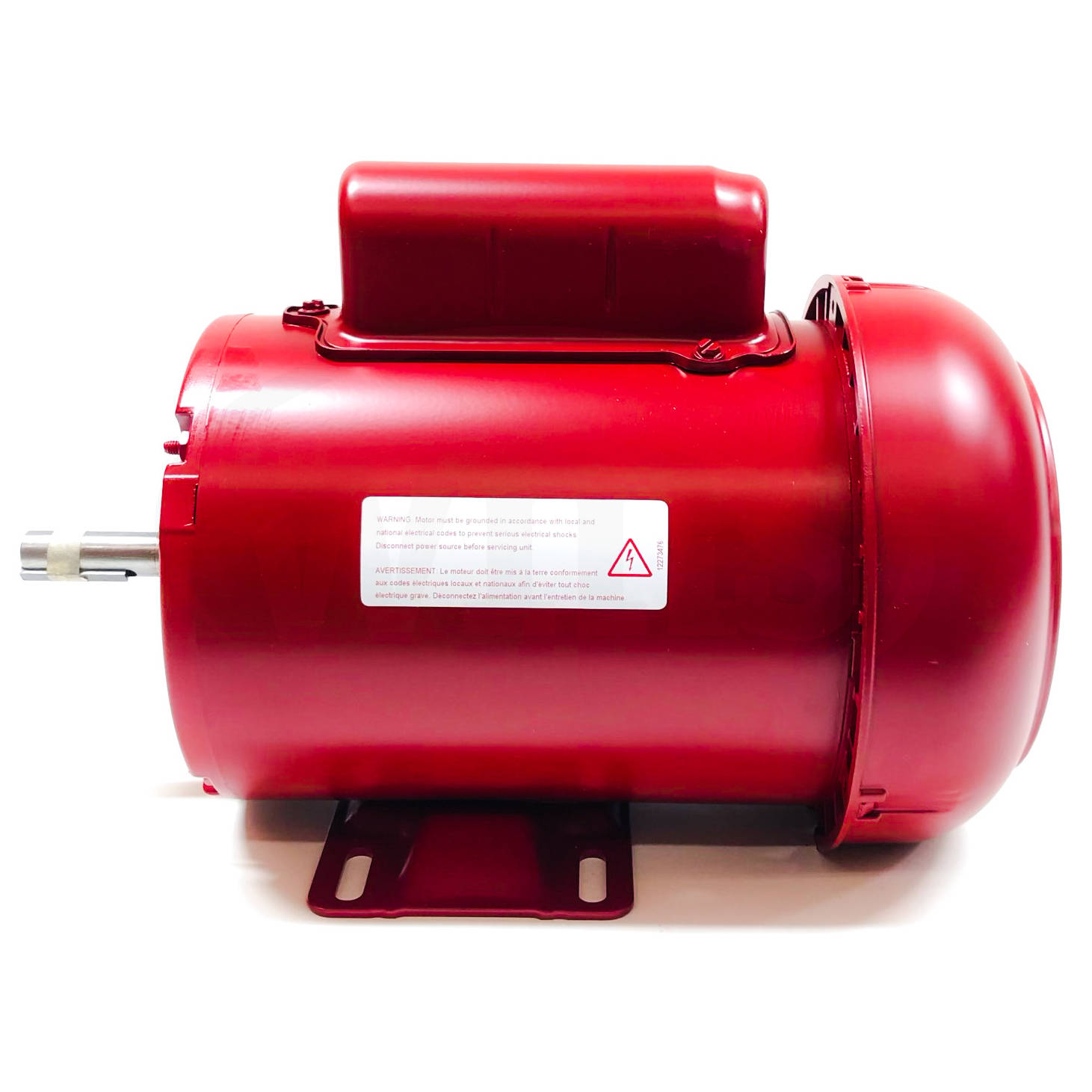

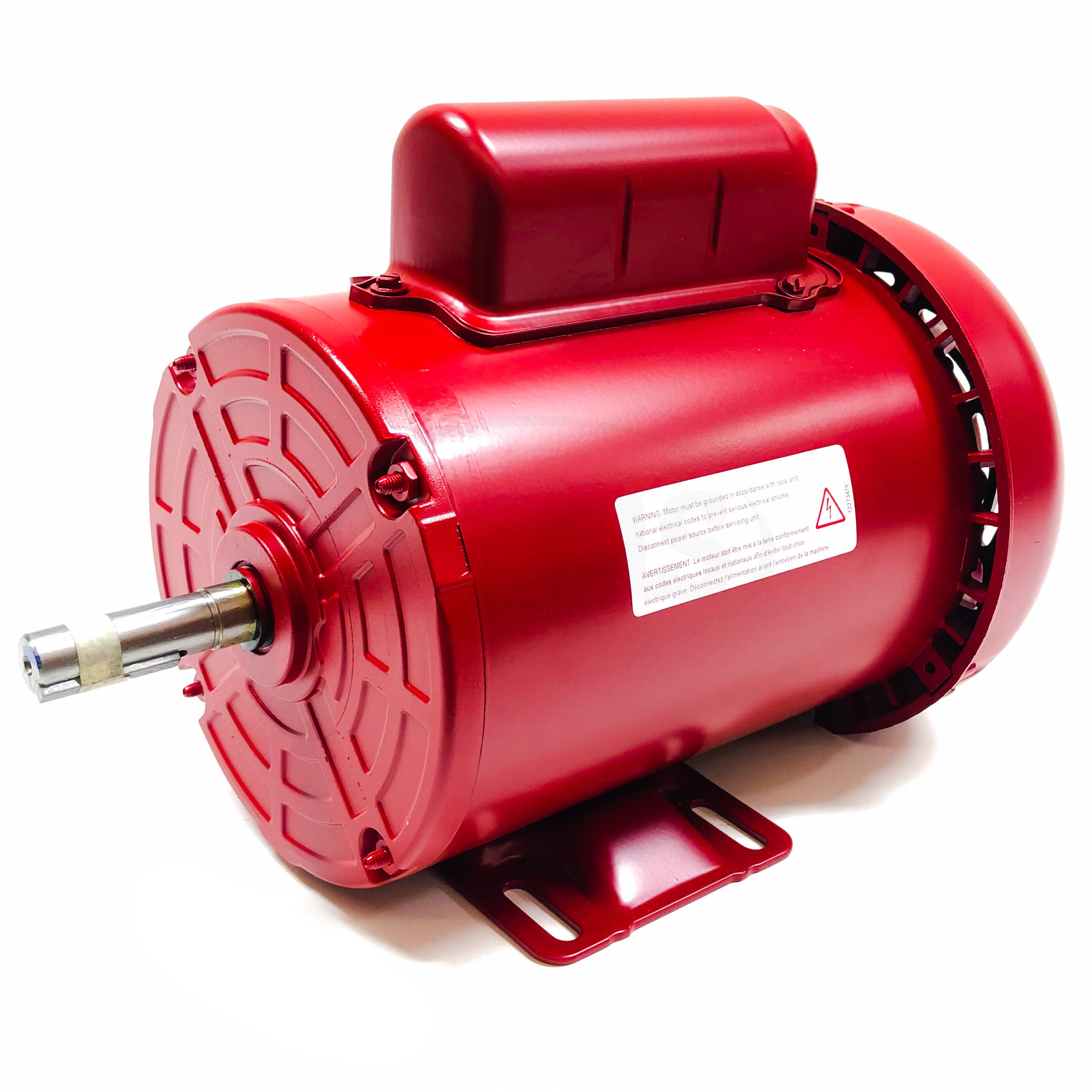

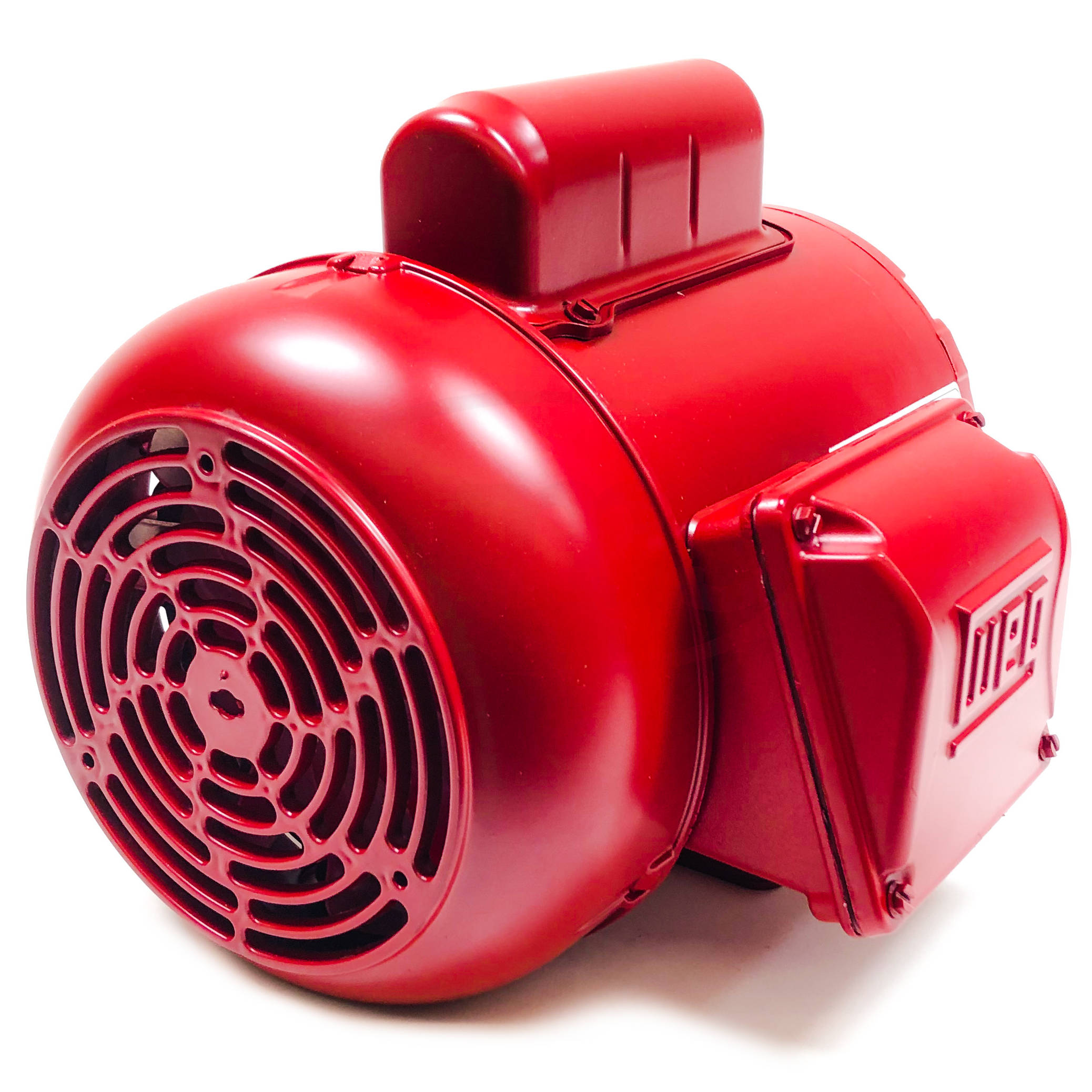

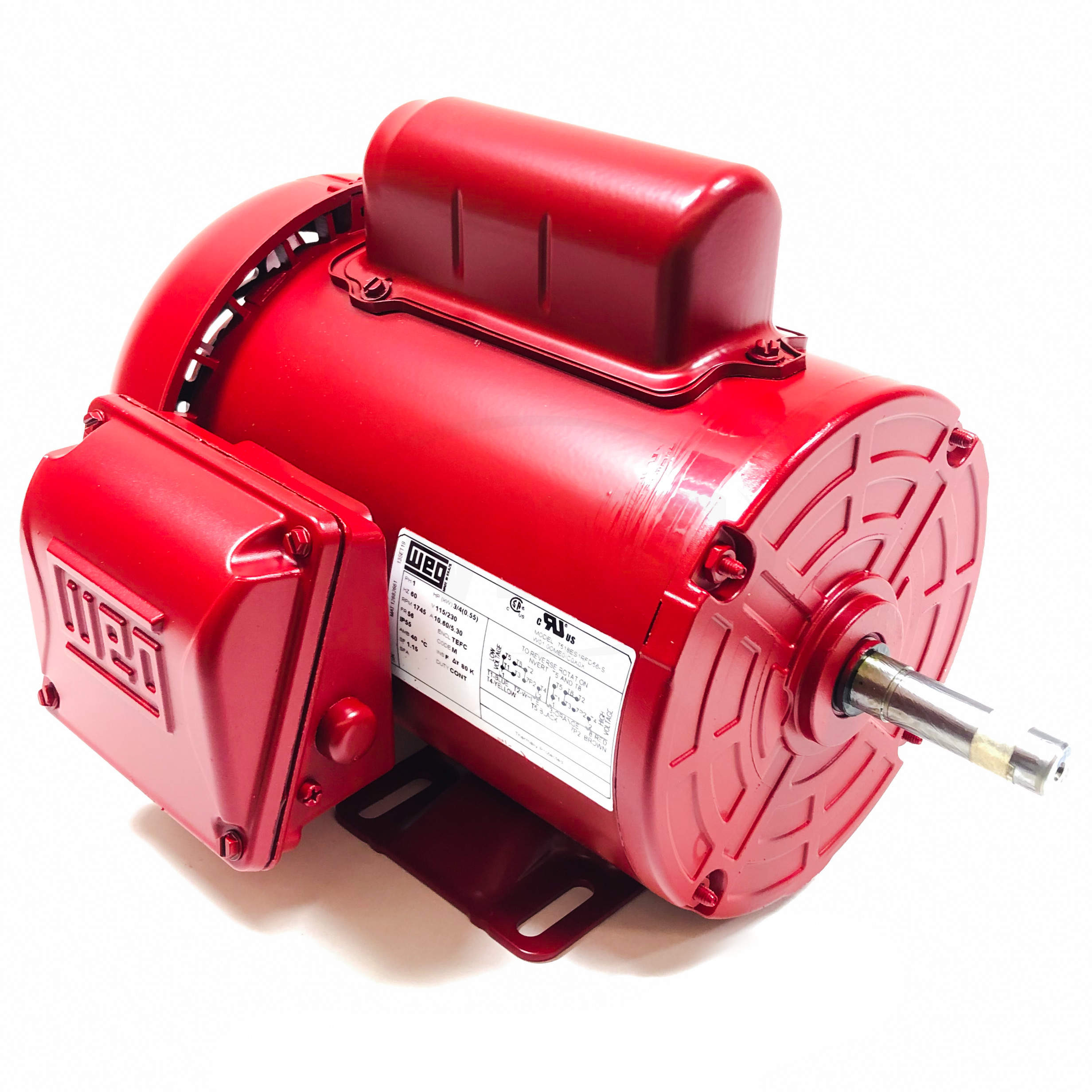

.7518ES1RFD56-S WEG 3/4HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES1RFD56-S

Selected accessories will also be added to cart

$267.75 / Each

Quantity:

IC411 - TEFC, IP55, 56 Frame, 115/230V Single Phase 60Hz, Rigid Base, 12882661, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features

Standard	NEMA MG-1
Frequency	60 Hz
Voltage	115/230 V
Number of poles	4
Degree of Protection	IP55
Synchronous speed	1800 rpm

Output rating	0.75 HP
Mounting	Foot-mounted
Flange	Without
Mounting	F-1
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Electric Motors

Frame	56
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	115/230 V
Rated current	10.6/5.30 A
L. R. Amperes	67.8/33.9 A
LRC	6.4x(Code M)
No load current	8.00/4.00 A
Rated torque	2.23 ft.lb
Locked rotor torque	300 %
Breakdown torque	270 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0778 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	30.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
57.0	65.0	68.5

Power factor

50%	75%	100%
0.47	0.58	0.67

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3003 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
