/Products/Electric Motors/Single Phase/WEG/Farm Duty - Poultry Fan/.7518ES1BPFB56 WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

Product ID: .7518ES1BPFB56

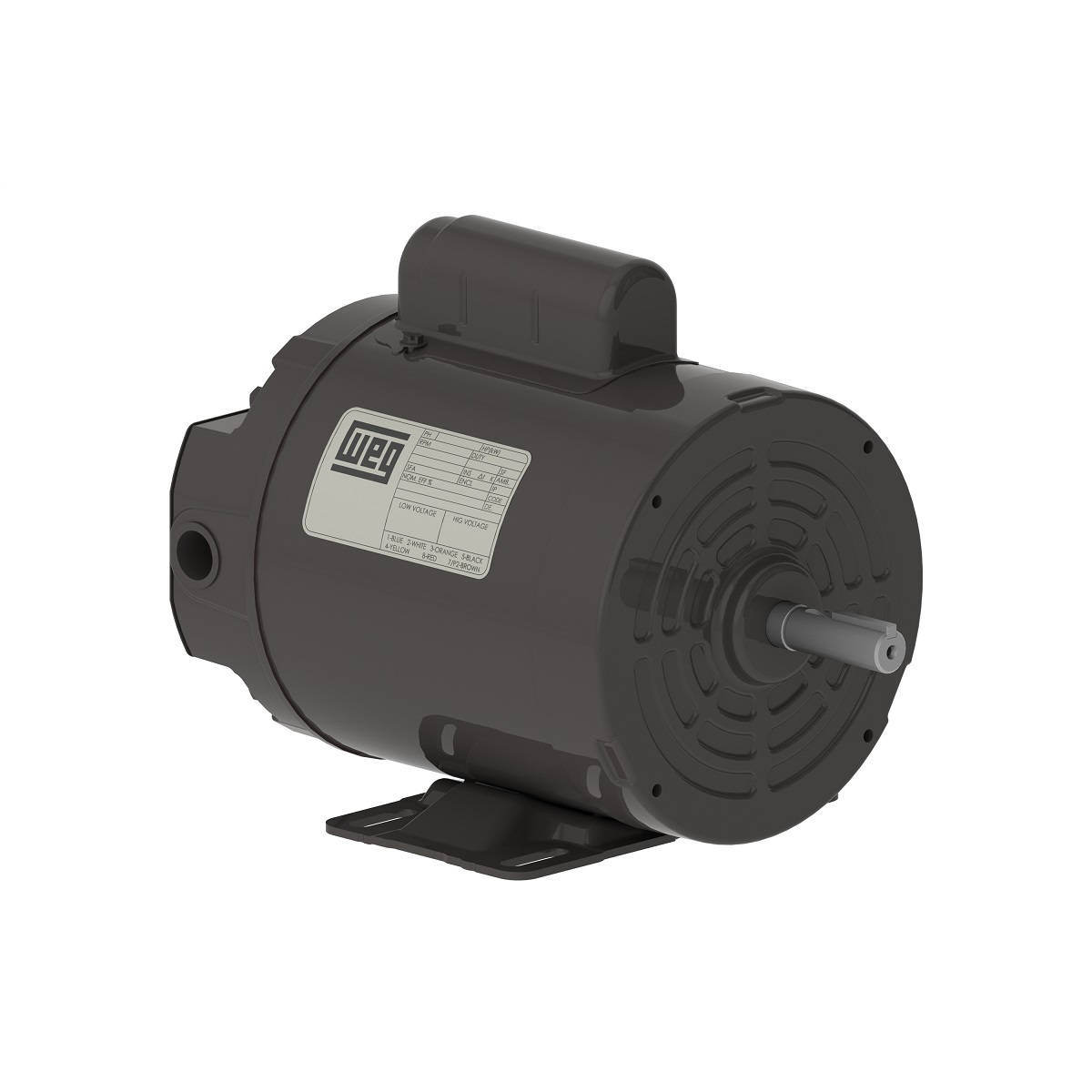

.7518ES1BPFB56 WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES1BPFB56

Selected accessories will also be added to cart

$288.75 / Each

Quantity:

IC410 - TEAO, IP44, B56 Frame, 115/208-230V, 60Hz, Single Phase

Details
Purchase Components

Electric Motors

Frame	B56
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	115/230 V
Rated current	11.2/5.60 A
L. R. Amperes	69.4/34.7 A
LRC	6.2x(Code M)
No load current	9.00/4.50 A
Rated torque	2.21 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %

Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	0.0975 sq.ft.lb
Insulation Class	B
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP44
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	28.9 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
59.0	67.0	70.0

Power factor

50%	75%	100%
0.43	0.52	0.62

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Shaft End	Key
Resilient Base	Without
