.7512OT3E56C-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

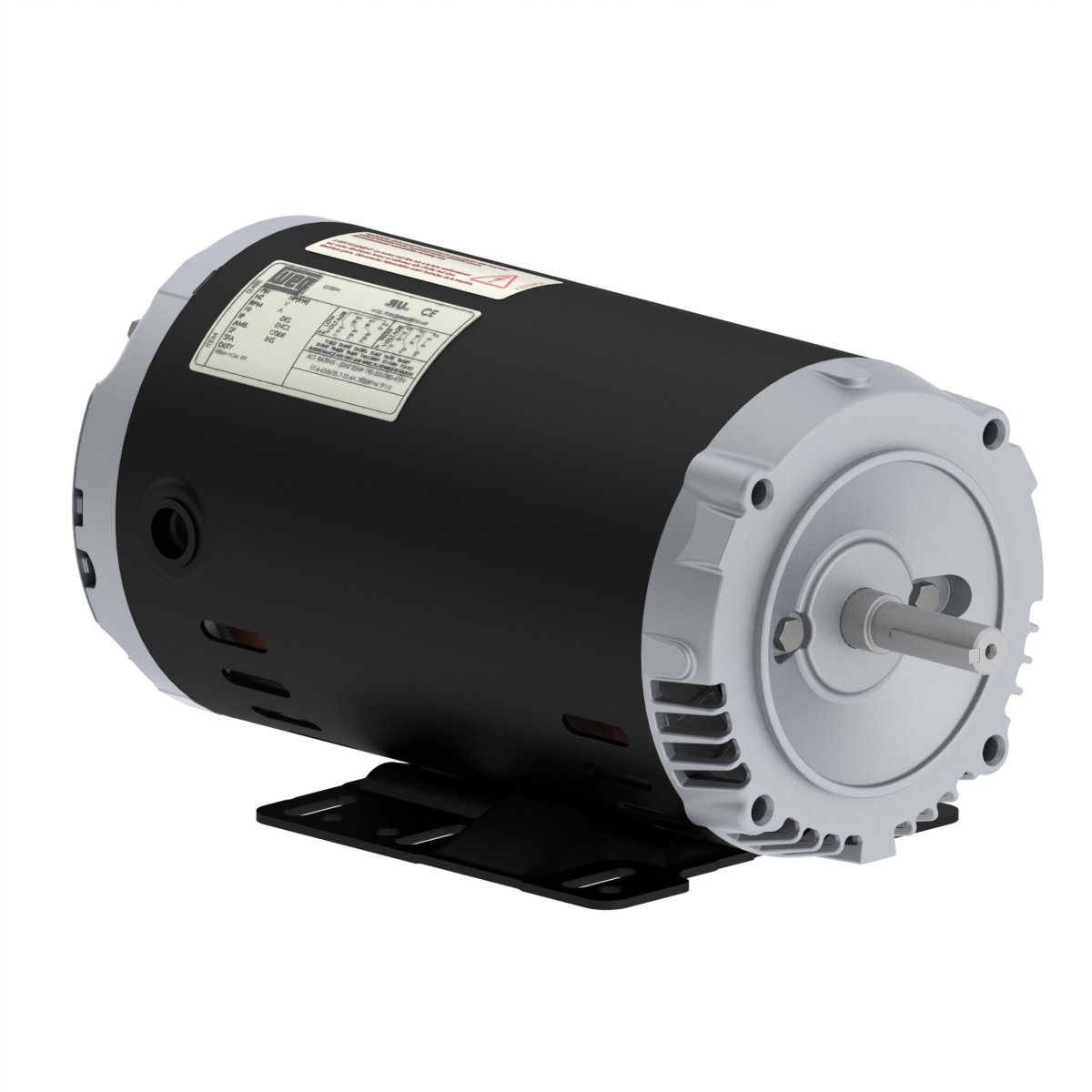

Enlarge Photo

Product ID: .7512OT3E56C-S

.7512OT3E56C-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .7512OT3E56C-S

Selected accessories will also be added to cart
$309.00 / Each
Quantity:
IC01 - ODP, 56HC Frame, 208-230/460VAC 3-Phase 50/60Hz, 12809251, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 2.78-2.52/1.26 A
L. R. Amperes 16.4-14.9/7.43 A
LRC 5.9x(Code J)
No load current 1.55-1.79/0.896 A
Rated torque 3.35 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.1685 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 36.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.5  80.0  81.7

Power factor

50% 75% 100%
0.45  0.58  0.67
Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 945 rpm
Slip 5.50 %
Rated voltage 190/380 V
Rated current 2.86/1.43 A
L. R. Amperes 13.2/6.58 A
LRC 4.6x(Code G)
No load current 1.77/0.886 A
Rated torque 4.11 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 64s (cold) 36s (hot)
Moment of inertia (J) 0.1685 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 36.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.2  79.0  78.0

Power factor

50% 75% 100%
0.53  0.66  0.75
Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 220/415 V
Rated current 2.62/1.39 A
L. R. Amperes 13.9/7.37 A
LRC 5.3x(Code H)
No load current 1.86/0.987 A
Rated torque 4.07 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.1685 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 36.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.2  78.6  78.9

Power factor

50% 75% 100%
0.47  0.60  0.70

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
