.7512ES3E56C-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

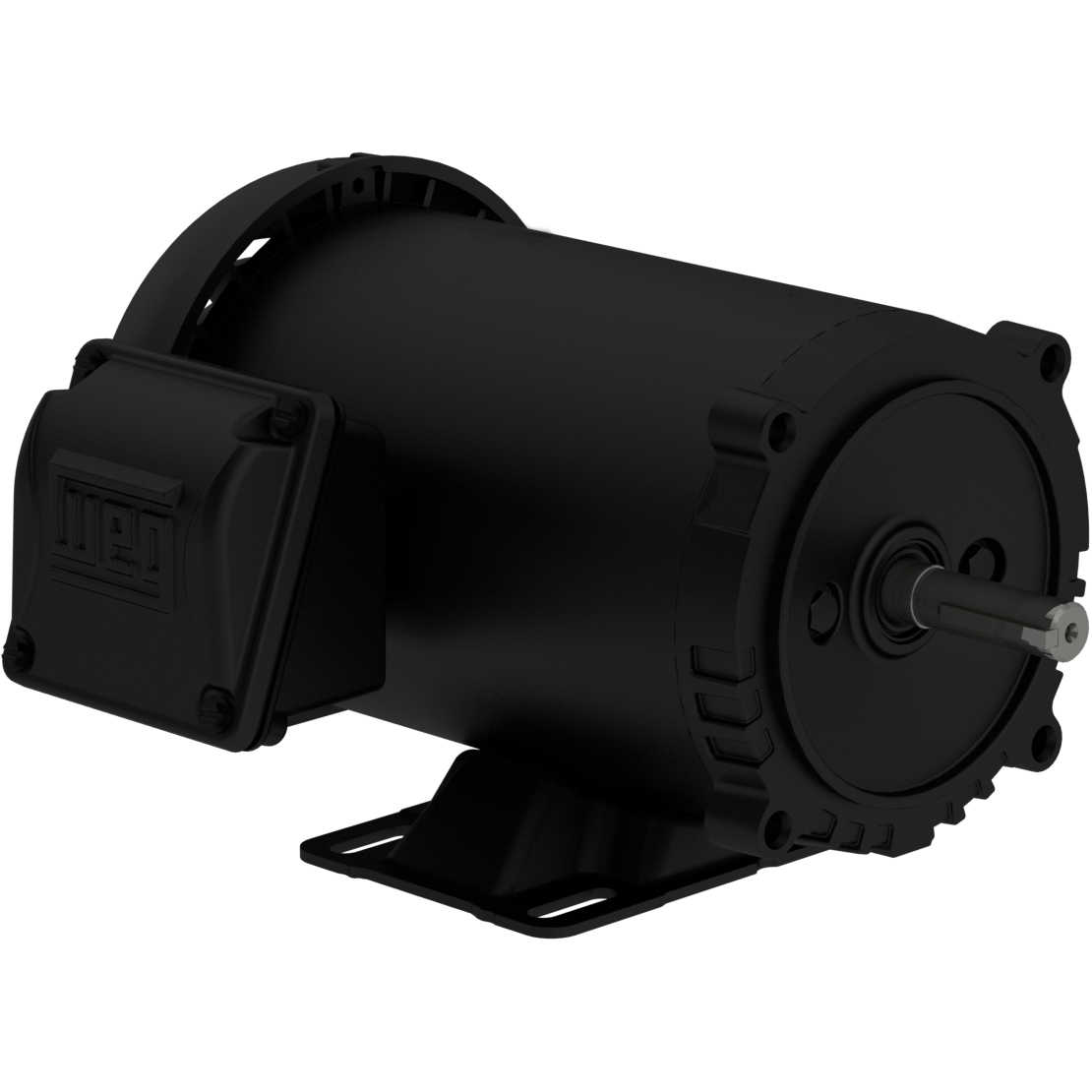

Enlarge Photo

Product ID: .7512ES3E56C-S

.7512ES3E56C-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .7512ES3E56C-S

Selected accessories will also be added to cart
$336.75 / Each
Quantity:
IC411 - TEFC, IP55, 56HC Frame, 208-230/460 60Hz 190-220/380-415VAC 50Hz 3 Phase, 14797646, C-Face, Foot Mounted, Rolled Steel, Standard Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1155 rpm
Slip 3.75 %
Rated voltage 208-230/460 V
Rated current 2.96-2.68/1.34 A
L. R. Amperes 17.2-15.5/7.77 A
LRC 5.8x(Code K)
No load current 1.67-1.94/0.971 A
Rated torque 3.41 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1331 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 31.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.0  74.0  75.5

Power factor

50% 75% 100%
0.46  0.59  0.68
Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 935 rpm
Slip 6.50 %
Rated voltage 190/380 V
Rated current 2.98/1.49 A
L. R. Amperes 13.4/6.71 A
LRC 4.5x(Code G)
No load current 1.91/0.955 A
Rated torque 4.21 ft.lb
Locked rotor torque 170 %
Breakdown torque 210 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1331 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 31.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.3  73.3  72.6

Power factor

50% 75% 100%
0.55  0.68  0.77
Frame 56HC
Output 0.75 HP (0.550 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 220/415 V
Rated current 2.77/1.47 A
L. R. Amperes 13.6/7.20 A
LRC 4.9x(Code H)
No load current 1.94/1.03 A
Rated torque 4.19 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.1331 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 31.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
68.7  72.9  73.2

Power factor

50% 75% 100%
0.51  0.64  0.74

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
