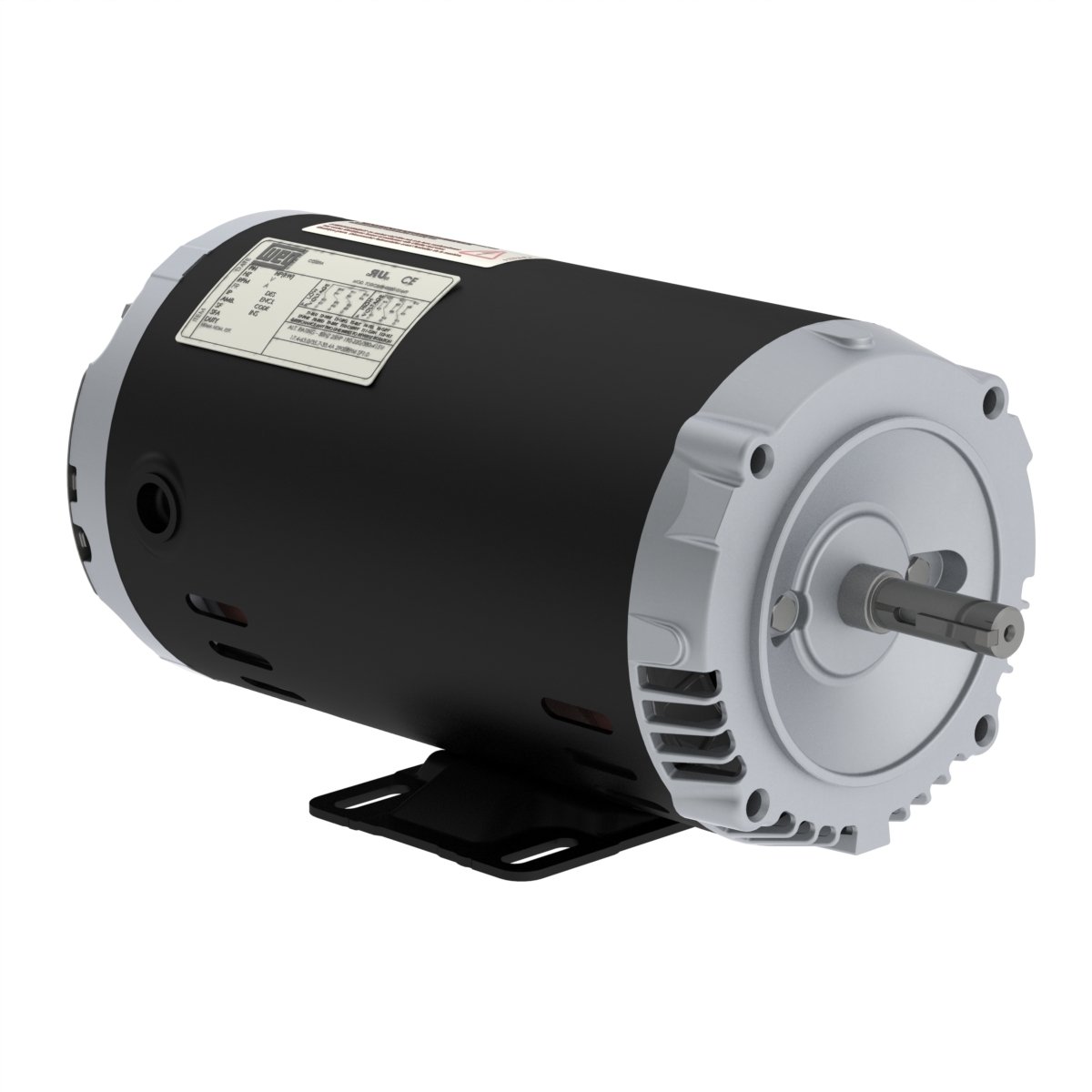

.5036OT3E56C-S WEG 1/2HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: .5036OT3E56C-S

.5036OT3E56C-S WEG 1/2HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036OT3E56C-S

Selected accessories will also be added to cart
$214.50 / Each
Quantity:
IC01 - ODP, 56C Frame, 208-230/460VAC 3-Phase 60Hz, 12809249, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3490 rpm
Slip 3.06 %
Rated voltage 208-230/460 V
Rated current 1.79-1.62/0.811 A
L. R. Amperes 11.1-10.1/5.03 A
LRC 6.2x(Code K)
No load current 0.776-0.900/0.450 A
Rated torque 0.742 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 16.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
64.0  70.0  73.4

Power factor

50% 75% 100%
0.57  0.69  0.78
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2855 rpm
Slip 4.83 %
Rated voltage 190/380 V
Rated current 1.85/0.925 A
L. R. Amperes 8.88/4.44 A
LRC 4.8x(Code G)
No load current 0.880/0.440 A
Rated torque 0.907 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 81s (cold) 45s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 16.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
67.0  71.3  71.5

Power factor

50% 75% 100%
0.65  0.78  0.85
Frame 56C
Output 0.5 HP (0.37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2880 rpm
Slip 4.00 %
Rated voltage 220/415 V
Rated current 1.76/0.932 A
L. R. Amperes 9.14/4.85 A
LRC 5.2x(Code H)
No load current 1.35/0.714 A
Rated torque 0.899 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 66s (cold) 37s (hot)
Moment of inertia (J) 0.0389 sq.ft.lb
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Service factor 1.25 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 16.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.1  68.5  70.8

Power factor

50% 75% 100%
0.55  0.68  0.78

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
