/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/C-Face, Footless/.5036OT1BW56CFL-S WEG 1/2HP Electric Motor, 3600RPM

Product ID: .5036OT1BW56CFL-S

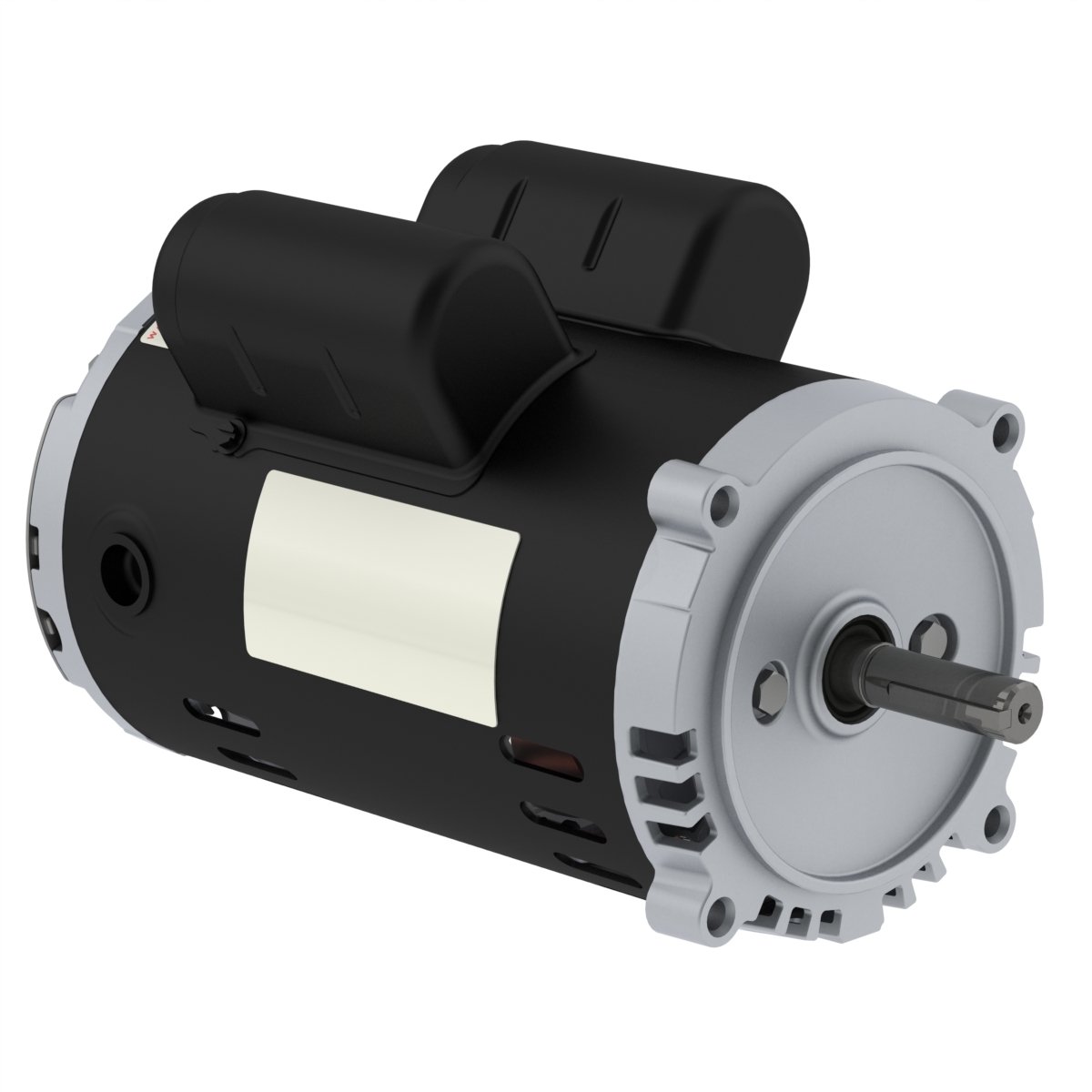

.5036OT1BW56CFL-S WEG 1/2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .5036OT1BW56CFL-S

Selected accessories will also be added to cart

$232.50 / Each

Quantity:

IC01 - ODP, W56C Frame, 115/208-230VAC Single Phase 60Hz, 13189176, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	W56C
Output	0.5 HP (0.37 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3510 rpm
Slip	2.50 %
Rated voltage	115/208-230 V
Rated current	4.80/2.65-2.40 A
L. R. Amperes	42.2/23.3-21.1 A
LRC	8.8x(Code L)
No load current	1.60/0.690-0.800 A
Rated torque	0.738 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.0254 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	21.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
60.0	68.0	72.4

Power factor

50%	75%	100%
0.90	0.93	0.94

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
